Toyota Wish

2003-12 → 2009-10 · chassis ANE1#,ZNE10 · catalogue 163210 · General

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

21 part groups · 2 illustrations

Illustrations

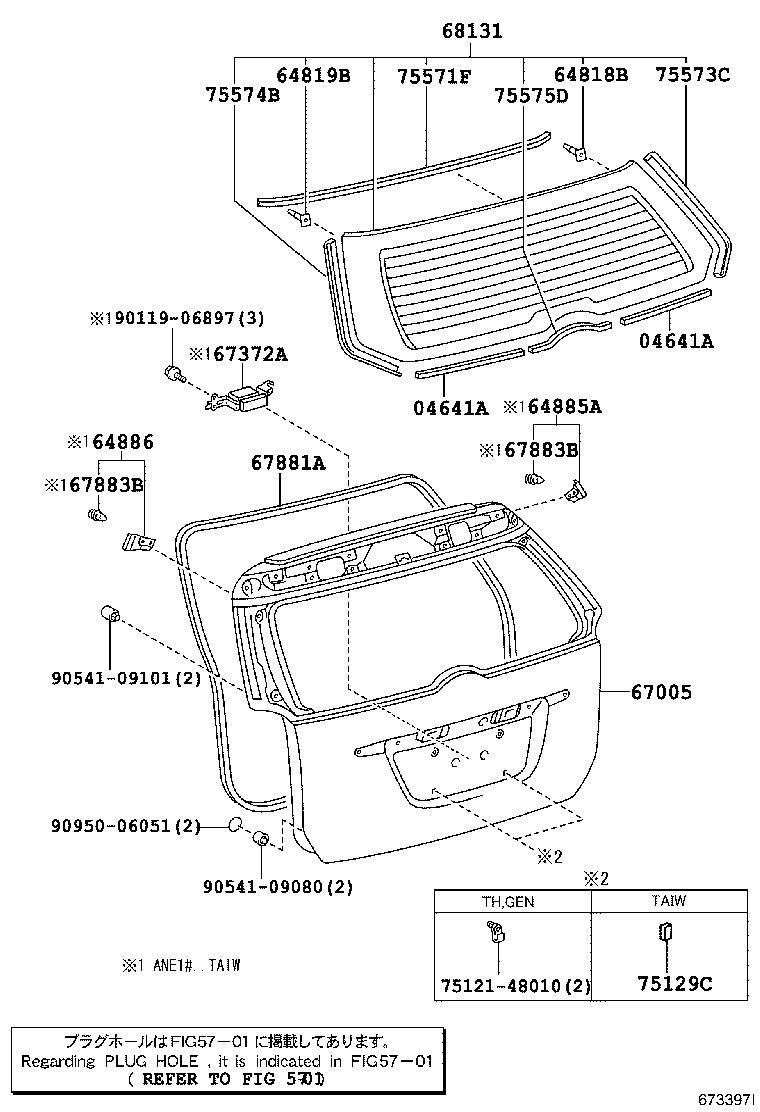

Figure 673026A 673026A 2003-12 → — Figure 673397I 673397I 2003-12 → —

Part groups

PNCDescription
04641A Dam Kit, Back Window Glass Adhesive
64818B Spacer, Back Door Glass, NO.1
64819B Spacer, Back Window Glass, NO.2
64885A Channel, Back Window Glass, RH
64886 Channel, Back Window Glass, LH
67005 Panel Sub-assy, Back Door
67372A Weight, Back Door
67750 Board Assy, Back Door Trim
67765A Cover, Back Door Service Hole, NO.1
67881A Weatherstrip, Back Door
67883B Clip, Back Door Weatherstrip
67937B Garnish, Back Door Side, RH
67938A Garnish, Back Door Side, LH
67939B Garnish, Back Door, Center
68131 Glass, Back Door
74811D Handle, Door Pull
75129C Cushion, Rear Licence Plate
75571F Mouldimg, Back Door Window
75573C Moulding, Back Window, Outside
75574B Moulding, Back Window, Outside LH
75575D Moulding, Back Window, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
