Toyota Wish

2003-12 → 2009-10 · chassis ANE1#,ZNE10 · catalogue 163210 · General

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

18 part groups · 6 illustrations

Illustrations

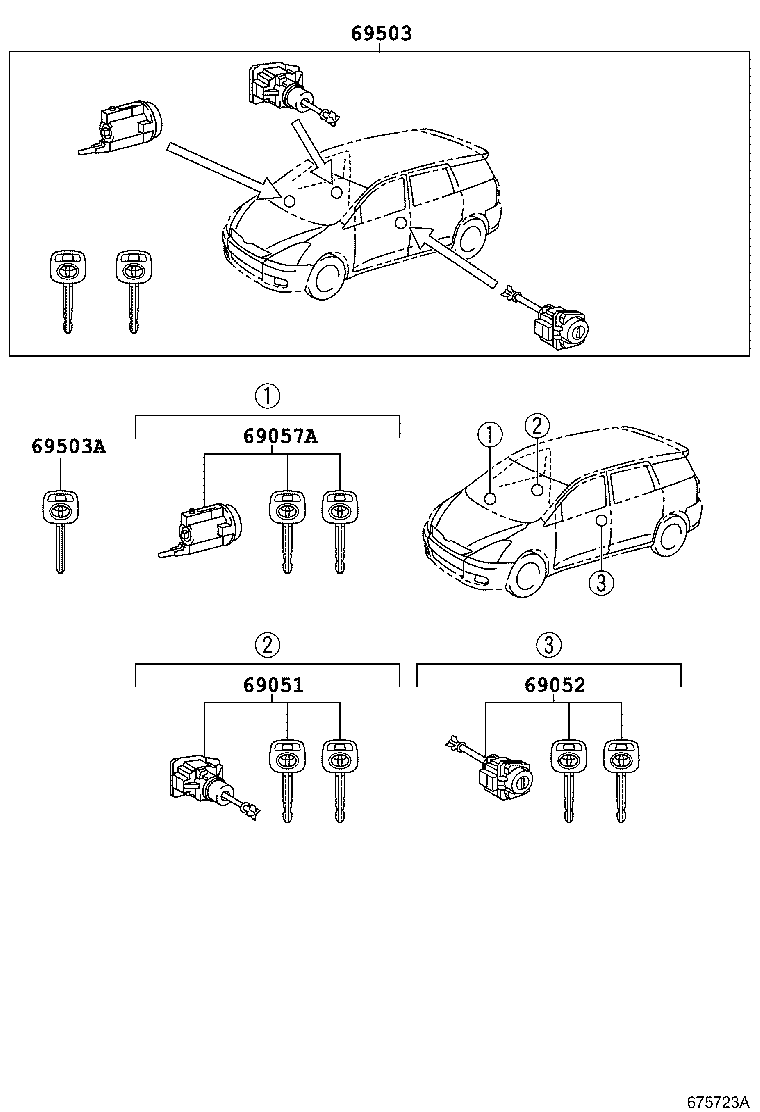

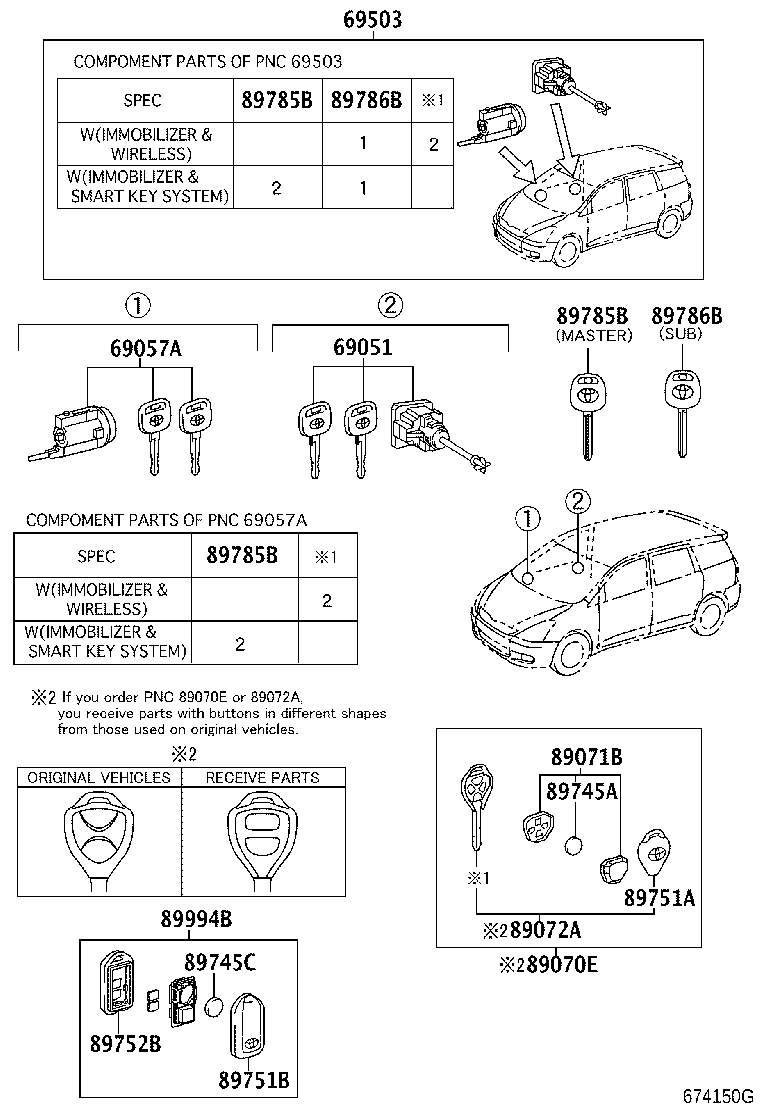

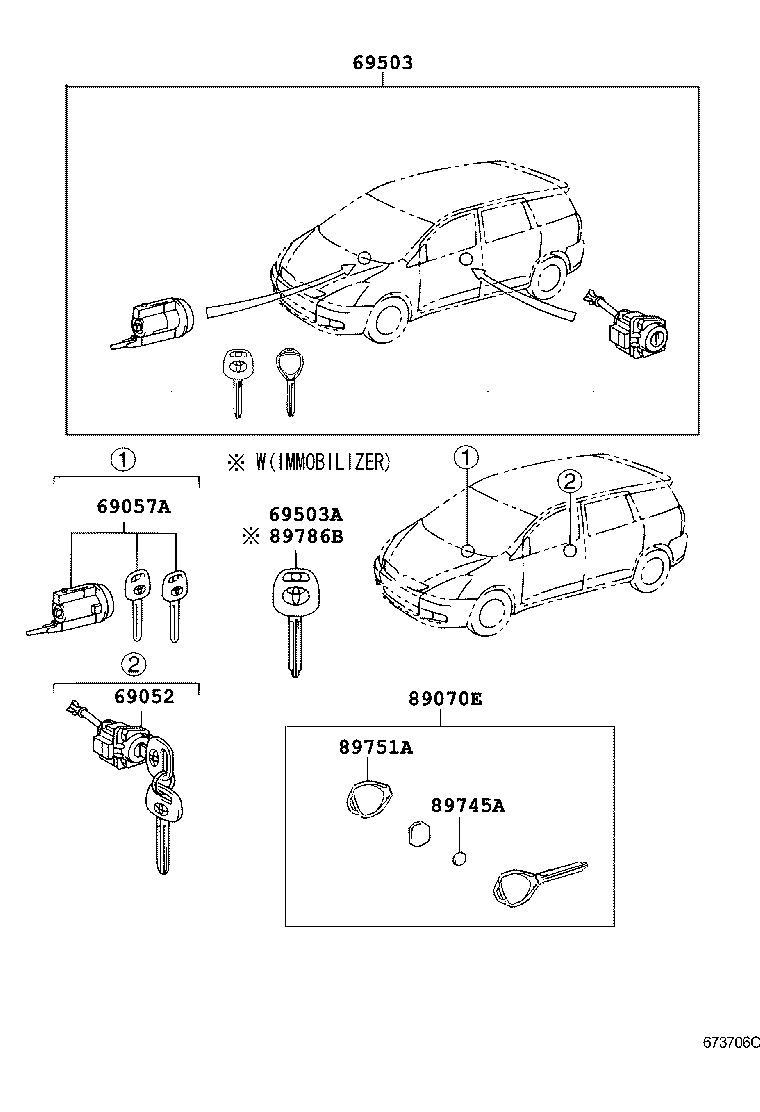

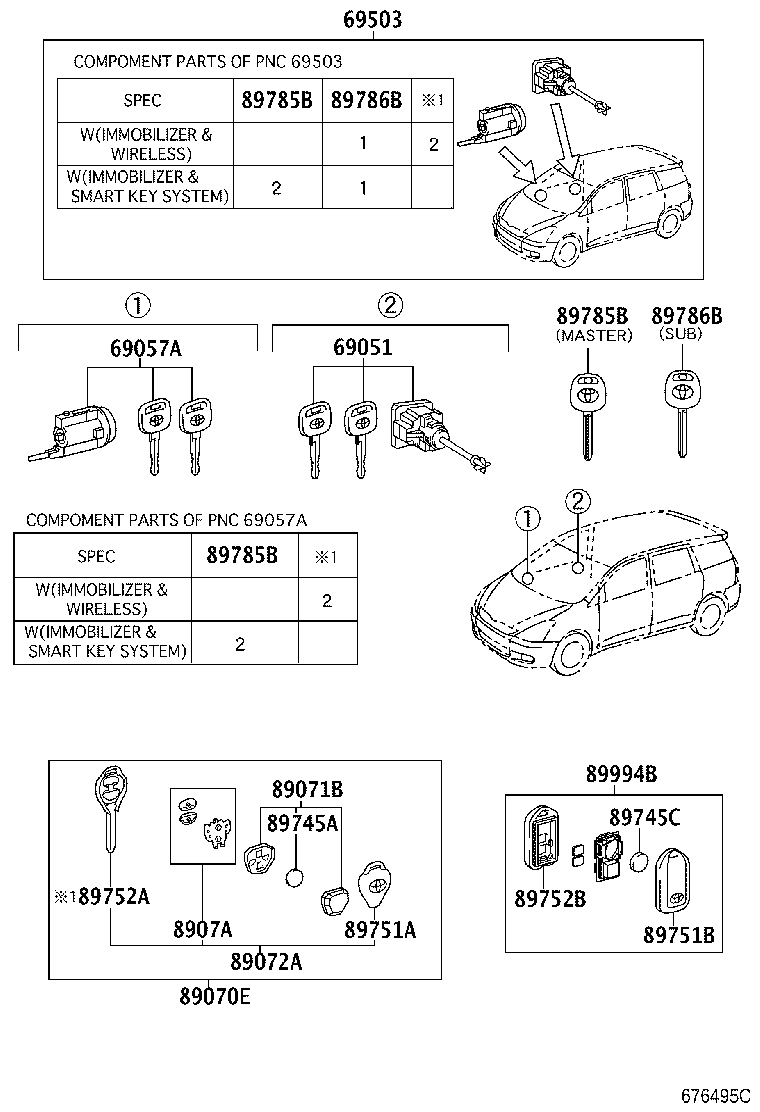

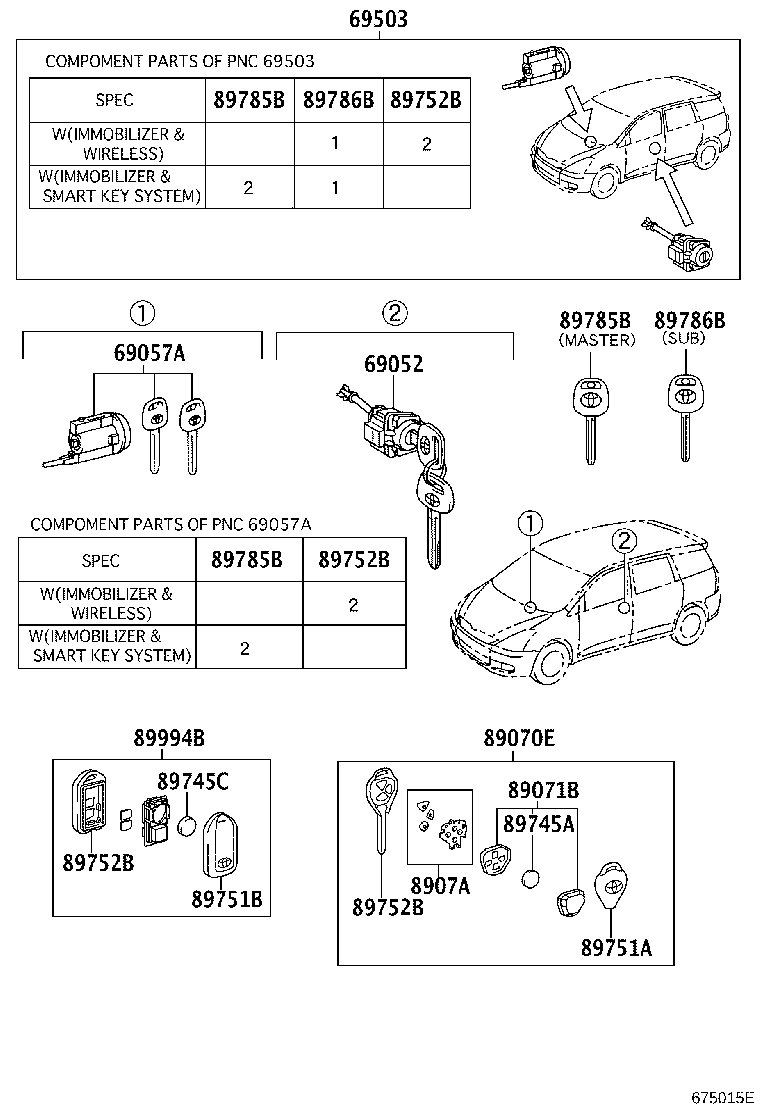

Figure 673401D 673401D 2003-12 → 2005-12 Figure 674150G 674150G 2005-12 → 2007-02 Figure 676495C 676495C 2007-02 → — Figure 673706C 673706C 2004-08 → 2007-03 Figure 675015E 675015E 2007-03 → — Figure 675723A 675723A 2008-04 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503A Key, Blank
89070E Transmitter Assy, Door Control
89071B Module Set, Transmitter Sub-assy, Door Control
89072A Housing Set, Door Control Transmitter
8907A Switch Set, Transmitter
89745A Battery, Transmitter
89745C Battery, Transmitter
89751A Cover, Transmitter Housing
89751B Cover, Transmitter Housing
89752A Case, Transmitter Housing
89752B Case, Transmitter Housing
89785B Transmitter, Transponder Key Master
89786B Transmitter, Transponder Key Sub
89994B Transmitter, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
