Toyota Wish

2003-12 → 2009-10 · chassis ANE1#,ZNE10 · catalogue 163210 · General

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

64 part groups · 9 illustrations

Illustrations

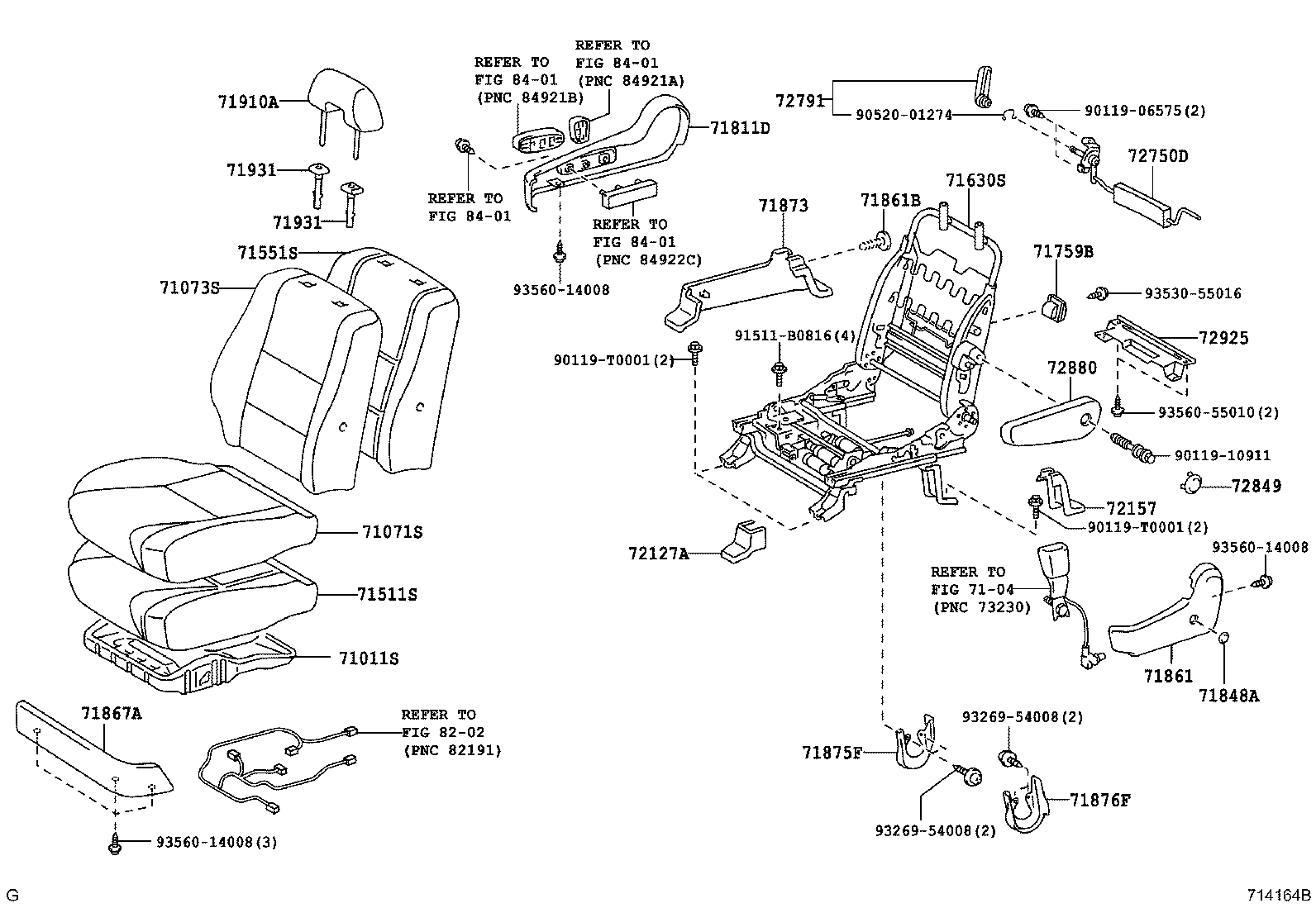

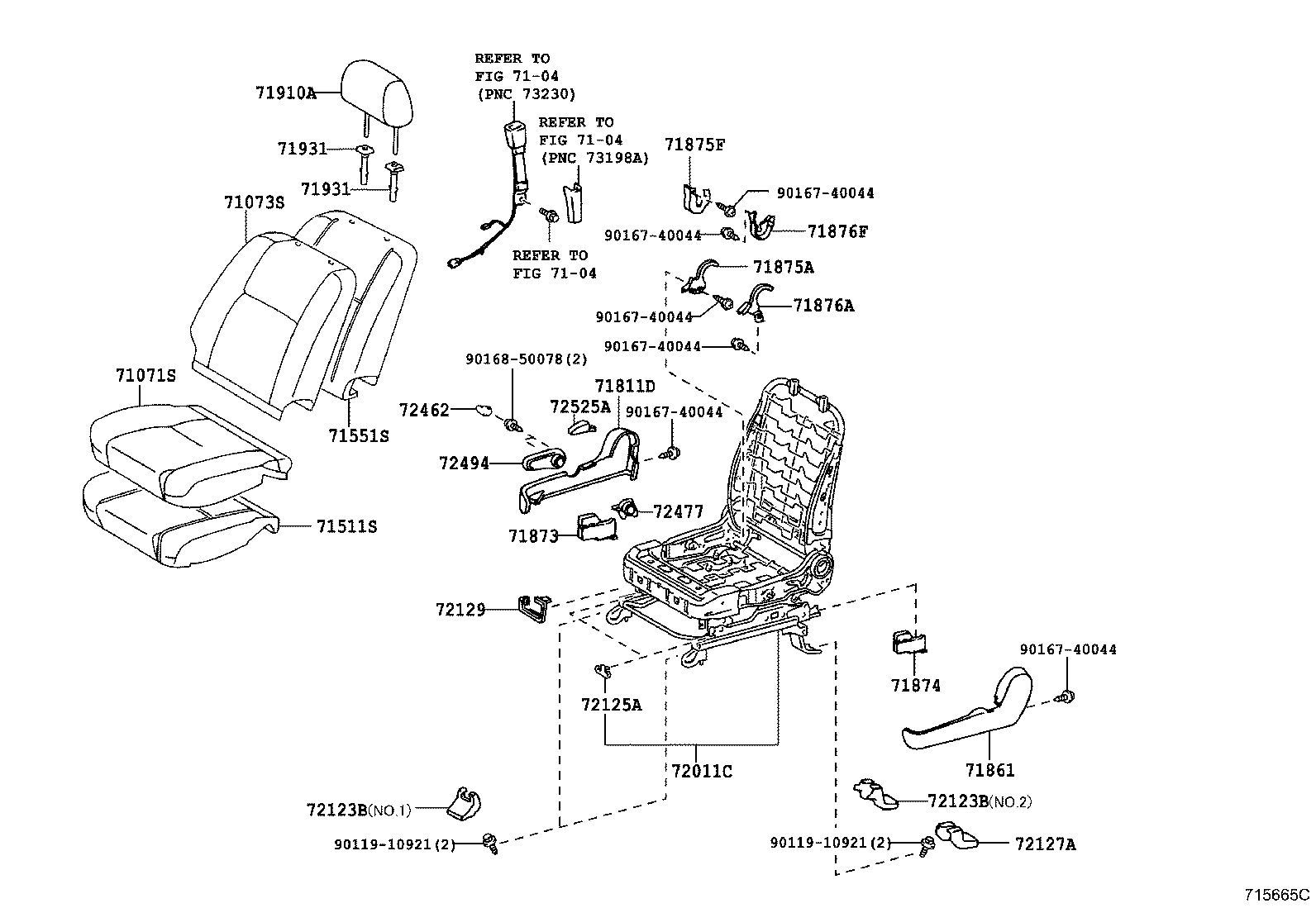

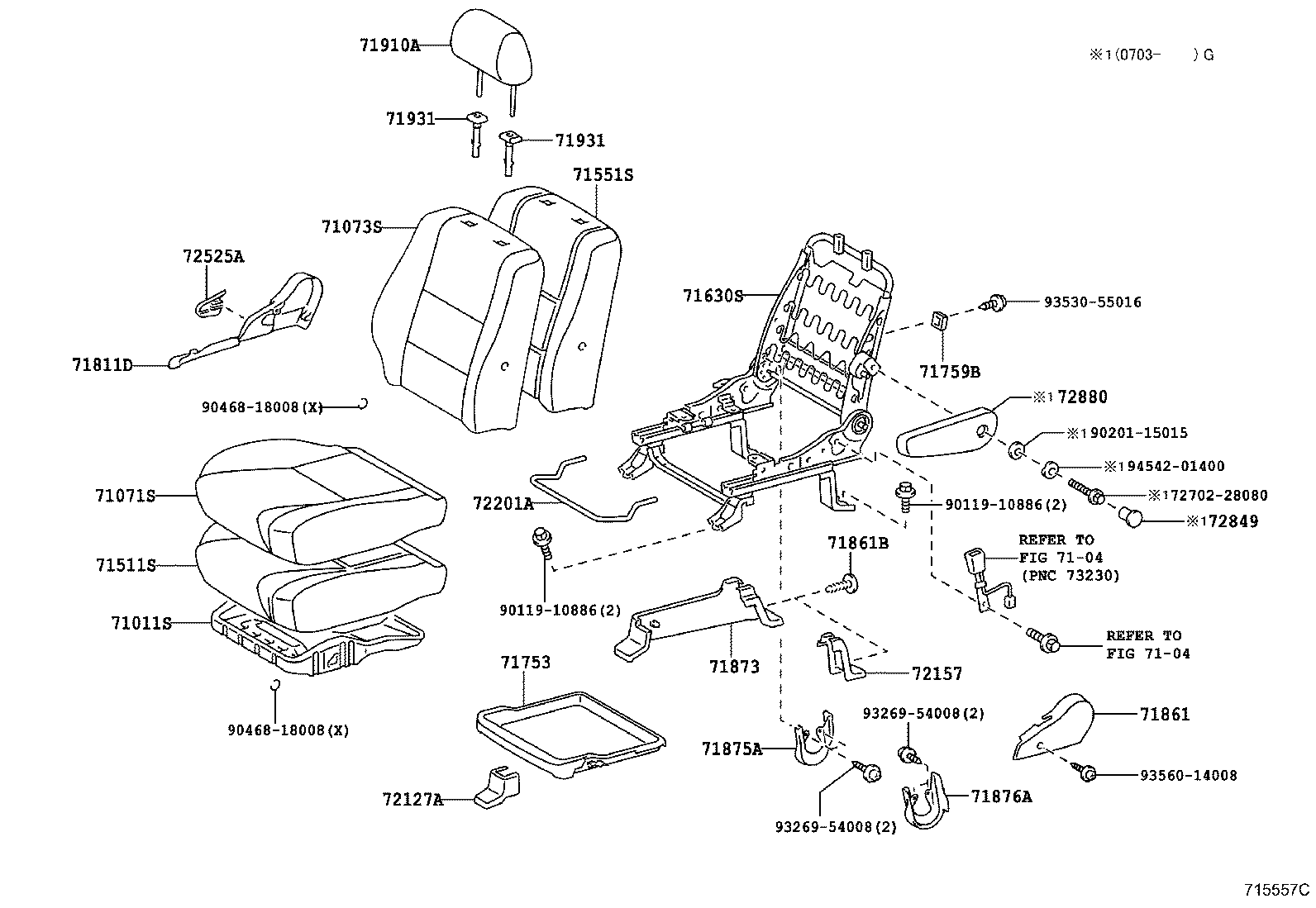

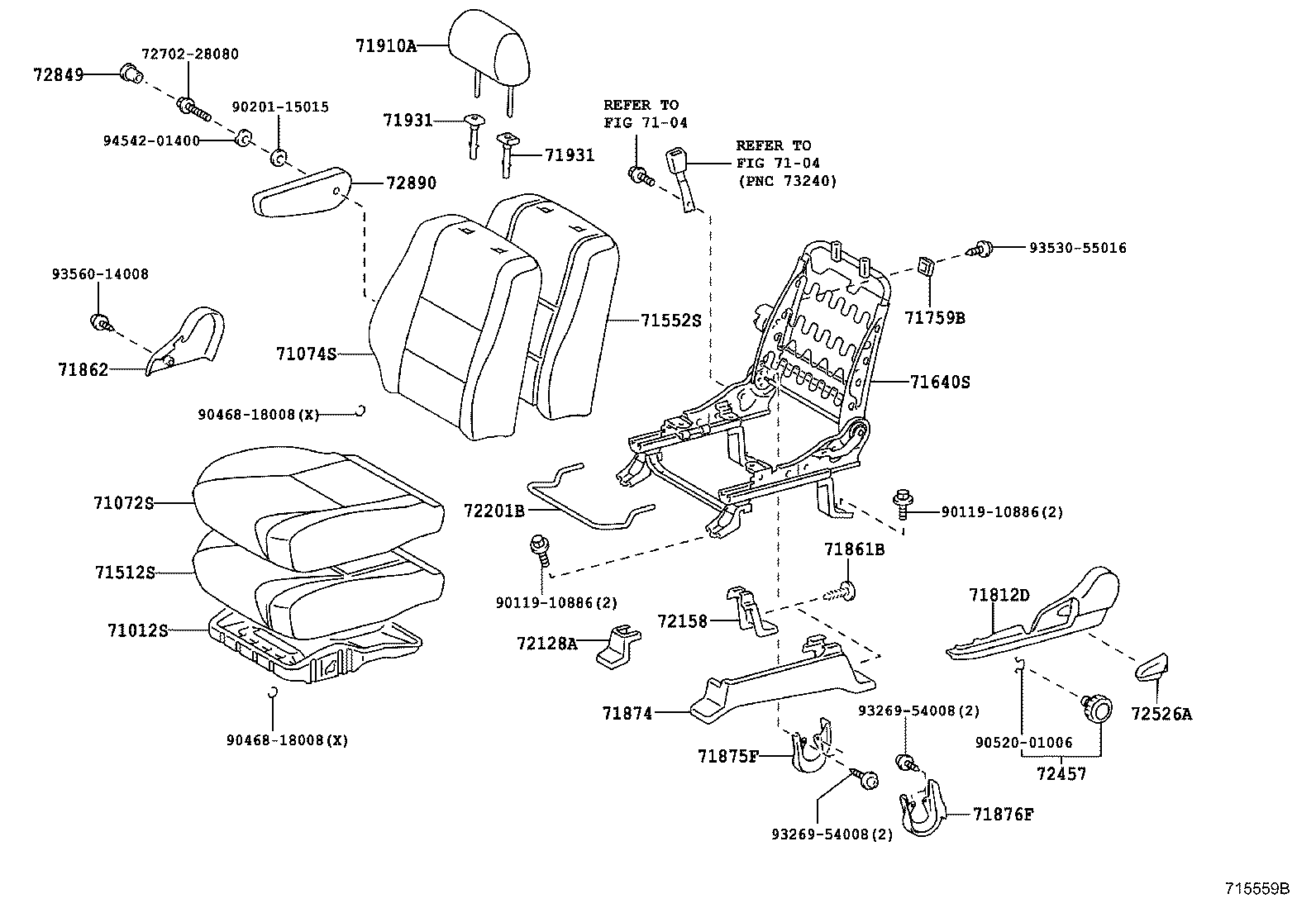

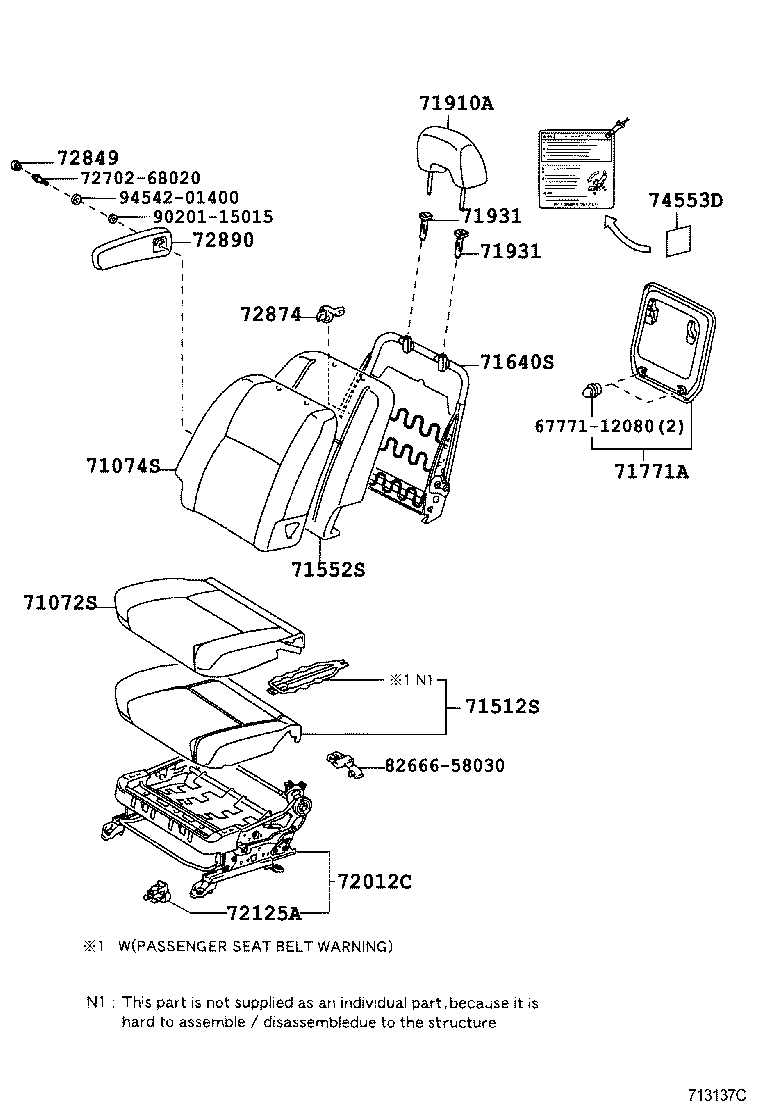

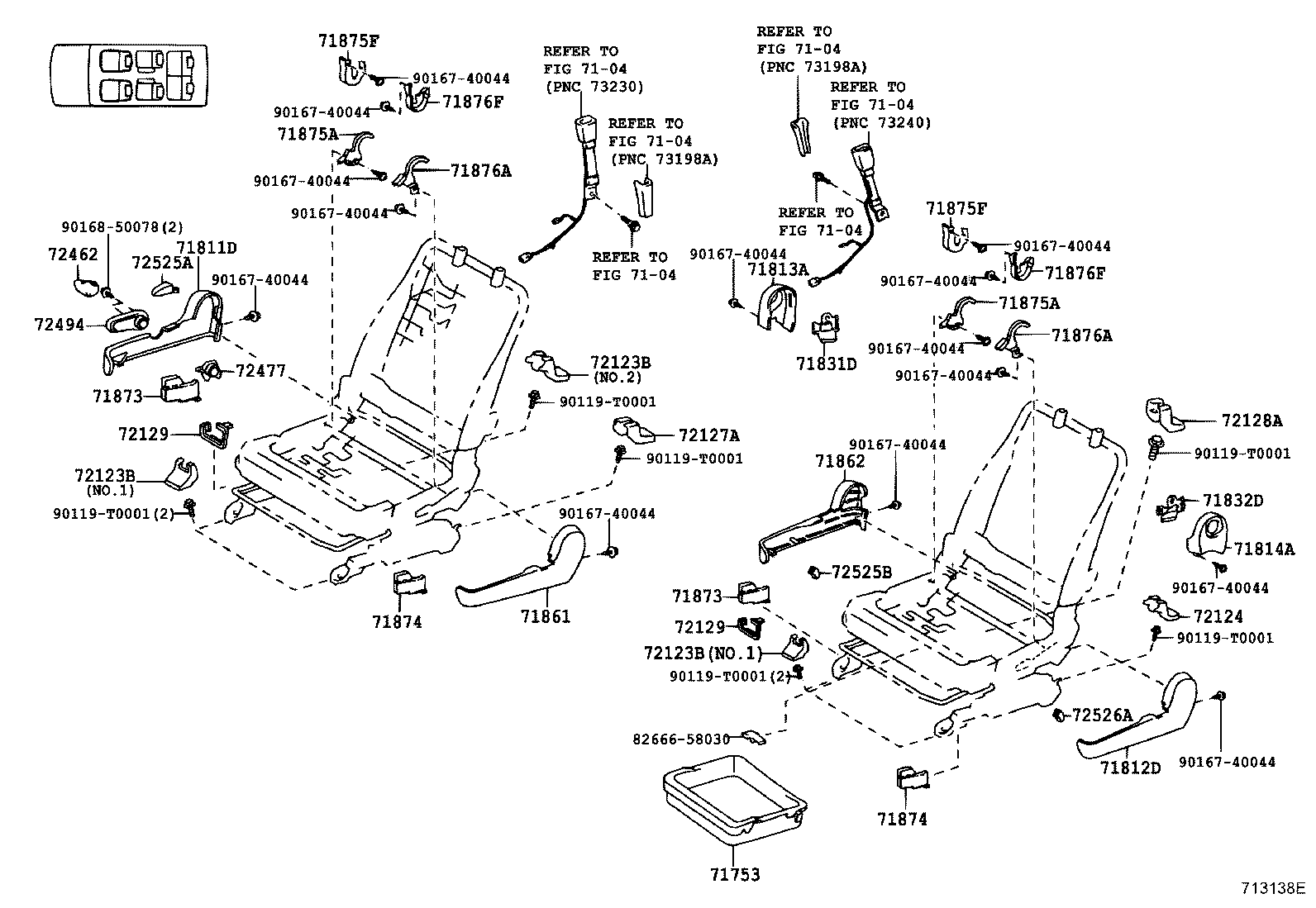

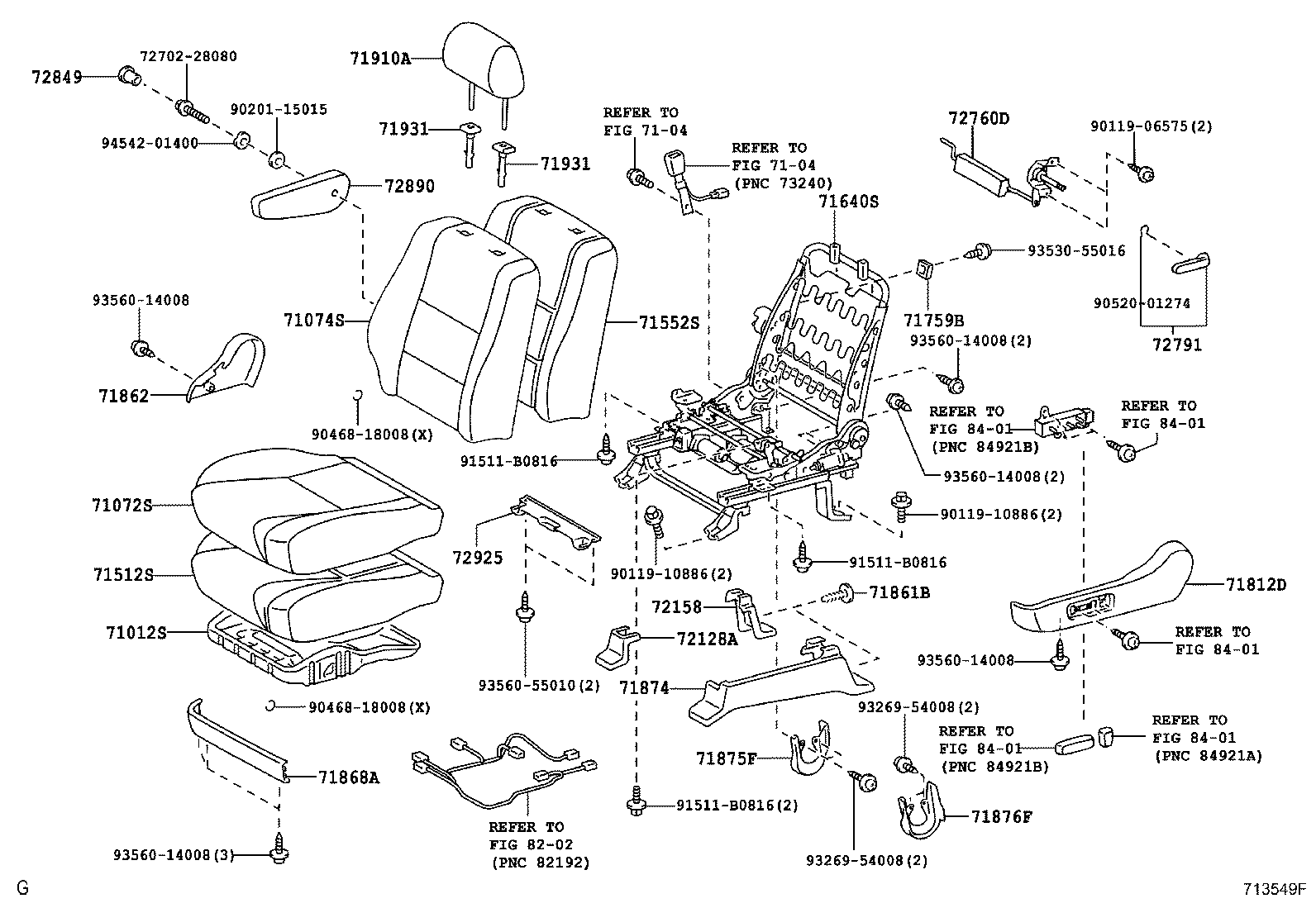

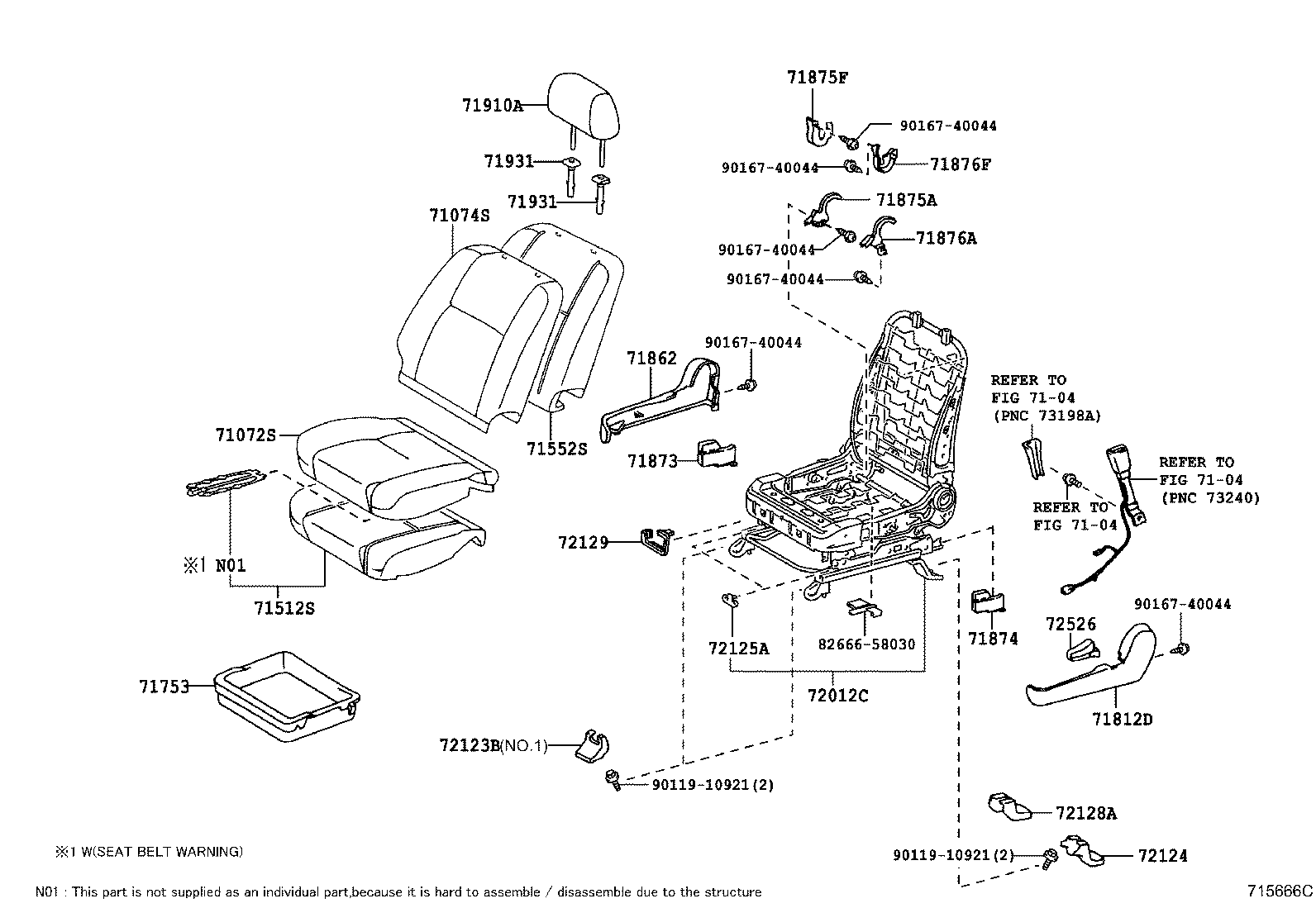

Figure 713136A 713136A 2003-12 → 2009-10 Figure 714164B 714164B 2005-12 → 2009-10 Figure 713137C 713137C 2003-12 → 2009-10 Figure 713138E 713138E 2003-12 → 2009-10 Figure 715557C 715557C 2004-08 → 2009-09 Figure 715559B 715559B 2004-08 → 2009-09 Figure 713549F 713549F 2004-08 → 2009-09 Figure 715665C 715665C 2008-04 → 2009-03 Figure 715666C 715666C 2008-04 → 2009-03

Part groups

PNCDescription
71011S Frame Sub-assy, Front Seat Cushion, RH
71012S Frame Sub-assy, Front Seat Cushion, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71753 Tray, Front Seat Under
71759B Hook, Front Seatback
71771A Board, Front Seatback
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71813A Shield, Front Seatback, RH
71814A Shield, Front Seatback, LH
71831D Cover, Front Seat Hinge, RH
71832D Cover, Front Seat Hinge, LH
71848A Cap, Seat Adjuster Cover, RH
71861 Shield, Front Seat Cushion, Inner RH
71861B Clip(FOR FRONT SEAT SHIELD, RH)
71862 Shield, Front Seat Cushion, Inner LH
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71873 Shield, Front Seat Cushion, Lower RH
71874 Shield, Front Seat Cushion, Lower LH
71875A Cover, Reclining Adjuster Inside, RH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71876A Cover, Reclining Adjuster Inside, LH
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
72011C Adjuster Sub-assy, Front Seat, RH
72012C Adjuster Sub-assy, Front Seat, LH
72123B Cover, Seat Track Bracket, Outer Front
72124 Cover, Seat Track Bracket, Outer Front LH
72125A Cover, Seat Track, Upper Rear
72127A Cover, Seat Track Bracket, Inner Front RH
72128A Cover, Seat Track Bracket, Inner Front LH
72129 Protector, Seat Track Lower Rail, NO.1
72157 Cover, Seat Track Bracket, Inner
72158 Cover, Seat Track Bracket, Inner LH
72201A Handle Sub-assy, Seat Track RH
72201B Handle Sub-assy, Seat Track LH
72457 Knob, Vertical Seat Adjuster
72462 Cover, Vertical Adjuster RH
72477 Spacer, Vertical Adjuster
72494 Handle, Vertical Adjusting, RH
72525A Handle, Reclining Adjuster Release, RH
72525B Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72526A Handle, Reclining Adjuster Release, LH
72750D Adjuster Assy, Lumbar Support, RH
72760D Adjuster Assy, Lumbar Support, LH
72791 Lever, Lumbar Support
72849 Cap, Seat Armrest, NO.2
72874 Bracket, Front Seat Center Armrest, LH
72880 Armrest Assy, Seat, C RH
72890 Armrest Assy, Seat, C LH
72925 Cover, Front Seat Cushion
74553D Label, Front Seat Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
