Toyota Wish
2003-12 → 2009-10 · chassis ANE1#,ZNE10 · catalogue 163210 · General
Supported model
Data version 2010-01
Seat Belt & Child Restraint Seat

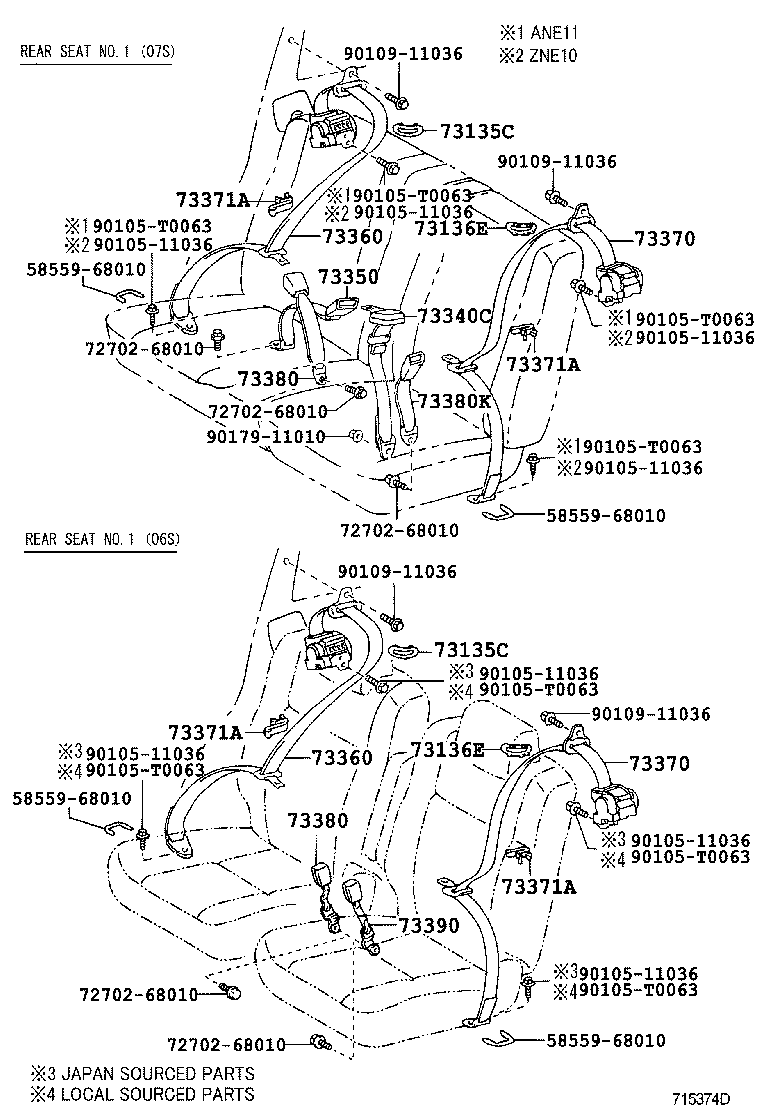

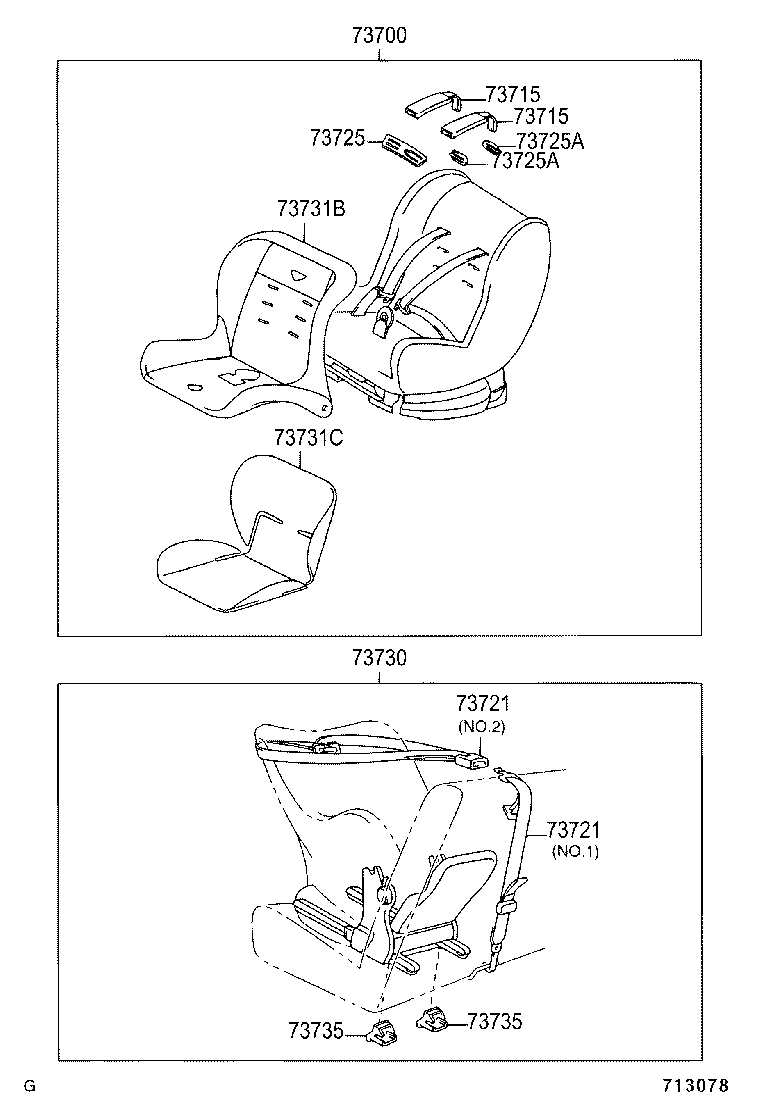

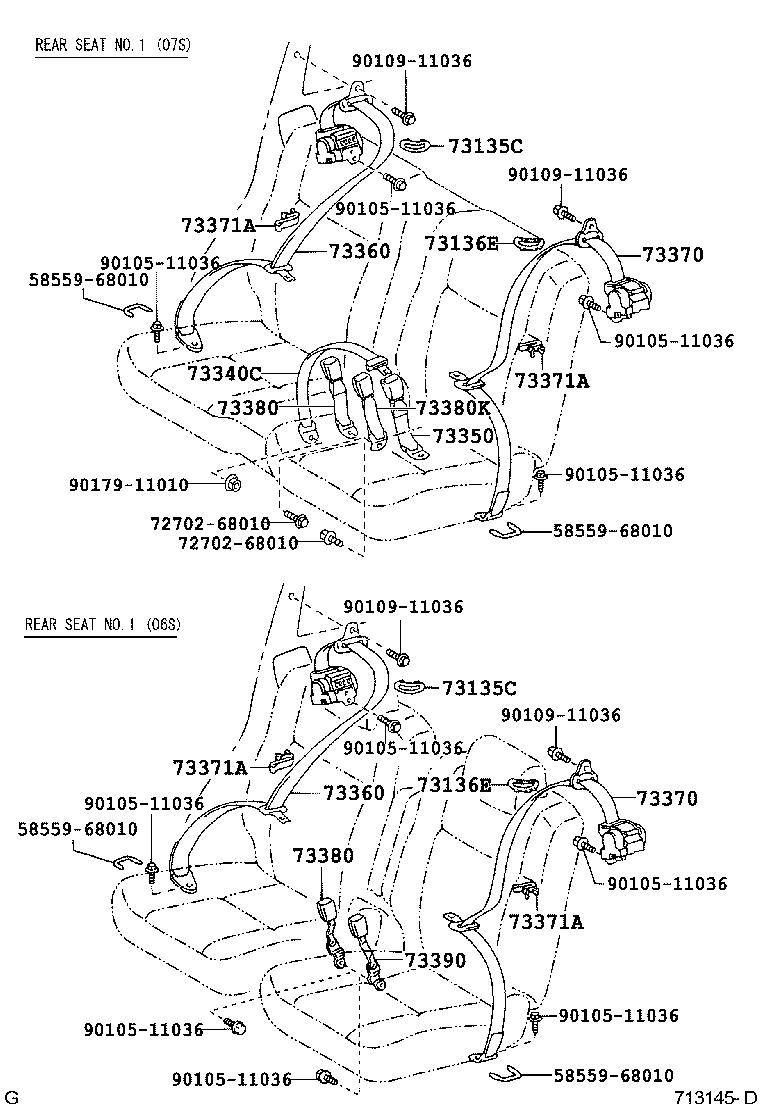

34 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 73135 | Cover, Shoulder Belt Anchorage Plate |
| 73135C | Cover, Shoulder Belt Anchor, NO.2, RH |
| 73135D | Cover, Shoulder Belt Anchor, NO.1 RH |
| 73136E | Cover, Shoulder Belt Anchor, NO.2, LH |
| 73136F | Cover, Shoulder Belt Anchor, NO.1 LH |
| 73178A | Cap, Seat Belt Anchor Cover |
| 73198A | Cover, Front Seat Belt Inner Anchor, RH |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73219 | Stopper, Tongue Plate |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73233 | Cover, Lap Belt Outer Anchor |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73340C | Belt Assy, Rear Seat Lap Type, Center LH |
| 73350 | Belt Assy, Rear Seat Lap Type, Center |
| 73360 | Belt Assy, Rear Seat 3 Point Type, Outer RH |
| 73370 | Belt Assy, Rear Seat 3 Point Type, Outer LH |
| 73371A | Hanger Rear Seat Shoulder Belt |
| 73380 | Belt Assy, Rear Seat 3 Point Type, Inner, RH |
| 73380K | Belt Assy, Rear Seat 3 Point Type, Inner, LH |
| 73390 | Belt Assy, Rear Seat 3 Point Type, Inner, LH |
| 73560 | Belt Assy, Rear NO.2 Seat, Outer RH |
| 73570 | Belt Assy, Rear NO.2 Seat, Outer LH |
| 73580A | Belt Sub Assy, Rear NO.2 Seat, Inner |
| 73700 | Seat Assy, Child Restraint |
| 73715 | Protector, Child Restraint Seat Belt |
| 73721 | Belt, Child Restraint Seat |
| 73725 | Clip, Child Restraint Seat Belt |
| 73725A | Clip, Child Restraint Seat Belt |
| 73730 | Base Assy, Child Restraint Seat |
| 73731B | Cover, Child Restraint Seat, NO.1 |
| 73731C | Cover, Child Restraint Seat, NO.2 |
| 73735 | Cup, Child Restraint Seat Guide |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
