Toyota Wish

2003-12 → 2009-10 · chassis ANE1#,ZNE10 · catalogue 163210 · General

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

20 part groups · 6 illustrations

Illustrations

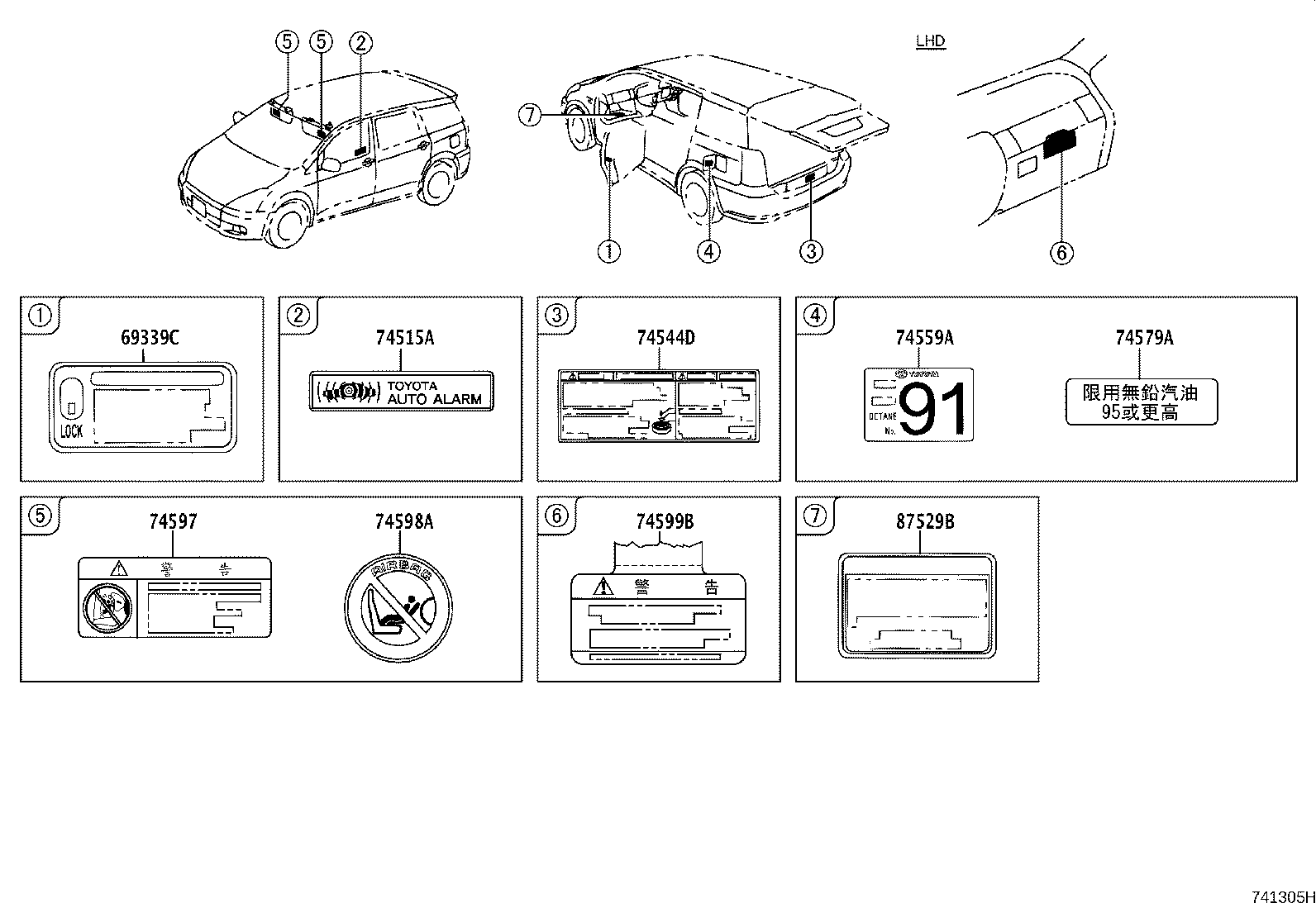

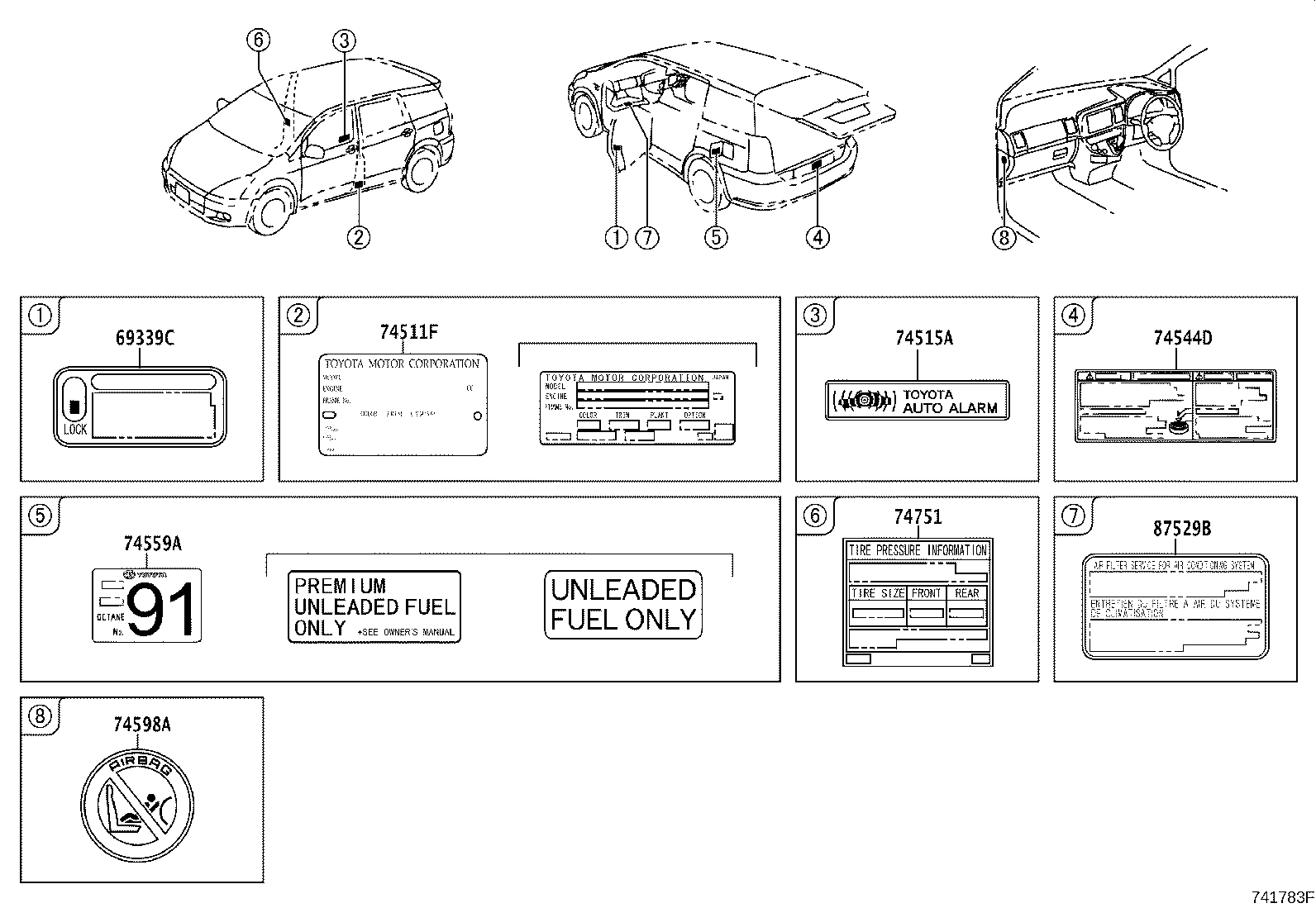

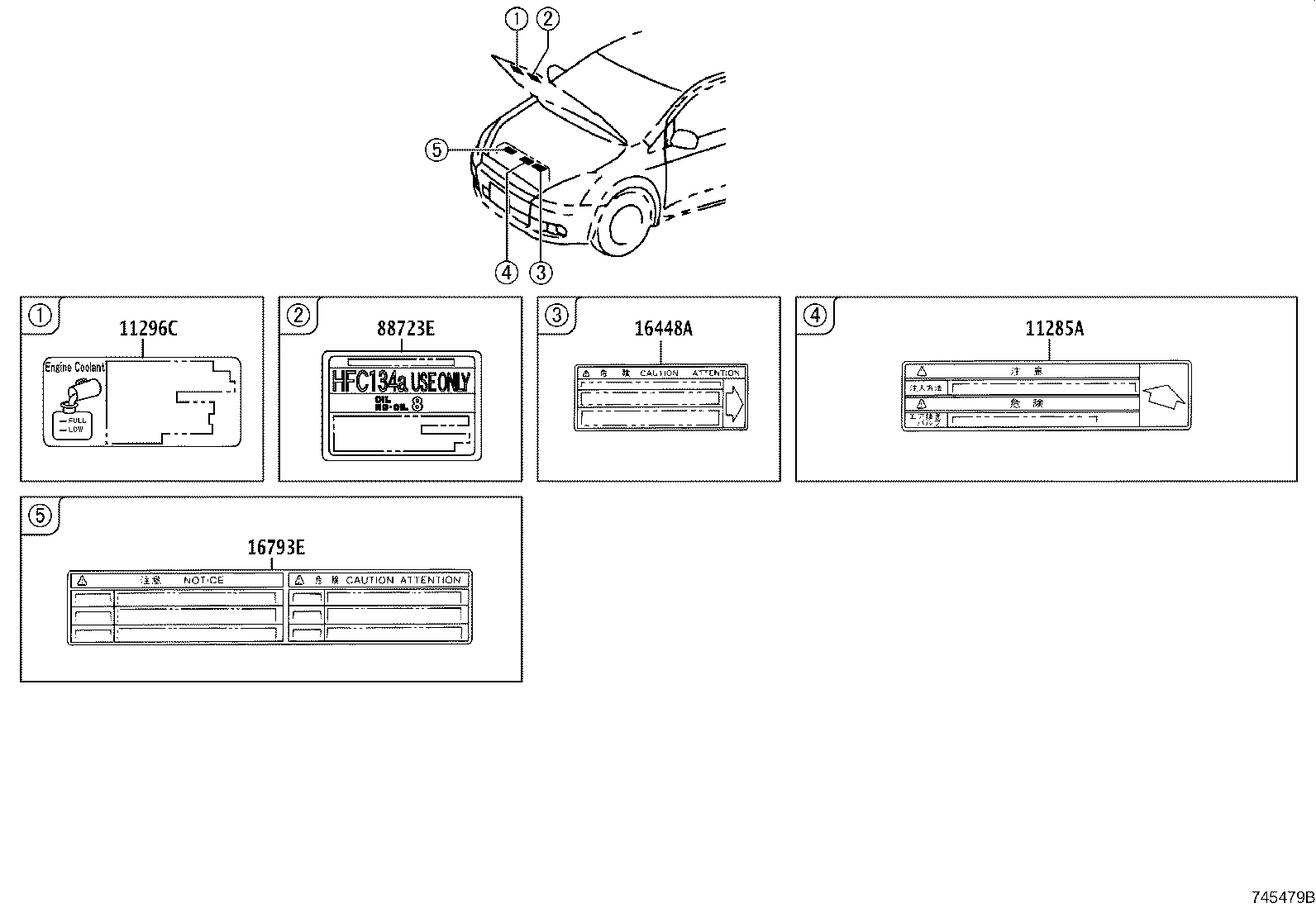

Figure 745478B 745478B 2003-12 → 2005-12 Figure 745478B 745478B 2004-08 → 2009-09 Figure 741305H 741305H 2003-12 → 2005-12 Figure 741305H 741305H 2004-08 → 2009-09 Figure 745479B 745479B 2005-12 → 2009-10 Figure 741783F 741783F 2005-12 → 2009-10

Part groups

PNCDescription
11285A Label, Coolant System Notice
11296C Label, Engine Service Information
11298B Label, Emission Control Information
16448A Plate, Radiator Caution
16793E Label, Cooling Fan Caution
17792D Label, Emission Control Device Information
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515A Plate, Theft Warning
74533F Label, Headlamp Voltage Caution
74544D Plate, Tire Carrier Caution
74559A Plate, Fuel Caution
74574 Plate, Noise Identification
74579A Label, Unleaded Fuel Information
74597 Label, Driver & Passenger Airbag Caution
74598A Label, Passenger Airbag Caution
74599B Label, Driver & Passenger Airbag Information
74751 Label, Tire Pressure Information
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
