Factory parts data · Europe

Toyota Wish

2003-12 → 2009-10 · chassis ANE1#,ZNE10 · catalogue 163210 · General

Supported model Data version 2010-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

12 part groups · 2 illustrations

Illustrations

Figure 760339K

760339K 2003-12 → —

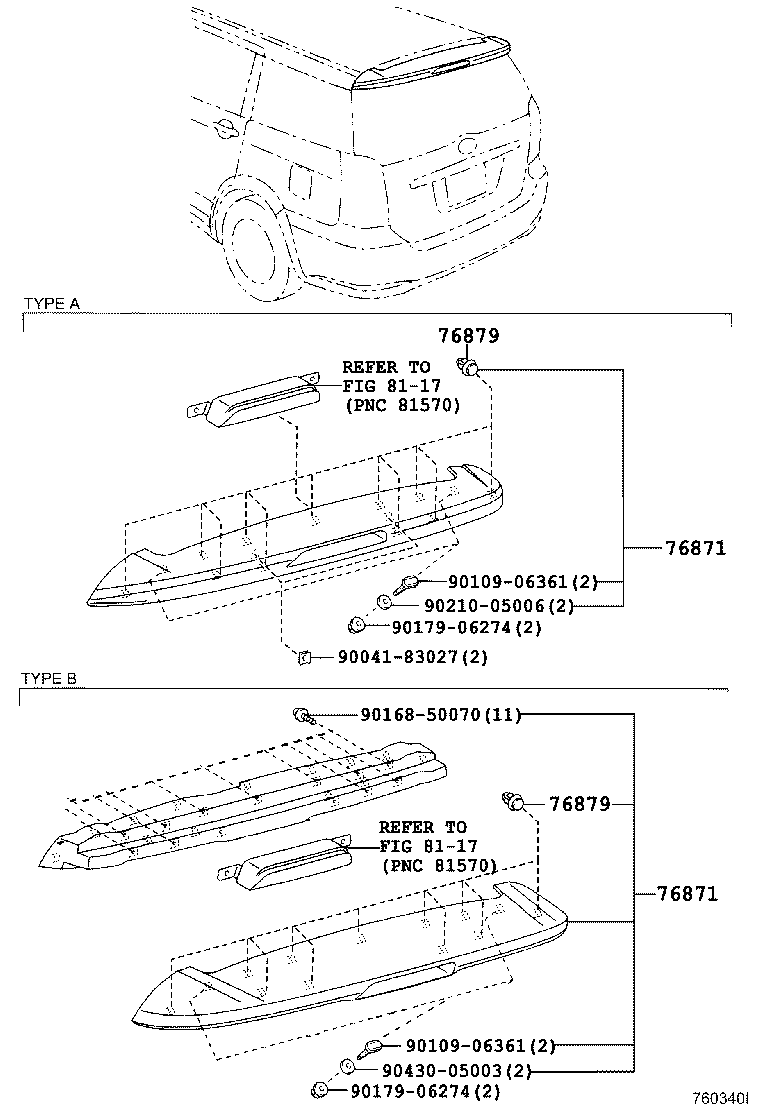

Figure 760340I

760340I 2003-12 → —

Part groups

PNC	Description
76871	Spoiler, Rear
76879	Clip, Rear Spoiler, NO.1
76911B	Mudguard, Side, RH
76912D	Mudguard, Side, LH
76924	Retainer, Side Mudguard, NO.2
76925D	Protector, Side Mudguard, RH
76926D	Protector, Side Mudguard, LH
76931A	Bracket, Side Mudguard, NO.1 RH
76932A	Bracket, Side Mudguard, NO.1 LH
76933A	Bracket, Side Mudguard, NO.2 RH
76934A	Bracket, Side Mudguard, NO.2 LH
76935	Retainer, Side Mudguard, NO.7

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
