Toyota Wish

2003-12 → 2009-10 · chassis ANE1#,ZNE10 · catalogue 163210 · General

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

13 part groups · 4 illustrations

Illustrations

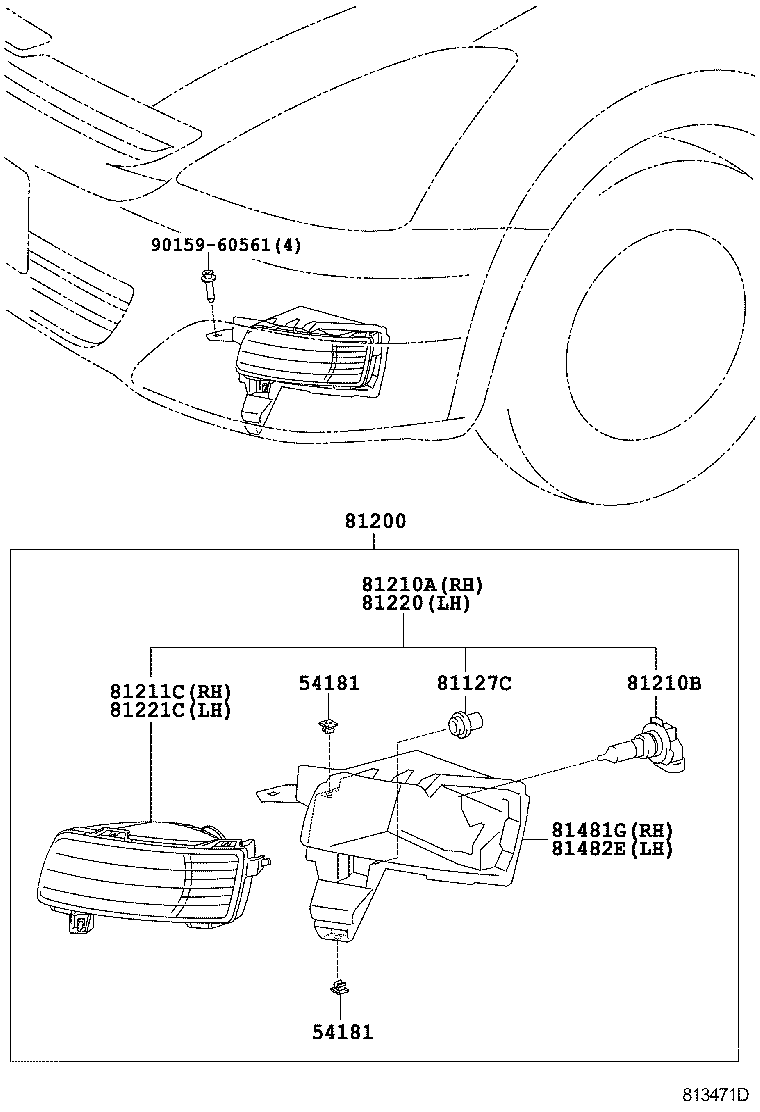

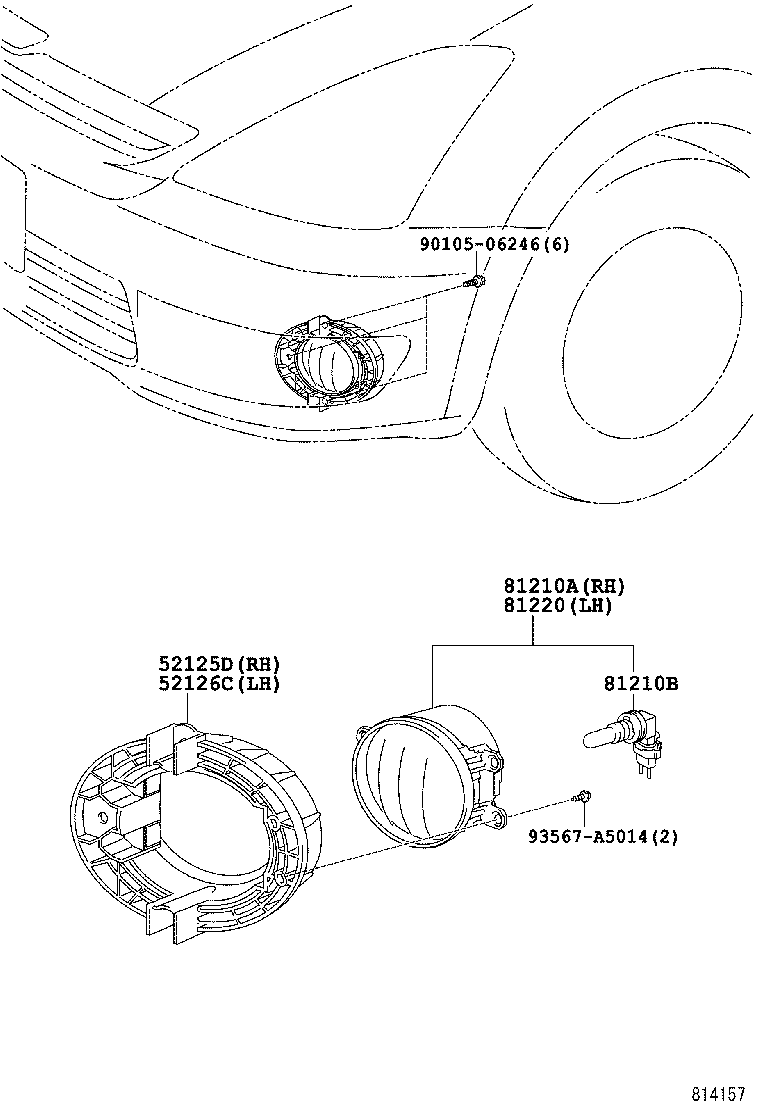

Figure 812410A 812410A 2003-12 → 2005-12 Figure 812953B 812953B 2004-08 → 2007-03 Figure 814157 814157 2007-03 → — Figure 813471D 813471D 2005-12 → —

Part groups

PNCDescription
52125D Bracket, Fog Lamp Mounting, RH
52126C Bracket, Fog Lamp Mounting, LH
54181 Bracket, Fog Lamp Base, NO.1
81127C Bearing Fog Lamp
81200 Lamp Assy, Fog
81210A Lamp Assy, Fog, RH
81210B Bulb, Fog Lamp
81211C Lamp Unit, Fog Lamp, RH
81212C Cover, Fog Lamp
81220 Lamp Assy, Fog, LH
81221C Lamp Unit, Fog Lamp, LH
81481G Bracket, Fog Lamp, RH
81482E Bracket, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
