Toyota Wish
2003-12 → 2009-10 · chassis ANE1#,ZNE10 · catalogue 163210 · General
Supported model
Data version 2010-01

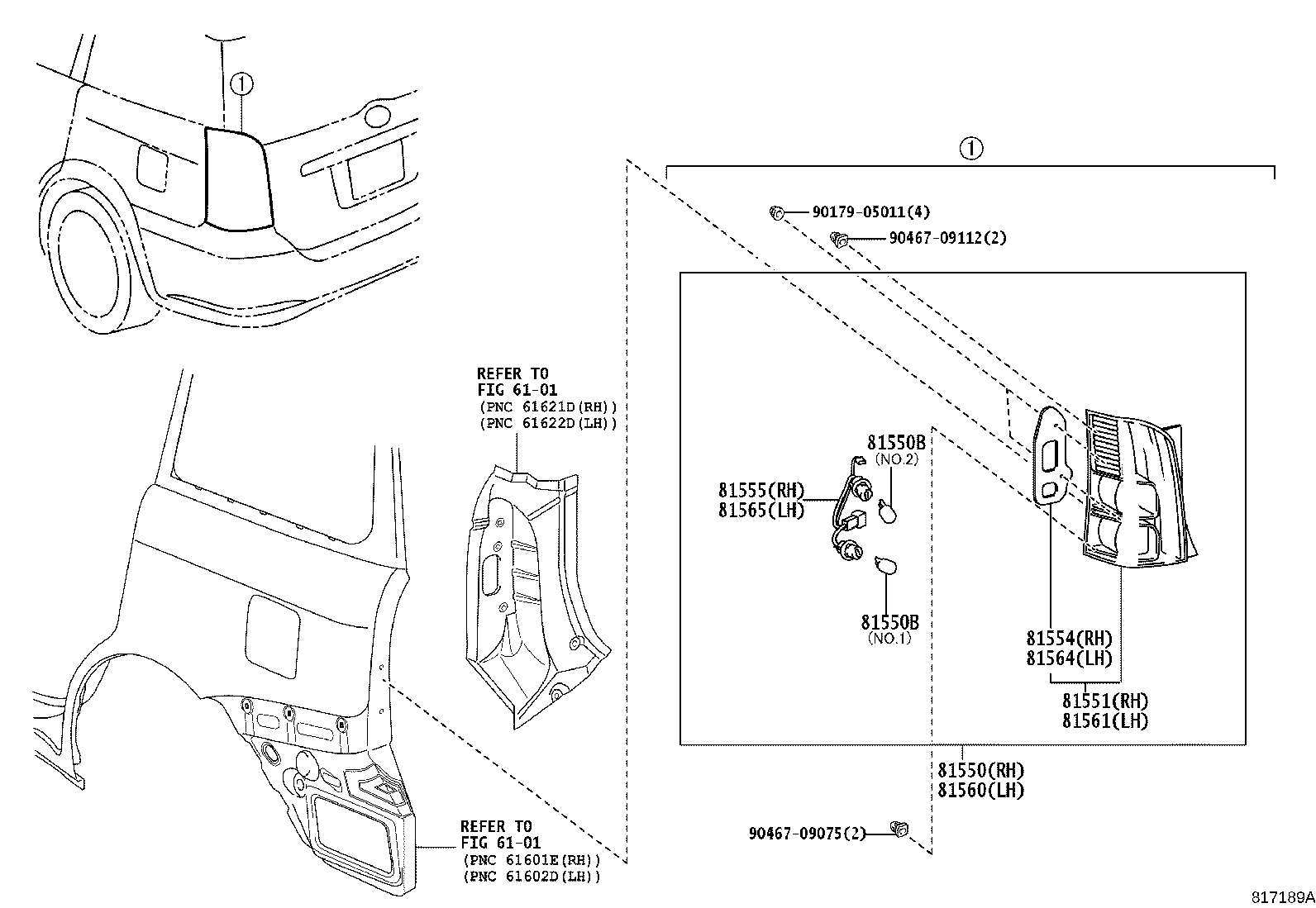

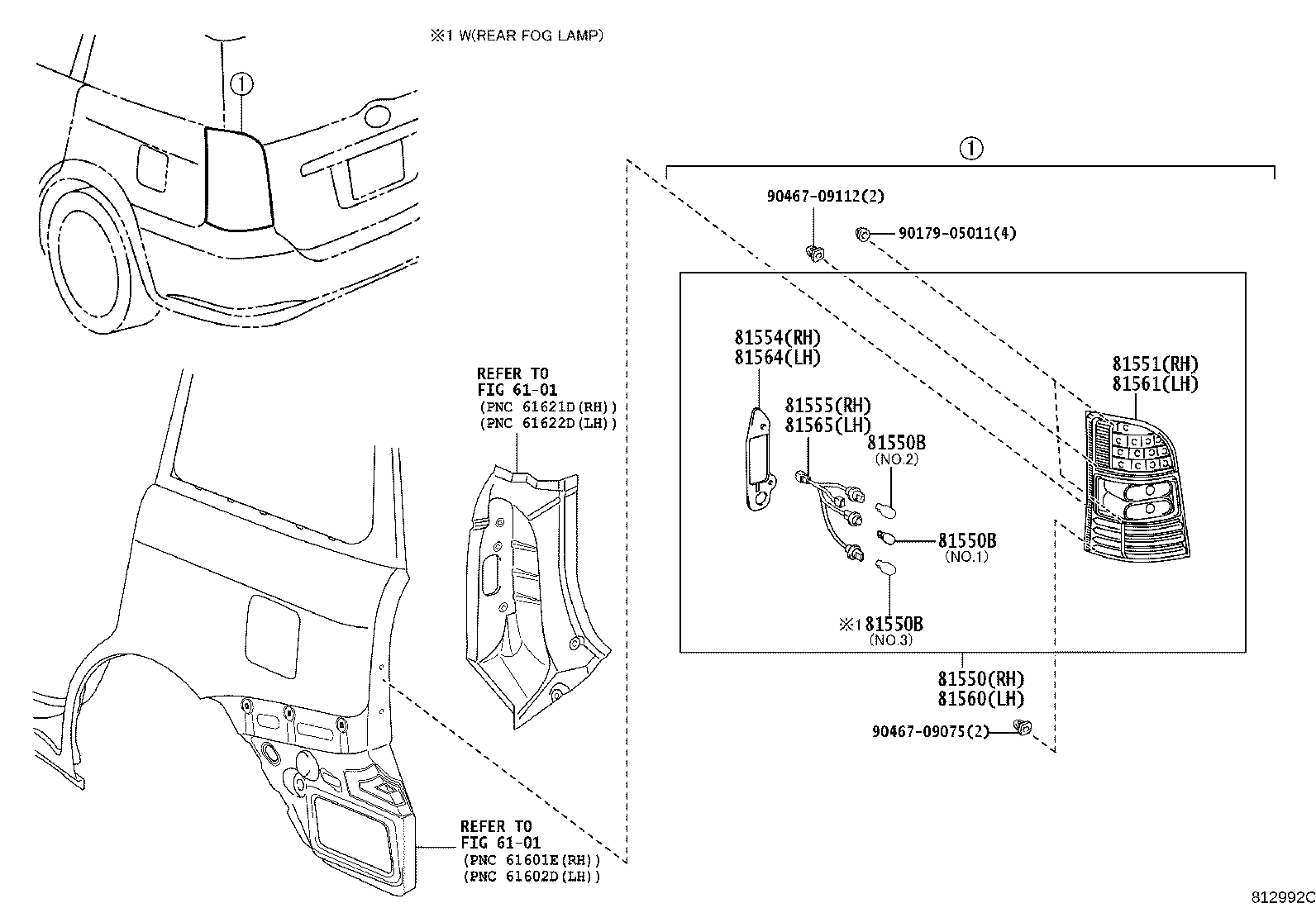

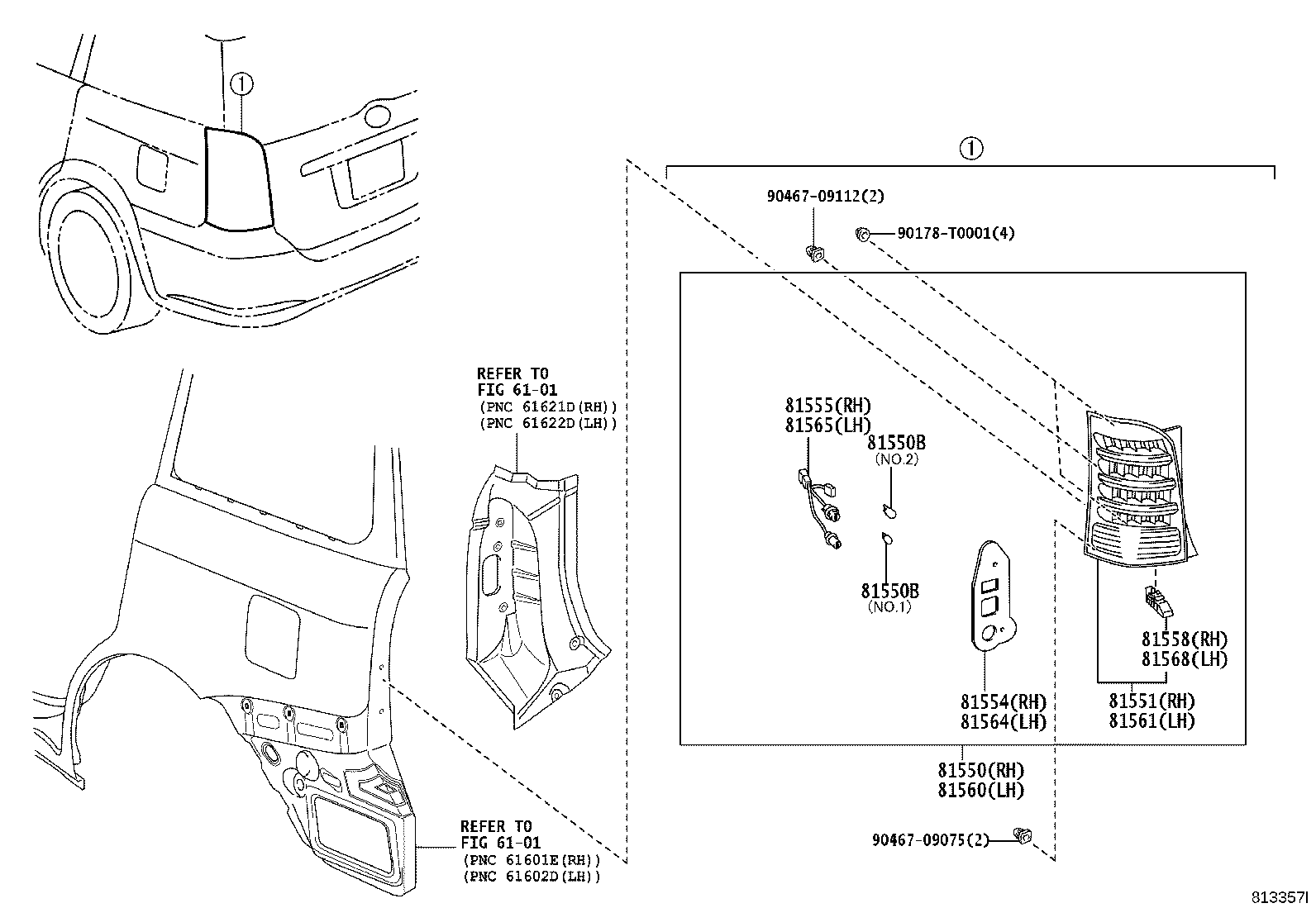

Rear Combination Lamp
13 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 81550 | Lamp Assy, Rear Combination, RH |
| 81550B | Bulb(FOR REAR COMBINATION LAMP) |
| 81551 | Lens, Rear Combination Lamp, RH |
| 81554 | Gasket, Rear Combination Lamp Body, RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81558 | Shade, Rear Combination Lamp, NO.1 RH |
| 81560 | Lamp Assy, Rear Combination, LH |
| 81561 | Lens, Rear Combination Lamp, LH |
| 81564 | Gasket, Rear Combination Lamp Body, LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81568 | Shade, Rear Combination Lamp, NO.1 LH |
| 81584A | Gasket, Rear Lamp RH |
| 81594B | Packing, Rear Lamp LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
