Toyota Wish

2003-12 → 2009-10 · chassis ANE1#,ZNE10 · catalogue 163210 · General

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear License Plate Lamp

5 part groups · 2 illustrations

Illustrations

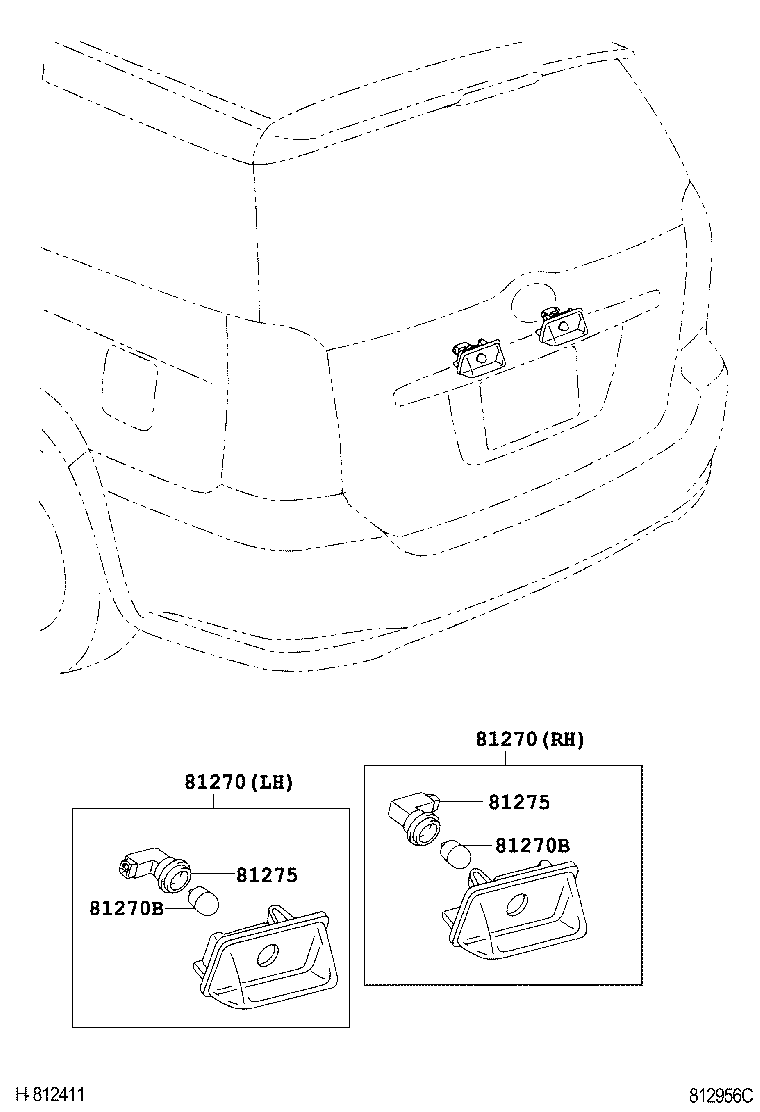

Figure 812411B 812411B 2003-12 → — Figure 812956C 812956C 2004-08 → —

Part groups

PNCDescription
81270 Lamp Assy, License Plate
81270B Bulb (FOR LICENSE PLATE LAMP)
81271 Lens, License Plate Lamp
81275 Socket And Wire, License Plate Lamp
81690A Lamp Assy, License Plate, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
