Toyota Wish
2003-12 → 2009-10 · chassis ANE1#,ZNE10 · catalogue 163210 · General
Supported model
Data version 2010-01

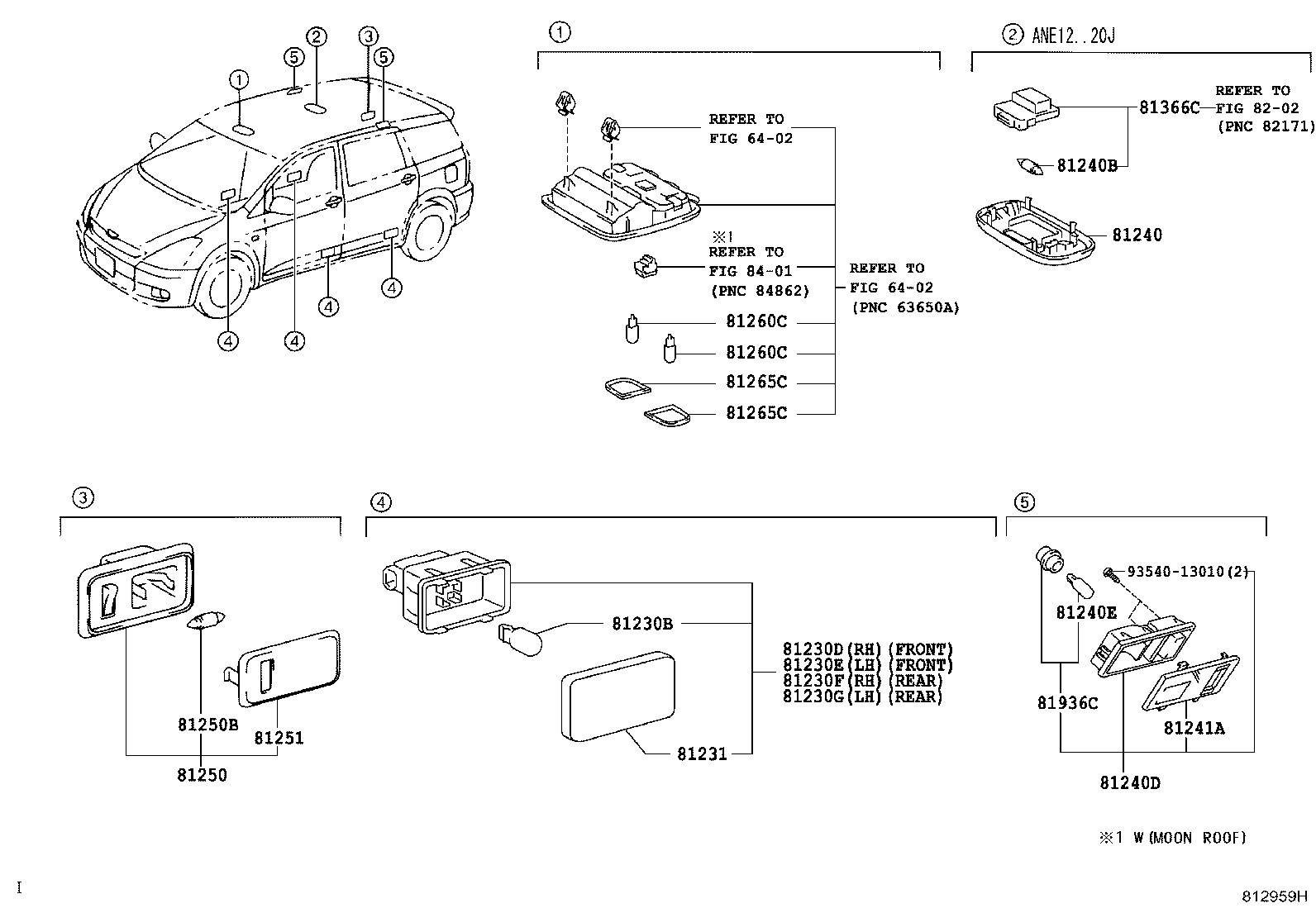

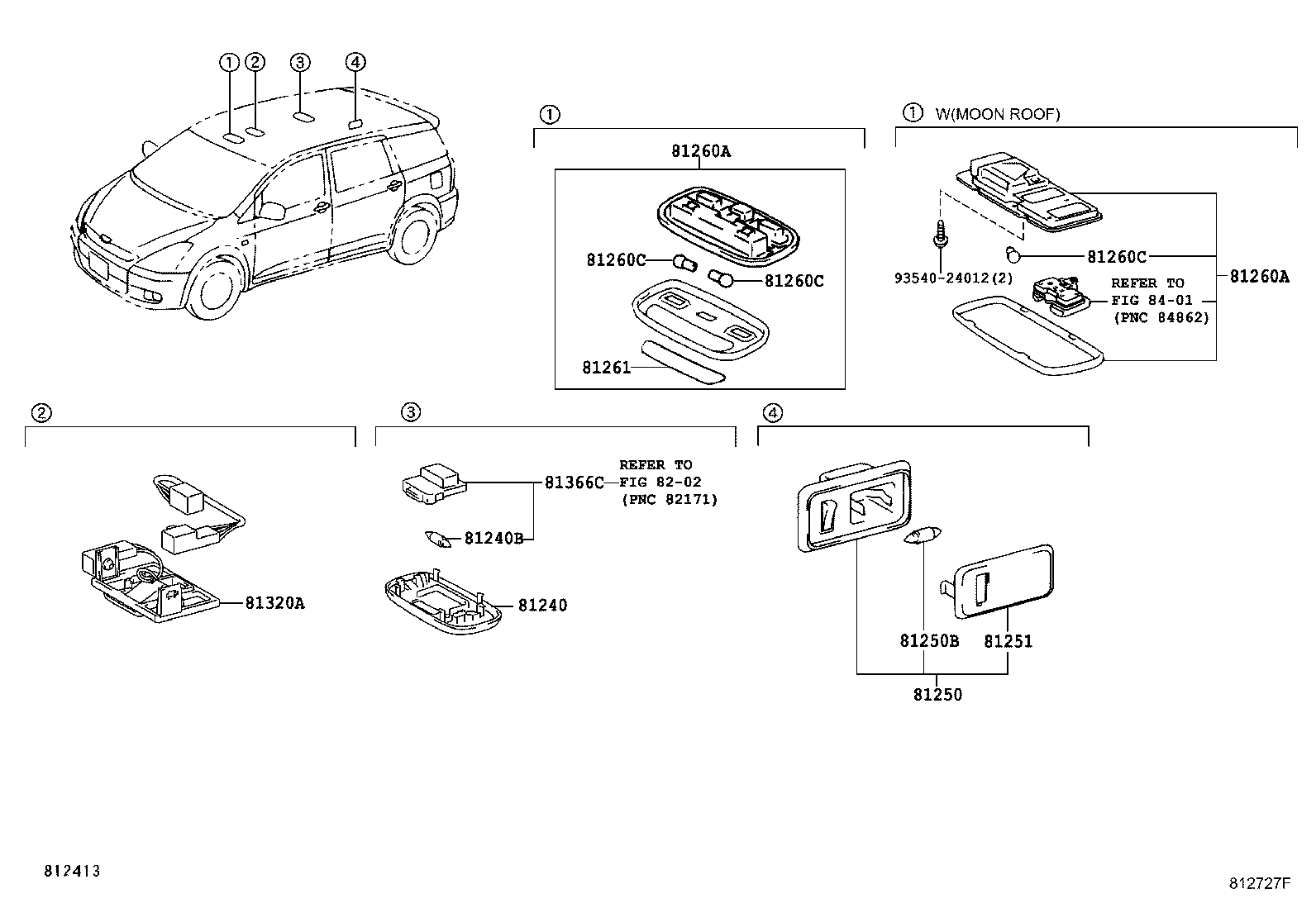

Interior Lamp
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81230D | Lamp Assy, Front Door Courtesy, RH |
| 81230E | Lamp Assy, Front Door Courtesy, LH |
| 81230F | Lamp Assy, Rear Door Courtesy, RH |
| 81230G | Lamp Assy, Rear Door Courtesy, LH |
| 81231 | Lens, Courtesy Lamp |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81240D | Lamp Assy, Room, NO.2 |
| 81240E | Bulb, Room Lamp, NO.2 |
| 81241A | Lens, Room Lamp, NO.2 |
| 81250 | Lamp Assy, Room, NO.2 |
| 81250B | Bulb, Room Lamp, NO.2 |
| 81251 | Lens, Room Lamp, NO.2 |
| 81260A | Lamp Assy, Map |
| 81260C | Bulb(FOR MAP LAMP) |
| 81261 | Lens And Cover, Map Lamp |
| 81265C | Lens, Map Lamp, NO.1 |
| 81320A | Lamp Assy, Steering Spot |
| 81366C | Base, Room Lamp Switch |
| 81870D | Lamp Assy, Key Cylinder |
| 81870E | Bulb, Key Cylinder Lamp |
| 81936C | Bulb Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
