Toyota Wish

2003-12 → 2009-10 · chassis ANE1#,ZNE10 · catalogue 163210 · General

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

36 part groups · 17 illustrations

Illustrations

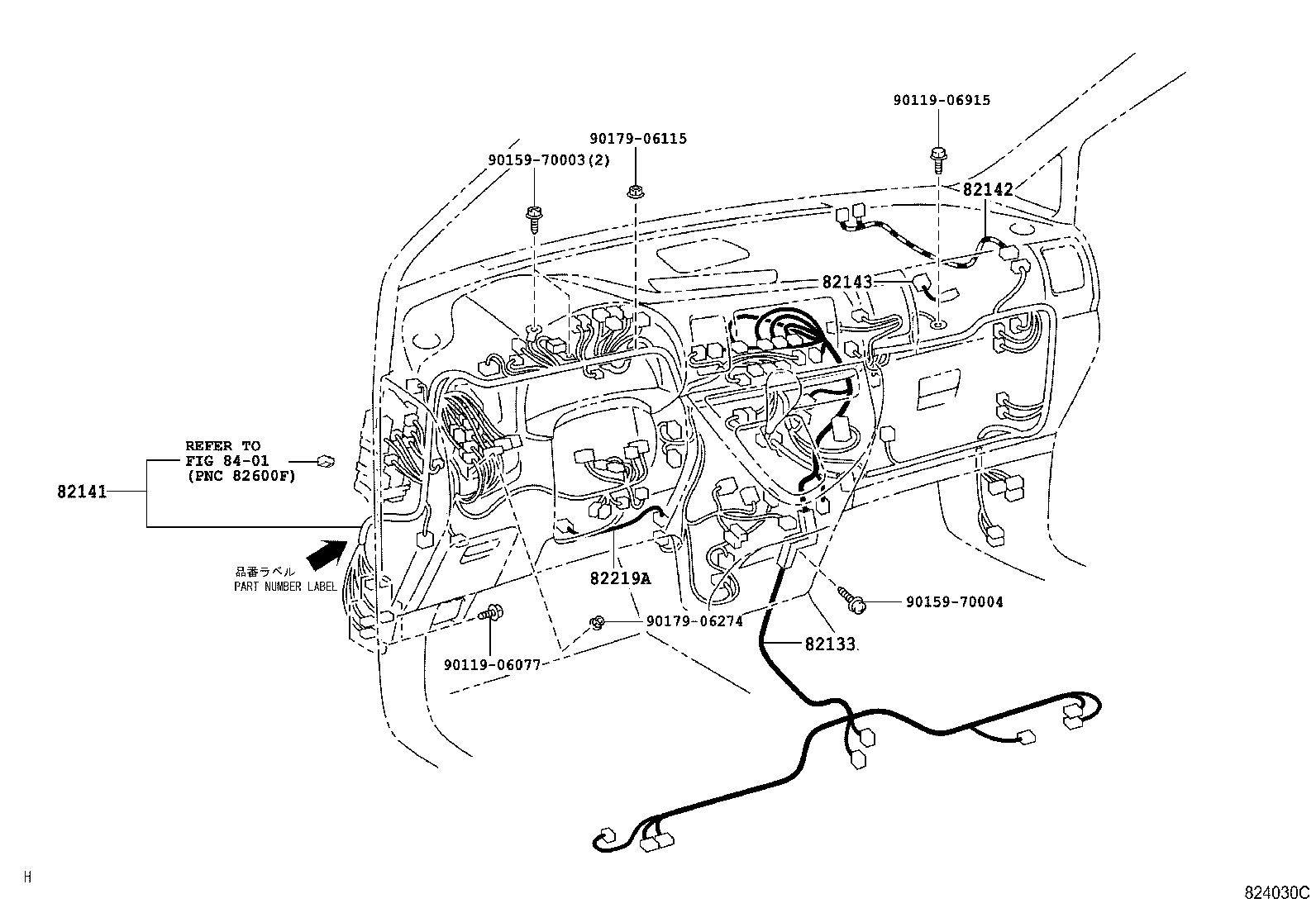

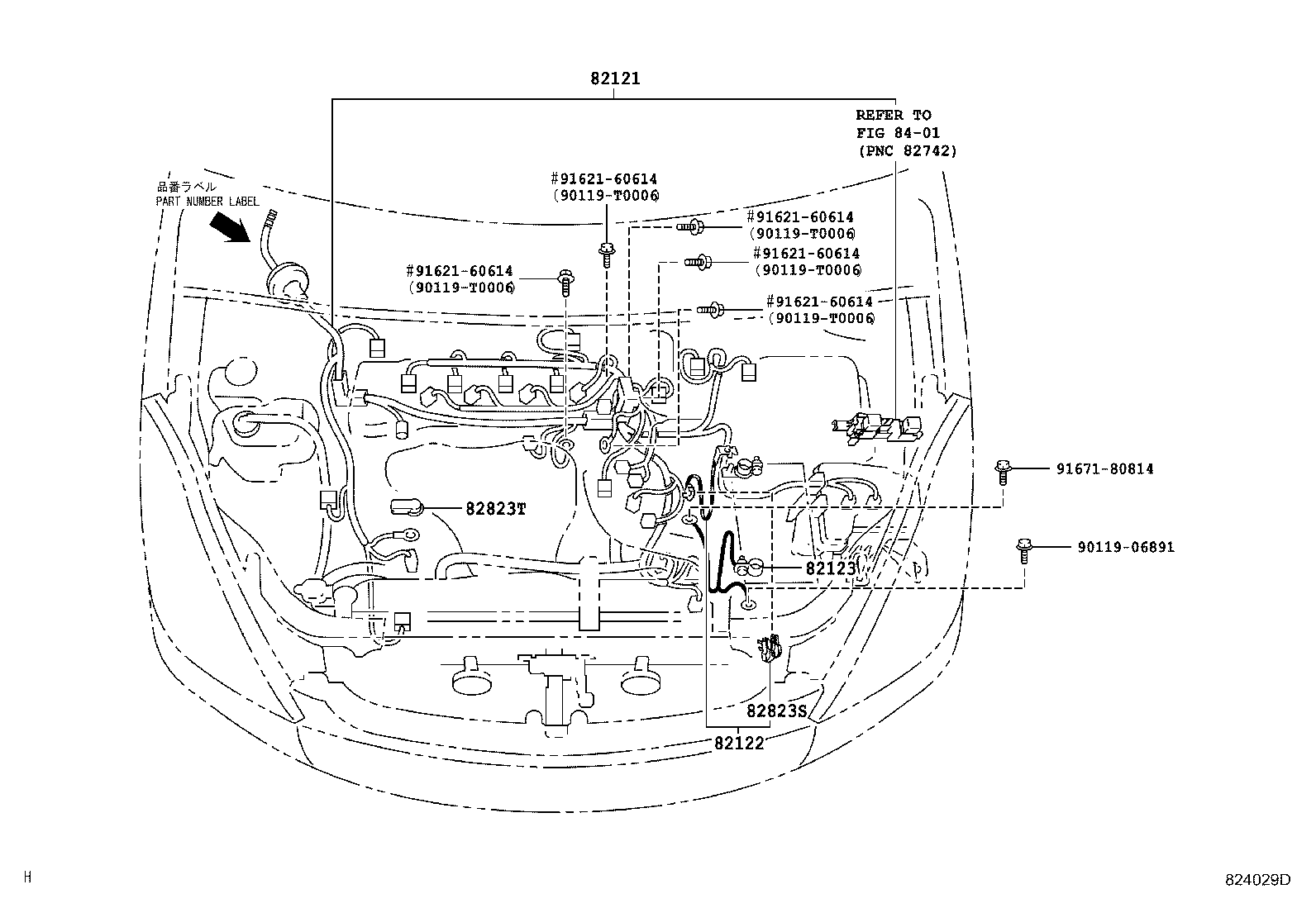

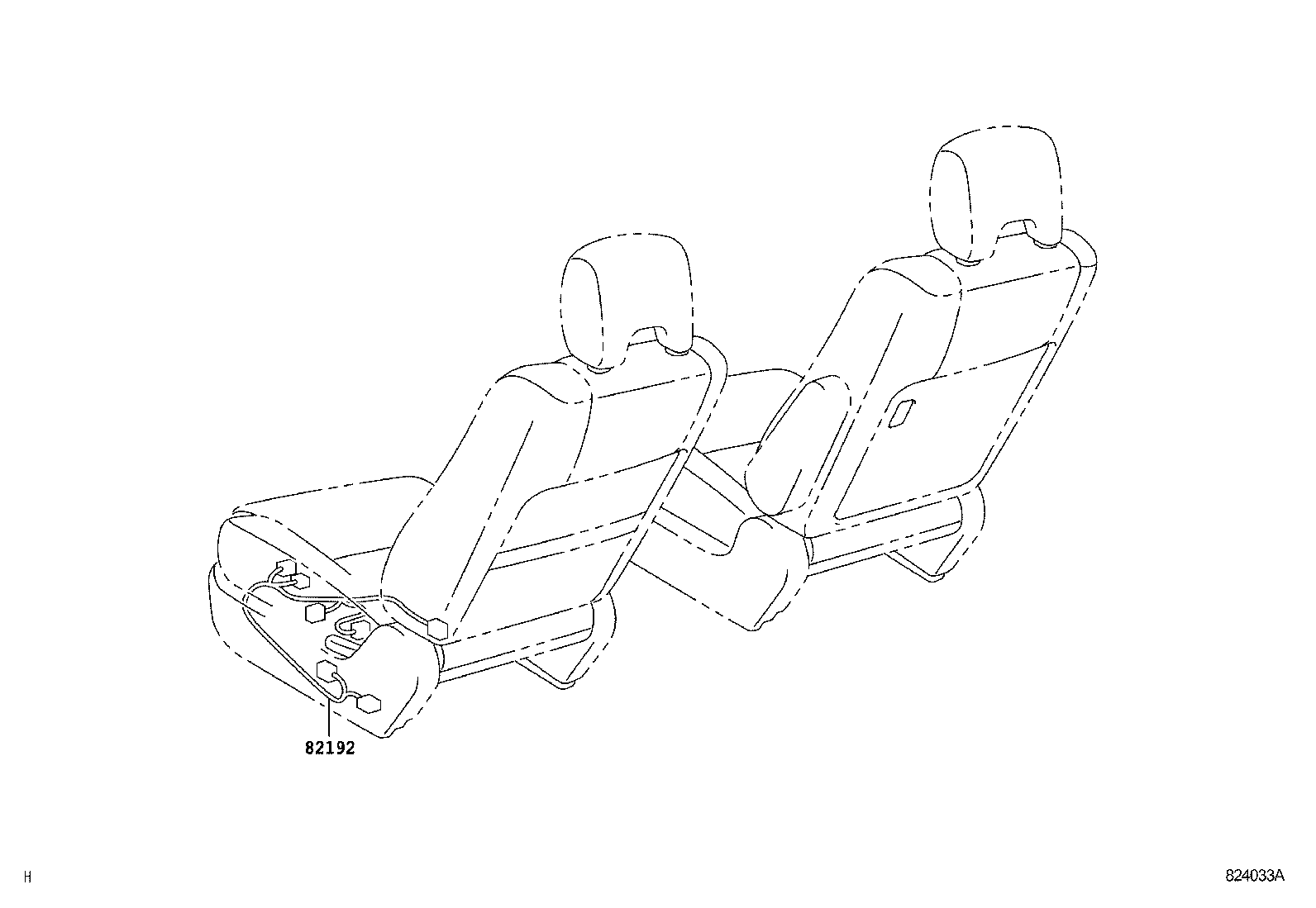

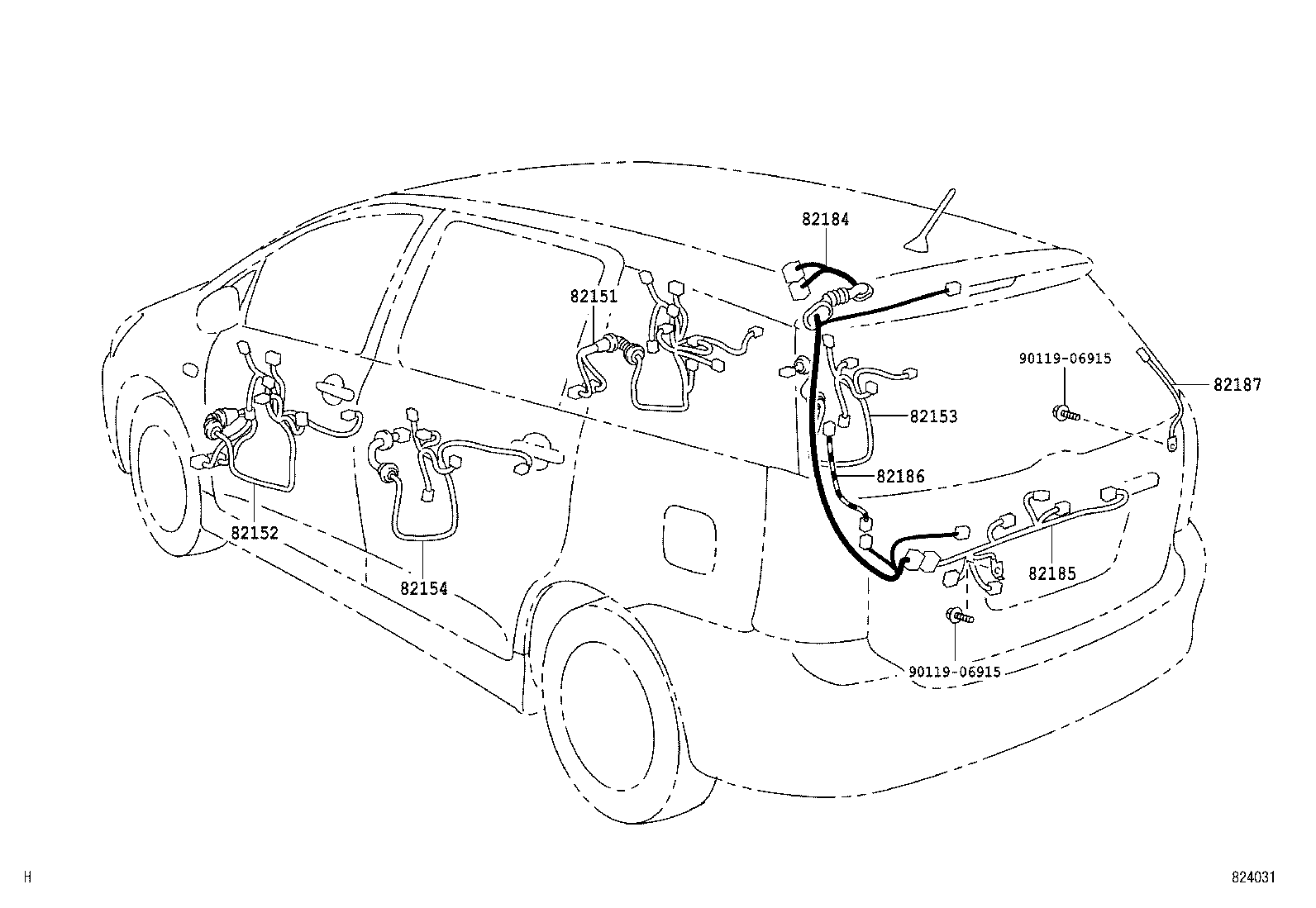

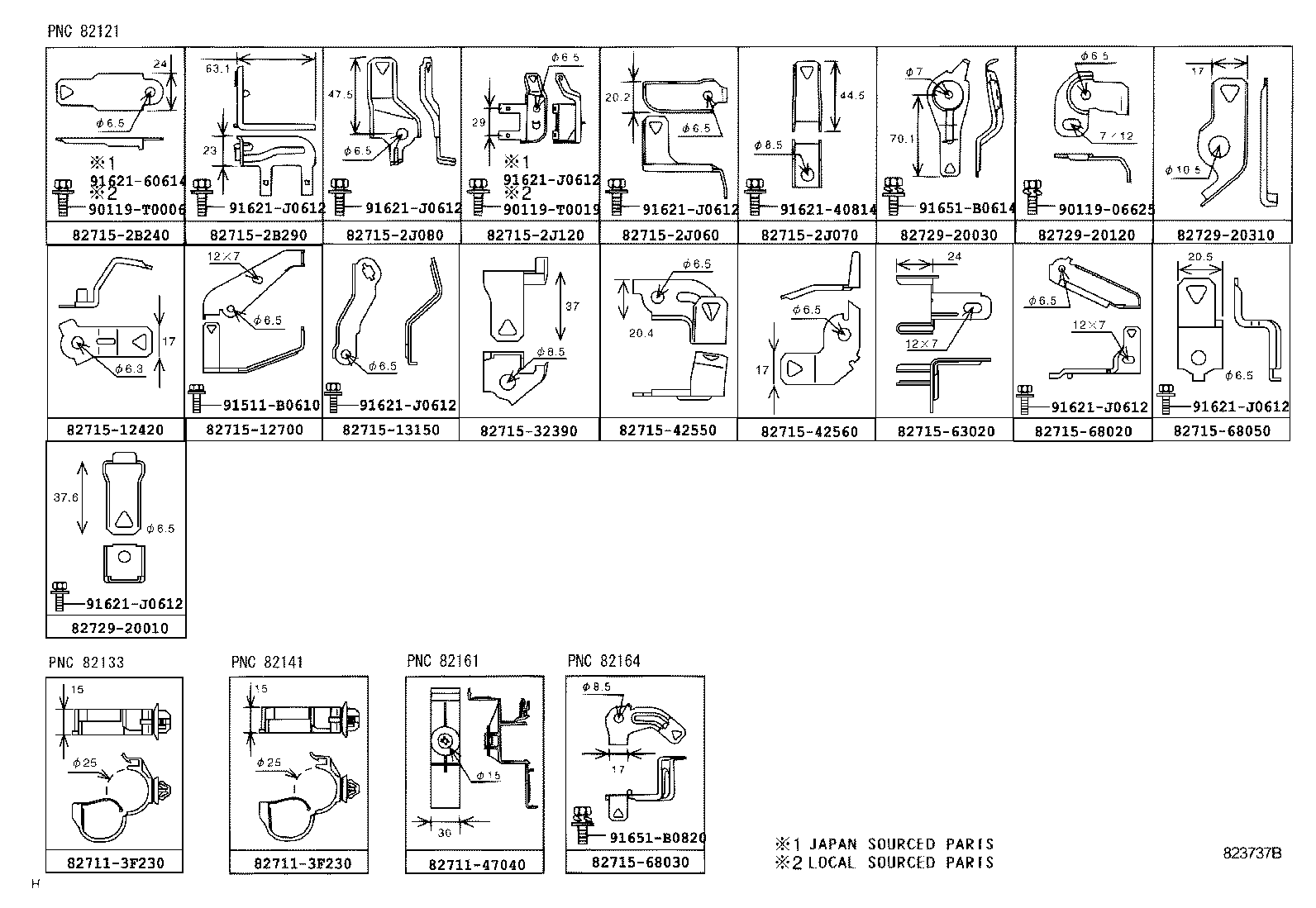

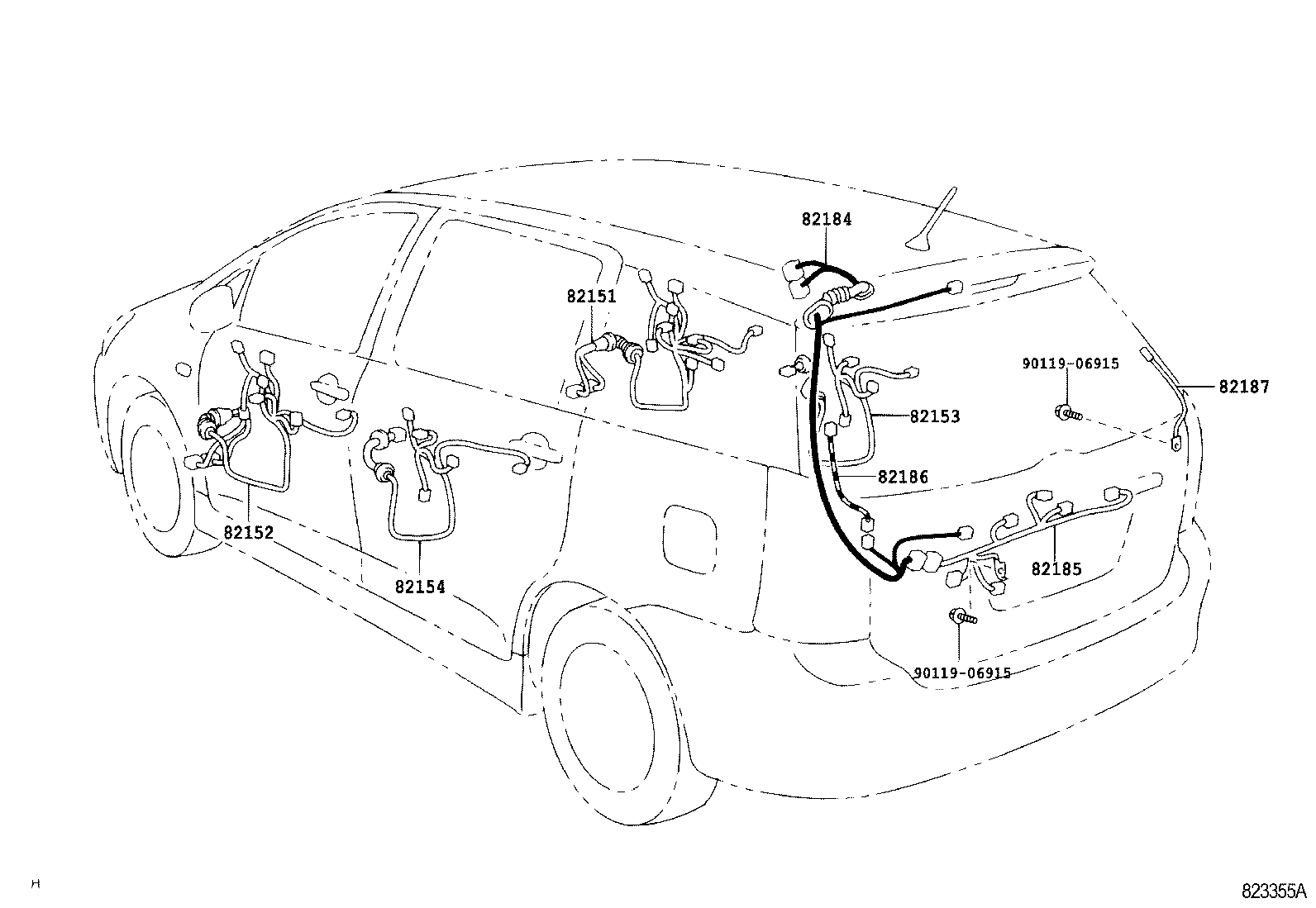

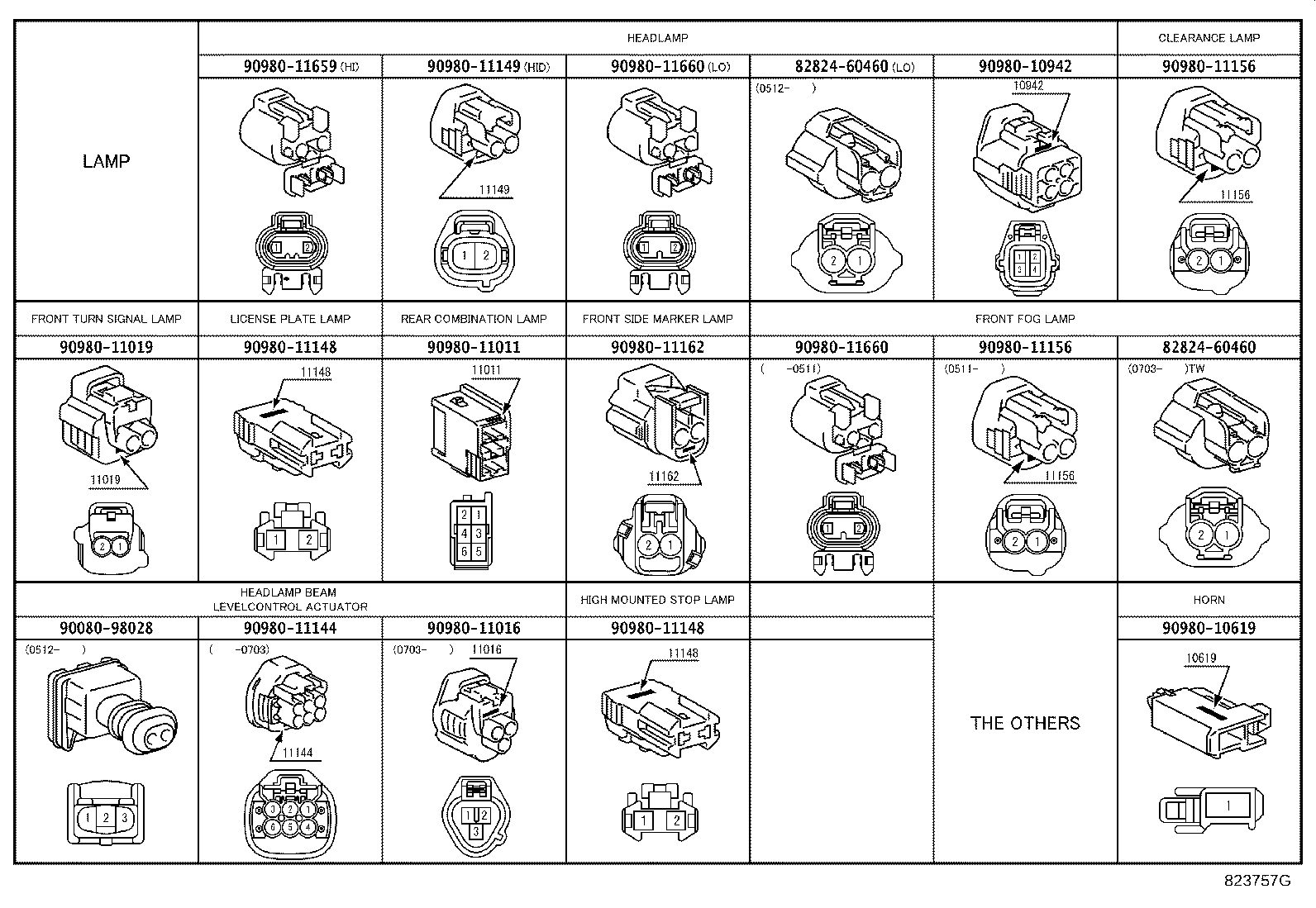

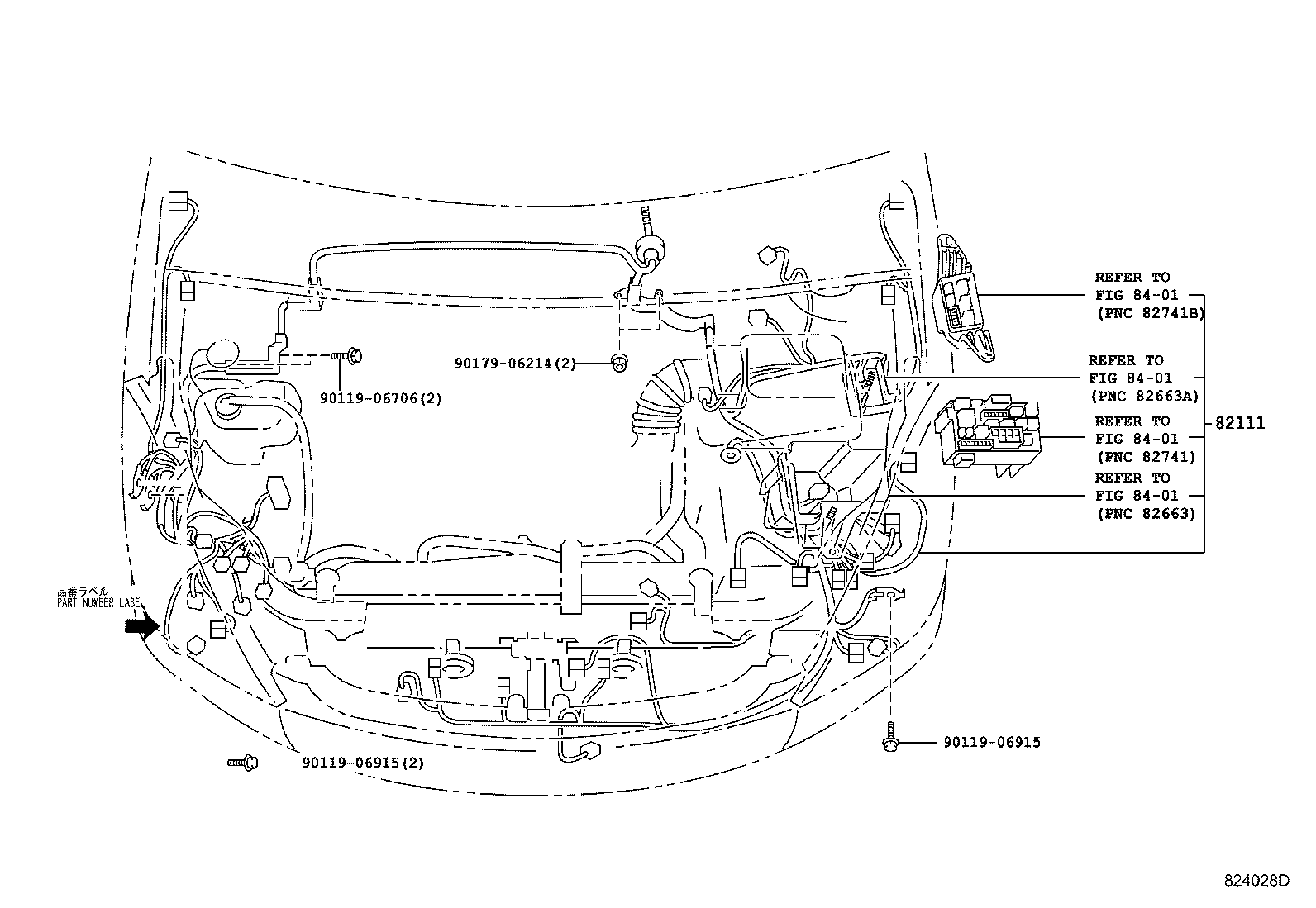

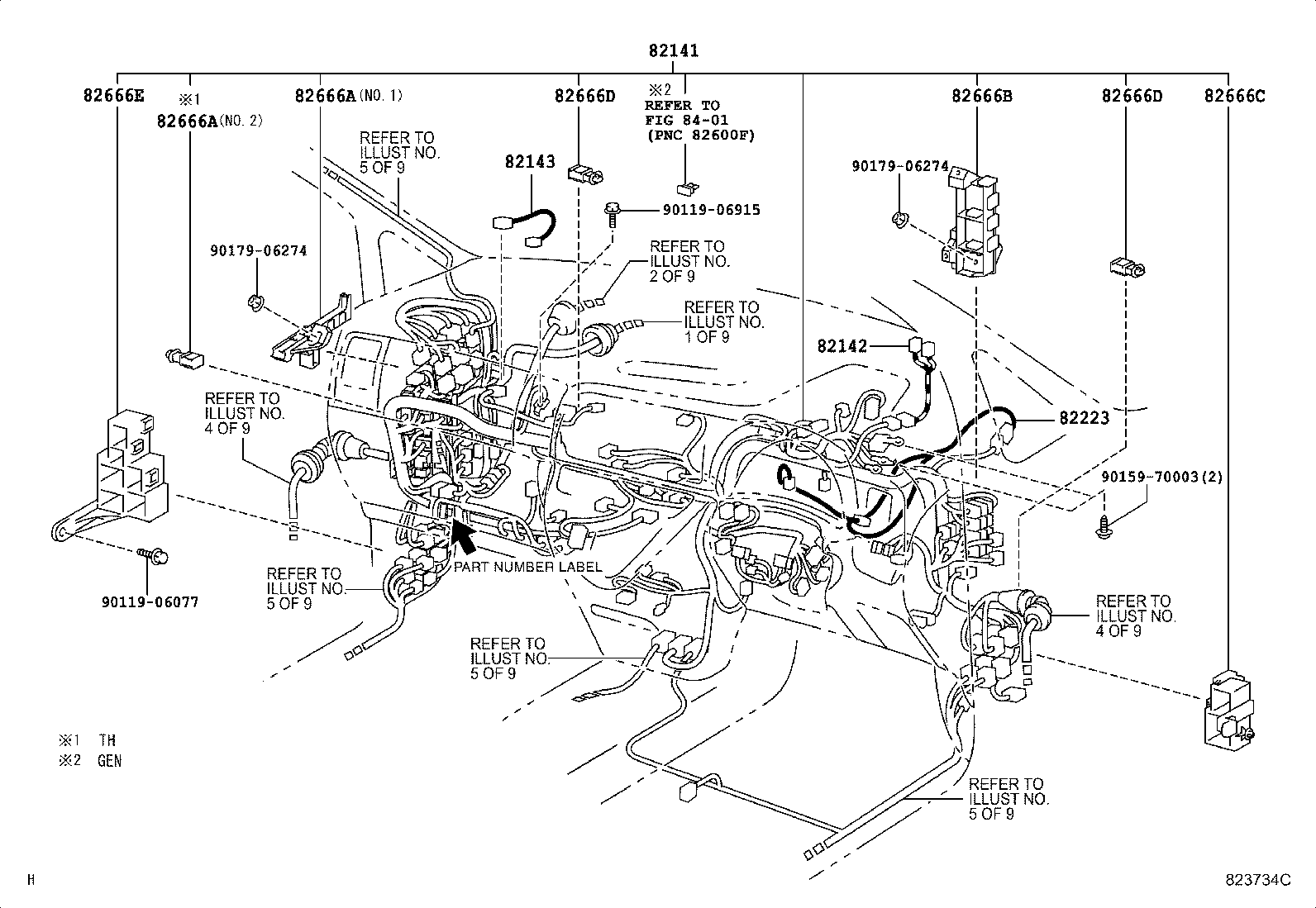

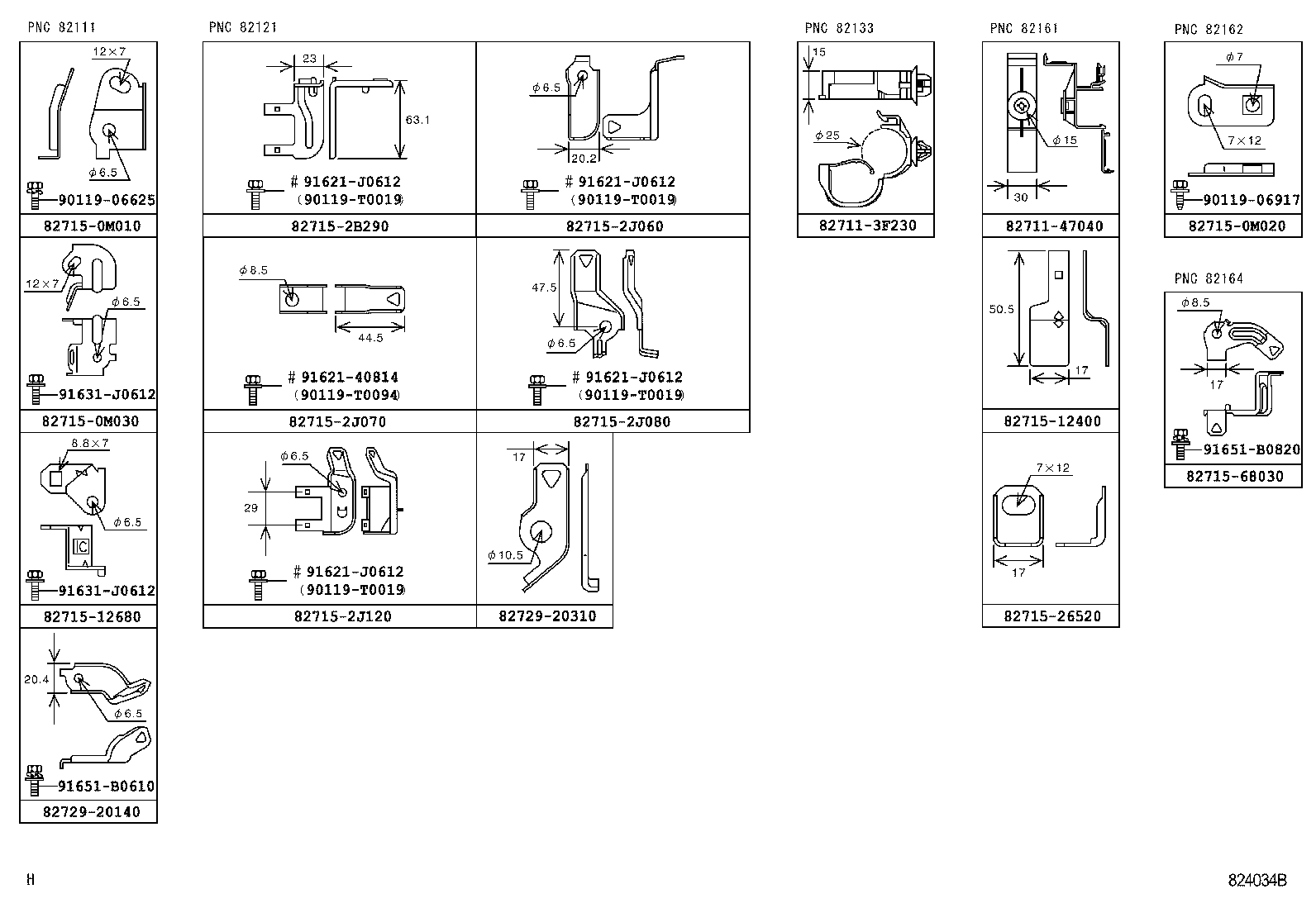

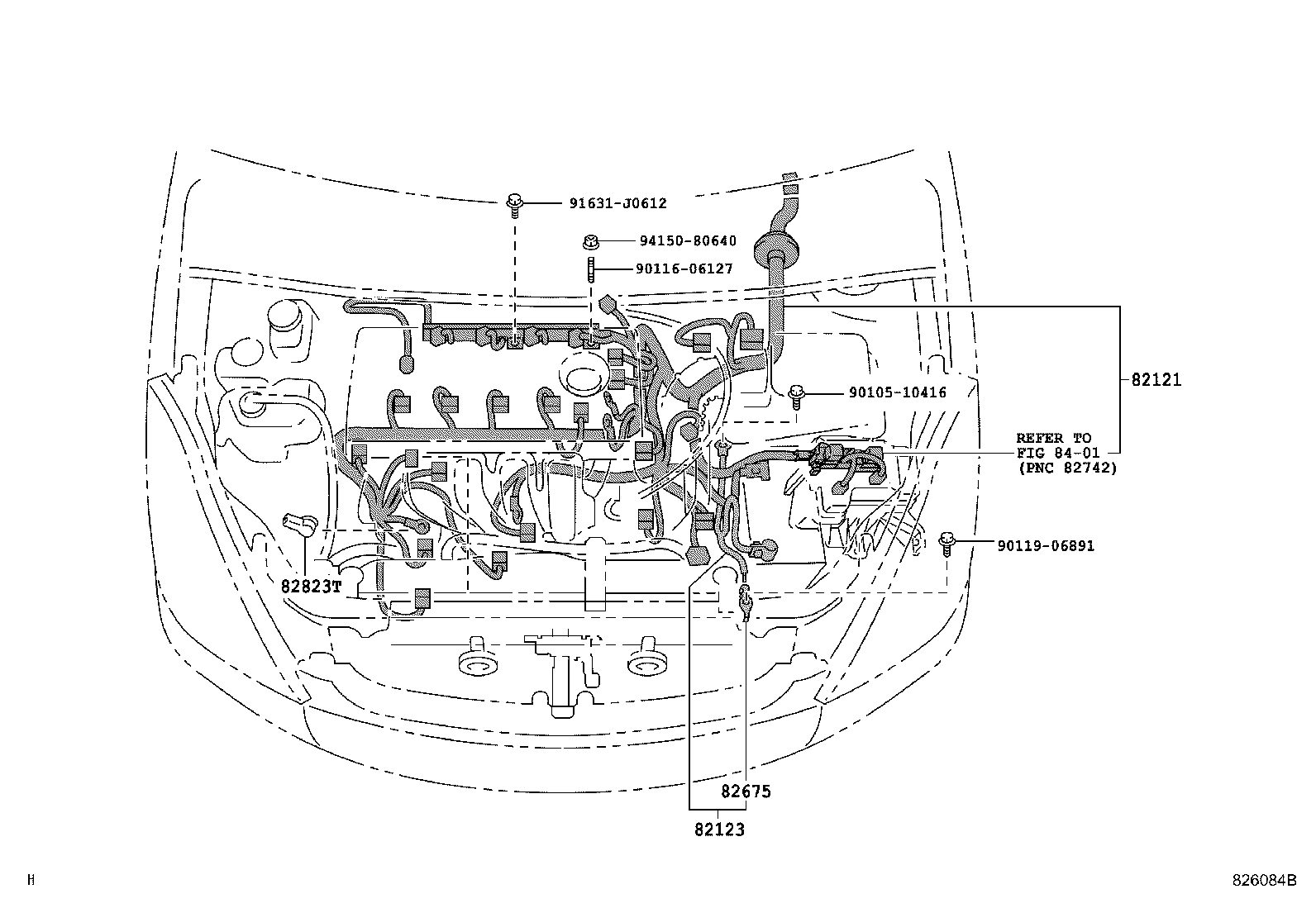

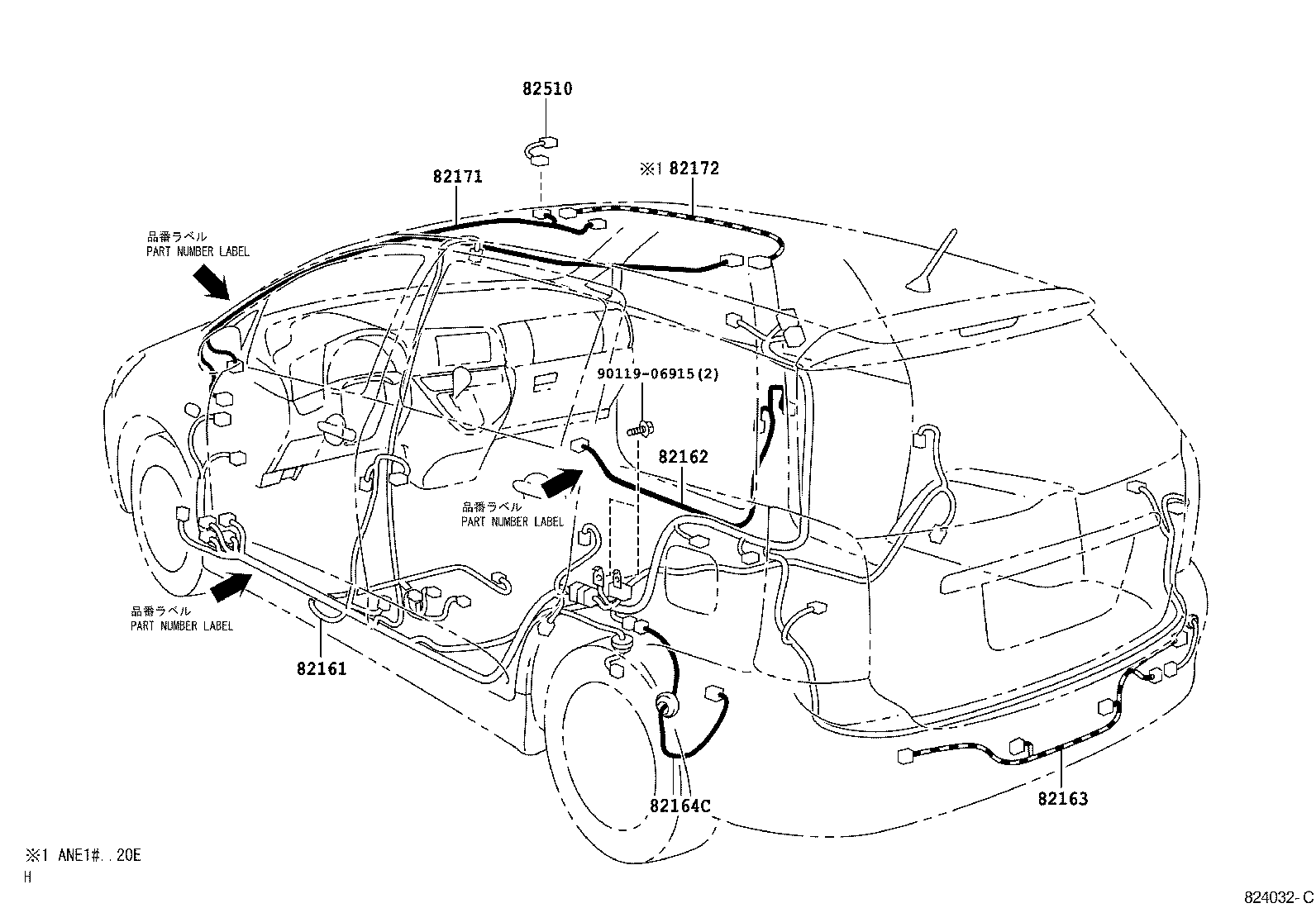

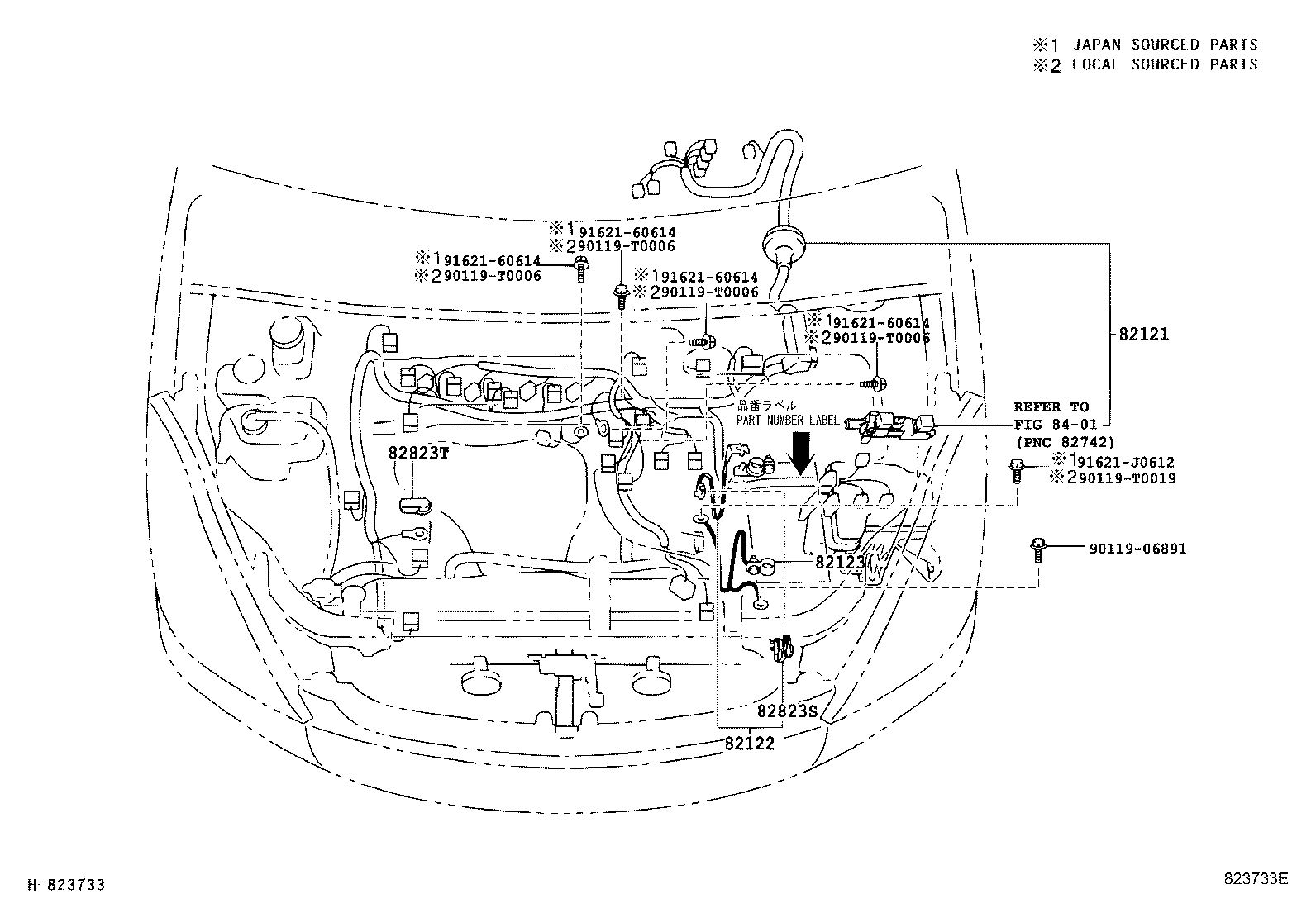

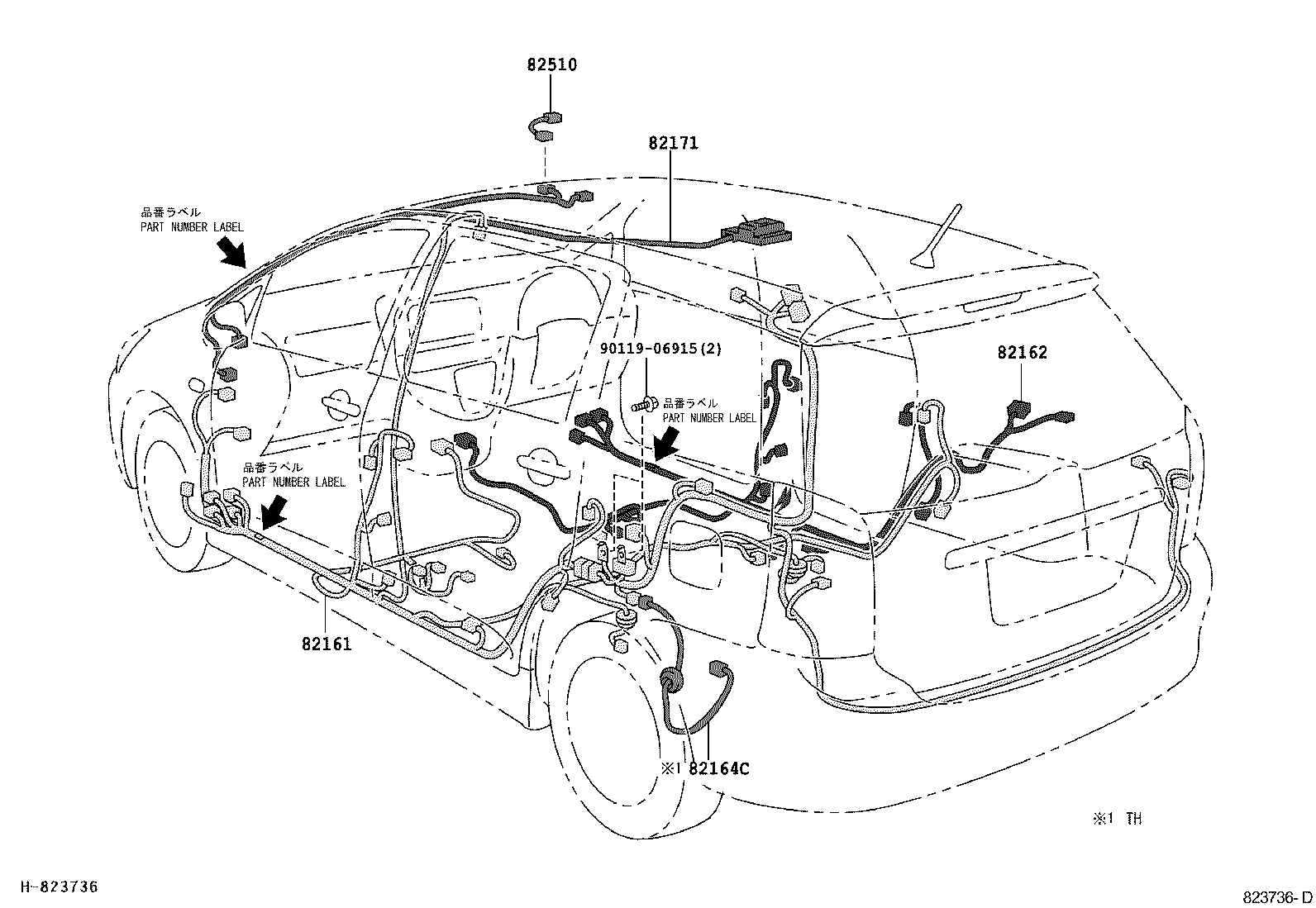

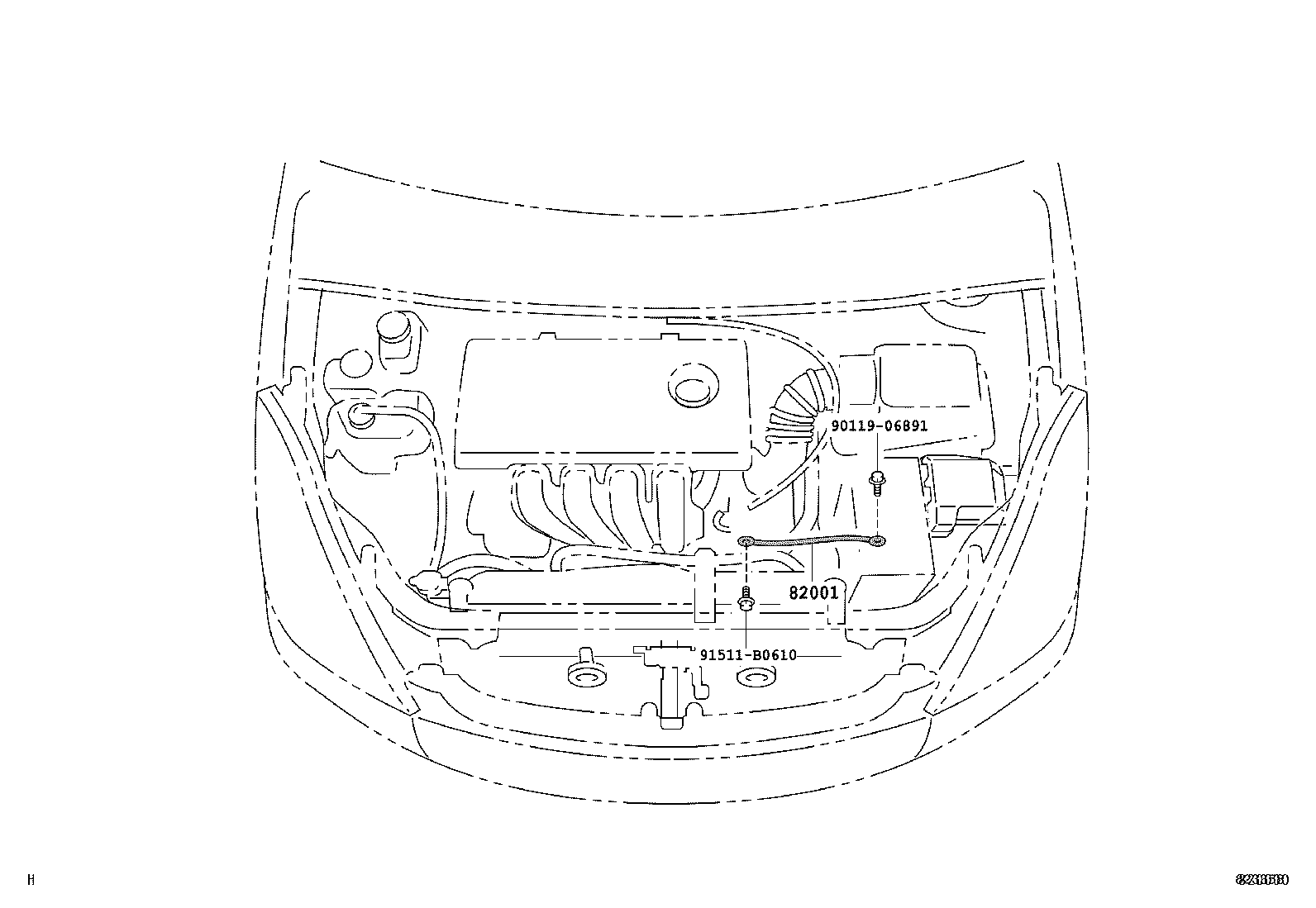

Figure 823732C 823732C 2003-12 → — Figure 824028D 824028D 2004-08 → — Figure 823733E 823733E 2003-12 → — Figure 824029D 824029D 2004-08 → — Figure 826084B 826084B 2008-04 → — Figure 823734C 823734C 2003-12 → — Figure 824030C 824030C 2004-08 → — Figure 823355A 823355A 2003-12 → — Figure 824031 824031 2004-08 → — Figure 823736D 823736D 2003-12 → — Figure 824032C 824032C 2004-08 → — Figure 824572A 824572A 2005-12 → — Figure 824033A 824033A 2004-08 → — Figure 823737B 823737B 2003-12 → — Figure 824034B 824034B 2004-08 → — Figure 823358B 823358B 2008-04 → — Figure 823757G 823757G 2003-12 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82133 Wire, Cowl, NO.3
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164C Wire, Floor, NO.4
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82219A Wire, Sensor
82223 Wire, Switch
82510 Wiring Assy, Roof
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82675 Terminal, Junction
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
