Toyota Wish

2003-12 → 2009-10 · chassis ANE1#,ZNE10 · catalogue 163210 · General

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

84 part groups · 12 illustrations

Illustrations

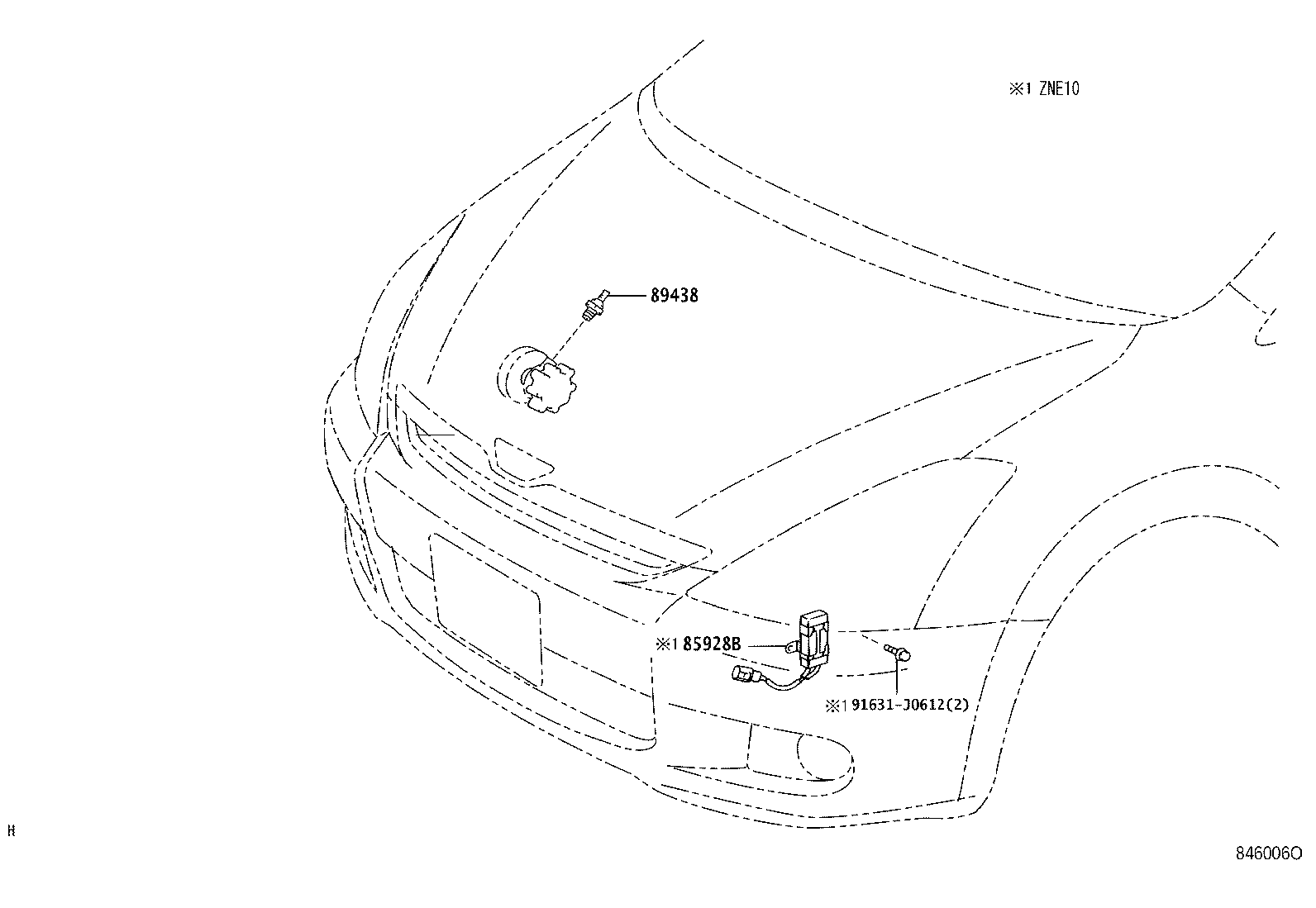

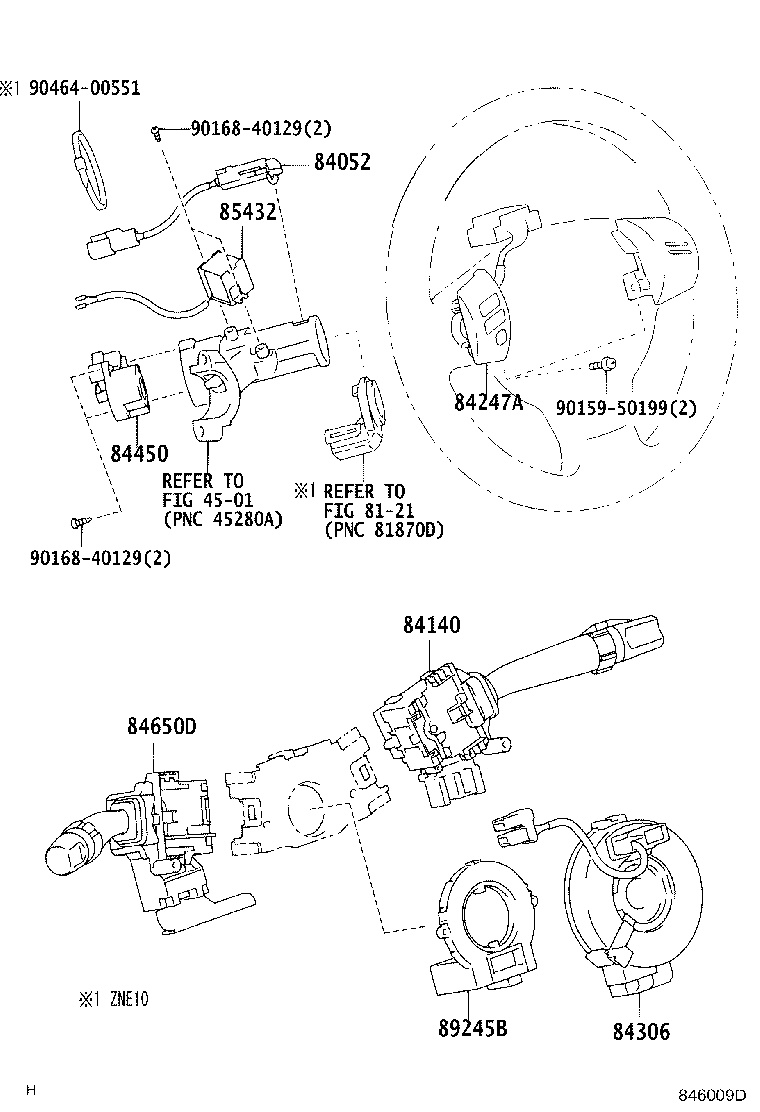

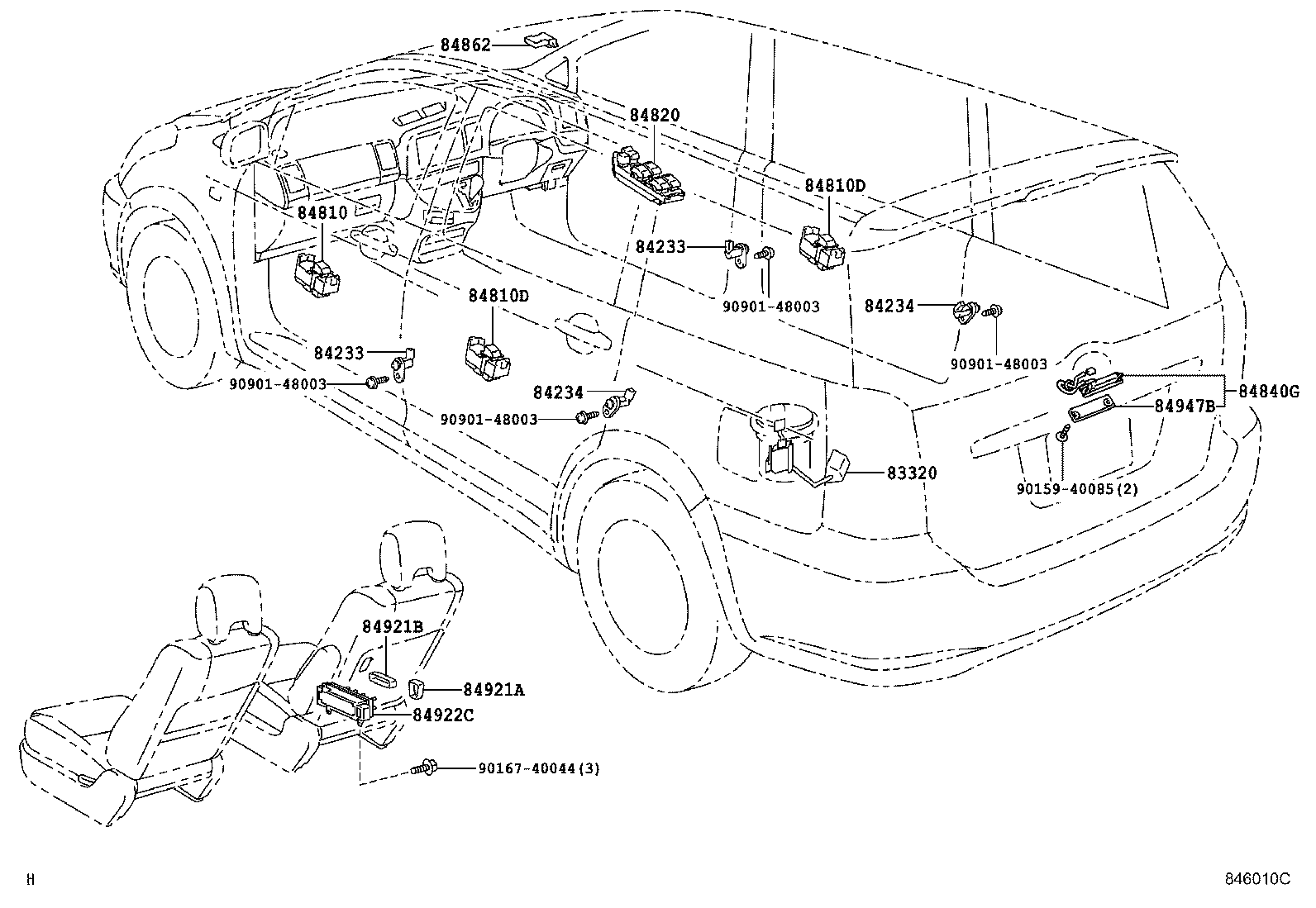

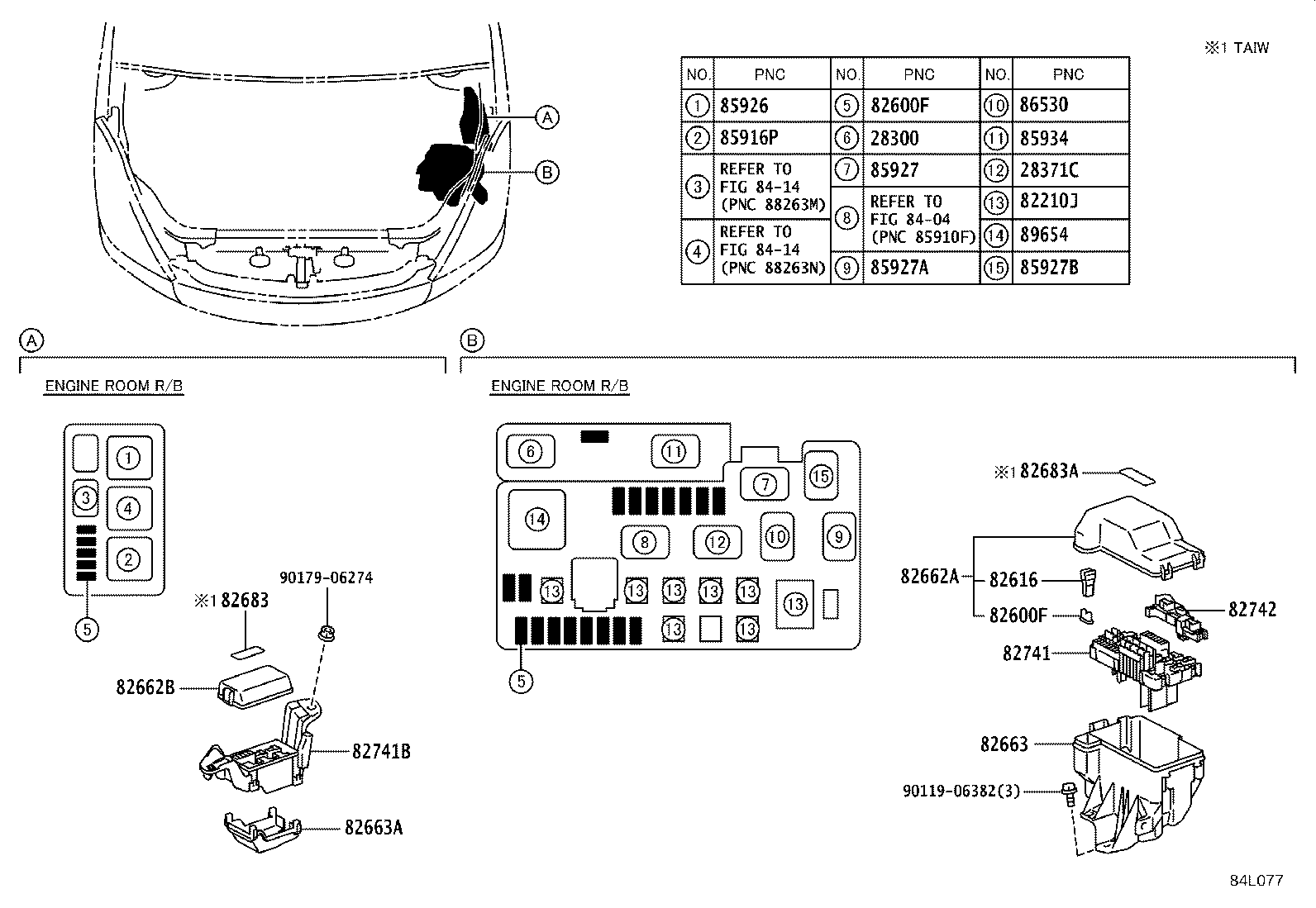

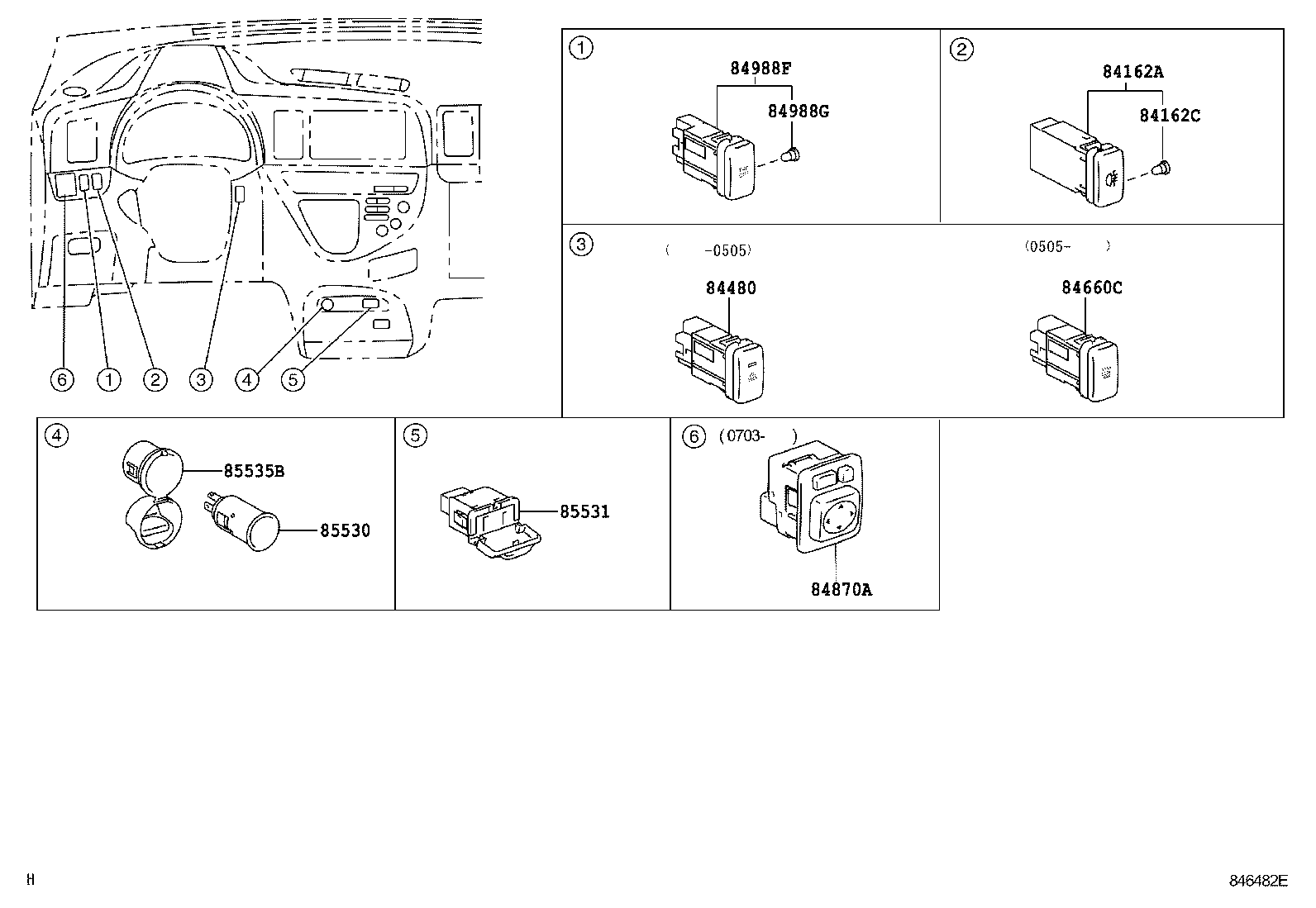

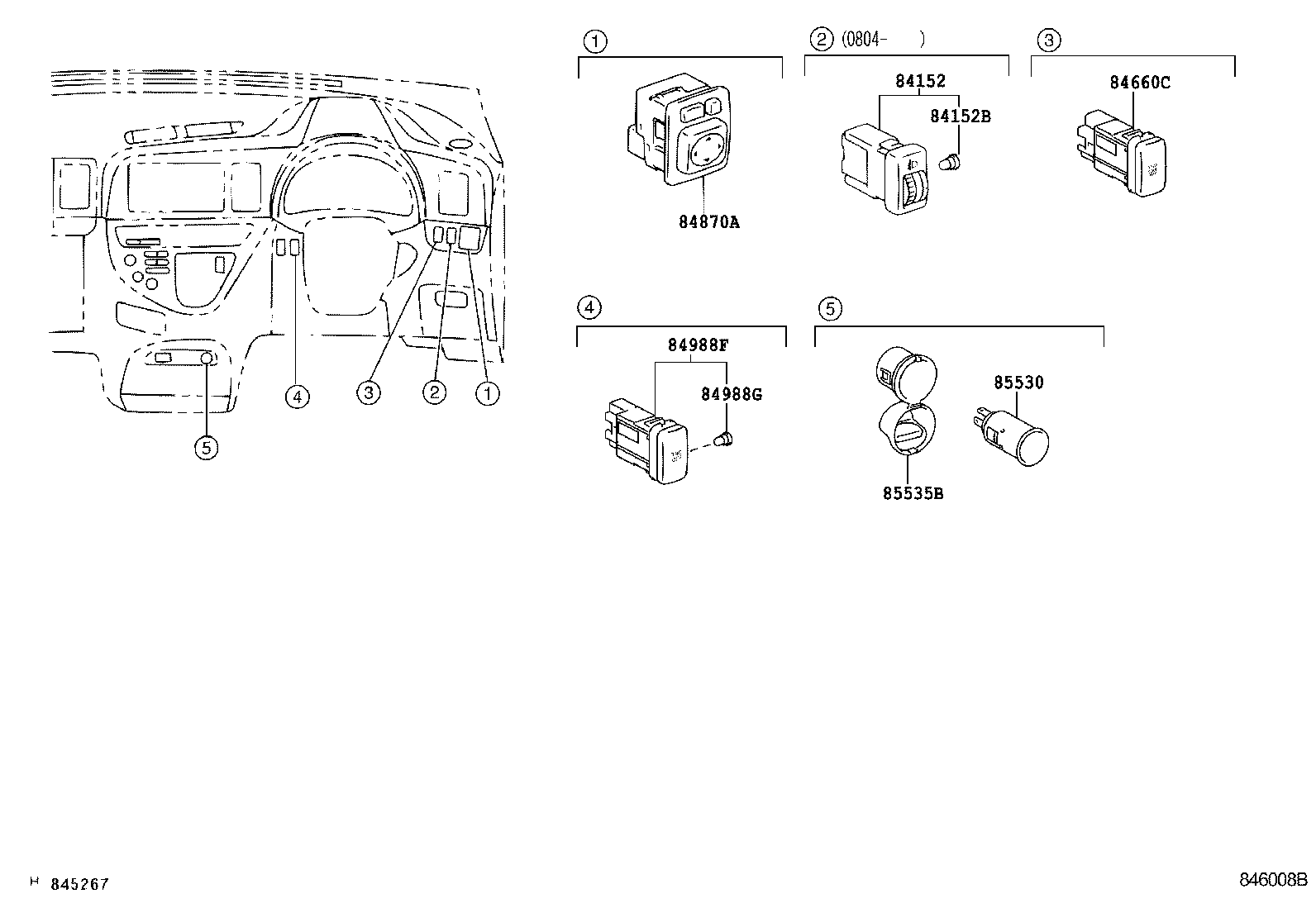

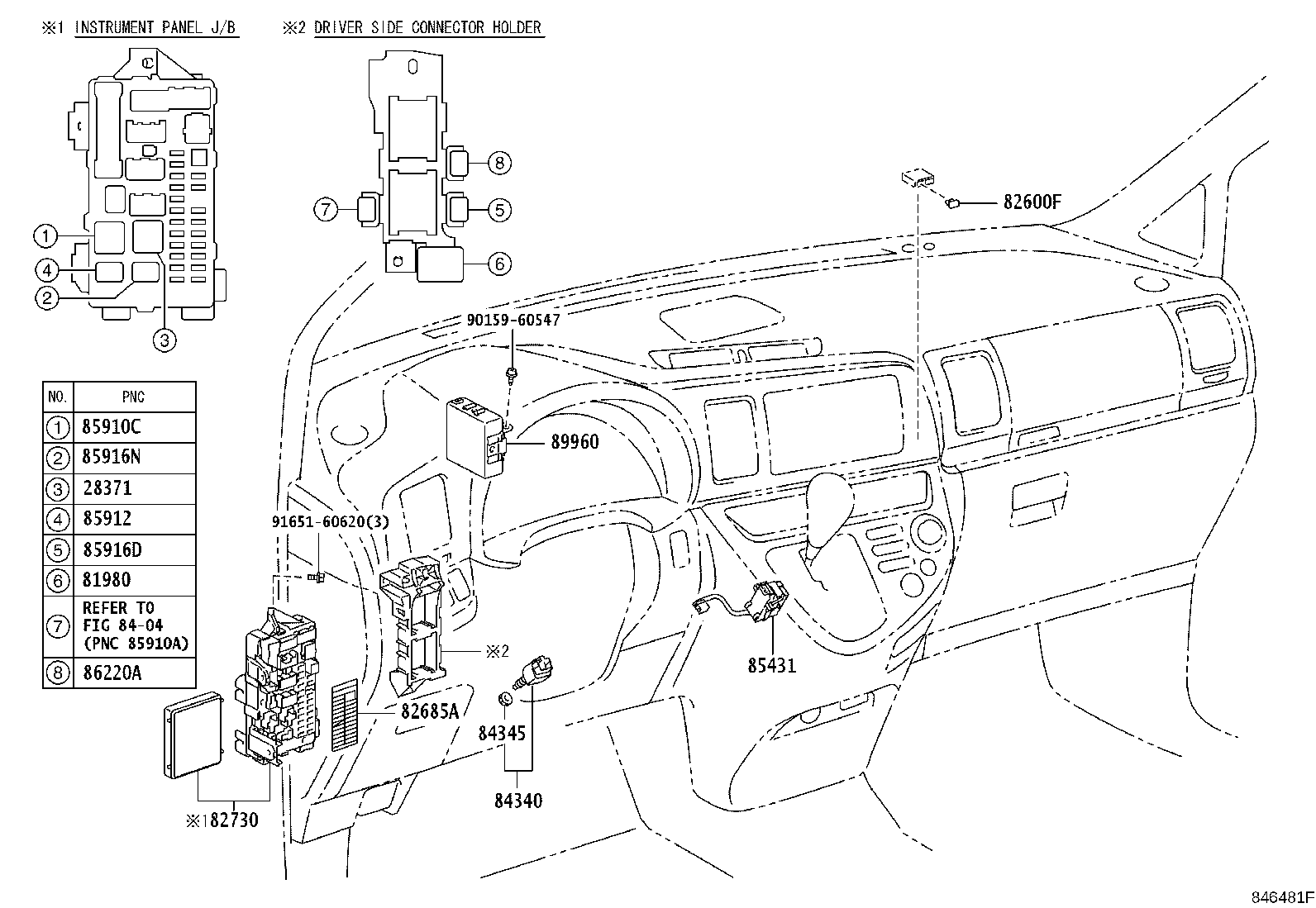

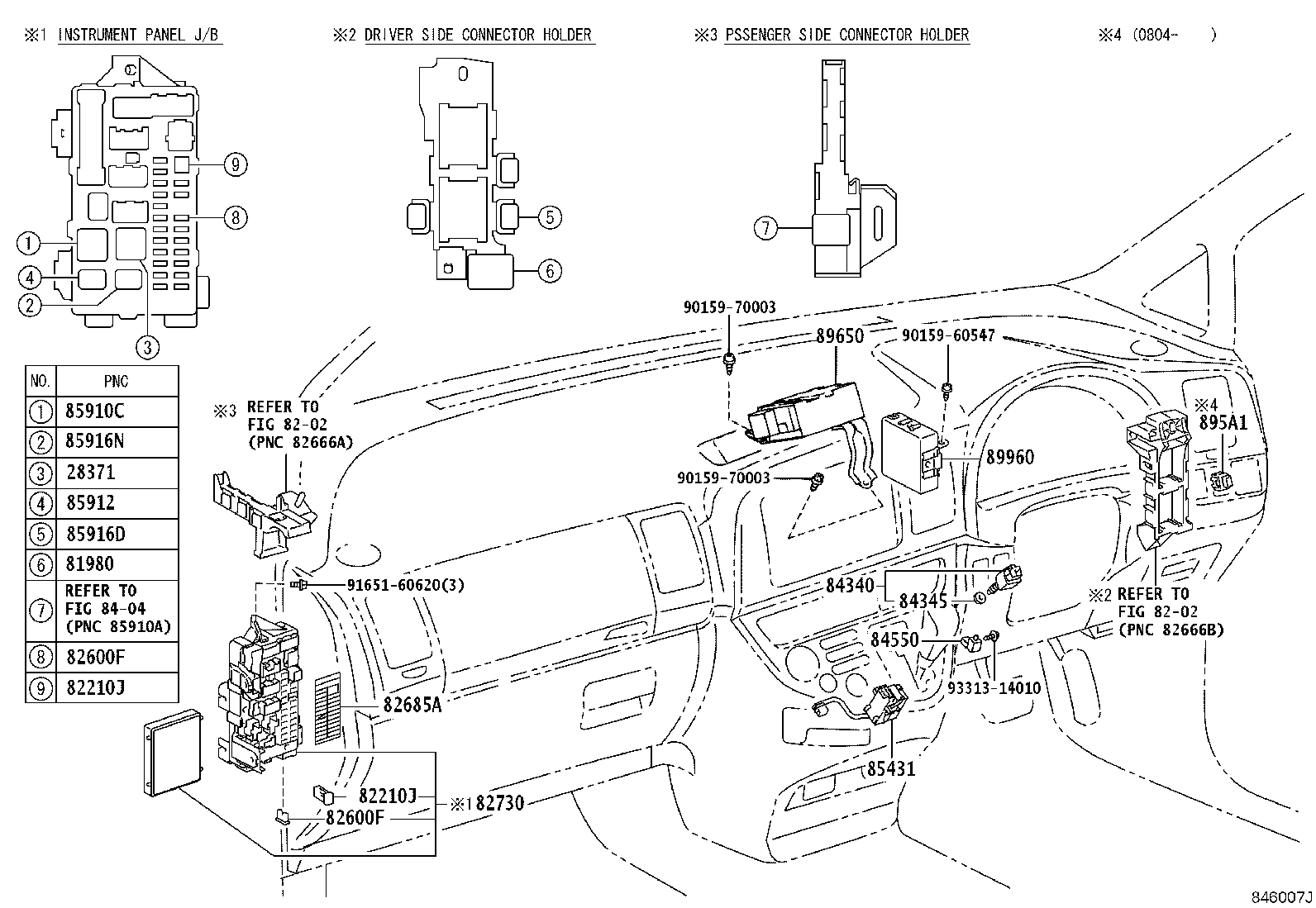

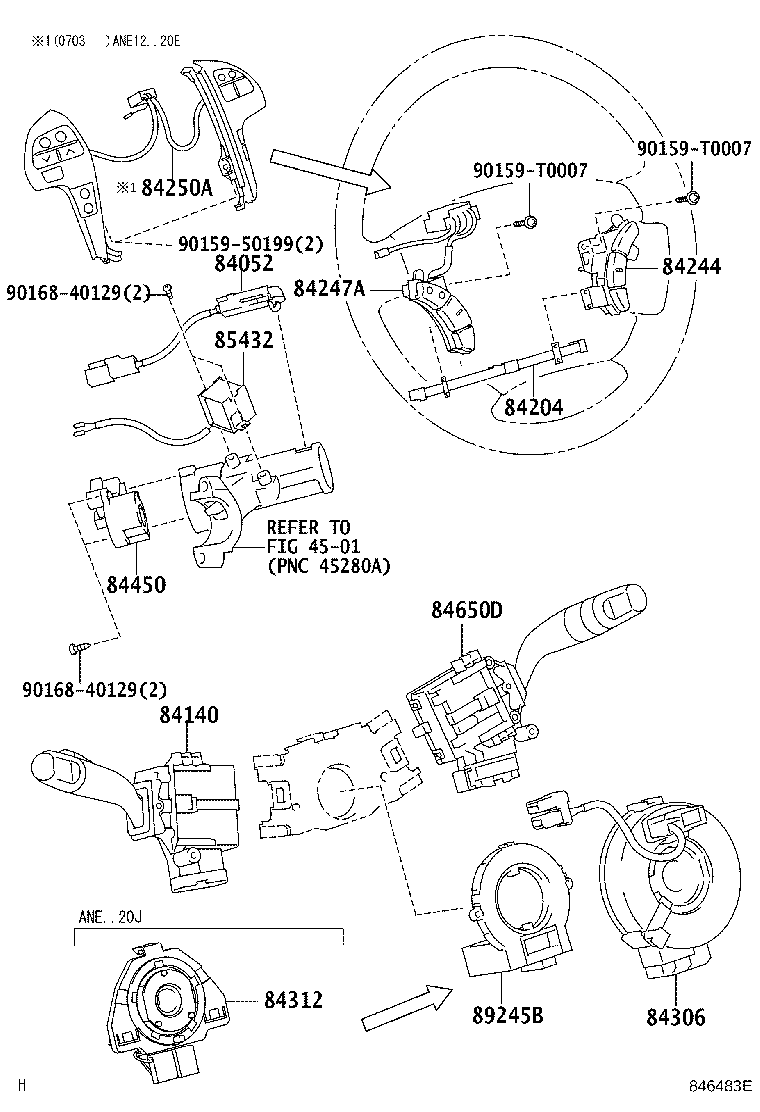

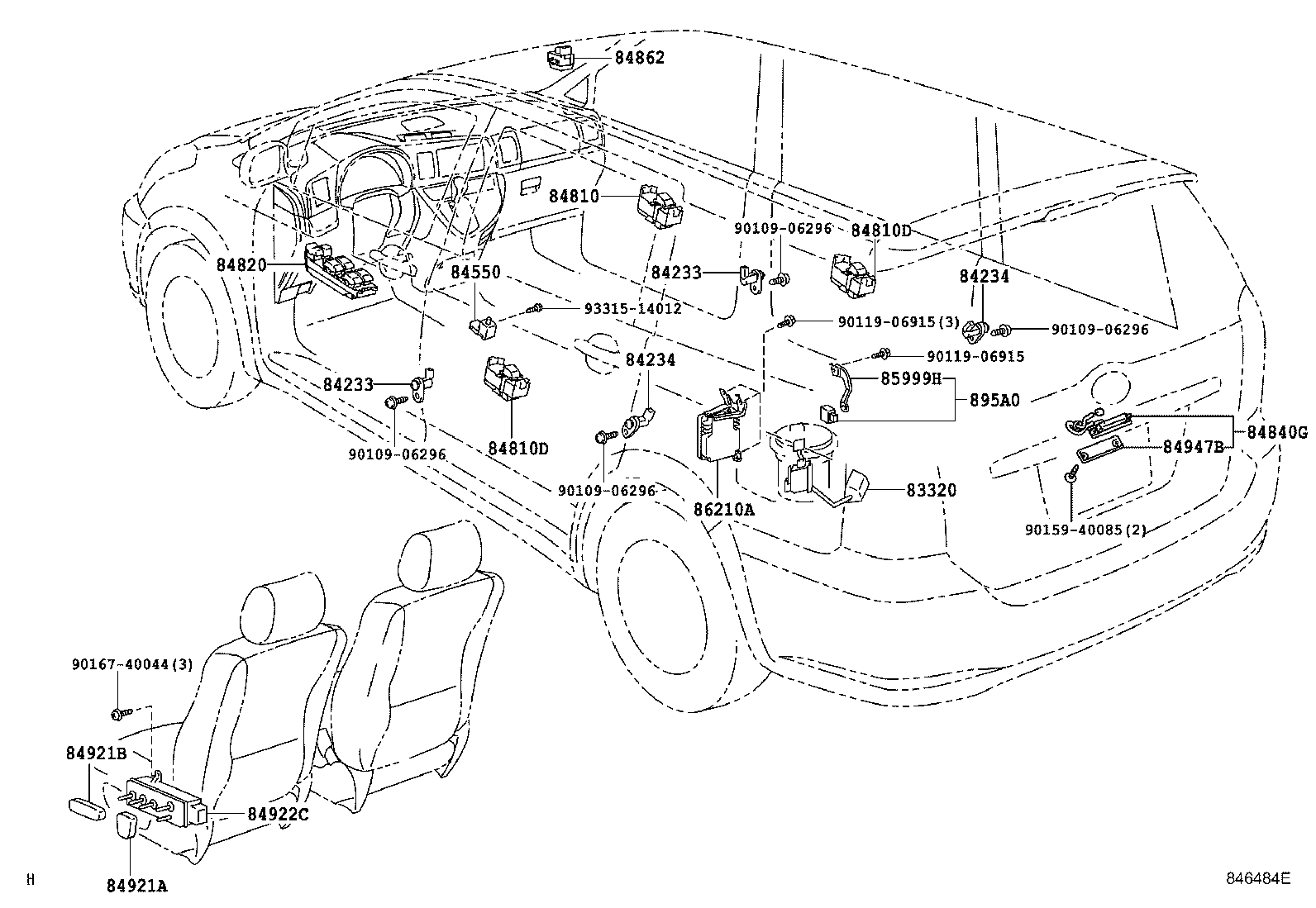

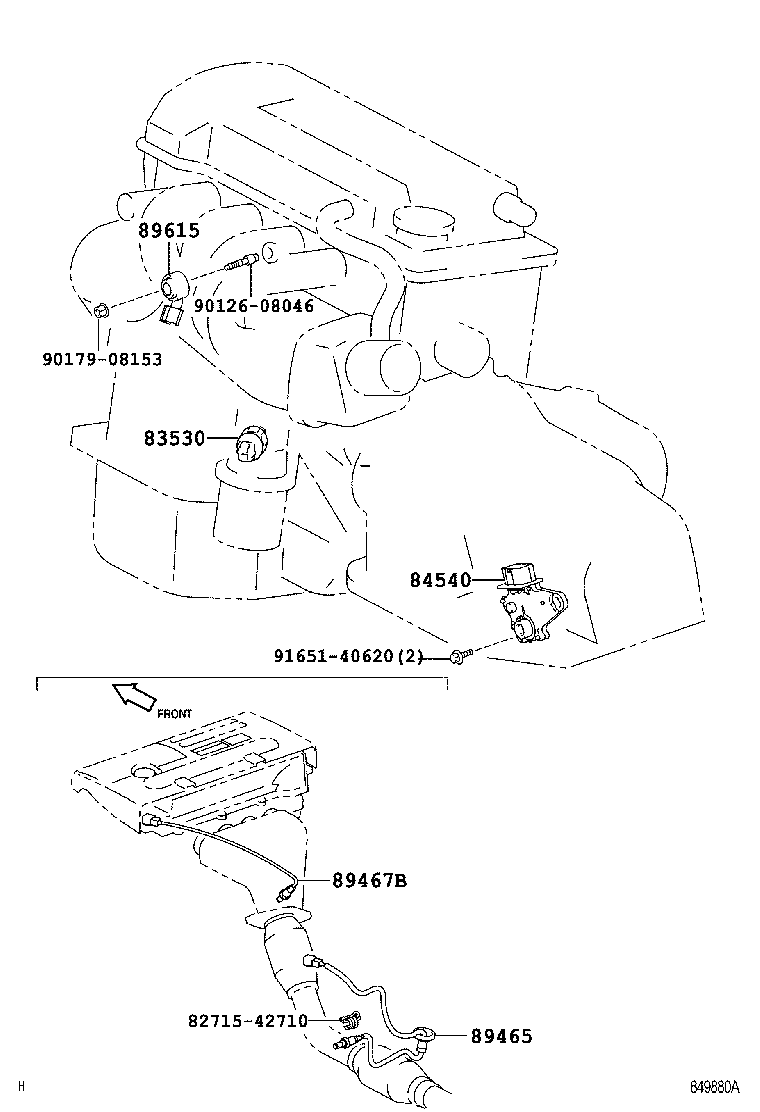

Figure 846005C 846005C 2003-12 → — Figure 849880A 849880A 2008-04 → — Figure 846006O 846006O 2003-12 → — Figure 84L077 84L077 2003-12 → — Figure 846007J 846007J 2003-12 → — Figure 846481F 846481F 2004-08 → — Figure 846008B 846008B 2003-12 → — Figure 846482F 846482F 2004-08 → — Figure 846009D 846009D 2003-12 → — Figure 846483E 846483E 2004-08 → — Figure 846010C 846010C 2003-12 → — Figure 846484E 846484E 2004-08 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
28371C Relay, Ignition, NO.2
81980 Flasher Assy, Turn Signal
82210J Fusible Link
82600F Fuse, Fuse Block
82616 Puller, Fuse
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82683 Plate, Fuse Block Caution
82683A Plate, Fuse Block Caution
82685A Plate, Caution
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82741B Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84152B Bulb (FOR HEADLAMP LEVELING SWITCH)
84162A Switch, Rear Fog Lamp
84162C Bulb (FOR REAR FOG LAMP SWITCH)
84204 Cable Sub-assy, Steering Pad Switch
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84244 Switch, Steering Pad
84247A Switch, Steering Pad, LH
84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral
84312 Plate, Horn Contact
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84480 Switch Assy, Main
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84660C Switch, Cooler
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84840G Switch Assy, Back Door Opener
84862 Switch, Slide Roof Motor
84870A Switch Assy, Outer Mirror
84921A Knob, Power Seat Switch (FOR RECLINING)
84921B Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84922C Switch, Front Power Seat, LH
84947B Cover, Switch
84988F Switch, Traction Control
84988G Bulb, Traction Control Switch
85431 Solenoid, Shift Lock
85432 Solenoid, Key Interlock
85530 Socket Assy, Power Outlet, NO.1
85531 Socket, Power Outlet
85535B Cover, Power Outlet Socket, NO.1
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85912 Relay, Defogger
85916D Relay, Fog Lamp
85916N Relay, Taillamp
85916P Relay, Headlamp
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85927B Relay, Cooling Fan, NO.3
85928B Resistor, Cooling Fan
85934 Relay, Magnet-clutch
85999H Bracket, Relay
86210A Inverter Assy, Voltage
86220A Relay, Inverter
86530 Relay Assy, Horn
89245B Sensor, Steering
89438 Switch, Power Steering Oil Pressure
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
895A0 Relay Assy, Stop Lamp Control
895A1 Relay, Stop Lamp Control
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89654 Relay, Power Steering
89960 Computer Assy, Headlamp Leveling
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
