Toyota Wish

2003-12 → 2009-10 · chassis ANE1#,ZNE10 · catalogue 163210 · General

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

24 part groups · 8 illustrations

Illustrations

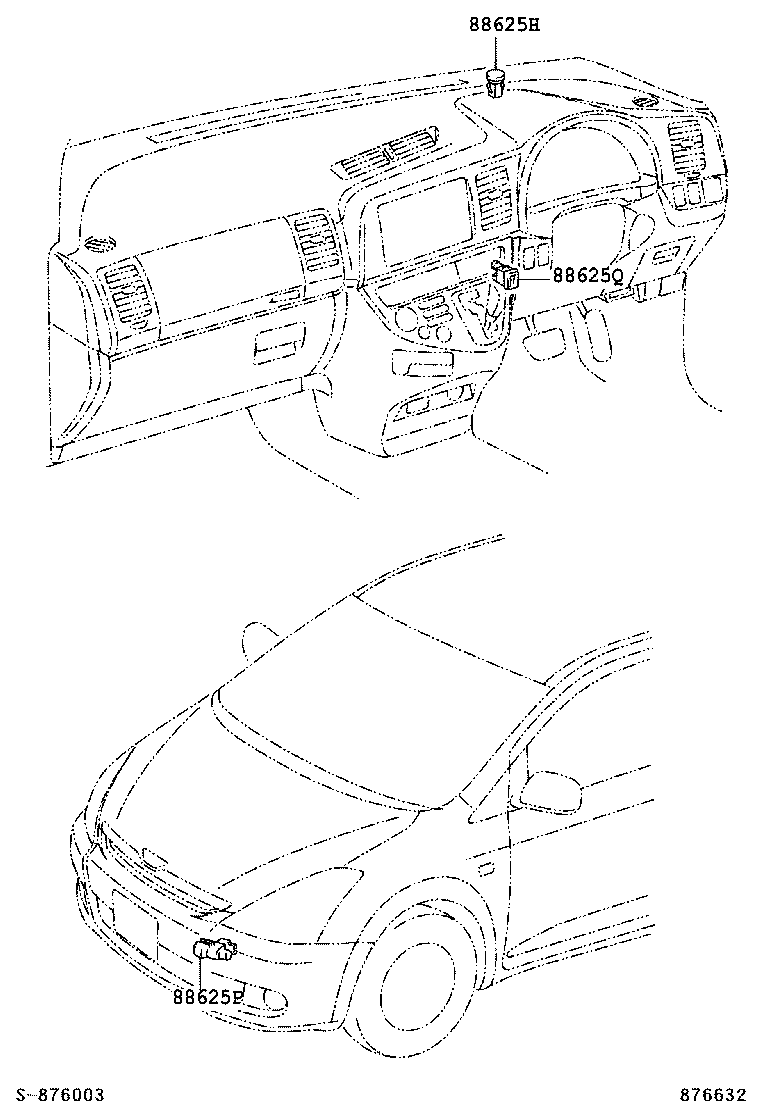

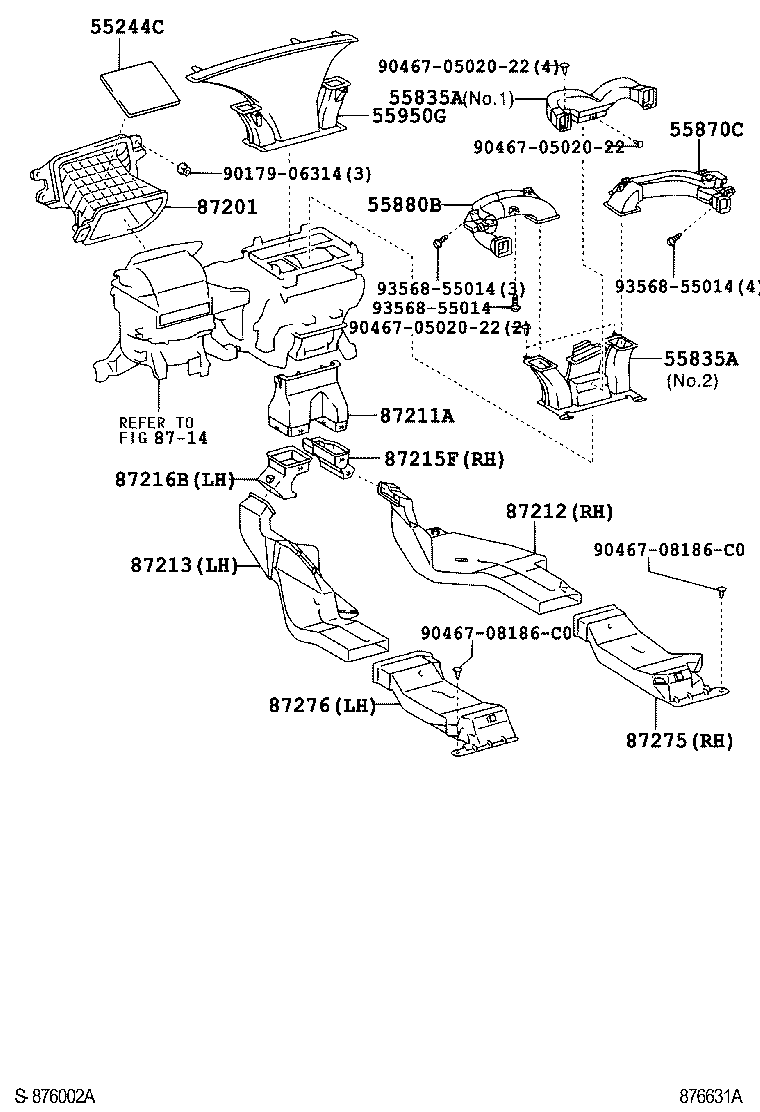

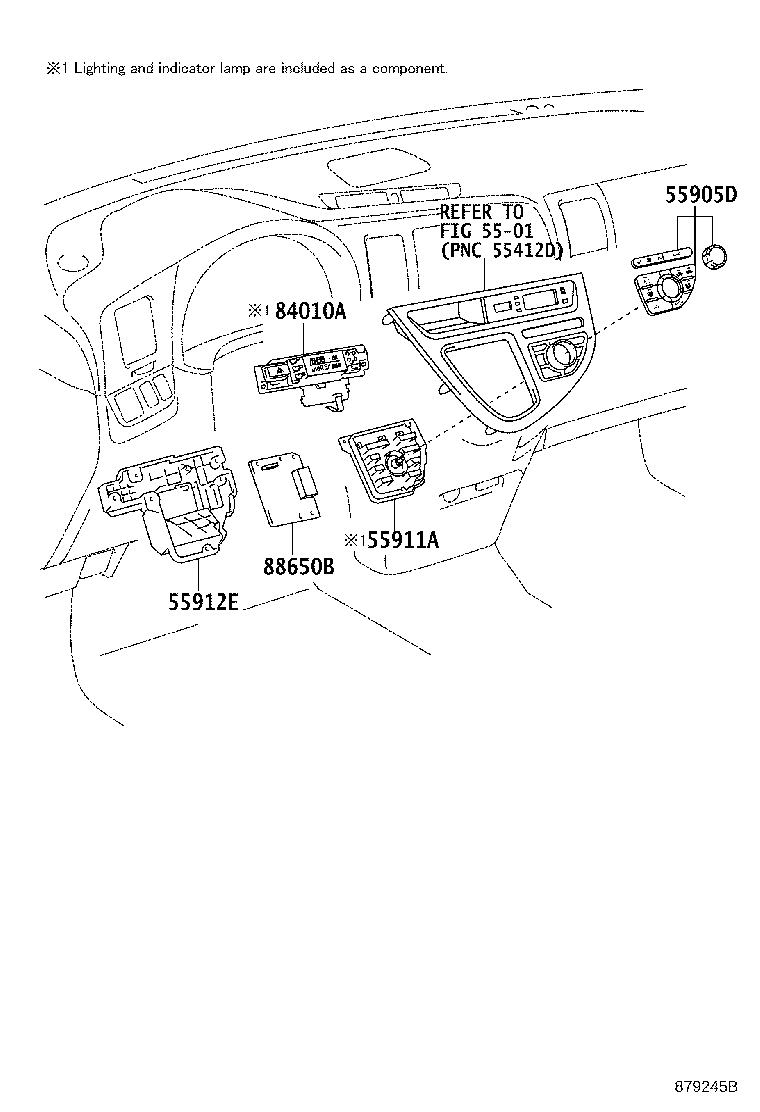

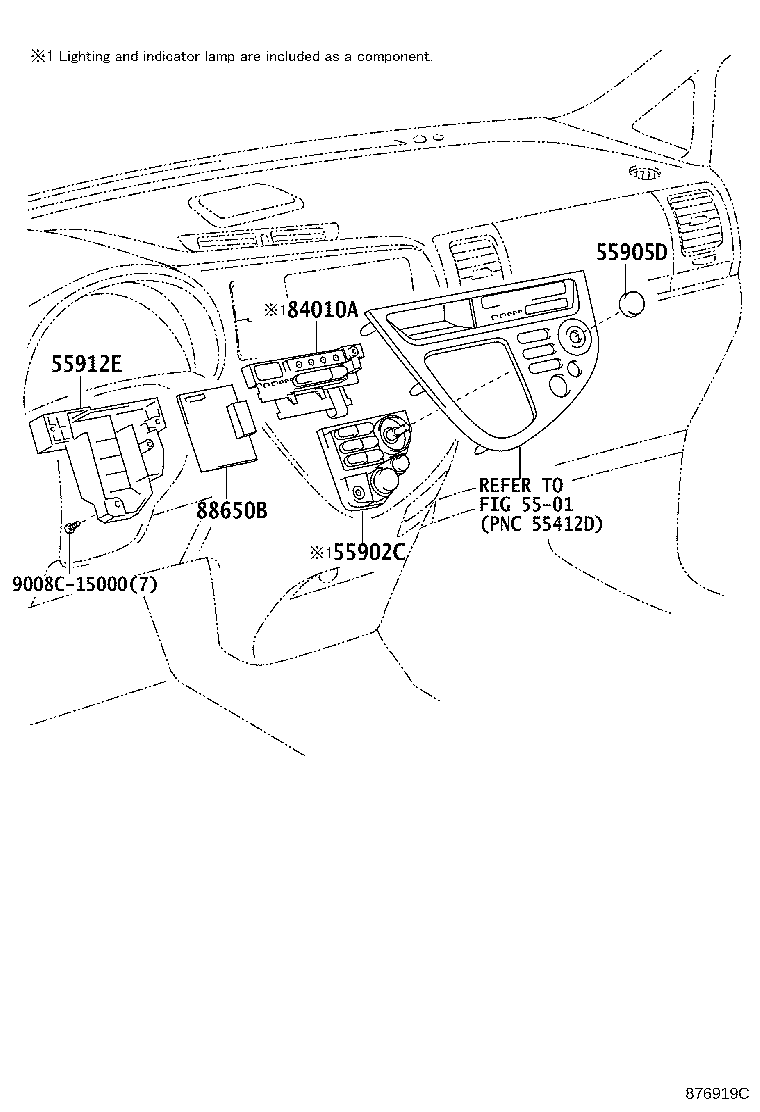

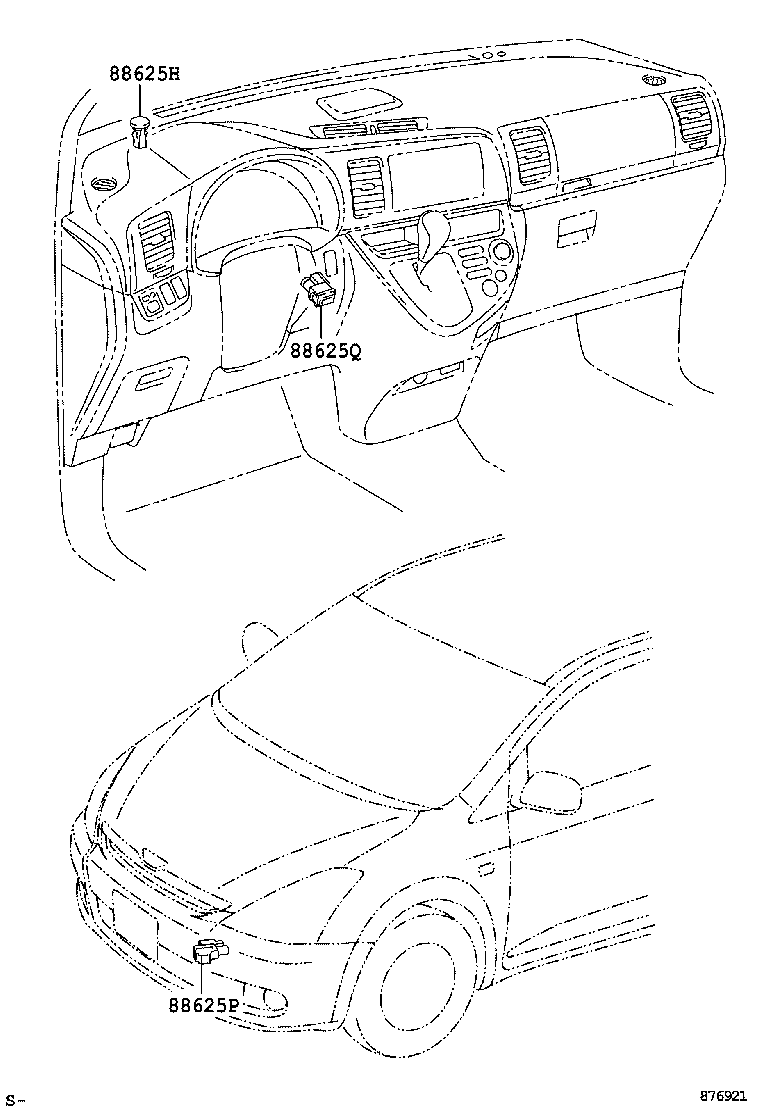

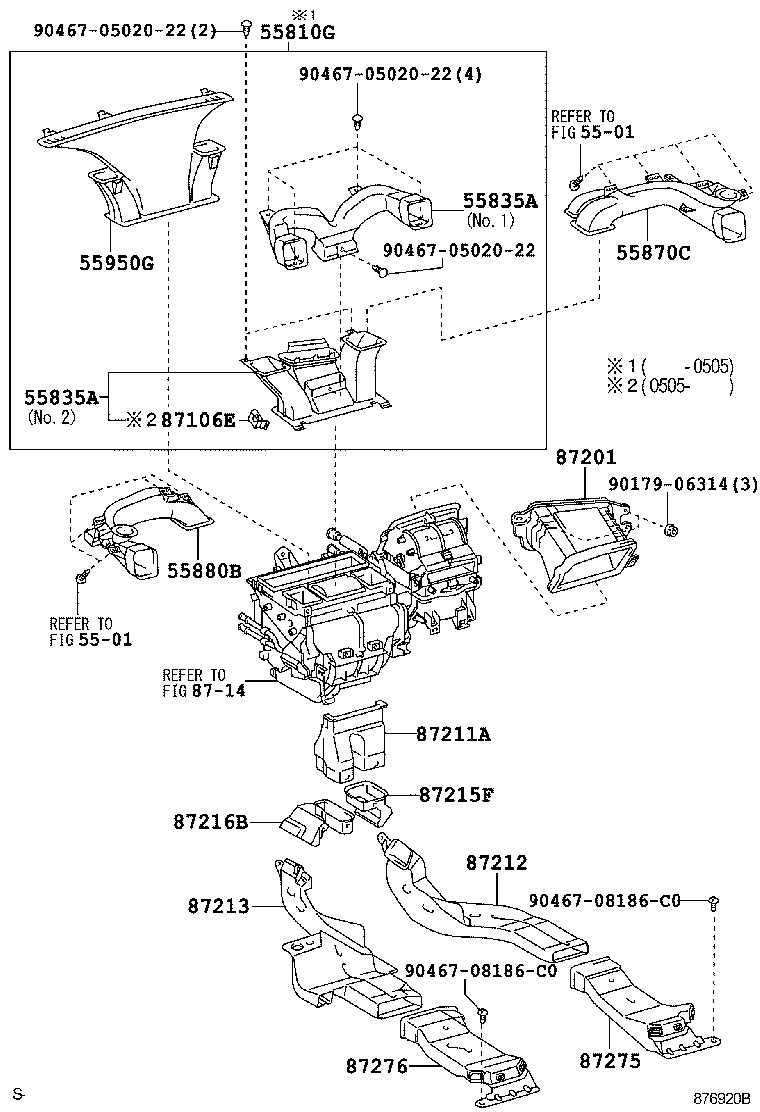

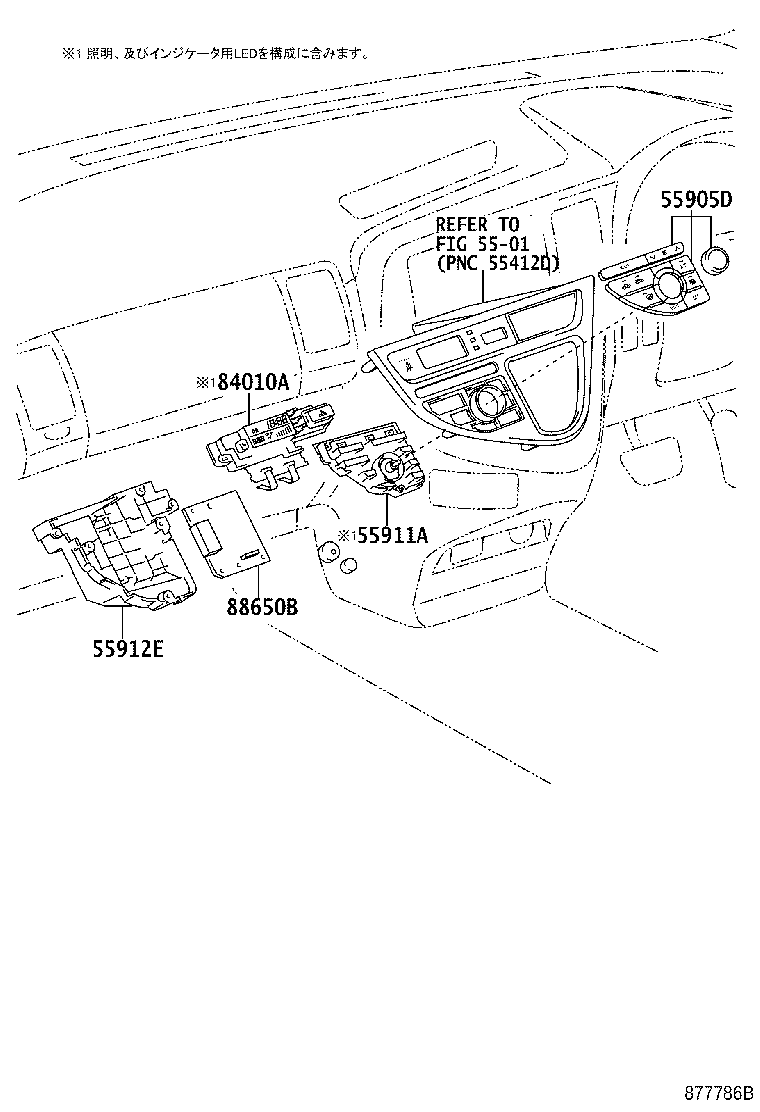

Figure 876630A 876630A 2003-12 → 2005-12 Figure 877786B 877786B 2005-12 → — Figure 876919C 876919C 2004-08 → 2007-03 Figure 879245B 879245B 2007-03 → — Figure 876631A 876631A 2003-12 → — Figure 876920C 876920C 2004-08 → — Figure 876632 876632 2003-12 → — Figure 876921 876921 2004-08 → —

Part groups

PNCDescription
55244C Silencer, Front Panel Side, NO.2 LH
55810G Ventilator Assy, Front
55835A Duct, Heater TO Register, Center
55870C Duct Assy, Boot TO Register, RH
55880B Duct Assy, Boot TO Register LH
55902C Panel Sub-assy, Air Conditioner
55905D Knob Sub-assy, Control
55911A Base, Heater Control
55912E Base, Heater Control, Lower
55950G Nozzle Assy, Defroster
84010A Control & Panel Assy, Integration
87106E Servo Sub-assy, Heater Damper
87201 Duct Sub-assy, Air, NO.1
87211A Duct, Air, NO.2
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215F Duct, Air, Rear NO.3
87216B Duct, Air, Rear NO.4
87275 Duct, Floor Heater Air, NO.1 RH
87276 Duct, Floor Heater Air, NO.1 LH
88625H Thermistor, Cooler (SOLAR SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88650B Amplifier Assy, Airconditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
