Toyota Wish

2009-09 → 2017-11 · chassis ZGE2# · catalogue 163220 · General

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

7 part groups · 2 illustrations

Illustrations

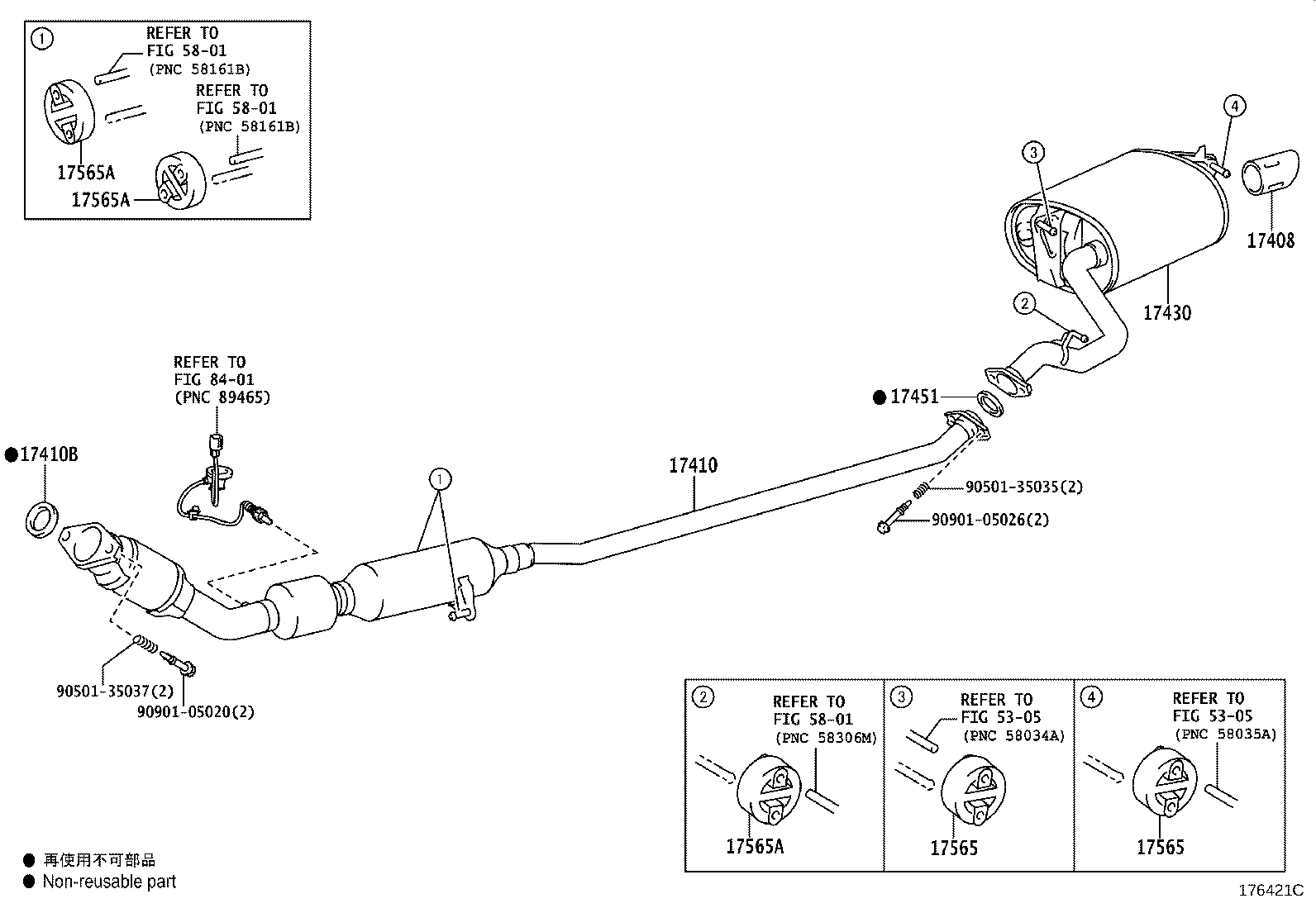

Figure 176420C 176420C 2009-09 → — Figure 176421C 176421C 2010-06 → —

Part groups

PNCDescription
17408 Baffle Sub Assy, Exhaust Tailpipe
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
