Toyota Wish

2009-09 → 2017-11 · chassis ZGE2# · catalogue 163220 · General

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

12 part groups · 2 illustrations

Illustrations

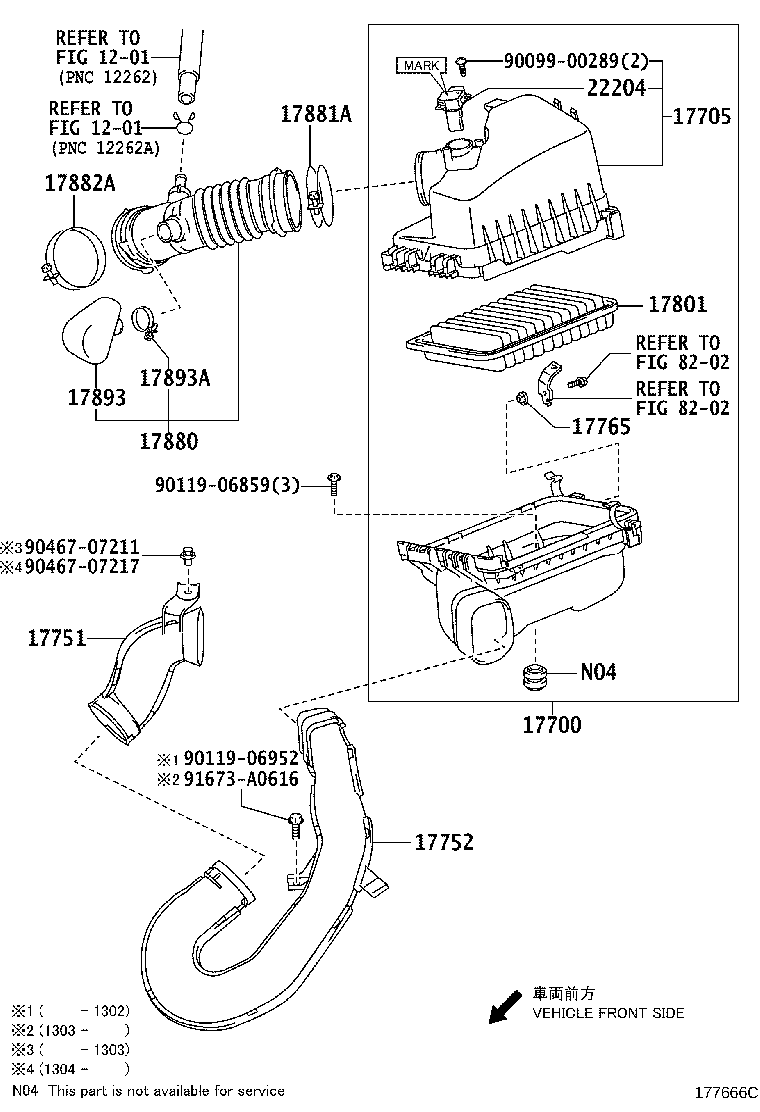

Figure 176626B 176626B 2009-09 → 2012-04 Figure 177666C 177666C 2012-04 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17752 Inlet, Air Cleaner, NO.2
17765 Stay, Air Cleaner, NO.1
17801 Element Sub-assy, Air Cleaner Filter
17880 Hose Assy, Air Cleaner
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17893 Resonator, Intake Air
17893A Clamp, Hose
22204 Meter Sub-assy, Intake Air Flow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
