Toyota Wish

2009-09 → 2017-11 · chassis ZGE2# · catalogue 163220 · General

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

25 part groups · 10 illustrations

Illustrations

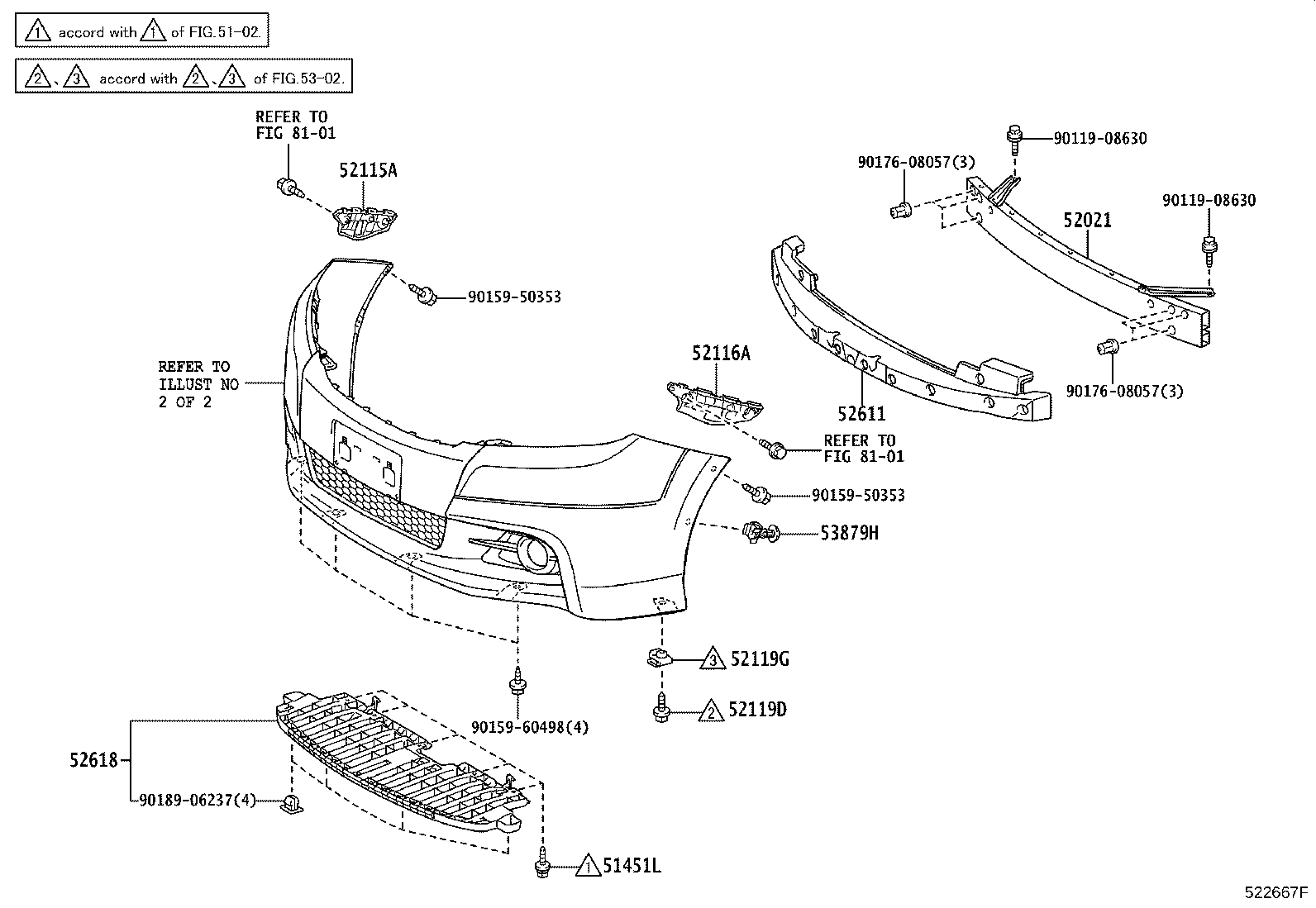

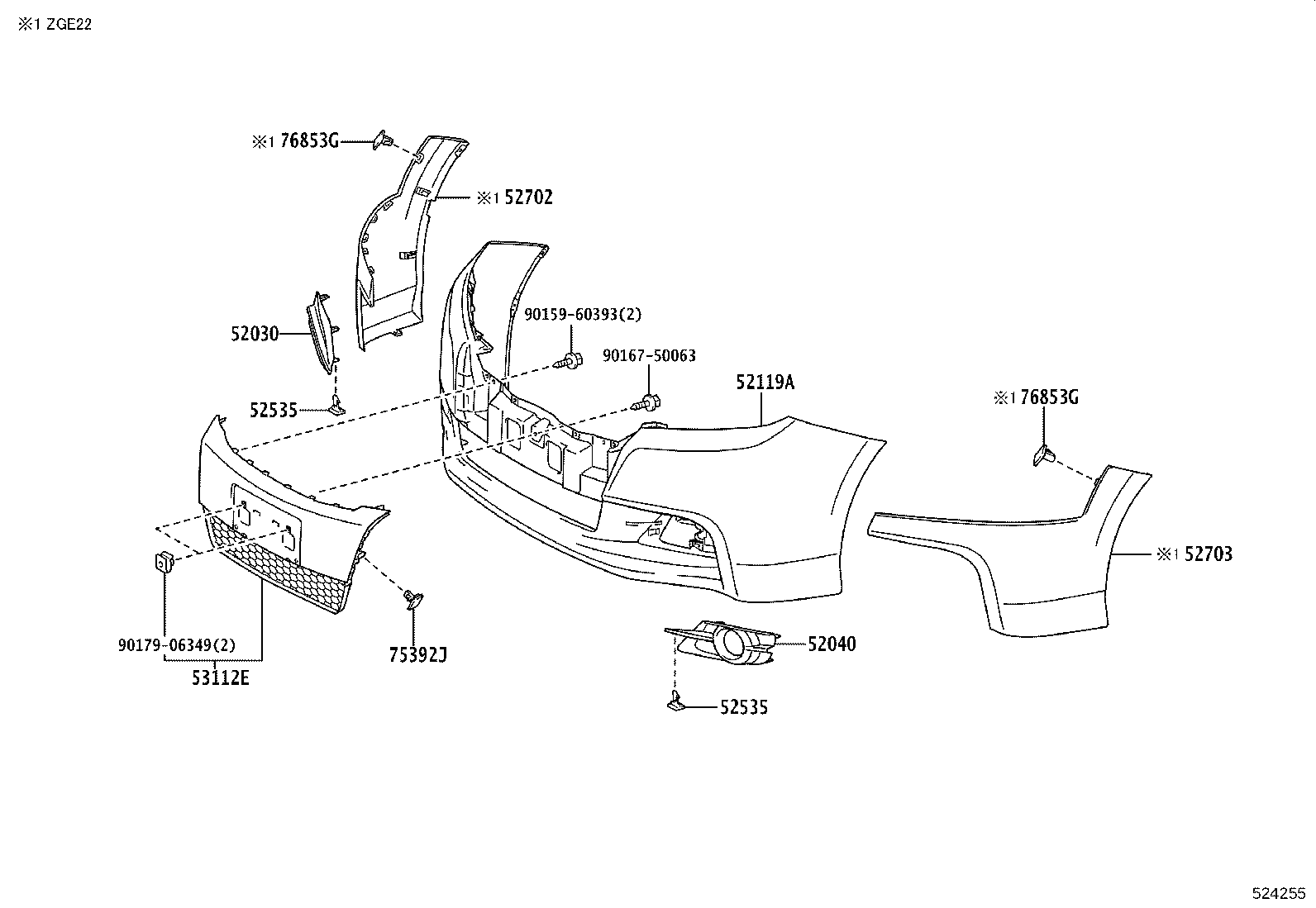

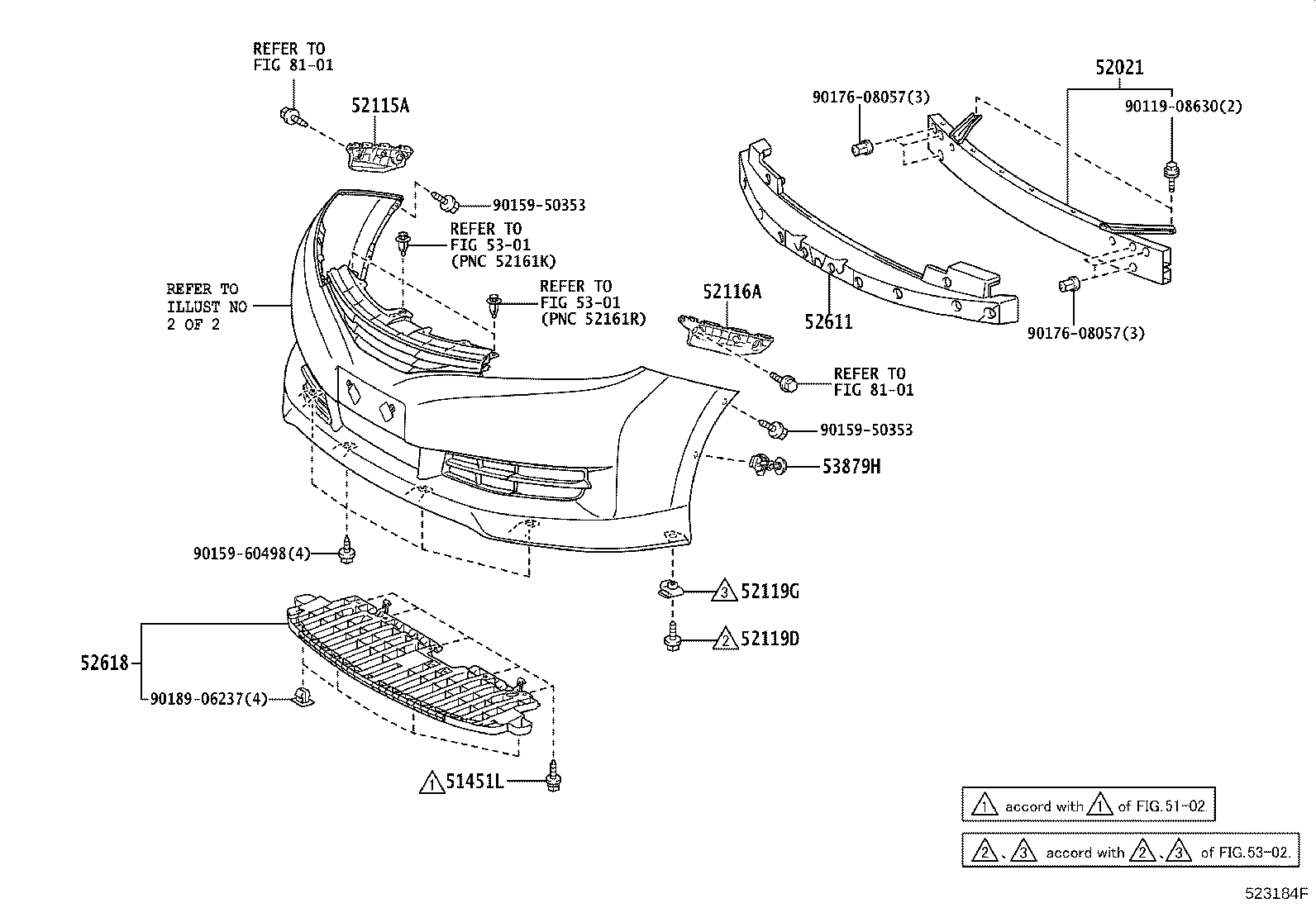

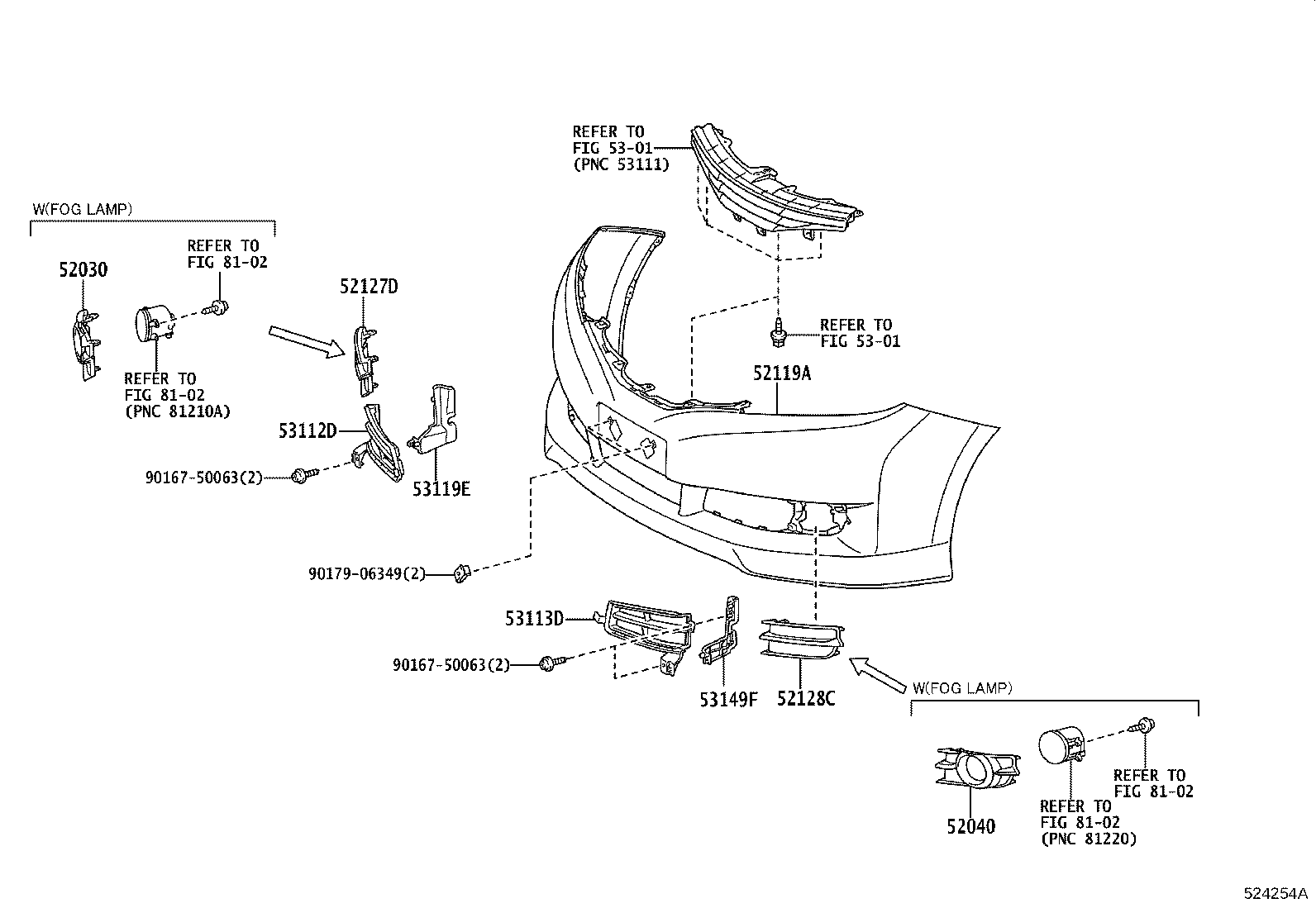

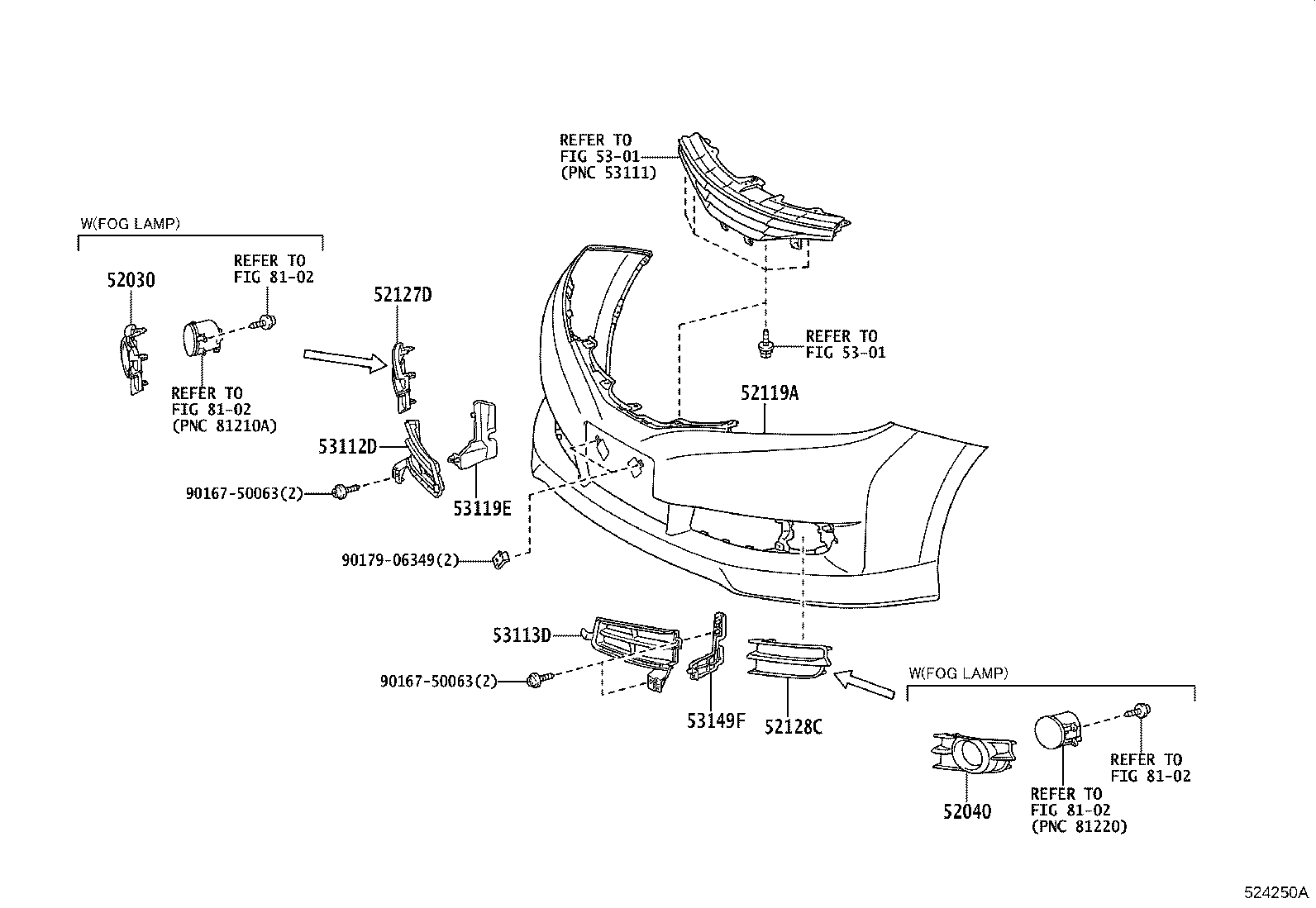

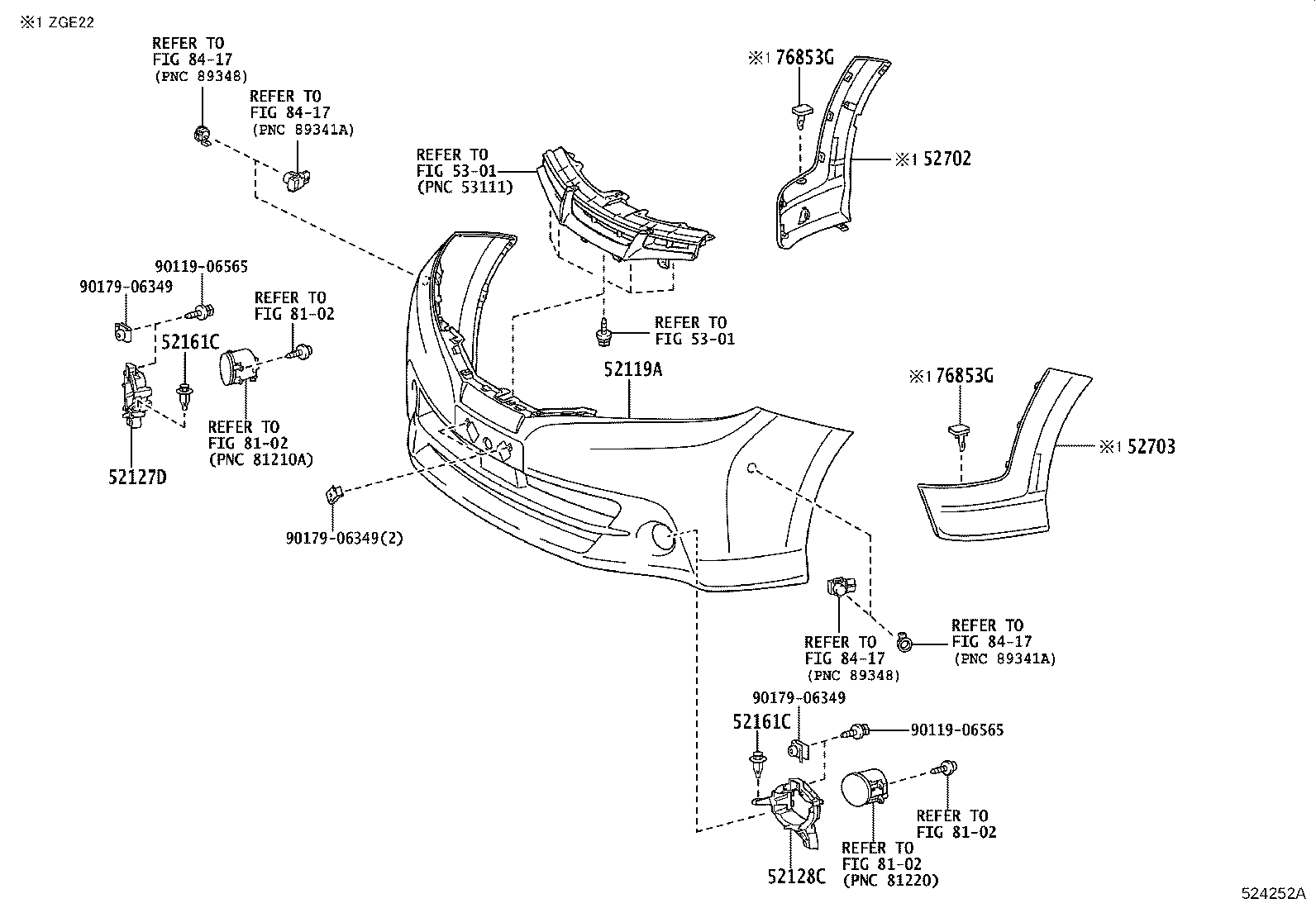

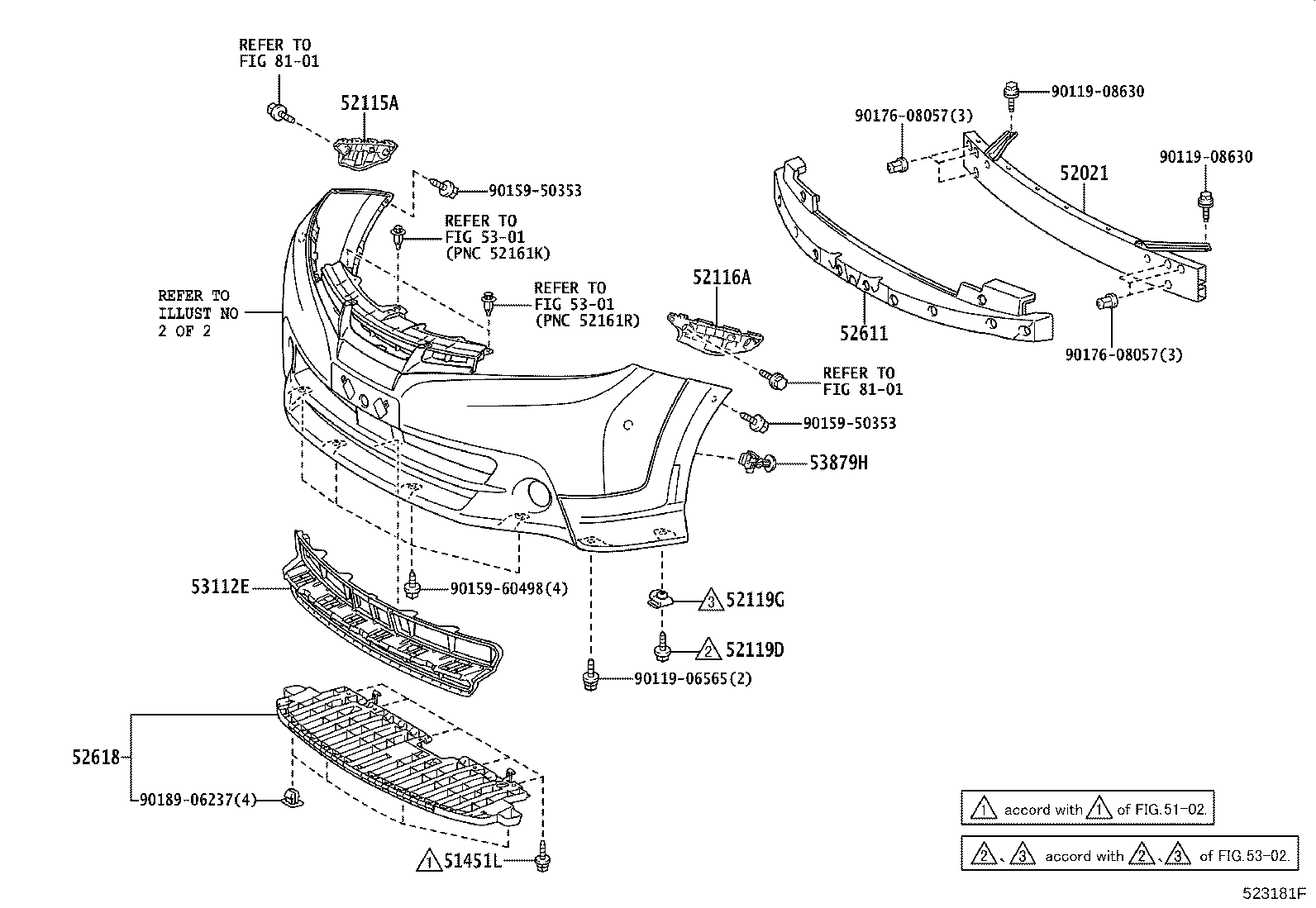

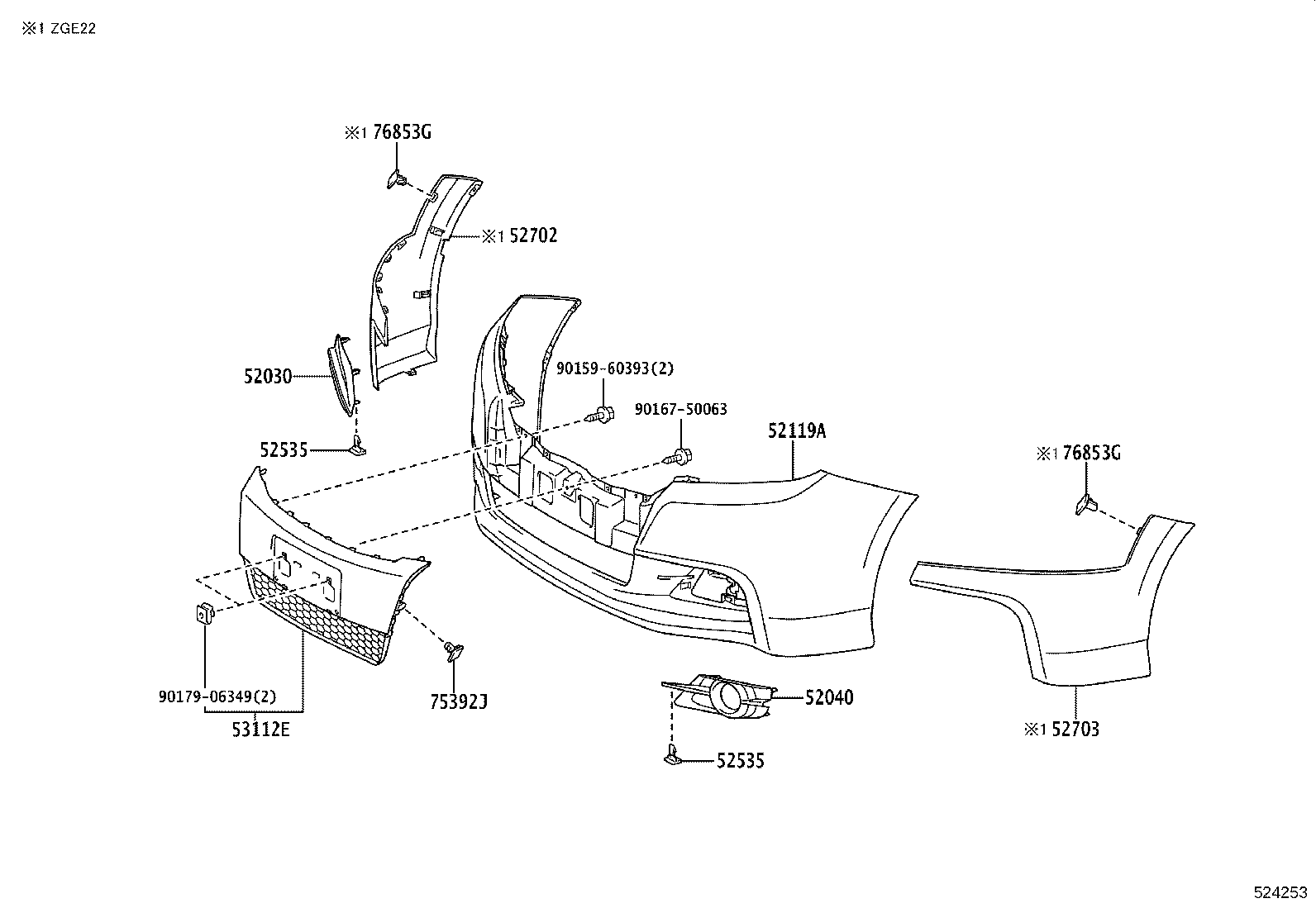

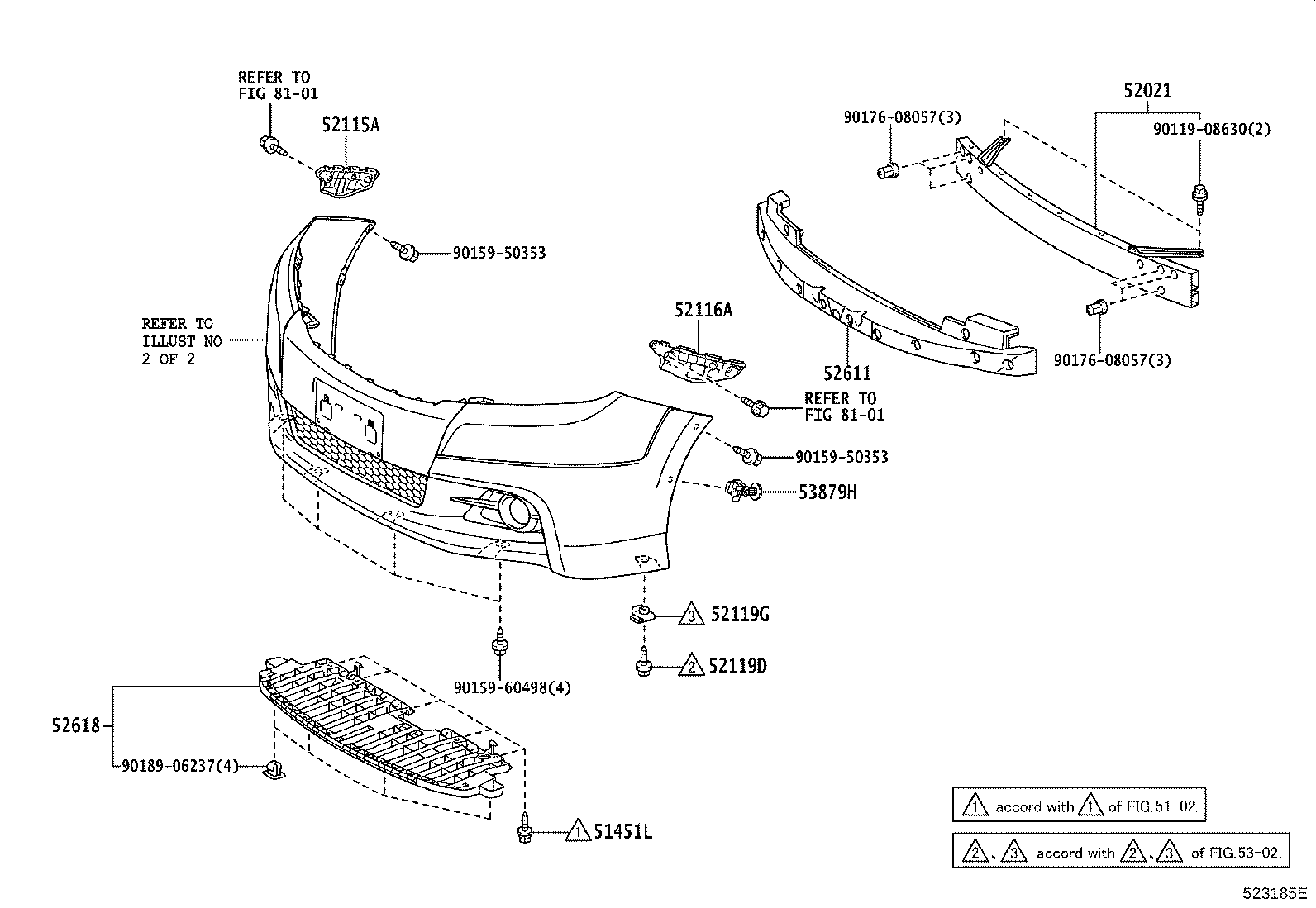

Figure 522660G 522660G 2009-09 → 2015-07 Figure 524250A 524250A 2009-09 → 2015-07 Figure 523181F 523181F 2010-06 → 2012-04 Figure 524252A 524252A 2010-06 → 2012-04 Figure 522667F 522667F 2012-04 → 2015-07 Figure 524253 524253 2012-04 → 2015-07 Figure 523184F 523184F 2015-07 → — Figure 524254A 524254A 2015-07 → — Figure 523185E 523185E 2015-07 → — Figure 524255 524255 2015-07 → —

Part groups

PNCDescription
51451L Bolt, NO.1
52021 Reinforcement Sub-assy, Front Bumper
52030 Cover Assy, Front Bumper Hole, RH
52040 Cover Assy, Front Bumper Hole, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52119D Screw, NO.1
52119G Clip, NO.1
52127D Cover, Front Bumper Hole, RH
52128C Cover, Front Bumper Hole, LH
52161C Piece, Front Bumper
52535 Retainer, Front Bumper Side, RH
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
52702 Moulding Sub-assy, Front Bumper Side, RH
52703 Moulding Sub-assy, Front Bumper Side, LH
53112D Grille, Radiator, Lower RH
53112E Grille, Radiator, Lower NO.1
53113D Grille, Radiator, Lower LH
53119E Protector, Radiator Grille
53149F Protector, Radiator Grille, LH
53879H Retainer, Front Fender Liner
75392J Retainer, Outside Moulding
76853G Retainer, Front Bumper Guard, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
