Toyota Wish

2009-09 → 2017-11 · chassis ZGE2# · catalogue 163220 · General

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

13 part groups · 2 illustrations

Illustrations

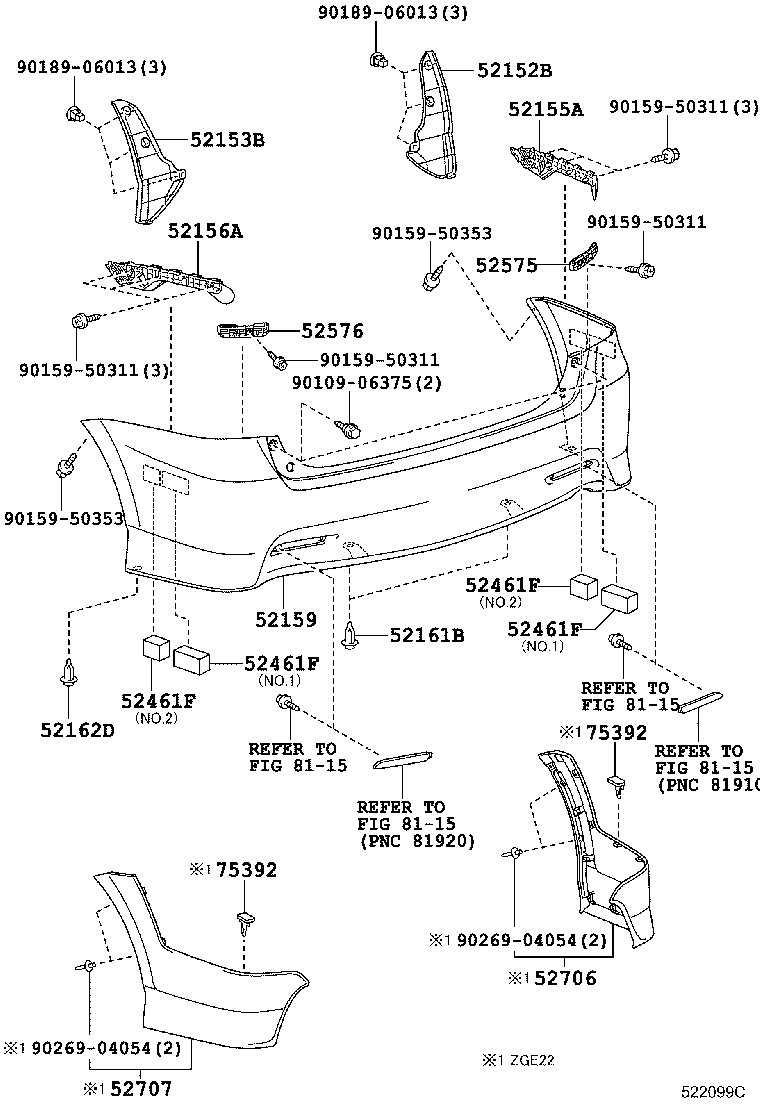

Figure 522098B 522098B 2009-09 → — Figure 522099C 522099C 2010-06 → —

Part groups

PNCDescription
52152B Extension, Rear Bumper, RH
52153B Extension, Rear Bumper, LH
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52162D Piece, Rear Bumper
52461F Pad, Rear Bumper
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52706 Moulding Sub-assy, Rear Bumper Side, RH
52707 Moulding Sub-assy, Rear Bumper Side, LH
75392 Retainer, Outside Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
