Toyota Wish

2009-09 → 2017-11 · chassis ZGE2# · catalogue 163220 · General

Supported model Data version 2018-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

3 part groups · 2 illustrations

Illustrations

533255 2009-09 → 2012-04

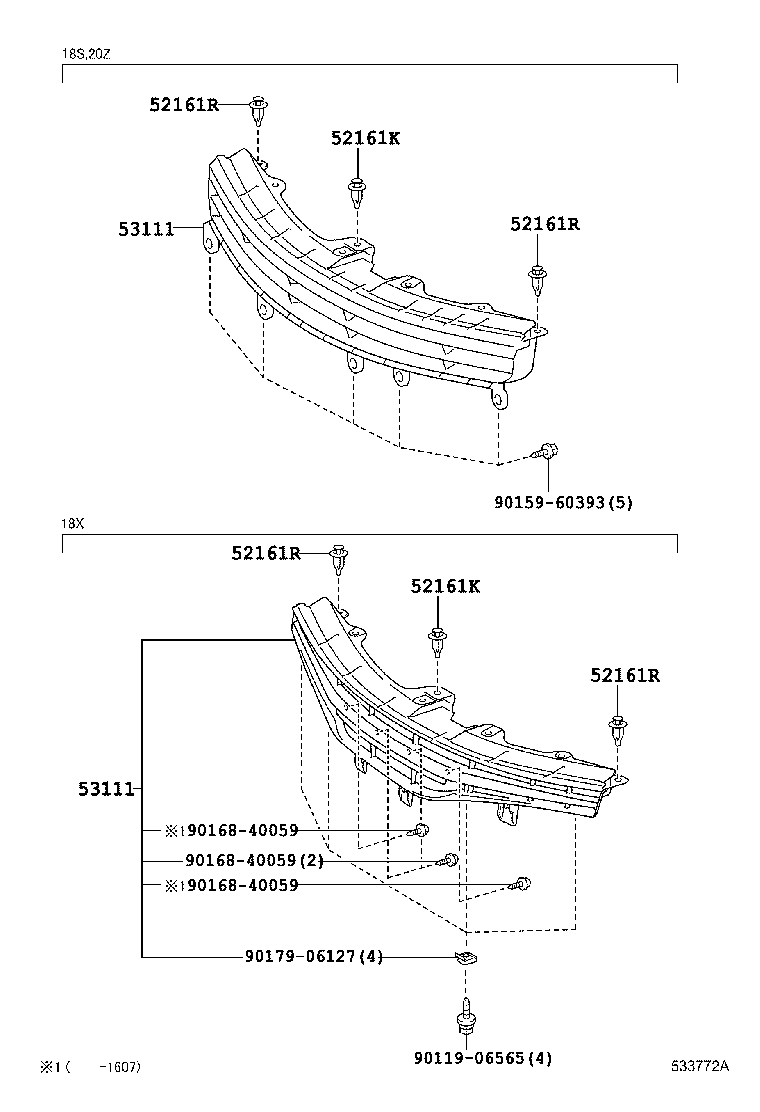

Figure 533772A

533772A 2012-04 → —

Part groups

PNC	Description
52161K	Piece, Front Bumper
52161R	Piece, Front Bumper
53111	Grille, Radiator

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
