Toyota Wish

2009-09 → 2017-11 · chassis ZGE2# · catalogue 163220 · General

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

25 part groups · 3 illustrations

Illustrations

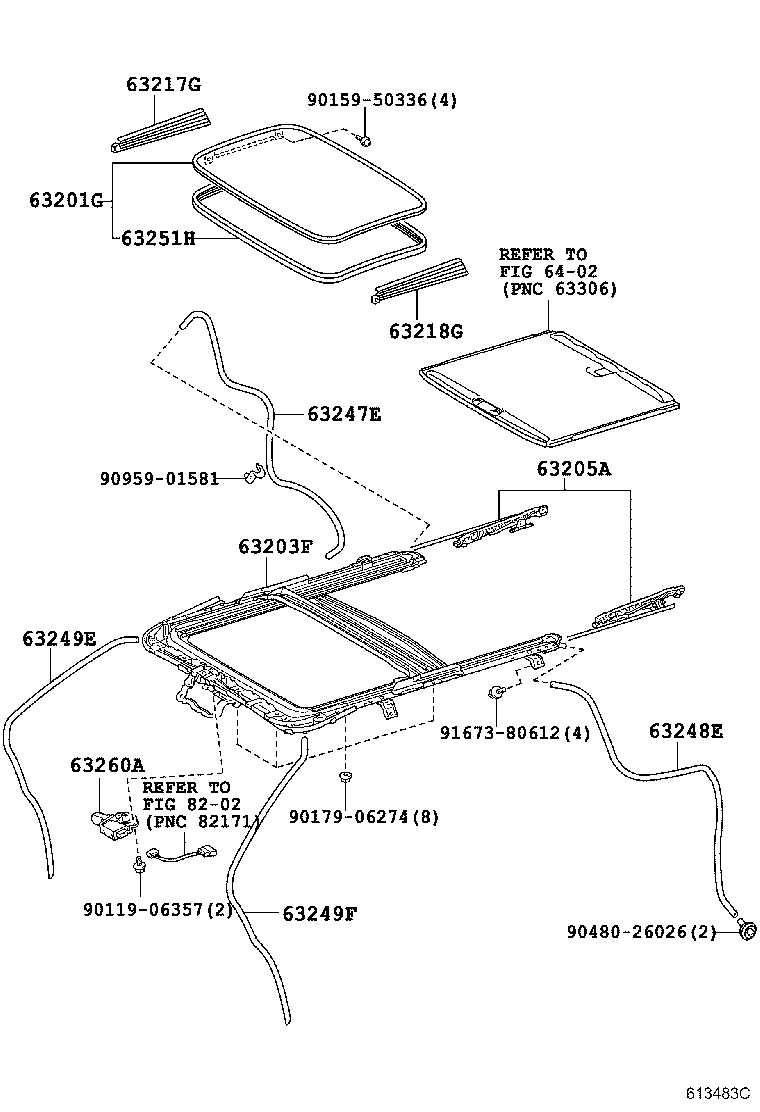

Figure 613482A 613482A 2009-09 → — Figure 613483C 613483C 2009-09 → 2010-05 Figure 613483C 613483C 2010-06 → —

Part groups

PNCDescription
61247F Reinforcement, Roof Side Rail, Inner
63105D Frame Sub-assy, Back Window, Upper
63106 Reinforcement Sub-assy, Roof Panel, NO.4
63111 Panel, Roof
63118 Support, Roof Panel, RH
63119 Support, Roof Panel, LH
63123C Reinforcement, Roof Panel
63127 Reinforcement, Roof Panel, NO.5
63128 Reinforcement, Roof Panel, NO.6
63132 Panel, Windshield Header, Inner
63137A Bracket, Dome Lamp, NO.1
63141G Reinforcement, Roof Panel, NO.1
63142A Reinforcement, Roof Panel, NO.2
63143B Reinforcement, Roof Panel, NO.3
63201G Glass Sub-assy, Sliding Roof
63203F Housing Sub-assy, Sliding Roof
63205A Cable Sub-assy, Sliding Roof Drive
63217G Garnish, Sliding Roof Side, RH
63218G Garnish, Sliding Roof Side, LH
63247E Hose, Sliding Roof Drain, Rear RH
63248E Hose, Sliding Roof Drain, Rear LH
63249E Hose, Sliding Roof Drain
63249F Hose, Sliding Roof Drain
63251H Weatherstrip, Sliding Roof
63260A Gear Sub-assy, Sliding Roof Drive
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
