Toyota Wish

2009-09 → 2017-11 · chassis ZGE2# · catalogue 163220 · General

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Deck Board & Deck Trim Cover

15 part groups · 3 illustrations

Illustrations

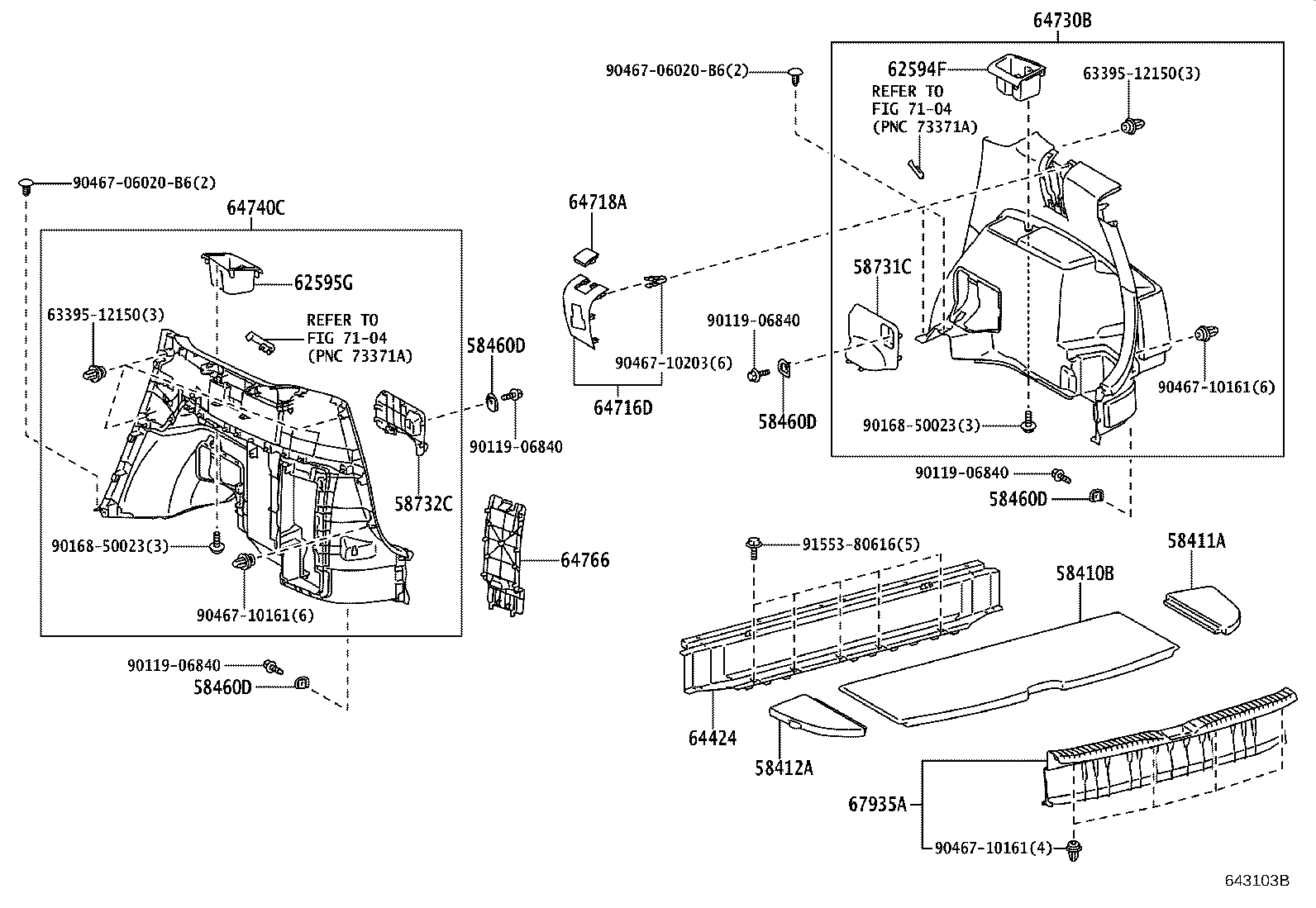

Figure 642478D 642478D 2009-09 → 2012-04 Figure 642478D 642478D 2012-04 → — Figure 643103B 643103B 2012-04 → —

Part groups

PNCDescription
58410B Board Assy, Deck
58411A Board, Deck, NO.1
58412A Board, Deck, NO.2
58460D Striker Assy, Luggage Hold Belt
58731C Cap, Rear Absorber
58732C Cap, Rear Absorber
62594F Pocket, Quarter Trim, RH
62595G Pocket, Quarter Trim, LH
64424 Separator, Luggage Room Box
64716D Cover, Deck Trim, Rear
64718A Cover, Deck Trim Service Hole
64730B Panel Assy, Deck Trim Side, RH
64740C Panel Assy, Deck Trim Side, LH
64766 Cover Sub-assy, Quarter Trim Jack
67935A Plate, Back Door Scuff
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
