Toyota Wish

2009-09 → 2017-11 · chassis ZGE2# · catalogue 163220 · General

Supported model Data version 2018-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

125 part groups · 9 illustrations

Illustrations

718399F 2009-09 → 2010-05

718399F 2010-06 → —

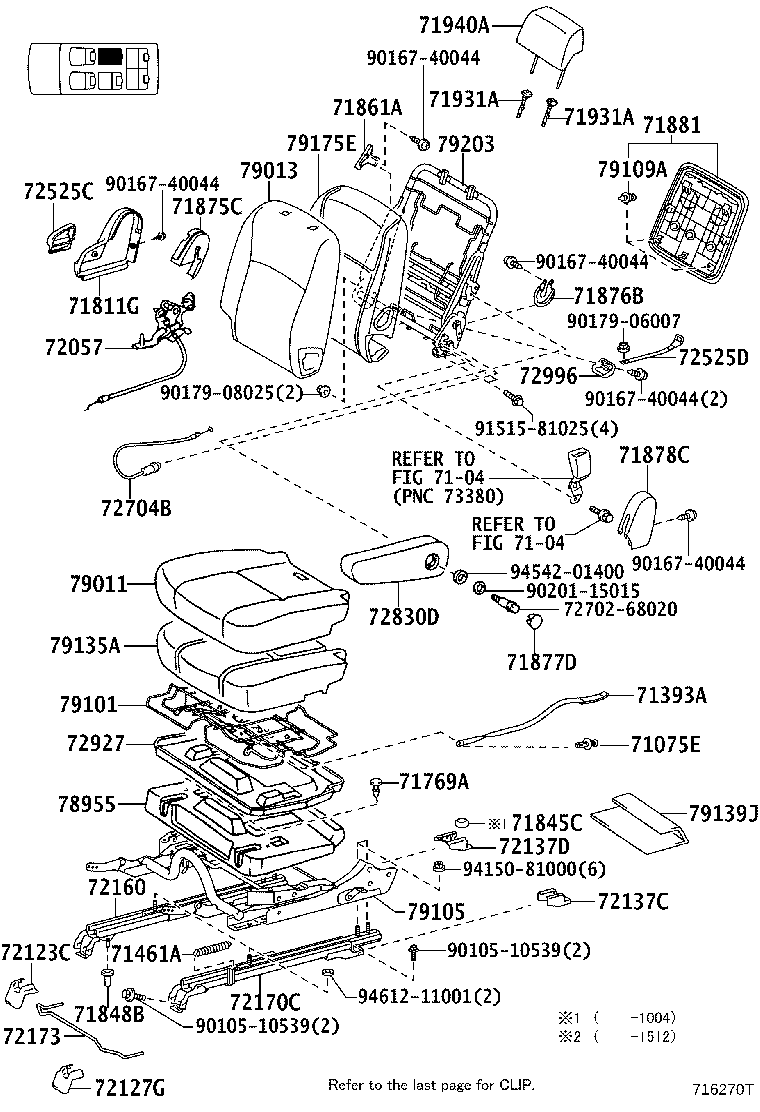

716270T 2010-06 → —

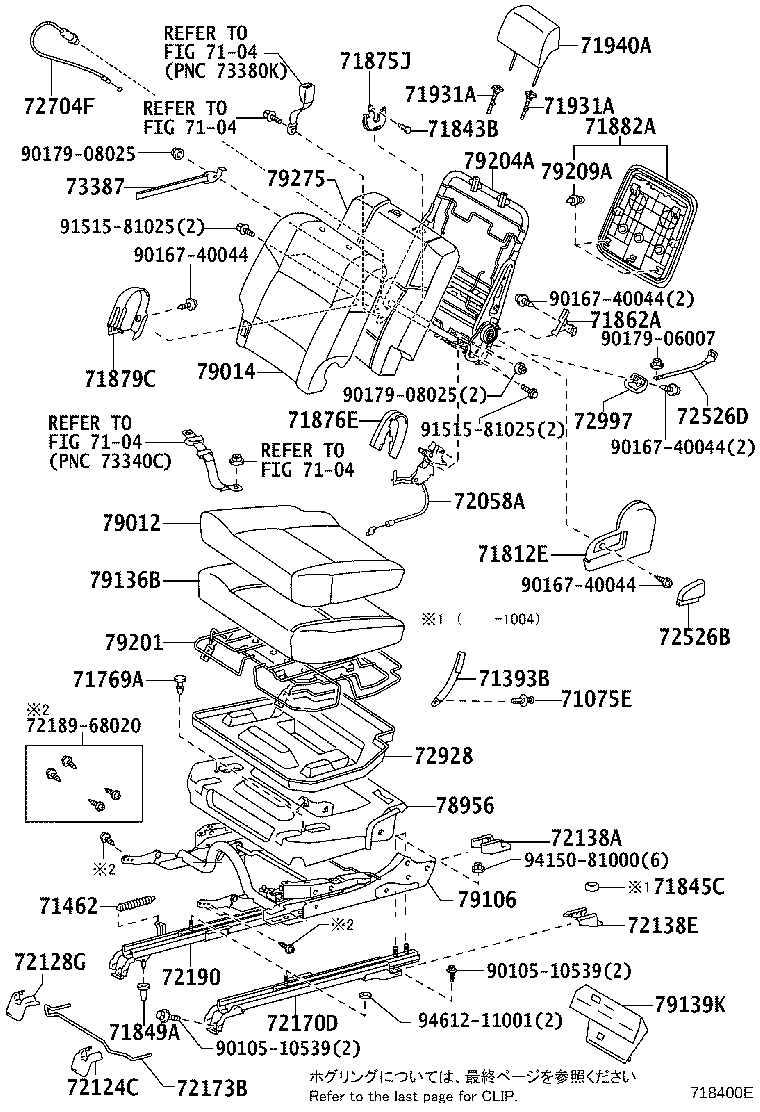

718400E 2009-09 → 2010-05

Part groups

PNC	Description
71075E	Clip(FOR REAR SEAT)
71393A	Band, Rear Seat Cushion, RH
71393B	Band, Rear Seat Cushion, LH
71397A	Cover, Center Seat Hinge
71461A	Spring, Rear Seat Cushion, NO.1
71462	Spring, Rear Seat Cushion, NO.2
71701B	Board Sub-assy, Rear Seatback, RH
71702B	Board Sub-assy, Rear Seatback, LH
71769A	Clip, Rear Seatback Board
71811G	Shield, Rear Seat Cushion, RH
71812E	Cover, Reclining Adjuster, LH
71833B	Clip (FOR REAR SEAT RECLINING COVER)
71843A	Cover, Rear Seat Reclining, NO.2 RH
71843B	Clip, Rear Seat Reclining Cover
71843D	Cover, Rear Seat Reclining, NO.2 RH
71844A	Cover, Rear Seat Reclining, NO.2 LH
71844C	Cover, Rear Seat Reclining, NO.2 LH
71845C	Cap, Rear Seat Cover
71848B	Cap, Seat Adjuster Cover, RH
71848C	Cap, Seat Adjuster Cover, RH
71849A	Cap, Seat Adjuster Cover, LH
71849D	Cap, Seat Adjuster Cover, LH
71861A	Shield, Rear Seat Cushion, Inner RH
71862A	Shield, Rear Seat Cushion, Inner LH
71875C	Cover, Reclining Adjuster Inside, RH
71875E	Cover, Reclining Adjuster Inside, RH
71875J	Cover, Reclining Adjuster Inside, RH
71876B	Cover, Reclining Adjuster Inside, LH
71876E	Cover, Reclining Adjuster Inside, LH
71877C	Cover, Rear Seat Armrest Hole LH
71877D	Cover, Rear Seat Armrest Hole
71878C	Cover, Rear Seat Reclining, Inner RH
71879C	Cover, Rear Seat Reclining, Inner LH
71881	Board, Rear Seatback, RH
71882A	Board, Rear Seatback, LH
71931A	Support, Rear Seat Headrest
71931E	Support Assy, Rear NO.3 Seat Headrest
71940A	Headrest Assy, Rear Seat
71960B	Headrest Assy, Rear Seat, Center
71970	Headrest Assy, Rear Seat
72057	Lever Sub-assy, Rear Seat Lock Control, RH
72058A	Lever Sub-assy, Rear Seat Lock Control, LH
72123C	Cover, Seat Track Bracket, Outer Front RH
72124C	Cover, Seat Track Bracket, Outer Front LH
72127G	Cover, Seat Track Bracket, Inner Front RH
72128G	Cover, Seat Track Bracket, Inner Front LH
72137C	Cover, Seat Track Inner, RH
72137D	Cover, Rear Seat Track, RH
72138A	Cover, Rear Seat Track, LH
72138E	Cover, Seat Track, Inner LH
72160	Track Assy, Rear Seat, Outer RH
72170C	Track Assy, Rear NO.1 Seat, Inner RH
72170D	Track Assy, Rear Seat, Outer LH
72173	Handle, Rear Seat Track Adjusting
72173B	Handle, Rear Seat Track Adjusting, LH
72190	Track Assy, Rear Seat Inner, LH
72525C	Handle, Reclining Adjuster Release, NO.1 RH
72525D	Handle, Reclining Adjuster Release, NO.2 RH
72525E	Handle, Reclining Adjuster Release, NO.3 RH
72525J	Handle, Reclining Adjuster Release, RH
72526B	Handle, Reclining Adjuster Release, NO.1 LH
72526C	Handle, Reclining Adjuster Release, NO.2 LH
72526D	Handle, Reclining Adjuster Release, NO.3 LH
72526E	Handle, Reclining Adjuster Release, LH
72553A	Protector, Reclining Cover, RH
72553C	Protector, Reclining Cover, RH
72554A	Protector, Reclining Cover, LH
72554B	Protector, Reclining Cover, LH
72558	Stopper, Reclining
72558A	Stopper, Reclining
72601B	Striker Sub-assy, Rear Seatback Lock
72635	Hook, Rear Seatback Lock
72653	Hook, Rear Seatback Rear Lock
72681	Hook, Rear Seatback Lock, Lower
72681C	Hook, Rear Seatback Lock, Lower
72704B	Cable, Rear Seat Reclining Control, NO.2
72704C	Cable, Rear NO.2 Seat Reclining Control
72704D	Cable, Rear NO.2 Seat Reclining Control
72704F	Cable, Rear Seat Reclining Control, NO.3
72830	Armrest Assy, Rear Seat, Center
72830D	Armrest Assy, Rear Seat, RH
72840	Armrest Assy, Rear NO.1 Seat, LH
72927	Cover, Rear Seat Cushion Under, RH
72928	Cover, Rear Seat Cushion Under, LH
72996	Cover, Rear Seatback, RH
72997	Cover, Rear Seatback, LH
73387	Band, RR Seat Belt Guide, NO.1
78955	Cover, Rear Seat Under Tray RH
78956	Cover, Rear Seat Under Tray LH
79011	Cover Sub-assy, NO.1 Seat Cushion, RH
79012	Cover Sub-assy, NO.1 Seat Cushion, LH
79013	Cover Sub-assy, NO.1 Seatback, RH
79014	Cover Sub-assy, NO.1 Seatback, LH
79031B	Cover Sub-assy, NO.3 Seat Cushion, RH
79032	Cover Sub-assy, NO.3 Seat Cushion, LH
79033	Cover Sub-assy, NO.3 Seatback, RH
79034	Cover Sub-assy, NO.3 Seatback, LH
79101	Frame Sub-assy, NO.1 Seat Cushion
79105	Leg Sub-assy, NO.1 Seat, RH
79106	Leg Sub Assy, NO.1 Seat, LH
79109A	Clip (FOR NO.1 SEATBACK BOARD)
79135A	Pad, NO.1 Seat Cushion, RH
79136B	Pad, NO.1 Seat Cushion, LH
79139J	Cloth, NO.1 Seat Cushion RH
79139K	Cloth, NO.1 Seat Cushion LH
79175E	Pad, NO.1 Seatback, RH
79201	Frame Sub-assy, NO.2 Seat Cushion
79203	Frame Sub-assy, NO.2 Seatback
79204A	Frame Sub-assy, NO.2 Seatback, LH
79209A	Clip (FOR NO.2 SEATBACK BOARD)
79275	Pad, NO.2 Seatback
79303A	Frame Sub-assy, NO.3 Seatback, RH
79304A	Frame Sub-assy, NO.3 Seatback, LH
79305A	Leg Sub-assy, NO.3 Seat, RH
79306	Leg Sub Assy, NO.3 Seat, LH
79319	Bracket, NO.3 Seat Leg, RR RH
79329	Bracket, NO.3 Seat Leg, RR LH
79335A	Pad, NO.3 Seat Cushion, RH
79345A	Pad, NO.3 Seat Cushion, LH
79360A	Spring Assy, NO.3 Seat Cushion, RH
79370A	Spring Assy, NO.3 Seat Cushion, LH
79372	Cover, NO.3 Seat Front Bracket, RH
79375A	Pad, NO.3 Seatback, RH
79382	Cover, NO.3 Seat Front Bracket, LH
79385A	Pad, NO.3 Seatback, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
