Toyota Wish
2009-09 → 2017-11 · chassis ZGE2# · catalogue 163220 · General
Supported model
Data version 2018-05
Headlamp

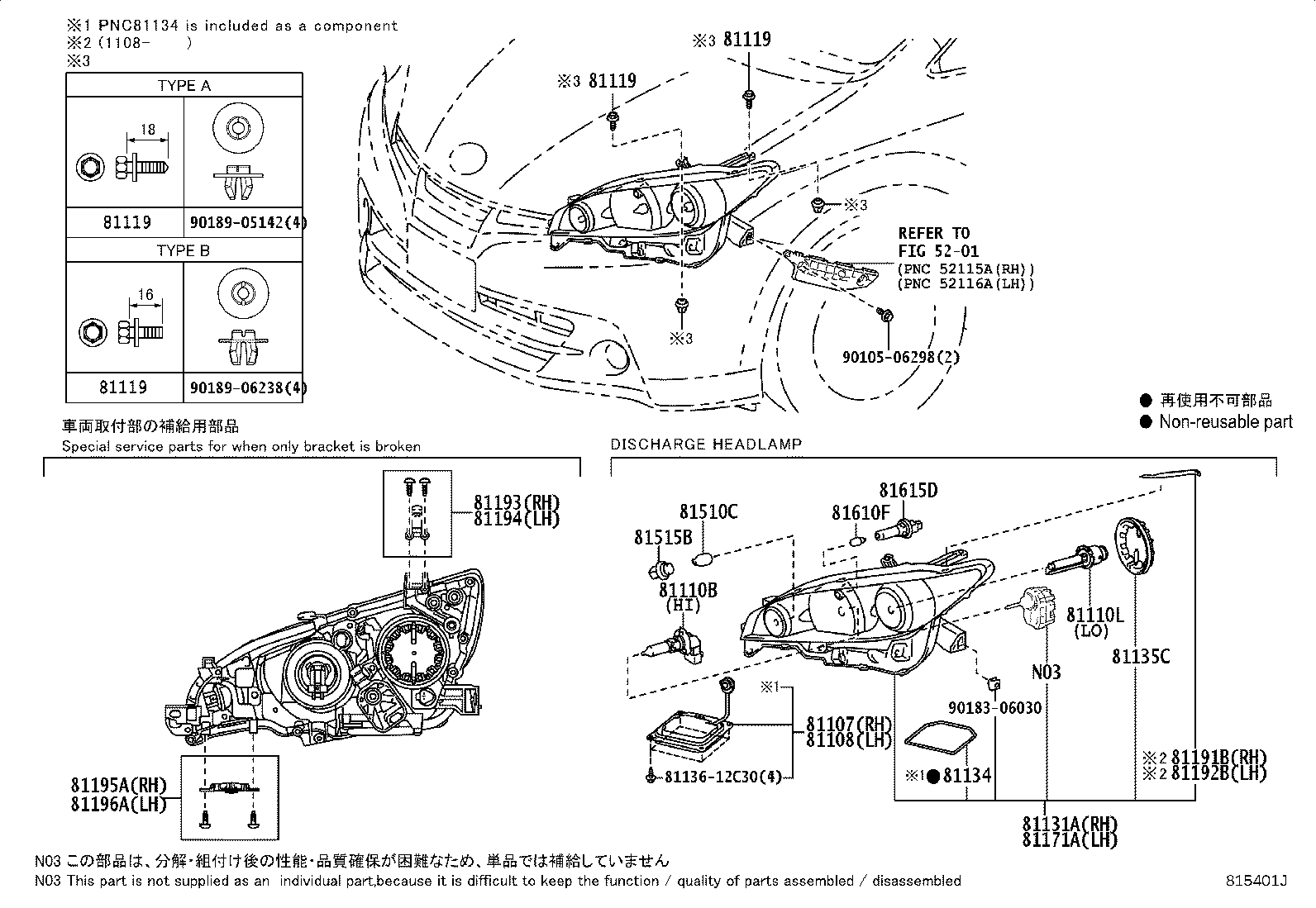

20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81107 | Computer Sub-assy, Headlamp Light Control, RH |
| 81108 | Computer Sub-assy, Headlamp Light Control, LH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110D | Bulb(FOR HEADLAMP, NO.2) |
| 81110L | Bulb, Discharge Headlamp |
| 81119 | Screw, Headlamp |
| 81131A | Unit, Headlamp, RH |
| 81134 | Gasket, Headlamp |
| 81135C | Cover, Headlamp Back, NO.1 |
| 81171A | Unit, Headlamp, LH |
| 81191B | Tape, Headlamp, RH |
| 81192B | Tape, Headlamp, LH |
| 81193 | Retainer, Headlamp Protector, Upper RH |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 81195A | Retainer, Headlamp Protector, Lower RH |
| 81196A | Retainer, Headlamp Protector, Lower LH |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615D | Socket, Clearance Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
