Toyota Wish

2009-09 → 2017-11 · chassis ZGE2# · catalogue 163220 · General

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

17 part groups · 2 illustrations

Illustrations

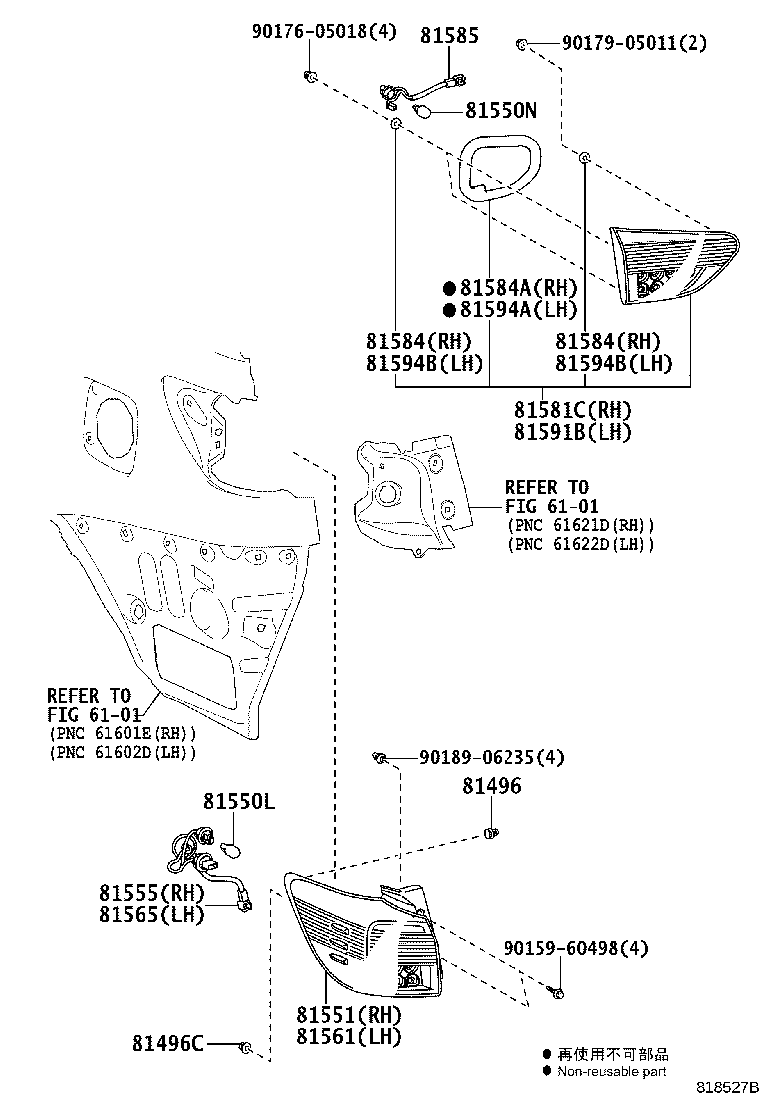

Figure 815031G 815031G 2009-09 → 2012-04 Figure 818527B 818527B 2012-04 → —

Part groups

PNCDescription
81496 Guide, Rear Combination Lamp
81496C Guide, Rear Combination Lamp, NO.2
81550H Bulb, Tail & Stop Lamp
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81551 Lens, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81561 Lens, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81580B Bulb (FOR REAR LAMP)
81581C Lens And Body, Rear Lamp, RH
81584 Packing, Rear Lamp RH
81584A Gasket, Rear Lamp RH
81585 Socket & Wire, Rear Lamp
81591B Lens And Body, Rear Lamp, LH
81594A Gasket, Rear Lamp LH
81594B Packing, Rear Lamp LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
