Toyota Wish
2009-09 → 2017-11 · chassis ZGE2# · catalogue 163220 · General
Supported model
Data version 2018-05
Switch & Relay & Computer
80 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28850 | Sensor Assy, Battery Current |
| 81980 | Flasher Assy, Turn Signal |
| 82210N | Instrument Panel Fusible Link |
| 82291D | Wire, TO Solenoid |
| 82600D | Instrument Panel Fuse |
| 82600F | Fuse, Fuse Block |
| 82620A | Block Assy, Fusible Link |
| 82630 | Holder Assy, Fuse |
| 82630C | Holder Assy, Fuse |
| 82630D | Holder, Fuse |
| 82641 | Relay, Integration NO.1 |
| 82660B | Block Assy, Relay |
| 82660C | Block Assy, Relay |
| 82660D | Block Assy, Relay |
| 82660E | Block Assy, Relay |
| 82660F | Block Assy, Relay |
| 82660G | Block Assy, Relay |
| 82660H | Block Assy, Relay |
| 82661 | Cover, Relay Block, NO.1 |
| 82661A | Cover, Relay Block, NO.2 |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82663 | Cover, Relay Block, Lower |
| 82671B | Block, Junction |
| 82672A | Cover, Junction Block |
| 82673A | Bracket, Junction Block, NO.1 |
| 82673B | Bracket, Junction Block, NO.2 |
| 82715 | Bracket,Wiring Harness Clamp |

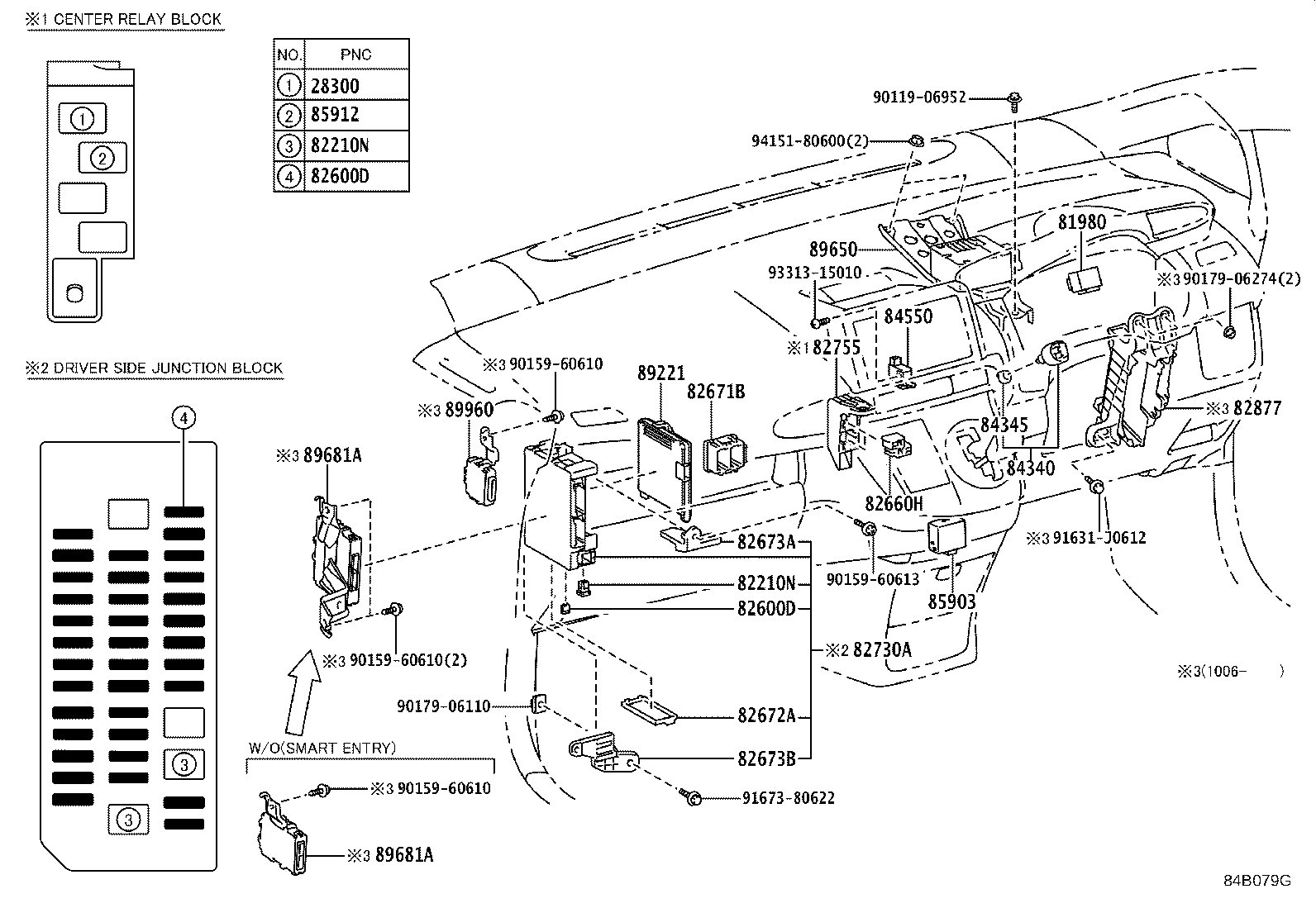

| 82730A | Block Assy, Driver Side Junction |

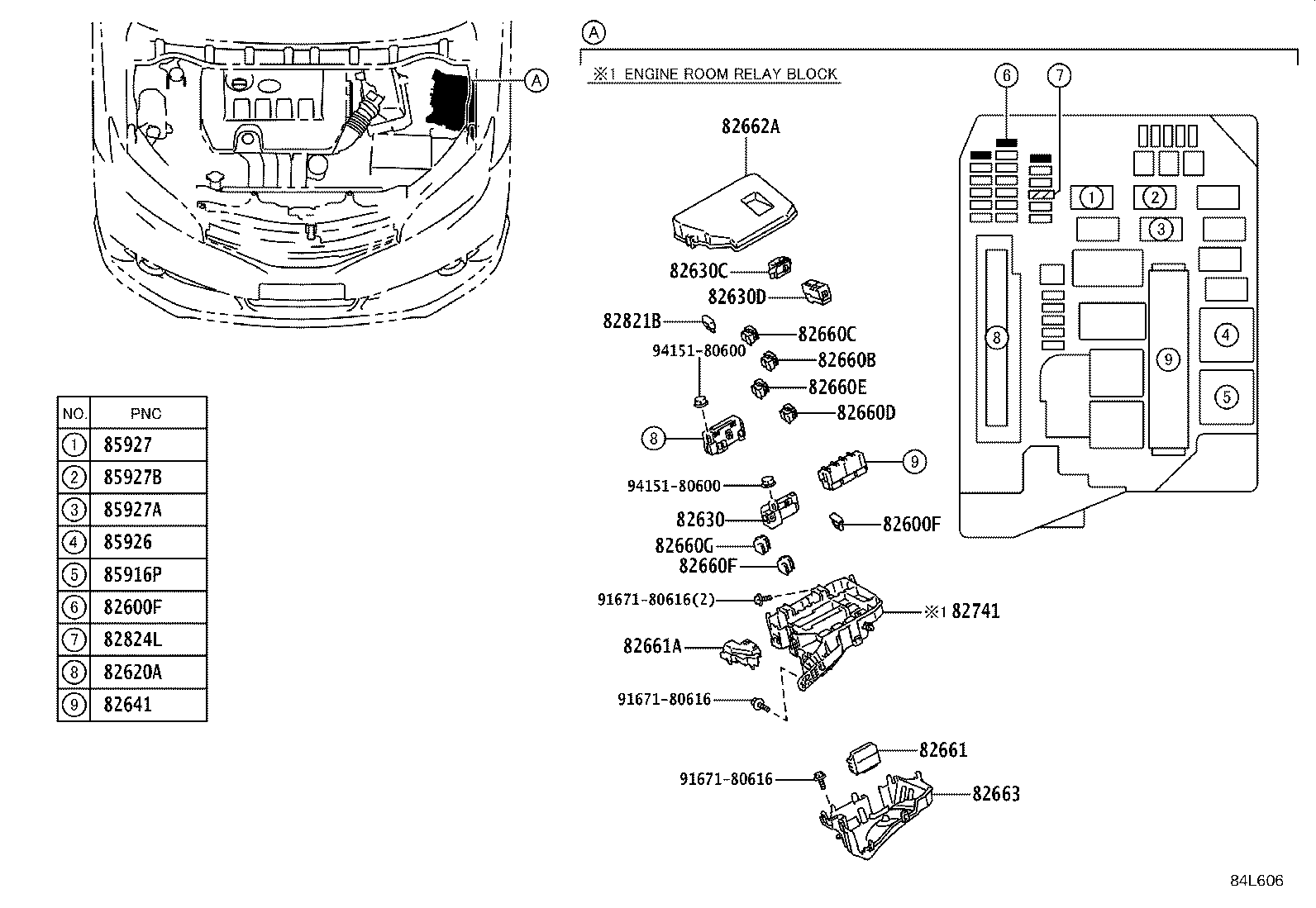

| 82741 | Block, Engine Room Relay |
| 82755 | Block, Center Relay |
| 82821B | Cover, Connector |
| 82824L | Pin, Short |
| 82877 | Box, Computer Integration, RH |
| 83320 | Gage Assy, Fuel Sender |

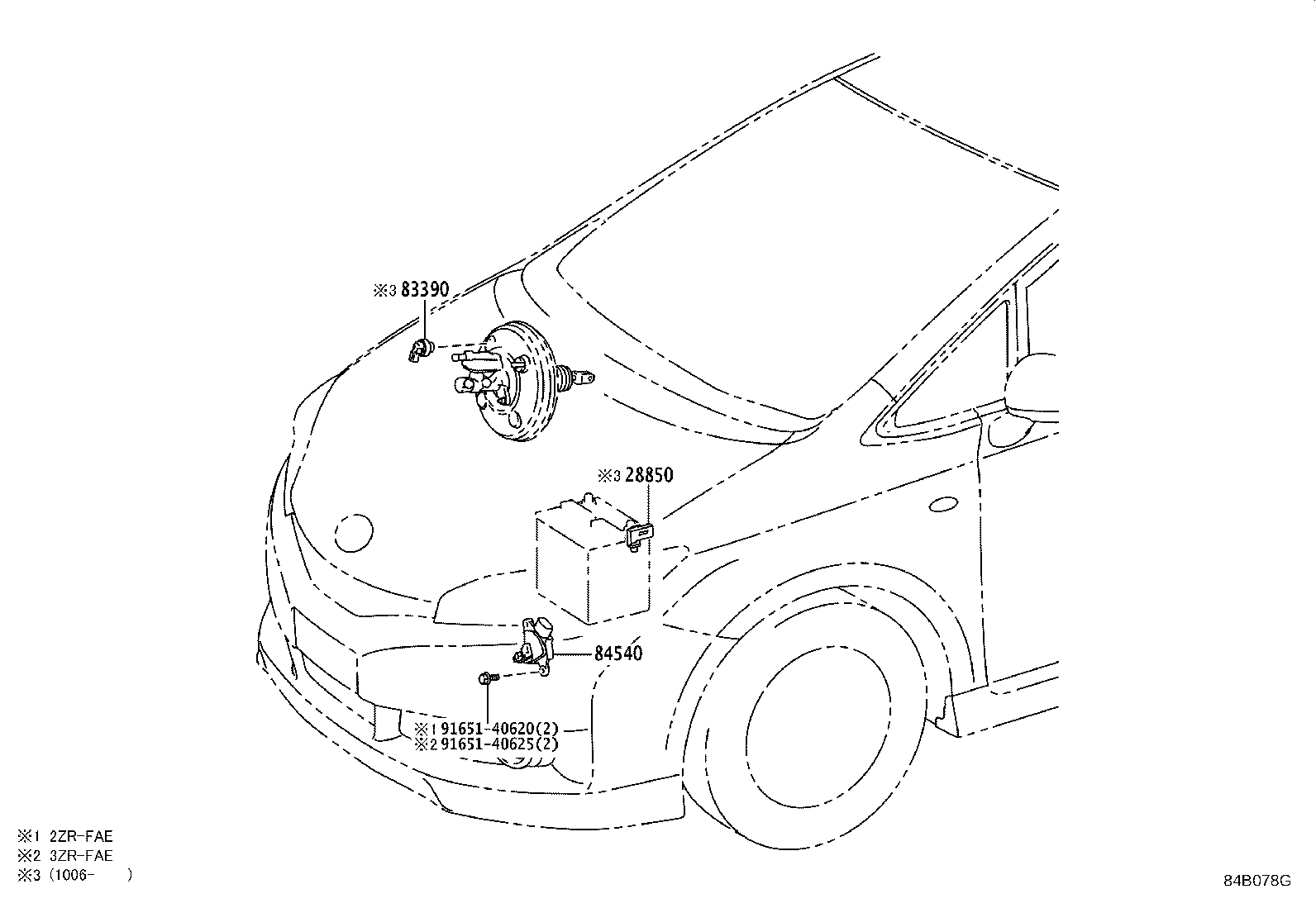

| 83390 | Switch Assy, Vacuum Warning |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |

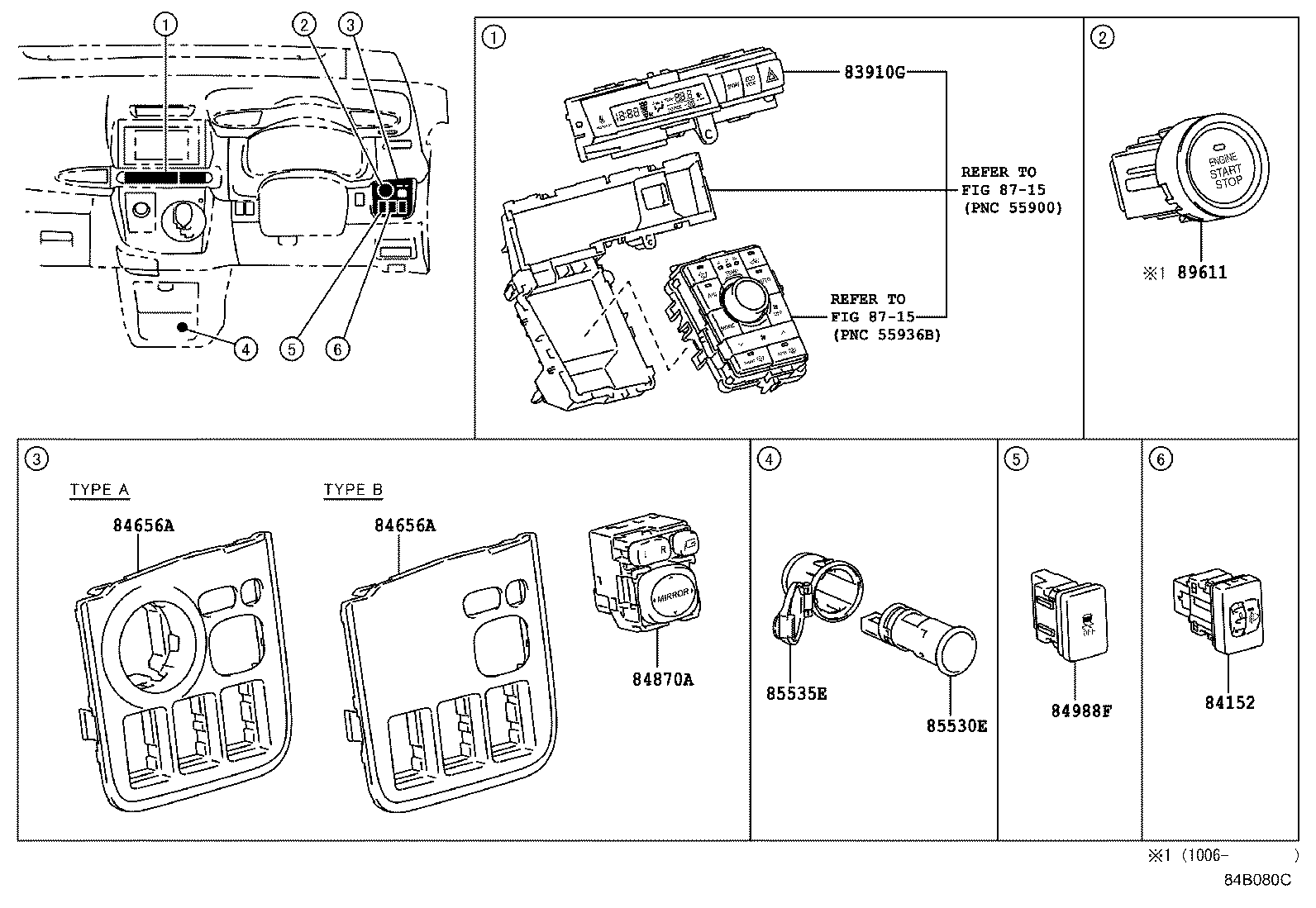

| 83910G | Clock Assy |
| 84052 | Switch Assy, Un-lock Warning |

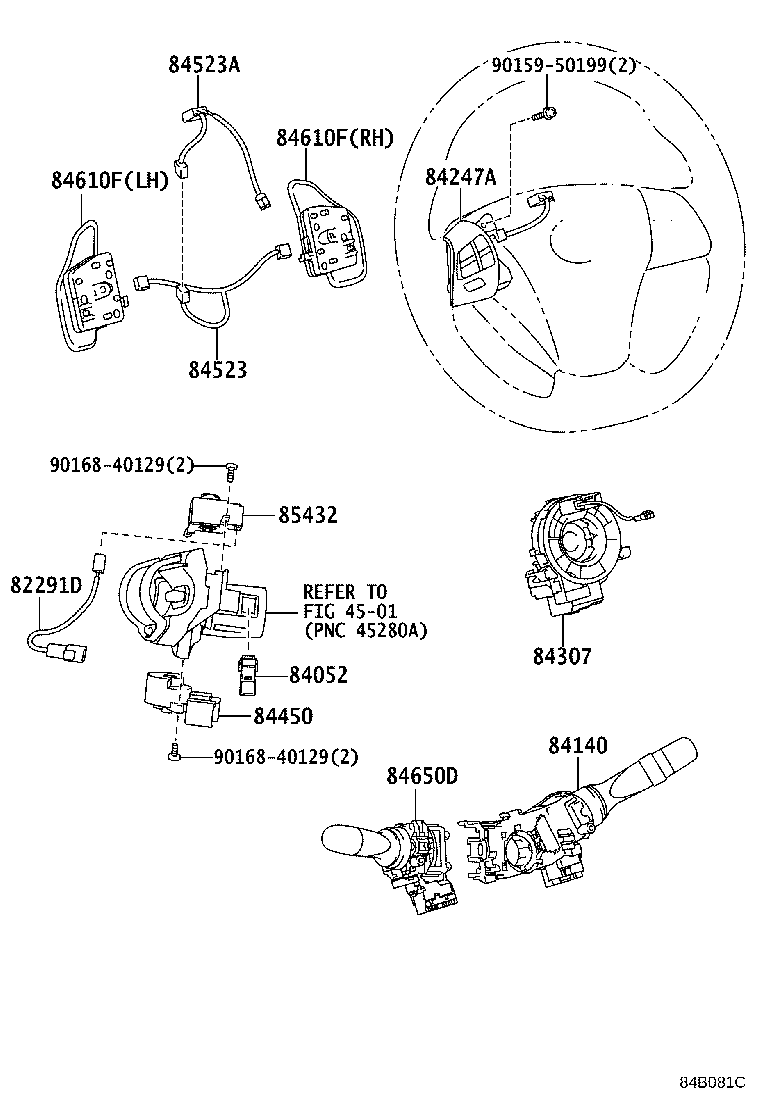

| 84140 | Switch Assy, Headlamp Dimmer |
| 84152 | Switch, Headlamp Leveling |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84247A | Switch, Steering Pad, LH |
| 84307 | Cable Sub-assy, Spiral W/Sensor |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84450 | Switch Assy, Ignition OR Starter |
| 84523 | Wire, Switch NO.1 |
| 84523A | Wire, Switch NO.2 |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84610F | Switch Assy, Transmission Shift |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84656A | Bezel, Switch |

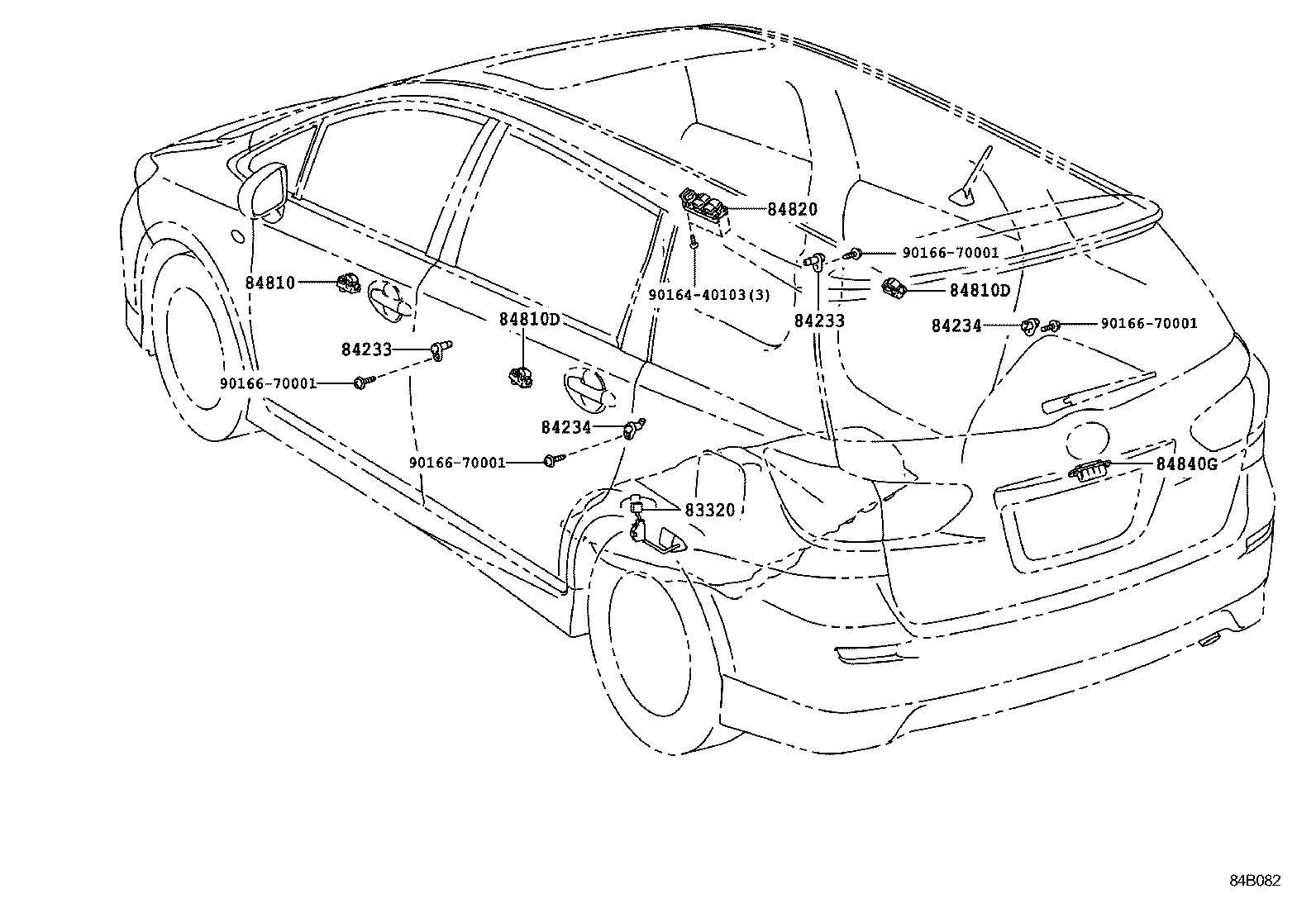

| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84840G | Switch Assy, Back Door Opener |
| 84870A | Switch Assy, Outer Mirror |
| 84988F | Switch, Traction Control |
| 85432 | Solenoid, Key Interlock |
| 85530E | Socket Assy, Power Outlet, NO.3 |
| 85535E | Cover, Power Outlet Socket, NO.2 |
| 85903 | Computer Sub-assy, Shift Lock Control |
| 85912 | Relay, Defogger |
| 85916P | Relay, Headlamp |
| 85926 | Relay, Headlamp Dimmer |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85927B | Relay, Cooling Fan, NO.3 |
| 89221 | Computer, Multiplex Network Body |
| 89429F | Sensor, Temperature |
| 89465 | Sensor, Oxygen |
| 89467B | Sensor, Air Fuel Ratio |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
| 89681A | Computer, Power Management Control |
| 89960 | Computer Assy, Headlamp Leveling |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
