Factory parts data · Europe

Toyota Wish

2009-09 → 2017-11 · chassis ZGE2# · catalogue 163220 · General

Supported model Data version 2018-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

4 part groups · 2 illustrations

Illustrations

864010 2009-09 → —

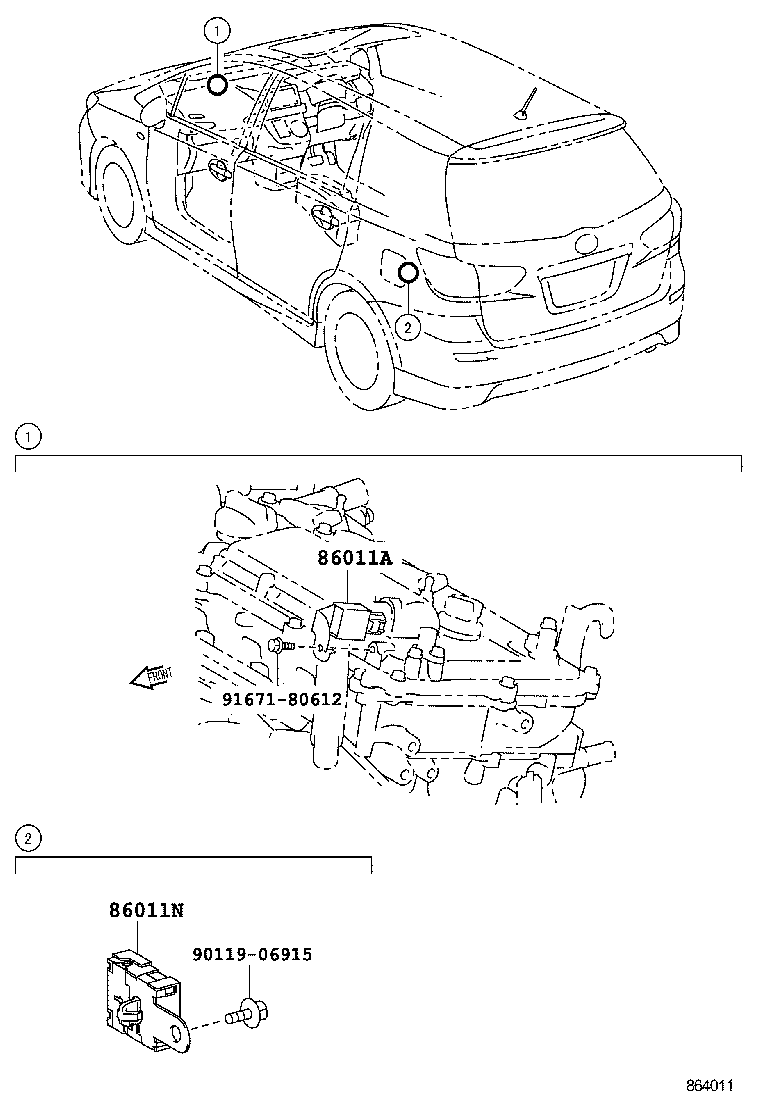

864011 2009-09 → —

Part groups

PNC	Description
86011A	Condenser, Radio Setting
86011N	Filter, Noise
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
