Toyota Corolla (TUP)
2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · General
Supported model
Data version 2022-12

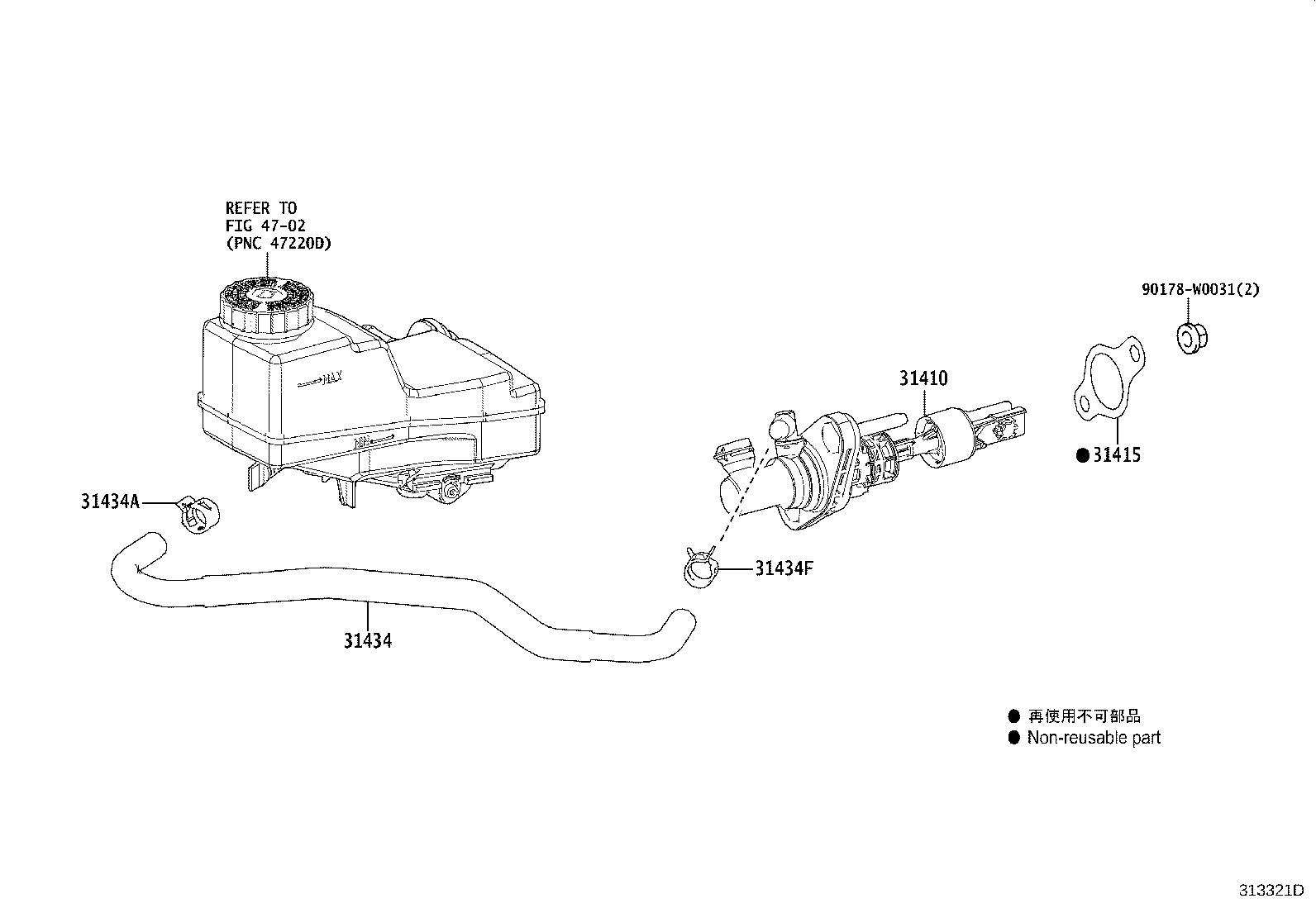

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 31410 — Cylinder Assy, Clutch Master | ||||
| 31420-F4011 |
Cylinder Assy, Clutch Master
2019-01 → 2023-01
ended
|
ZRE210 6F N EUR;ZRE210 +6 | — | |
| 31420-F4011 |
Cylinder Assy, Clutch Master
2019-01 → —
|
MZEA11 N);ZRE210 6F LHD +13 | — | |
| 31420-F4011 |
Cylinder Assy, Clutch Master
2019-01 → 2020-12
ended
|
ZRE210 6F G;ZRE210 RHD +2 | — | |
| 31420-F4011 |
Cylinder Assy, Clutch Master
2023-01 → —
|
ZRE210 6F N EUR;ZRE210 +6 | — | |
| 31415 — Gasket, Clutch Master Cylinder | ||||
| 31415-60020 |
Gasket, Clutch Master Cylinder
2019-01 → 2020-12
ended
|
ZRE210 6F G;ZRE210 RHD +2 | — | |
| 31415-60020 |
Gasket, Clutch Master Cylinder
2019-01 → 2023-01
ended
|
ZRE210 6F N EUR;ZRE210 +6 | — | |
| 31415-60020 |
Gasket, Clutch Master Cylinder
2019-01 → —
|
MZEA11 N);ZRE210 6F LHD +13 | — | |
| 31415-60020 |
Gasket, Clutch Master Cylinder
2023-01 → —
|
ZRE210 6F N EUR;ZRE210 +6 | — | |
| 31434 — Tube, Clutch Reservoir | ||||
| 31434-F4010 |
Tube, Clutch Reservoir
2019-01 → —
|
MZEA11 6F G;ZRE210 LHD +7 | — | |
| 31434-F4010 |
Tube, Clutch Reservoir
2019-01 → 2023-01
ended
|
ZRE210 6F N EUR;ZRE210 +6 | — | |
| 31434-F4010 |
Tube, Clutch Reservoir
2019-01 → 2020-12
ended
|
ZRE210 6F G | — | |
| 31434-F4020 |
Tube, Clutch Reservoir
2019-01 → 2020-12
ended
|
ZRE210 RHD 6F EUR | — | |
| 31434-F4020 |
Tube, Clutch Reservoir
2019-01 → —
|
MZEA11 RHD 6F;ZRE210 RHD +2 | — | |
| 31434-F4010 |
Tube, Clutch Reservoir
2023-01 → —
|
ZRE210 6F N EUR;ZRE210 +6 | — | |
| 31434A — Clip(FOR CLUTCH RESERVOIR TUBE) | ||||
| 96137-41501 |
Clip(FOR CLUTCH RESERVOIR TUBE)
2019-01 → 2020-12
ended
|
ZRE210 6F G;ZRE210 RHD +2 | — | |
| 96137-41501 |
Clip(FOR CLUTCH RESERVOIR TUBE)
2019-01 → 2023-01
ended
|
ZRE210 6F N EUR;ZRE210 +6 | — | |
| 96137-41501 |
Clip(FOR CLUTCH RESERVOIR TUBE)
2019-01 → —
|
MZEA11 N);ZRE210 6F LHD +13 | — | |
| 96137-41501 |
Clip(FOR CLUTCH RESERVOIR TUBE)
2023-01 → —
|
ZRE210 6F N EUR;ZRE210 +6 | — | |
| 31434F — Clip(FOR CLUTCH RESERVOIR HOSE NO.1) | ||||
| 96138-41501 |
Clip(FOR CLUTCH RESERVOIR HOSE NO.1)
2019-01 → 2020-12
ended
|
ZRE210 6F G;ZRE210 RHD +2 | — | |
| 96138-41501 |
Clip(FOR CLUTCH RESERVOIR HOSE NO.1)
2019-01 → 2023-01
ended
|
ZRE210 6F N EUR;ZRE210 +6 | — | |
| 96138-41501 |
Clip(FOR CLUTCH RESERVOIR HOSE NO.1)
2019-01 → —
|
MZEA11 N);ZRE210 6F LHD +13 | — | |
| 96138-41501 |
Clip(FOR CLUTCH RESERVOIR HOSE NO.1)
2023-01 → —
|
ZRE210 6F N EUR;ZRE210 +6 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
