Toyota Corolla (TUP)
2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · General
Supported model
Data version 2022-12

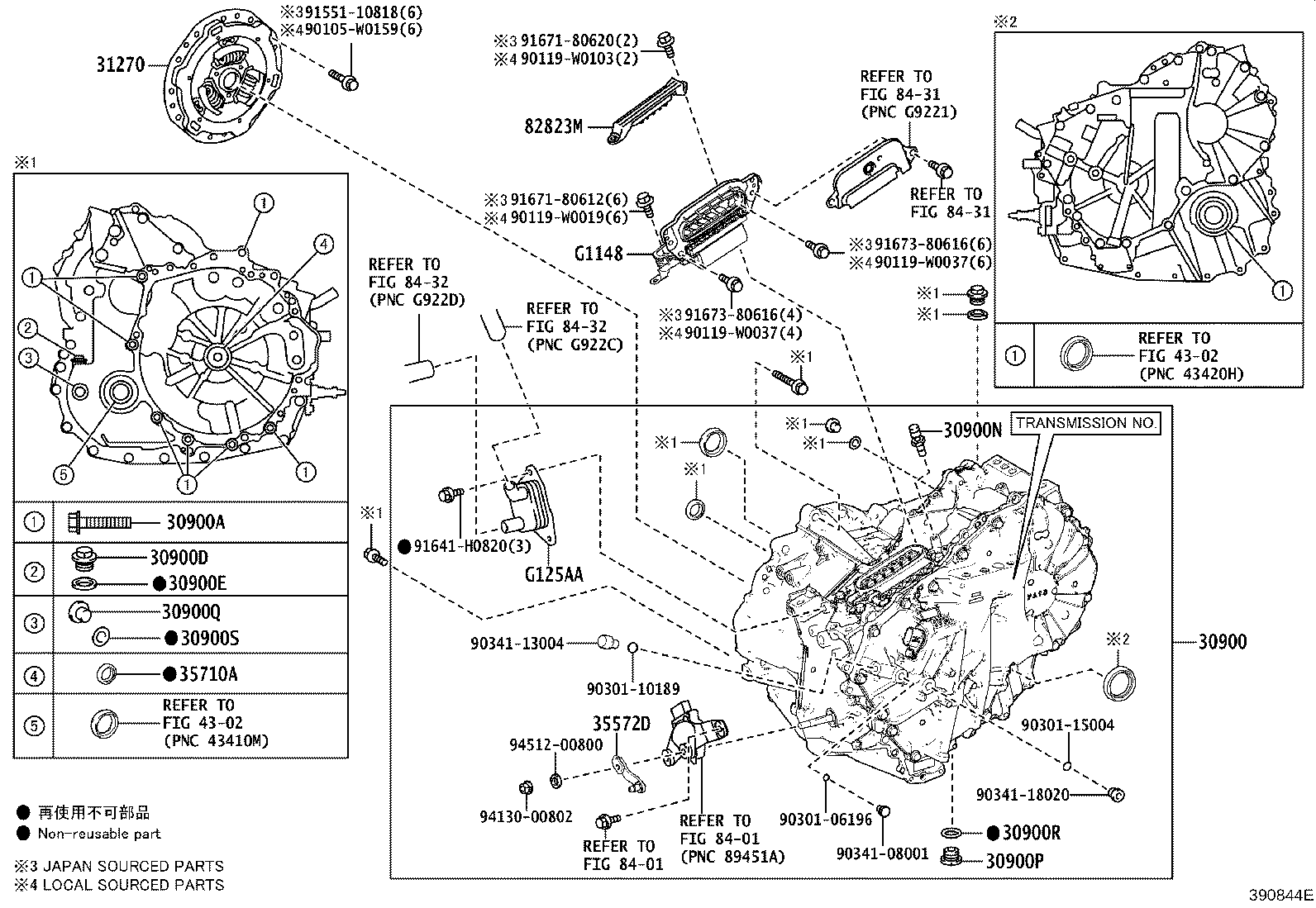

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 30900 — Transaxle Assy, Hybrid Vehicle | ||||
| 30900-02050 note |
Transaxle Assy, Hybrid Vehicle
2019-01 → 2022-11
ended
|
ZWE21# | — | |
| 30900-12020 note |
Transaxle Assy, Hybrid Vehicle
2022-07 → —
|
ZWE211,213 | — | |
| 30900-12020 |
Transaxle Assy, Hybrid Vehicle
2022-11 → —
|
ZWE211,213 | — | |
| 30900-02060 note |
Transaxle Assy, Hybrid Vehicle
2023-01 → —
|
ZWE219 | — | |
| 30900-12040 note |
Transaxle Assy, Hybrid Vehicle
2023-01 → —
|
ZWE219 | — | |
| 30900A — Bolt(FOR HYBRID VEHICLE TRANSAXLE & ENGINE SETTING) | ||||
| 90119-W0155 note |
Bolt(FOR HYBRID VEHICLE TRANSAXLE & ENGINE SETTING)
2019-01 → —
|
ZWE211,213 | — | |
| 90119-W0155 note |
Bolt(FOR HYBRID VEHICLE TRANSAXLE & ENGINE SETTING)
2023-01 → —
|
ZWE219 | — | |
| 91612-61045 note |
Bolt(FOR HYBRID VEHICLE TRANSAXLE & ENGINE SETTING)
2023-01 → —
|
ZWE219 | — | |
| 30900D — Plug, W/Head Straight Screw(FOR TRANSAXLE HOUSING & CASE) | ||||
| 90341-18060 |
Plug, W/Head Straight Screw(FOR TRANSAXLE HOUSING & CASE)
2019-01 → —
|
ZWE211,213 | — | |
| 90341-18060 |
Plug, W/Head Straight Screw(FOR TRANSAXLE HOUSING & CASE)
2023-01 → —
|
ZWE219 | — | |
| 30900E — Gasket(FOR TRANSAXLE HOUSING & CASE) | ||||
| 90430-18008 |
Gasket(FOR TRANSAXLE HOUSING & CASE)
2019-01 → —
|
ZWE211,213 | — | |
| 90430-18008 |
Gasket(FOR TRANSAXLE HOUSING & CASE)
2023-01 → —
|
ZWE219 | — | |
| 30900N — Plug, Breather(FOR TRANSAXLE) | ||||
| 90930-03201 |
Plug, Breather(FOR TRANSAXLE)
2019-01 → —
|
ZWE211,213 | — | |
| 90930-03201 |
Plug, Breather(FOR TRANSAXLE)
2023-01 → —
|
ZWE219 | — | |
| 30900P — Plug, Drain(HEV) | ||||
| 90341-18016 |
Plug, Drain(HEV)
2019-01 → —
|
ZWE211,213 | — | |
| 90341-18016 |
Plug, Drain(HEV)
2023-01 → —
|
ZWE219 | — | |
| 30900Q — Plug, Filler(HEV) | ||||
| 90341-18016 |
Plug, Filler(HEV)
2019-01 → —
|
ZWE211,213 | — | |
| 90341-18090 |
Plug, Filler(HEV)
2023-01 → —
|
ZWE219 | — | |
| 30900R — Gasket, Drain Plug(HEV) | ||||
| 90430-18008 |
Gasket, Drain Plug(HEV)
2019-01 → —
|
ZWE211,213 | — | |
| 90430-18008 |
Gasket, Drain Plug(HEV)
2023-01 → —
|
ZWE219 | — | |
| 30900S — Gasket, Filler Plug(HEV) | ||||
| 90430-18008 |
Gasket, Filler Plug(HEV)
2019-01 → —
|
ZWE211,213 | — | |
| 90430-18008 |
Gasket, Filler Plug(HEV)
2023-01 → —
|
ZWE219 | — | |
| 31270 — Damper Assy, Transmission Input | ||||
| 31270-47070 |
Damper Assy, Transmission Input
2019-01 → —
|
ZWE211,213 | — | |
| 31270-02020 |
Damper Assy, Transmission Input
2023-01 → 2023-02
ended
|
ZWE219 | — | |
| 31270-02020 note |
Damper Assy, Transmission Input
2023-02 → —
|
ZWE219 | — | |
| 31270-28020 note |
Damper Assy, Transmission Input
2023-02 → —
|
ZWE219 | — | |
| 35572D — Lever, Transmission Control Shaft | ||||
| 35572-10040 |
Lever, Transmission Control Shaft
2019-01 → —
|
ZWE211,213 | — | |
| 35572-28140 |
Lever, Transmission Control Shaft
2023-01 → —
|
ZWE219 | — | |
| 35710A — Seal, Type T Oil(FOR INPUT SHAFT) | ||||
| 90311-25025 |
Seal, Type T Oil(FOR INPUT SHAFT)
2019-01 → —
|
ZWE211,213 | — | |
| 90311-25035 |
Seal, Type T Oil(FOR INPUT SHAFT)
2023-01 → —
|
ZWE219 | — | |
| 82823M — Cap, Terminal | ||||
| 82823-47040 |
Cap, Terminal
2019-01 → —
|
ZWE211,213 | — | |
| 82823-28110 |
Cap, Terminal
2023-01 → —
|
ZWE219 | — | |
| G1148 — Cable, Motor | ||||
| G1148-47070 |
Cable, Motor
2019-01 → —
|
ZWE211,213 | — | |
| G1148-28040 |
Cable, Motor
2023-01 → 2024-09
ended
|
ZWE219 | — | |
| G1148-28041 |
Cable, Motor
2024-10 → —
|
ZWE219 | — | |
| G125AA — Cooler, Motor Cooling | ||||
| G125A-02020 note |
Cooler, Motor Cooling
2023-01 → —
|
ZWE219 | — | |
| G125A-28010 note |
Cooler, Motor Cooling
2023-01 → —
|
ZWE219 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
