Factory parts data · Europe

Toyota Corolla (TUP)

2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · General

Supported model Data version 2022-12

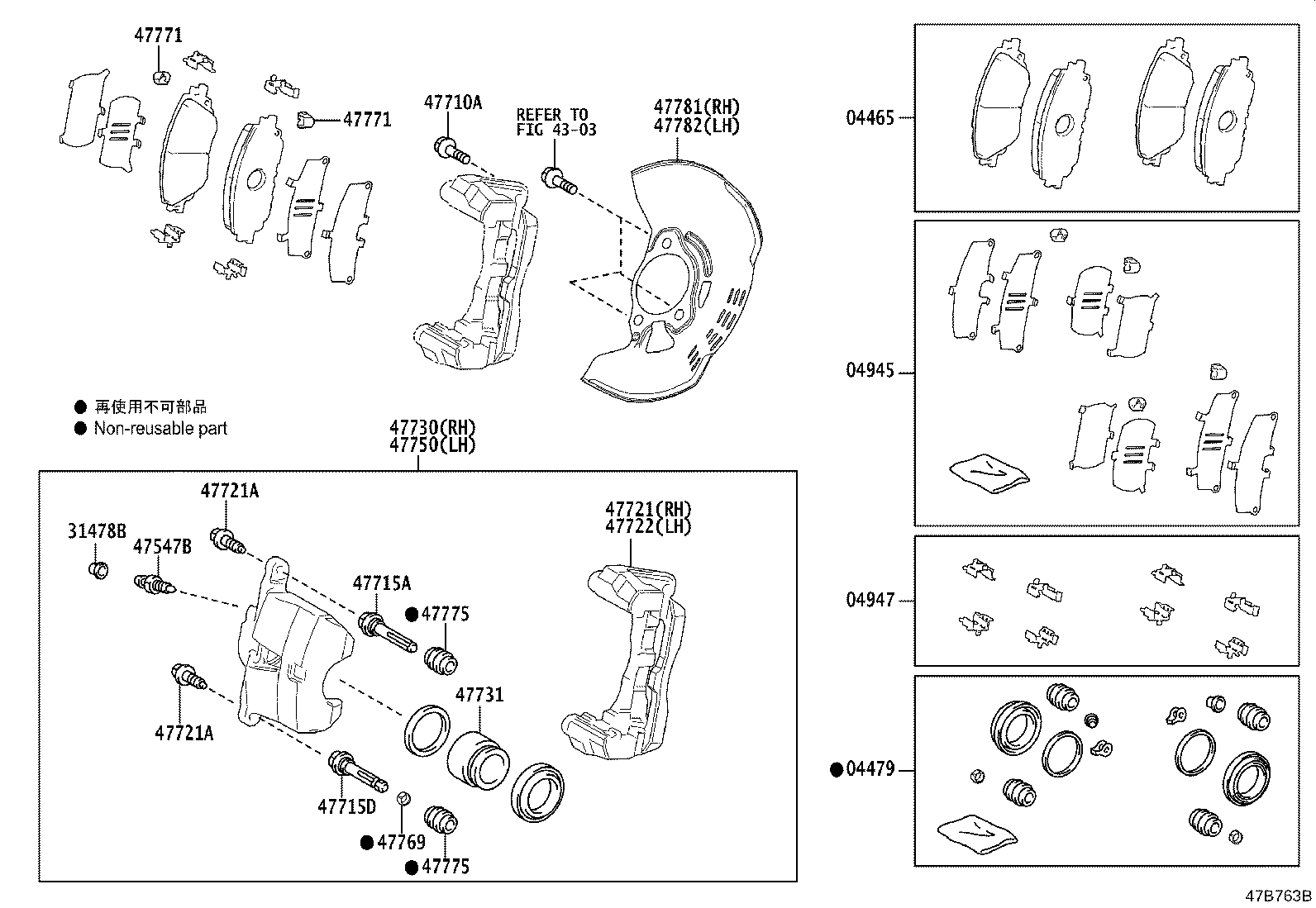

47B763B · 23 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
141 parts on this figure
Part number Description Fitment Price
04465 — Pad Kit, Disc Brake, Front
04465-02470 note Pad Kit, Disc Brake, Front
2019-01 → —
MZEA11,ZRE21#,ZWE211,213 EUR,GCC,GEN,RUS —
04465-02470 note Pad Kit, Disc Brake, Front
2019-01 → 2023-02 ended
ZRE21# LHD (GCC,GEN) —
04465-02480 note Pad Kit, Disc Brake, Front
2019-09 → —
ZRE21# LHD (GCC,GEN) —
04465-02470 note Pad Kit, Disc Brake, Front
2023-01 → —
ZWE219;MZEA11 CVT TUR;ZRE210 (G,N) +12 —
04465-02470 note Pad Kit, Disc Brake, Front
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
04465-02470 note Pad Kit, Disc Brake, Front
2023-01 → —
ZRE21# LHD CVT (D,N) +1 —
04465-02480 note Pad Kit, Disc Brake, Front
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
04465-02480 note Pad Kit, Disc Brake, Front
2023-01 → —
ZRE21# LHD CVT (D,N) +1 —
04465-02480 note Pad Kit, Disc Brake, Front
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
04479 — Cylinder Kit, Disc Brake, Front
04478-02380 note Cylinder Kit, Disc Brake, Front
2019-01 → 2023-02 ended
ZRE21# LHD (GCC,GEN) —
04478-02380 Cylinder Kit, Disc Brake, Front
2019-01 → —
MZEA11,ZRE21#,ZWE211,213 EUR,GCC,GEN,RUS —
04478-02420 note Cylinder Kit, Disc Brake, Front
2019-09 → —
ZRE21# LHD (GCC,GEN) —
04478-02380 Cylinder Kit, Disc Brake, Front
2023-01 → —
ZWE219;MZEA11 CVT TUR;ZRE210 (G,N) +12 —
04478-02380 note Cylinder Kit, Disc Brake, Front
2023-01 → —
ZRE21# LHD CVT (D,N) +1 —
04478-02380 note Cylinder Kit, Disc Brake, Front
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
04478-02420 Cylinder Kit, Disc Brake, Front
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
04478-02420 note Cylinder Kit, Disc Brake, Front
2023-01 → —
ZRE21# LHD CVT (D,N) +1 —
04478-02420 note Cylinder Kit, Disc Brake, Front
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
04945 — Shim Kit, Anti Squeal, Front
04945-02240 note Shim Kit, Anti Squeal, Front
2019-01 → 2023-02 ended
ZRE21# LHD (GCC,GEN) —
04945-02240 Shim Kit, Anti Squeal, Front
2019-01 → —
MZEA11,ZRE21#,ZWE211,213 EUR,GCC,GEN,RUS —
04945-02270 note Shim Kit, Anti Squeal, Front
2019-09 → —
ZRE21# LHD (GCC,GEN) —
04945-02240 note Shim Kit, Anti Squeal, Front
2023-01 → —
ZRE21# LHD CVT (D,N) +1 —
04945-02240 note Shim Kit, Anti Squeal, Front
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
04945-02240 Shim Kit, Anti Squeal, Front
2023-01 → —
ZWE219;MZEA11 CVT TUR;ZRE210 (G,N) +12 —
04945-02270 Shim Kit, Anti Squeal, Front
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
04945-02270 note Shim Kit, Anti Squeal, Front
2023-01 → —
ZRE21# LHD CVT (D,N) +1 —
04945-02270 note Shim Kit, Anti Squeal, Front
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
04947 — Fitting Kit, Disc Brake, Front
04947-02140 note Fitting Kit, Disc Brake, Front
2019-01 → 2023-02 ended
ZRE21# LHD (GCC,GEN) —
04947-02140 Fitting Kit, Disc Brake, Front
2019-01 → —
MZEA11,ZRE21#,ZWE211,213 EUR,GCC,GEN,RUS —
04947-02170 note Fitting Kit, Disc Brake, Front
2019-09 → —
ZRE21# LHD (GCC,GEN) —
04947-02140 Fitting Kit, Disc Brake, Front
2023-01 → —
ZWE219;MZEA11 CVT TUR;ZRE210 (G,N) +12 —
04947-02140 note Fitting Kit, Disc Brake, Front
2023-01 → —
ZRE21# LHD CVT (D,N) +1 —
04947-02140 note Fitting Kit, Disc Brake, Front
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
04947-02170 Fitting Kit, Disc Brake, Front
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
04947-02170 note Fitting Kit, Disc Brake, Front
2023-01 → —
ZRE21# LHD CVT (D,N) +1 —
04947-02170 note Fitting Kit, Disc Brake, Front
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
31478B — Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
31478-0N010 note Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
2019-09 → —
ZRE21# LHD (GCC,GEN) —
90069-39026 note Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
2019-01 → 2023-02 ended
ZRE21# LHD (GCC,GEN) —
90069-39026 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
2019-01 → —
MZEA11,ZRE21#,ZWE211,213 EUR,GCC,GEN,RUS —
31478-0N010 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
31478-0N010 note Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
31478-0N010 note Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
2023-01 → —
ZRE21# LHD CVT (D,N) +1 —
90069-39026 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
2023-01 → —
ZWE219;MZEA11 CVT TUR;ZRE210 (G,N) +12 —
90069-39026 note Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
2023-01 → —
ZRE21# LHD CVT (D,N) +1 —
90069-39026 note Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
47547B — Plug, Bleeder(FOR FRONT DISC BRAKE)
47547-20010 note Plug, Bleeder(FOR FRONT DISC BRAKE)
2019-09 → —
ZRE21# LHD (GCC,GEN) —
90069-39025 note Plug, Bleeder(FOR FRONT DISC BRAKE)
2019-01 → 2023-02 ended
ZRE21# LHD (GCC,GEN) —
90069-39025 Plug, Bleeder(FOR FRONT DISC BRAKE)
2019-01 → —
MZEA11,ZRE21#,ZWE211,213 EUR,GCC,GEN,RUS —
47547-20010 Plug, Bleeder(FOR FRONT DISC BRAKE)
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
47547-20010 note Plug, Bleeder(FOR FRONT DISC BRAKE)
2023-01 → —
ZRE21# LHD CVT (D,N) +1 —
47547-20010 note Plug, Bleeder(FOR FRONT DISC BRAKE)
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
90069-39025 Plug, Bleeder(FOR FRONT DISC BRAKE)
2023-01 → —
ZWE219;MZEA11 CVT TUR;ZRE210 (G,N) +12 —
90069-39025 note Plug, Bleeder(FOR FRONT DISC BRAKE)
2023-01 → —
ZRE21# LHD CVT (D,N) +1 —
90069-39025 note Plug, Bleeder(FOR FRONT DISC BRAKE)
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
47710A — Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
90105-W0121 note Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
2019-01 → —
MZEA11,ZRE21#,ZWE211,213 EUR,GCC,GEN,RUS —
90105-W0121 note Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
2023-01 → —
ZWE219;MZEA11 210 TUR;ZRE210 LHD +13 —
47715A — Pin, Front Disc Brake Cylinder Slide
47714-0R020 note Pin, Front Disc Brake Cylinder Slide
2019-09 → 2023-01 ended
ZRE211 LHD N;ZRE210 CVT +5 —
47714-0R020 note Pin, Front Disc Brake Cylinder Slide
2019-09 → —
ZRE211 G;ZRE210 CVT N +4 —
47714-0R020 Pin, Front Disc Brake Cylinder Slide
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
47714-0R020 note Pin, Front Disc Brake Cylinder Slide
2023-01 → —
ZRE21# LHD CVT (D,N) +1 —
47714-0R020 note Pin, Front Disc Brake Cylinder Slide
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
47715D — Pin, Front Disc Brake Cylinder Slide, NO.2
47715-0D210 note Pin, Front Disc Brake Cylinder Slide, NO.2
2019-09 → 2023-01 ended
ZRE211 LHD N;ZRE210 CVT +5 —
47715-0D210 note Pin, Front Disc Brake Cylinder Slide, NO.2
2019-09 → —
ZRE211 G;ZRE210 CVT N +4 —
47715-0D210 Pin, Front Disc Brake Cylinder Slide, NO.2
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
47715-0D210 note Pin, Front Disc Brake Cylinder Slide, NO.2
2023-01 → —
ZRE21# LHD CVT (D,N) +1 —
47715-0D210 note Pin, Front Disc Brake Cylinder Slide, NO.2
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
47721 — Mounting, Front Disc Brake Cylinder, RH
47721-02640 note Mounting, Front Disc Brake Cylinder, RH
2019-09 → —
ZRE21# LHD (GCC,GEN) —
47721-09570 note Mounting, Front Disc Brake Cylinder, RH
2019-01 → 2023-02 ended
ZRE21# LHD (GCC,GEN) —
47721-09570 Mounting, Front Disc Brake Cylinder, RH
2019-01 → —
MZEA11,ZRE21#,ZWE211,213 EUR,GCC,GEN,RUS —
47721-02640 note Mounting, Front Disc Brake Cylinder, RH
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
47721-02640 note Mounting, Front Disc Brake Cylinder, RH
2023-01 → —
ZRE21# LHD CVT (D,N) +1 —
47721-02640 Mounting, Front Disc Brake Cylinder, RH
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
47721-09570 Mounting, Front Disc Brake Cylinder, RH
2023-01 → —
ZWE219;MZEA11 CVT TUR;ZRE210 (G,N) +12 —
47721-09570 note Mounting, Front Disc Brake Cylinder, RH
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
47721-09570 note Mounting, Front Disc Brake Cylinder, RH
2023-01 → —
ZRE21# LHD CVT (D,N) +1 —
47721A — Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
47715-05060 note Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
2019-01 → 2023-02 ended
ZRE21# LHD (GCC,GEN) —
47715-05060 Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
2019-01 → —
MZEA11,ZRE21#,ZWE211,213 EUR,GCC,GEN,RUS —
90016-AA608 note Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
2019-09 → —
ZRE21# LHD (GCC,GEN) —
47715-05060 Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
2023-01 → —
ZWE219;MZEA11 CVT TUR;ZRE210 (G,N) +12 —
47715-05060 note Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
2023-01 → —
ZRE21# LHD CVT (D,N) +1 —
47715-05060 note Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
90016-AA608 note Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
90016-AA608 note Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
2023-01 → —
ZRE21# LHD CVT (D,N) +1 —
90016-AA608 note Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
47722 — Mounting, Front Disc Brake Cylinder, LH
47722-02540 note Mounting, Front Disc Brake Cylinder, LH
2019-09 → —
ZRE21# LHD (GCC,GEN) —
47722-09260 note Mounting, Front Disc Brake Cylinder, LH
2019-01 → 2023-02 ended
ZRE21# LHD (GCC,GEN) —
47722-09260 Mounting, Front Disc Brake Cylinder, LH
2019-01 → —
MZEA11,ZRE21#,ZWE211,213 EUR,GCC,GEN,RUS —
47722-02540 Mounting, Front Disc Brake Cylinder, LH
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
47722-02540 note Mounting, Front Disc Brake Cylinder, LH
2023-01 → —
ZRE21# LHD CVT (D,N) +1 —
47722-02540 note Mounting, Front Disc Brake Cylinder, LH
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
47722-09260 Mounting, Front Disc Brake Cylinder, LH
2023-01 → —
ZWE219;MZEA11 CVT TUR;ZRE210 (G,N) +12 —
47722-09260 note Mounting, Front Disc Brake Cylinder, LH
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
47722-09260 note Mounting, Front Disc Brake Cylinder, LH
2023-01 → —
ZRE21# LHD CVT (D,N) +1 —
47730 — Cylinder Assy, Front Disc Brake, RH
47730-02590 note Cylinder Assy, Front Disc Brake, RH
2019-01 → 2023-02 ended
ZRE21# LHD (GCC,GEN) —
47730-02590 Cylinder Assy, Front Disc Brake, RH
2019-01 → —
MZEA11,ZRE21#,ZWE211,213 EUR,GCC,GEN,RUS —
47730-02640 note Cylinder Assy, Front Disc Brake, RH
2019-09 → —
ZRE21# LHD (GCC,GEN) —
47730-02590 Cylinder Assy, Front Disc Brake, RH
2023-01 → —
ZWE219;MZEA11 CVT TUR;ZRE210 (G,N) +12 —
47730-02590 note Cylinder Assy, Front Disc Brake, RH
2023-01 → —
ZRE21# LHD CVT (D,N) +1 —
47730-02590 note Cylinder Assy, Front Disc Brake, RH
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
47730-02640 Cylinder Assy, Front Disc Brake, RH
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
47730-02640 note Cylinder Assy, Front Disc Brake, RH
2023-01 → —
ZRE21# LHD CVT (D,N) +1 —
47730-02640 note Cylinder Assy, Front Disc Brake, RH
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
47731 — Piston, Front Disc Brake
47731-0D270 note Piston, Front Disc Brake
2019-09 → 2020-04 ended
ZRE21# LHD (GCC,GEN) —
47731-0D270 note Piston, Front Disc Brake
2020-04 → 2023-01 ended
ZRE211 LHD N;ZRE210 CVT +5 —
47731-0D270 note Piston, Front Disc Brake
2020-04 → —
ZRE211 G;ZRE210 CVT N +4 —
47731-0D270 note Piston, Front Disc Brake
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
47731-0D270 note Piston, Front Disc Brake
2023-01 → —
ZRE21# LHD CVT (D,N) +1 —
47731-0D270 Piston, Front Disc Brake
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
47750 — Cylinder Assy, Disc Brake, LH
47750-02490 note Cylinder Assy, Disc Brake, LH
2019-01 → 2023-02 ended
ZRE21# LHD (GCC,GEN) —
47750-02490 Cylinder Assy, Disc Brake, LH
2019-01 → —
MZEA11,ZRE21#,ZWE211,213 EUR,GCC,GEN,RUS —
47750-02540 note Cylinder Assy, Disc Brake, LH
2019-09 → —
ZRE21# LHD (GCC,GEN) —
47750-02490 Cylinder Assy, Disc Brake, LH
2023-01 → —
ZWE219;MZEA11 CVT TUR;ZRE210 (G,N) +12 —
47750-02490 note Cylinder Assy, Disc Brake, LH
2023-01 → —
ZRE21# LHD CVT (D,N) +1 —
47750-02490 note Cylinder Assy, Disc Brake, LH
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
47750-02540 note Cylinder Assy, Disc Brake, LH
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
47750-02540 note Cylinder Assy, Disc Brake, LH
2023-01 → —
ZRE21# LHD CVT (D,N) +1 —
47750-02540 Cylinder Assy, Disc Brake, LH
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
47769 — Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
47769-0P010 note Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
2019-09 → 2023-01 ended
ZRE211 LHD N;ZRE210 CVT +5 —
47769-0P010 note Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
2019-09 → —
ZRE211 G;ZRE210 CVT N +4 —
47769-0P010 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
47769-0P010 note Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
2023-01 → —
ZRE21# LHD CVT (D,N) +1 —
47769-0P010 note Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
47771 — Plate, Pad Wear Indicator, NO.1
47771-33380 note Plate, Pad Wear Indicator, NO.1
2019-09 → 2023-01 ended
ZRE211 LHD N;ZRE210 CVT +5 —
47771-33380 note Plate, Pad Wear Indicator, NO.1
2019-09 → —
ZRE211 G;ZRE210 CVT N +4 —
47771-33380 Plate, Pad Wear Indicator, NO.1
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
47771-33380 note Plate, Pad Wear Indicator, NO.1
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
47771-33380 note Plate, Pad Wear Indicator, NO.1
2023-01 → —
ZRE21# LHD CVT (D,N) +1 —
47775 — Boot, Bush Dust(FOR FRONT DISC BRAKE)
47775-06270 note Boot, Bush Dust(FOR FRONT DISC BRAKE)
2019-09 → 2020-07 ended
ZRE21# LHD (GCC,GEN) —
47775-06270 note Boot, Bush Dust(FOR FRONT DISC BRAKE)
2020-07 → 2023-01 ended
ZRE211 LHD N;ZRE210 CVT +5 —
47775-06270 note Boot, Bush Dust(FOR FRONT DISC BRAKE)
2020-07 → —
ZRE211 G;ZRE210 CVT N +4 —
47775-06270 note Boot, Bush Dust(FOR FRONT DISC BRAKE)
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
47775-06270 Boot, Bush Dust(FOR FRONT DISC BRAKE)
2023-01 → —
ZRE211 N GCC;ZRE210 CVT +2 —
47775-06270 note Boot, Bush Dust(FOR FRONT DISC BRAKE)
2023-01 → —
ZRE21# LHD CVT (D,N) +1 —
47781 — Cover, Disc Brake Dust, Front RH
47781-F4010 Cover, Disc Brake Dust, Front RH
2019-01 → 2020-12 ended
ZRE210 G EUR;ZRE210 RHD +1 —
47781-F4010 Cover, Disc Brake Dust, Front RH
2019-01 → 2023-01 ended
ZRE210 US);ZRE210 N LHD +11 —
47781-F4010 Cover, Disc Brake Dust, Front RH
2019-01 → —
ZWE211,213;ZRE211 D 1,ZRE211 RHD;MZEA11 +22 —
47781-F4010 Cover, Disc Brake Dust, Front RH
2023-01 → —
ZWE219;MZEA11 210 TUR;ZRE210 LHD +13 —
47782 — Cover, Disc Brake Dust, Front LH
47782-F4010 Cover, Disc Brake Dust, Front LH
2019-01 → 2020-12 ended
ZRE210 G EUR;ZRE210 RHD +1 —
47782-F4010 Cover, Disc Brake Dust, Front LH
2019-01 → 2023-01 ended
ZRE210 US);ZRE210 N LHD +11 —
47782-F4010 Cover, Disc Brake Dust, Front LH
2019-01 → —
ZWE211,213;ZRE211 D 1,ZRE211 RHD;MZEA11 +22 —
47782-F4010 Cover, Disc Brake Dust, Front LH
2023-01 → —
ZWE219;MZEA11 210 TUR;ZRE210 LHD +13 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
