Toyota Corolla (TUP)
2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · General
Supported model
Data version 2022-12

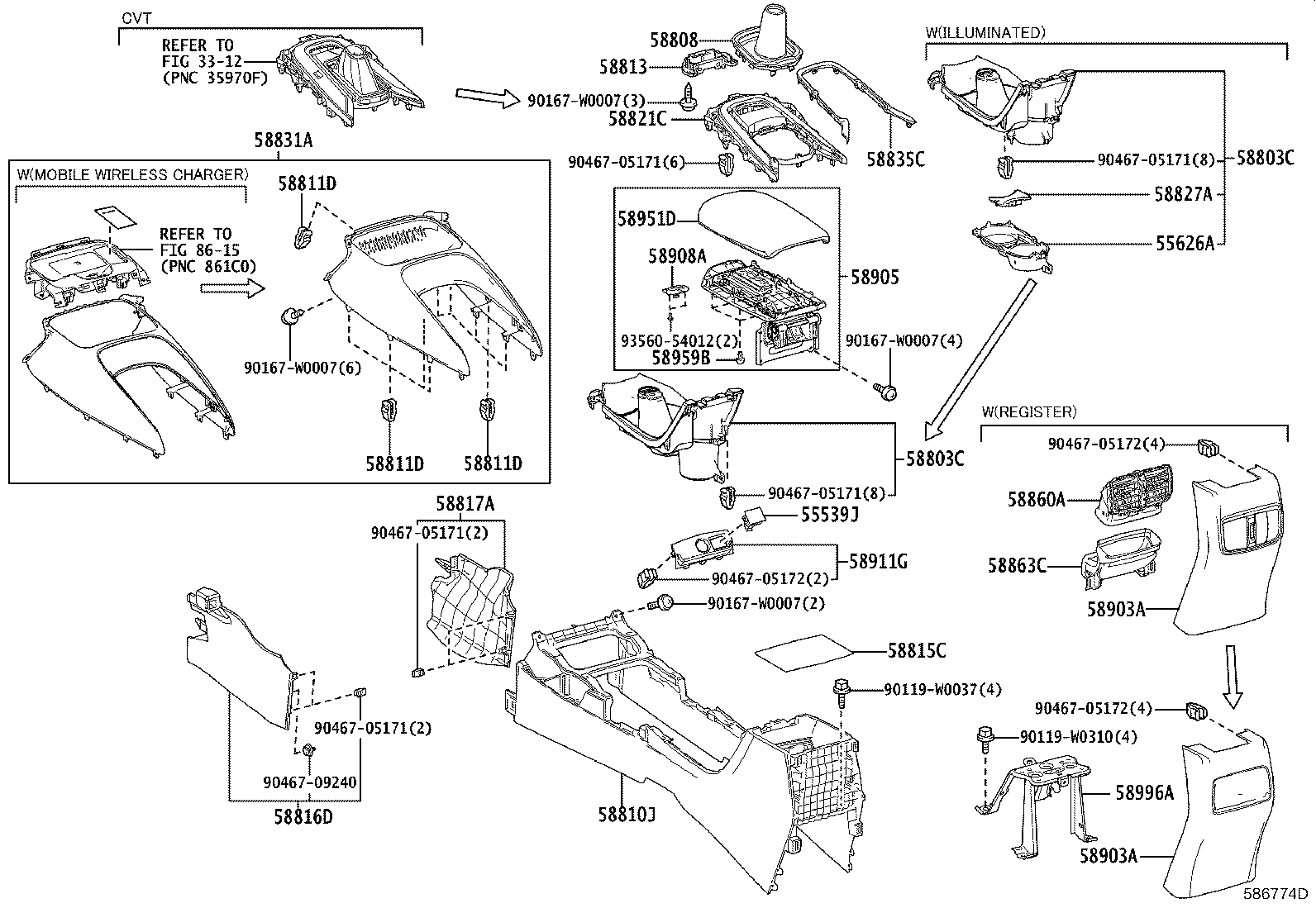

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55539J — Cover, Spare Switch Hole | ||||
| 55539-02290-C0 note |
Cover, Spare Switch Hole
2019-01 → 2023-01
ended
|
MZEA11 .LHD LHD CVT +10 | — | |
| 55539-02290-C0 note |
Cover, Spare Switch Hole
2019-01 → 2020-12
ended
|
ZRE210 RHD EUR | — | |
| 55539-02290-C0 note |
Cover, Spare Switch Hole
2019-01 → —
|
ZRE211 R;ZRE210 G;ZWE211 CVT +16 | — | |
| 55626A — Retainer, Instrument Panel Under Tray Wall | ||||
| 55626-02190 |
Retainer, Instrument Panel Under Tray Wall
2019-01 → —
|
MZEA11,ZRE210,ZWE211,213 G (EUR,GCC,GEN) | — | |
| 55626-02190 note |
Retainer, Instrument Panel Under Tray Wall
2019-01 → —
|
ZWE211 LHD N;MZEA11,ZRE210,ZWE213 LHD +2 | — | |
| 55626-02200 note |
Retainer, Instrument Panel Under Tray Wall
2019-01 → —
|
MZEA11,ZRE210,ZWE211,213 RHD EUR | — | |
| 55626-02210 note |
Retainer, Instrument Panel Under Tray Wall
2019-01 → 2020-11
ended
|
ZRE210 N EUR | — | |
| 55626-02210 note |
Retainer, Instrument Panel Under Tray Wall
2019-01 → —
|
ZRE210 6F N RUS;ZRE21# +3 | — | |
| 55626-02210 |
Retainer, Instrument Panel Under Tray Wall
2019-01 → —
|
ZRE21# G (GCC,GEN,RUS) | — | |
| 55626-02210 note |
Retainer, Instrument Panel Under Tray Wall
2019-01 → 2023-01
ended
|
ZRE210 CVT N RUS | — | |
| 55626-02210 note |
Retainer, Instrument Panel Under Tray Wall
2020-11 → 2023-01
ended
|
ZRE210 CVT N RUS | — | |
| 55626-02190 note |
Retainer, Instrument Panel Under Tray Wall
2023-01 → —
|
ZRE210 CVT N EUR;MZEA11,ZWE219 +2 | — | |
| 55626-02190 |
Retainer, Instrument Panel Under Tray Wall
2023-01 → —
|
ZWE219 G;MZEA11 G TUR | — | |
| 55626-02200 note |
Retainer, Instrument Panel Under Tray Wall
2023-01 → —
|
ZWE219 RHD | — | |
| 55626-02210 |
Retainer, Instrument Panel Under Tray Wall
2023-01 → —
|
ZRE210 G | — | |
| 55626-02210 note |
Retainer, Instrument Panel Under Tray Wall
2023-01 → —
|
ZRE211 N GCC | — | |
| 55626-02210 note |
Retainer, Instrument Panel Under Tray Wall
2023-01 → —
|
ZRE211 N GCC | — | |
| 55626-02210 note |
Retainer, Instrument Panel Under Tray Wall
2023-01 → —
|
ZRE21# LHD CVT N +1 | — | |
| 55626-02210 note |
Retainer, Instrument Panel Under Tray Wall
2023-01 → —
|
ZRE210 6F N EUR | — | |
| 58803C — Box Sub-assy, Console Cup Holder | ||||
| 58803-02110 note |
Box Sub-assy, Console Cup Holder
2019-01 → —
|
ZRE210 RHD EUR | — | |
| 58803-02110 note |
Box Sub-assy, Console Cup Holder
2022-12 → —
|
MZEA11,ZWE211,213 RHD | — | |
| 58803-02110 note |
Box Sub-assy, Console Cup Holder
2019-01 → 2022-10
ended
|
MZEA11,ZWE21# RHD | — | |
| 58803-02120-C0 note |
Box Sub-assy, Console Cup Holder
2019-01 → —
|
MZEA11,ZRE210 LHD D (EUR,GCC,GEN,RUS) | — | |
| 58803-02130 |
Box Sub-assy, Console Cup Holder
2022-12 → —
|
MZEA11,ZWE211,213 G (EUR,GCC,GEN) | — | |
| 58803-02130 |
Box Sub-assy, Console Cup Holder
2019-01 → —
|
ZRE210 G EUR | — | |
| 58803-02130 note |
Box Sub-assy, Console Cup Holder
2019-01 → 2022-10
ended
|
ZWE211 LHD N;MZEA11,ZRE210,ZWE213 LHD +2 | — | |
| 58803-02130 |
Box Sub-assy, Console Cup Holder
2019-01 → 2022-10
ended
|
MZEA11,ZWE21# G | — | |
| 58803-02130 note |
Box Sub-assy, Console Cup Holder
2022-12 → —
|
ZWE211 LHD N;MZEA11,ZRE210,ZWE213 LHD +2 | — | |
| 58803-02140-C0 note |
Box Sub-assy, Console Cup Holder
2022-12 → —
|
ZRE21# G | — | |
| 58803-02140-C0 note |
Box Sub-assy, Console Cup Holder
2022-12 → 2023-01
ended
|
ZRE210 CVT N RUS | — | |
| 58803-02140-C0 note |
Box Sub-assy, Console Cup Holder
2022-12 → 2023-01
ended
|
ZRE210 CVT N RUS | — | |
| 58803-02140-C0 note |
Box Sub-assy, Console Cup Holder
2022-12 → —
|
ZRE210 6F N RUS;ZRE21# +3 | — | |
| 58803-02140-C0 note |
Box Sub-assy, Console Cup Holder
2019-01 → 2020-11
ended
|
ZRE210 N EUR | — | |
| 58803-02140-C0 note |
Box Sub-assy, Console Cup Holder
2020-11 → 2022-10
ended
|
ZRE210 CVT N RUS | — | |
| 58803-02140-C0 note |
Box Sub-assy, Console Cup Holder
2019-01 → 2022-10
ended
|
ZRE210 CVT N RUS | — | |
| 58803-02140-C0 note |
Box Sub-assy, Console Cup Holder
2019-01 → 2022-10
ended
|
ZRE210 6F N RUS;ZRE21# +3 | — | |
| 58803-02140-C0 note |
Box Sub-assy, Console Cup Holder
2019-01 → 2022-10
ended
|
ZRE21# G (GCC,GEN,RUS) | — | |
| 58803-02190-C1 note |
Box Sub-assy, Console Cup Holder
2020-01 → —
|
ZRE210 RHD D GEN | — | |
| 58803-02210 note |
Box Sub-assy, Console Cup Holder
2019-01 → 2020-01
ended
|
ZRE210 RHD | — | |
| 58803-02210-C1 note |
Box Sub-assy, Console Cup Holder
2020-01 → —
|
ZRE21# RHD N | — | |
| 58803-02210-C1 note |
Box Sub-assy, Console Cup Holder
2020-01 → 2020-11
ended
|
ZRE210 RHD EUR | — | |
| 58803-02410 |
Box Sub-assy, Console Cup Holder
2019-01 → —
|
ZWE211 LHD N;MZEA11,ZRE210,ZWE213 LHD +2 | — | |
| 58803-02420-C0 note |
Box Sub-assy, Console Cup Holder
2019-01 → 2020-11
ended
|
ZRE210 N EUR | — | |
| 58803-02420-C0 note |
Box Sub-assy, Console Cup Holder
2019-01 → —
|
ZRE21# LHD N (GCC,GEN,RUS) | — | |
| 58803-02570 |
Box Sub-assy, Console Cup Holder
2019-01 → —
|
MZEA11,ZRE210,ZWE211,213 RHD EUR | — | |
| 58803-02690 note |
Box Sub-assy, Console Cup Holder
2022-11 → 2022-12
ended
|
ZWE211 LHD N;MZEA11,ZRE210,ZWE213 LHD +2 | — | |
| 58803-02690 |
Box Sub-assy, Console Cup Holder
2022-11 → 2022-12
ended
|
MZEA11,ZWE21# G | — | |
| 58803-02700-C0 note |
Box Sub-assy, Console Cup Holder
2022-11 → 2022-12
ended
|
ZRE210 6F N RUS;ZRE21# +3 | — | |
| 58803-02700-C0 note |
Box Sub-assy, Console Cup Holder
2022-11 → 2022-12
ended
|
ZRE210 CVT N RUS | — | |
| 58803-02700-C0 note |
Box Sub-assy, Console Cup Holder
2022-11 → 2022-12
ended
|
ZRE210 CVT N RUS | — | |
| 58803-02700-C0 note |
Box Sub-assy, Console Cup Holder
2022-11 → 2022-12
ended
|
ZRE21# G | — | |
| 58803-02710 note |
Box Sub-assy, Console Cup Holder
2022-11 → 2022-12
ended
|
MZEA11,ZWE21# RHD | — | |
| 58803-02050 |
Box Sub-assy, Console Cup Holder
2023-01 → —
|
MZEA11,ZWE219 LHD D | — | |
| 58803-02050 note |
Box Sub-assy, Console Cup Holder
2023-01 → —
|
ZWE219 GEN;MZEA11 CVT N +1 | — | |
| 58803-02120-C0 note |
Box Sub-assy, Console Cup Holder
2023-01 → —
|
ZRE210 D RUS;ZRE210 LHD +3 | — | |
| 58803-02210-C1 note |
Box Sub-assy, Console Cup Holder
2023-01 → —
|
ZRE210 RHD CVT N | — | |
| 58803-02410 |
Box Sub-assy, Console Cup Holder
2023-01 → —
|
ZRE210 CVT N EUR;MZEA11,ZWE219 +2 | — | |
| 58803-02420-C0 note |
Box Sub-assy, Console Cup Holder
2023-01 → —
|
ZRE211 LHD N;ZRE210 6F +6 | — | |
| 58803-02570 |
Box Sub-assy, Console Cup Holder
2023-01 → —
|
ZWE219 RHD | — | |
| 58803-02720 |
Box Sub-assy, Console Cup Holder
2023-01 → —
|
ZWE219 G;MZEA11 G TUR | — | |
| 58803-02720 note |
Box Sub-assy, Console Cup Holder
2023-01 → —
|
ZRE210 CVT N EUR;MZEA11,ZWE219 +2 | — | |
| 58803-02730-C0 note |
Box Sub-assy, Console Cup Holder
2023-01 → —
|
ZRE210 6F N EUR | — | |
| 58803-02730-C0 note |
Box Sub-assy, Console Cup Holder
2023-01 → —
|
ZRE211 N GCC | — | |
| 58803-02730-C0 note |
Box Sub-assy, Console Cup Holder
2023-01 → —
|
ZRE21# LHD CVT N +1 | — | |
| 58803-02730-C0 note |
Box Sub-assy, Console Cup Holder
2023-01 → —
|
ZRE210 G | — | |
| 58803-02730-C0 note |
Box Sub-assy, Console Cup Holder
2023-01 → —
|
ZRE211 N GCC | — | |
| 58803-02740 note |
Box Sub-assy, Console Cup Holder
2023-01 → —
|
ZWE219 RHD | — | |
| 58808 — Cover Sub-assy, Shifting Hole | ||||
| 58808-02670-C0 note |
Cover Sub-assy, Shifting Hole
2019-01 → 2020-03
ended
|
ZRE210 6F N (EUR,RUS) | — | |
| 58808-02670-C0 note |
Cover Sub-assy, Shifting Hole
2019-01 → 2020-10
ended
|
ZRE210 6F N (EUR,RUS) | — | |
| 58808-02670-C0 note |
Cover Sub-assy, Shifting Hole
2019-01 → 2020-12
ended
|
ZRE210 6F G;ZRE210 RHD +2 | — | |
| 58808-02670-C0 note |
Cover Sub-assy, Shifting Hole
2019-01 → 2023-01
ended
|
MZEA11 LHD D;ZRE210 6F +2 | — | |
| 58808-02670-C0 note |
Cover Sub-assy, Shifting Hole
2020-10 → 2023-01
ended
|
MZEA11,ZRE210 6F N EUR | — | |
| 58808-02670-C0 note |
Cover Sub-assy, Shifting Hole
2019-01 → —
|
MZEA11 RE210 6F LHD +13 | — | |
| 58808-02670-C0 note |
Cover Sub-assy, Shifting Hole
2020-10 → —
|
ZRE210 6F N RUS | — | |
| 58808-02670-C1 note |
Cover Sub-assy, Shifting Hole
2020-10 → 2023-01
ended
|
MZEA11,ZRE210 6F N EUR | — | |
| 58808-02670-C1 note |
Cover Sub-assy, Shifting Hole
2020-10 → —
|
ZRE210 6F N RUS | — | |
| 58808-02670-C0 note |
Cover Sub-assy, Shifting Hole
2023-01 → —
|
MZEA11 6F TUR;MZEA11 6F +2 | — | |
| 58808-02670-C0 note |
Cover Sub-assy, Shifting Hole
2023-01 → —
|
ZRE210 6F D RUS;MZEA11 +3 | — | |
| 58808-02670-C0 note |
Cover Sub-assy, Shifting Hole
2023-01 → —
|
ZRE210 6F N EUR | — | |
| 58808-02670-C2 note |
Cover Sub-assy, Shifting Hole
2023-01 → —
|
ZRE210 6F N EUR | — | |
| 58810J — Box Assy, Console | ||||
| 58810-02080-C0 note |
Box Assy, Console
2019-01 → 2020-12
ended
|
ZRE210 G EUR;ZRE210 RHD +1 | — | |
| 58810-02080-C0 note |
Box Assy, Console
2019-01 → 2021-07
ended
|
ZRE210 G RUS;ZRE210 RHD +3 | — | |
| 58810-02081-C0 note |
Box Assy, Console
2021-08 → 2023-01
ended
|
ZRE210 US);ZRE210 N LHD +11 | — | |
| 58810-02081-C0 note |
Box Assy, Console
2021-08 → —
|
ZWE211,213;ZRE211 .RUS;ZRE210 CVT RHD;MZEA11 +18 | — | |
| 58810-02081-C0 note |
Box Assy, Console
2023-01 → —
|
ZRE210 D RUS;MZEA11,ZWE219 LHD +6 | — | |
| 58810-02081-C0 note |
Box Assy, Console
2023-01 → —
|
MZEA11 CVT TUR;ZWE219 (G,N) +8 | — | |
| 58811D — Clip(FOR CONSOLE BOX) | ||||
| 90467-05171 |
Clip(FOR CONSOLE BOX)
2019-01 → 2020-12
ended
|
ZRE210 G EUR;ZRE210 RHD +1 | — | |
| 90467-05171 |
Clip(FOR CONSOLE BOX)
2019-01 → 2023-01
ended
|
ZRE210 US);ZRE210 N LHD +11 | — | |
| 90467-05171 |
Clip(FOR CONSOLE BOX)
2019-01 → —
|
ZWE211,213;ZRE211 D 1,ZRE211 RHD;MZEA11 +22 | — | |
| 90467-05171 |
Clip(FOR CONSOLE BOX)
2023-01 → —
|
ZWE219;MZEA11 210 TUR;ZRE210 LHD +13 | — | |
| 58813 — Box, Console, Upper | ||||
| 58813-02250 |
Box, Console, Upper
2019-01 → 2020-12
ended
|
ZRE210 6F G;ZRE210 RHD +2 | — | |
| 58813-02250 |
Box, Console, Upper
2019-01 → 2023-01
ended
|
ZRE210 6F N EUR;ZRE210 +6 | — | |
| 58813-02250 |
Box, Console, Upper
2019-01 → —
|
MZEA11 N);ZRE210 6F LHD +13 | — | |
| 58813-02250 note |
Box, Console, Upper
2019-01 → 2020-03
ended
|
ZRE210 6F N (EUR,RUS) | — | |
| 58813-02250 |
Box, Console, Upper
2023-01 → —
|
ZRE210 6F N EUR;ZRE210 +6 | — | |
| 58815C — Carpet, Console Box | ||||
| 58815-02410 |
Carpet, Console Box
2019-01 → 2020-12
ended
|
ZRE210 G EUR;ZRE210 RHD +1 | — | |
| 58815-02410 |
Carpet, Console Box
2019-01 → 2023-01
ended
|
ZRE210 US);ZRE210 N LHD +11 | — | |
| 58815-02410 |
Carpet, Console Box
2019-01 → —
|
ZWE211,213;ZRE211 D 1,ZRE211 RHD;MZEA11 +22 | — | |
| 58815-02410 |
Carpet, Console Box
2023-01 → —
|
ZWE219;MZEA11 210 TUR;ZRE210 LHD +13 | — | |
| 58816D — Insert, Console Box, Front NO.1 | ||||
| 58816-02380-C0 note |
Insert, Console Box, Front NO.1
2019-01 → 2020-12
ended
|
ZRE210 G EUR | — | |
| 58816-02380-C0 note |
Insert, Console Box, Front NO.1
2019-01 → 2023-01
ended
|
ZRE210 E210 N LHD +11 | — | |
| 58816-02380-C0 note |
Insert, Console Box, Front NO.1
2019-01 → —
|
ZWE211,213 .LHD LHD;ZRE210 6F +12 | — | |
| 58816-02390-C0 note |
Insert, Console Box, Front NO.1
2019-01 → 2023-01
ended
|
ZRE210 RHD CVT N | — | |
| 58816-02390-C0 note |
Insert, Console Box, Front NO.1
2019-01 → —
|
ZRE210 RHD 6F N;ZRE210 +4 | — | |
| 58816-02390-C0 note |
Insert, Console Box, Front NO.1
2019-01 → 2020-12
ended
|
ZRE210 RHD EUR | — | |
| 58816-02380-C0 note |
Insert, Console Box, Front NO.1
2023-01 → —
|
ZRE210 D RUS;MZEA11,ZWE219 LHD +6 | — | |
| 58816-02380-C0 note |
Insert, Console Box, Front NO.1
2023-01 → —
|
MZEA11 ;ZRE210 TUR;ZRE211 LHD +11 | — | |
| 58816-02390-C0 note |
Insert, Console Box, Front NO.1
2023-01 → —
|
ZRE210,ZWE219 RHD CVT N | — | |
| 58817A — Insert, Console Box, Front NO.2 | ||||
| 58817-02390-C0 note |
Insert, Console Box, Front NO.2
2019-01 → 2020-12
ended
|
ZRE210 G EUR | — | |
| 58817-02390-C0 note |
Insert, Console Box, Front NO.2
2019-01 → 2023-01
ended
|
ZRE210 E210 N LHD +11 | — | |
| 58817-02390-C0 note |
Insert, Console Box, Front NO.2
2019-01 → —
|
ZWE211,213 .LHD LHD;ZRE210 6F +12 | — | |
| 58817-02400-C0 note |
Insert, Console Box, Front NO.2
2019-01 → 2020-12
ended
|
ZRE210 RHD EUR | — | |
| 58817-02400-C0 note |
Insert, Console Box, Front NO.2
2019-01 → 2023-01
ended
|
ZRE210 RHD CVT N | — | |
| 58817-02400-C0 note |
Insert, Console Box, Front NO.2
2019-01 → —
|
ZRE210 RHD 6F N;ZRE210 +4 | — | |
| 58817-02390-C0 note |
Insert, Console Box, Front NO.2
2023-01 → —
|
MZEA11 ;ZRE210 TUR;ZRE211 LHD +11 | — | |
| 58817-02390-C0 note |
Insert, Console Box, Front NO.2
2023-01 → —
|
ZRE210 D RUS;MZEA11,ZWE219 LHD +6 | — | |
| 58817-02400-C0 note |
Insert, Console Box, Front NO.2
2023-01 → —
|
ZRE210,ZWE219 RHD CVT N | — | |
| 58821C — Panel, Console, Upper | ||||
| 58821-02A80 note |
Panel, Console, Upper
2019-01 → 2020-03
ended
|
ZRE210 6F N (EUR,RUS) | — | |
| 58821-02A80 |
Panel, Console, Upper
2019-01 → 2020-12
ended
|
ZRE210 6F G;ZRE210 RHD +2 | — | |
| 58821-02A80 |
Panel, Console, Upper
2019-01 → 2023-01
ended
|
ZRE210 6F N EUR;ZRE210 +6 | — | |
| 58821-02A80 |
Panel, Console, Upper
2019-01 → —
|
MZEA11 N);ZRE210 6F LHD +13 | — | |
| 58821-02A80 |
Panel, Console, Upper
2023-01 → —
|
ZRE210 6F N EUR;ZRE210 +6 | — | |
| 58827A — Garnish, Console Box Pocket | ||||
| 58827-02330 |
Garnish, Console Box Pocket
2022-11 → 2022-12
ended
|
MZEA11,ZRE21#,ZWE21# G | — | |
| 58827-02330 note |
Garnish, Console Box Pocket
2022-11 → 2022-12
ended
|
MZEA11 RHD;MZEA11,ZWE21# N;ZRE210 6F +5 | — | |
| 58827-02330 note |
Garnish, Console Box Pocket
2022-11 → 2022-12
ended
|
ZRE210 CVT N RUS | — | |
| 58827-02330 note |
Garnish, Console Box Pocket
2022-11 → 2022-12
ended
|
ZRE210 CVT N RUS | — | |
| 58827-12020 note |
Garnish, Console Box Pocket
2022-12 → 2023-01
ended
|
ZRE210 CVT N RUS | — | |
| 58827-12020 note |
Garnish, Console Box Pocket
2022-12 → —
|
MZEA11 .(EUR,GCC,GEN) RHD;ZRE210 6F +6 | — | |
| 58827-12020 |
Garnish, Console Box Pocket
2022-12 → —
|
MZEA11,ZRE21#,ZWE211,213 G (EUR,GCC,GEN,RUS) | — | |
| 58827-12020 note |
Garnish, Console Box Pocket
2019-01 → —
|
ZRE210 RHD EUR | — | |
| 58827-12020 |
Garnish, Console Box Pocket
2019-01 → —
|
ZRE210 G EUR | — | |
| 58827-12020 note |
Garnish, Console Box Pocket
2022-12 → 2023-01
ended
|
ZRE210 CVT N RUS | — | |
| 58827-12020 note |
Garnish, Console Box Pocket
2020-11 → 2022-10
ended
|
ZRE210 CVT N RUS | — | |
| 58827-12020 note |
Garnish, Console Box Pocket
2019-01 → 2022-10
ended
|
ZRE210 CVT N RUS | — | |
| 58827-12020 note |
Garnish, Console Box Pocket
2019-01 → 2022-10
ended
|
MZEA11 RHD;MZEA11,ZWE21# N;ZRE210 6F +5 | — | |
| 58827-12020 |
Garnish, Console Box Pocket
2019-01 → 2022-10
ended
|
ZRE210 G RUS;MZEA11,ZRE211,ZWE21# G | — | |
| 58827-12020 note |
Garnish, Console Box Pocket
2019-01 → 2020-11
ended
|
ZRE210 N EUR | — | |
| 58827-02260 |
Garnish, Console Box Pocket
2023-01 → —
|
MZEA11 G TUR;ZRE210,ZWE219 G | — | |
| 58827-02260 note |
Garnish, Console Box Pocket
2023-01 → —
|
ZRE211 N GCC | — | |
| 58827-02260 note |
Garnish, Console Box Pocket
2023-01 → —
|
ZRE211 N GCC | — | |
| 58827-02260 note |
Garnish, Console Box Pocket
2023-01 → —
|
MZEA11,ZWE219 N;ZRE21# LHD CVT +2 | — | |
| 58827-02260 note |
Garnish, Console Box Pocket
2023-01 → —
|
ZRE210 6F N EUR | — | |
| 58831A — Garnish, Console Upper Panel, Front | ||||
| 58831-02060-C0 note |
Garnish, Console Upper Panel, Front
2019-01 → 2020-11
ended
|
ZRE210 LHD CVT N +1 | — | |
| 58831-02060-C0 note |
Garnish, Console Upper Panel, Front
2019-01 → —
|
ZRE210 LHD 6F N +1 | — | |
| 58831-02060-C1 note |
Garnish, Console Upper Panel, Front
2019-01 → —
|
ZRE210 LHD 6F N +1 | — | |
| 58831-02060-C1 note |
Garnish, Console Upper Panel, Front
2019-01 → 2020-11
ended
|
ZRE210 LHD CVT N +1 | — | |
| 58831-02070-C1 note |
Garnish, Console Upper Panel, Front
2019-01 → —
|
ZWE211,213 RHD;ZRE210 LHD 6F +2 | — | |
| 58831-02070-C1 note |
Garnish, Console Upper Panel, Front
2019-01 → 2023-01
ended
|
ZRE210 LHD CVT N +1 | — | |
| 58831-02070-C1 note |
Garnish, Console Upper Panel, Front
2020-11 → 2023-01
ended
|
ZRE210 LHD CVT N +1 | — | |
| 58831-02070-C6 note |
Garnish, Console Upper Panel, Front
2020-11 → 2023-01
ended
|
ZRE210 LHD CVT N +1 | — | |
| 58831-02070-C6 note |
Garnish, Console Upper Panel, Front
2019-01 → —
|
ZWE211,213 RHD;ZRE210 LHD 6F +2 | — | |
| 58831-02070-C6 note |
Garnish, Console Upper Panel, Front
2019-01 → 2023-01
ended
|
ZRE210 LHD CVT N +1 | — | |
| 58831-02080-C2 note |
Garnish, Console Upper Panel, Front
2019-01 → 2020-03
ended
|
ZRE211,ZWE211 G (GCC,GEN) | — | |
| 58831-02080-C2 note |
Garnish, Console Upper Panel, Front
2019-01 → 2020-03
ended
|
ZRE210,ZWE211 G EUR | — | |
| 58831-02080-C2 note |
Garnish, Console Upper Panel, Front
2019-01 → 2020-03
ended
|
ZRE210 LHD N GEN | — | |
| 58831-02080-C3 note |
Garnish, Console Upper Panel, Front
2019-01 → 2020-03
ended
|
ZRE210,ZWE211 G EUR | — | |
| 58831-02080-C3 note |
Garnish, Console Upper Panel, Front
2019-01 → 2020-03
ended
|
ZRE211,ZWE211 G (GCC,GEN) | — | |
| 58831-02080-C3 note |
Garnish, Console Upper Panel, Front
2019-01 → 2020-03
ended
|
ZRE210 LHD N GEN | — | |
| 58831-02090-C1 note |
Garnish, Console Upper Panel, Front
2019-01 → 2020-03
ended
|
ZRE210,ZWE211 G (EUR,RUS) | — | |
| 58831-02090-C1 note |
Garnish, Console Upper Panel, Front
2019-01 → 2020-03
ended
|
ZWE211 RHD;ZRE210 LHD N +1 | — | |
| 58831-02090-C3 note |
Garnish, Console Upper Panel, Front
2019-01 → 2020-03
ended
|
ZWE211 RHD;ZRE210 LHD N +1 | — | |
| 58831-02090-C3 note |
Garnish, Console Upper Panel, Front
2019-01 → 2020-03
ended
|
ZRE210,ZWE211 G (EUR,RUS) | — | |
| 58831-02260-C0 note |
Garnish, Console Upper Panel, Front
2019-01 → 2023-01
ended
|
ZRE210 ZRE210 N LHD +11 | — | |
| 58831-02260-C0 note |
Garnish, Console Upper Panel, Front
2019-01 → 2020-12
ended
|
ZRE210 RHD EUR | — | |
| 58831-02260-C0 note |
Garnish, Console Upper Panel, Front
2019-01 → —
|
ZWE211,213 D N;MZEA11,ZRE211 D +15 | — | |
| 58831-02260-C1 note |
Garnish, Console Upper Panel, Front
2019-01 → 2023-01
ended
|
ZRE210 ZRE210 N LHD +11 | — | |
| 58831-02260-C1 note |
Garnish, Console Upper Panel, Front
2019-01 → —
|
ZWE211,213 D N;MZEA11,ZRE211 D +15 | — | |
| 58831-02260-C1 note |
Garnish, Console Upper Panel, Front
2019-01 → 2020-12
ended
|
ZRE210 RHD EUR | — | |
| 58831-02270-C0 note |
Garnish, Console Upper Panel, Front
2019-01 → 2020-03
ended
|
ZRE21#,ZWE211 N | — | |
| 58831-02270-C1 note |
Garnish, Console Upper Panel, Front
2019-01 → 2020-03
ended
|
ZRE21#,ZWE211 N | — | |
| 58831-02280-C0 note |
Garnish, Console Upper Panel, Front
2019-01 → —
|
ZRE210 6F N RUS;ZWE211,213 +3 | — | |
| 58831-02280-C0 note |
Garnish, Console Upper Panel, Front
2019-01 → —
|
ZWE211,213 RHD | — | |
| 58831-02280-C0 note |
Garnish, Console Upper Panel, Front
2019-01 → 2023-01
ended
|
ZRE210 6F D RUS;MZEA11,ZRE210 +5 | — | |
| 58831-02280-C0 note |
Garnish, Console Upper Panel, Front
2020-11 → —
|
ZWE211 RHD | — | |
| 58831-02280-C0 note |
Garnish, Console Upper Panel, Front
2020-11 → 2023-01
ended
|
ZRE210 LHD CVT N +1 | — | |
| 58831-02280-C1 note |
Garnish, Console Upper Panel, Front
2019-01 → —
|
ZRE210 6F N RUS;ZWE211,213 +3 | — | |
| 58831-02280-C1 note |
Garnish, Console Upper Panel, Front
2019-01 → —
|
ZWE211,213 RHD | — | |
| 58831-02280-C1 note |
Garnish, Console Upper Panel, Front
2020-11 → —
|
ZWE211 RHD | — | |
| 58831-02280-C1 note |
Garnish, Console Upper Panel, Front
2020-11 → 2023-01
ended
|
ZRE210 LHD CVT N +1 | — | |
| 58831-02280-C1 note |
Garnish, Console Upper Panel, Front
2019-01 → 2023-01
ended
|
ZRE210 6F D RUS;MZEA11,ZRE210 +5 | — | |
| 58831-02290-C0 note |
Garnish, Console Upper Panel, Front
2019-01 → 2020-03
ended
|
ZRE210,ZWE211 LHD N (EUR,RUS) | — | |
| 58831-02290-C0 note |
Garnish, Console Upper Panel, Front
2019-01 → 2020-03
ended
|
ZWE211 RHD | — | |
| 58831-02290-C1 note |
Garnish, Console Upper Panel, Front
2019-01 → 2020-03
ended
|
ZRE210,ZWE211 LHD N (EUR,RUS) | — | |
| 58831-02290-C1 note |
Garnish, Console Upper Panel, Front
2019-01 → 2020-03
ended
|
ZWE211 RHD | — | |
| 58831-02520-C0 note |
Garnish, Console Upper Panel, Front
2020-03 → —
|
ZRE210 LHD 6F N +1 | — | |
| 58831-02520-C0 note |
Garnish, Console Upper Panel, Front
2020-03 → —
|
ZWE211,213 RHD;ZRE210 LHD 6F +2 | — | |
| 58831-02520-C0 note |
Garnish, Console Upper Panel, Front
2020-03 → —
|
MZEA11,ZRE211,ZWE211,213 G (EUR,GCC,GEN) | — | |
| 58831-02520-C0 note |
Garnish, Console Upper Panel, Front
2020-03 → 2023-01
ended
|
ZRE210 LHD CVT N +1 | — | |
| 58831-02520-C0 note |
Garnish, Console Upper Panel, Front
2020-03 → 2023-01
ended
|
ZRE210 LHD CVT N +1 | — | |
| 58831-02520-C0 note |
Garnish, Console Upper Panel, Front
2020-03 → 2023-01
ended
|
ZRE210 G RUS | — | |
| 58831-02520-C0 note |
Garnish, Console Upper Panel, Front
2020-03 → 2020-12
ended
|
ZRE210 G EUR | — | |
| 58831-02520-C0 note |
Garnish, Console Upper Panel, Front
2020-03 → 2020-11
ended
|
ZRE210 LHD CVT N +1 | — | |
| 58831-02520-C1 note |
Garnish, Console Upper Panel, Front
2020-03 → 2020-12
ended
|
ZRE210 G EUR | — | |
| 58831-02520-C1 note |
Garnish, Console Upper Panel, Front
2020-03 → —
|
ZRE210 LHD 6F N +1 | — | |
| 58831-02520-C1 note |
Garnish, Console Upper Panel, Front
2020-03 → —
|
ZWE211,213 RHD;ZRE210 LHD 6F +2 | — | |
| 58831-02520-C1 note |
Garnish, Console Upper Panel, Front
2020-03 → —
|
MZEA11,ZRE211,ZWE211,213 G (EUR,GCC,GEN) | — | |
| 58831-02520-C1 note |
Garnish, Console Upper Panel, Front
2020-03 → 2020-11
ended
|
ZRE210 LHD CVT N +1 | — | |
| 58831-02520-C1 note |
Garnish, Console Upper Panel, Front
2020-03 → 2023-01
ended
|
ZRE210 G RUS | — | |
| 58831-02520-C1 note |
Garnish, Console Upper Panel, Front
2020-03 → 2023-01
ended
|
ZRE210 LHD CVT N +1 | — | |
| 58831-02520-C1 note |
Garnish, Console Upper Panel, Front
2020-03 → 2023-01
ended
|
ZRE210 LHD CVT N +1 | — | |
| 58831-02530-C0 note |
Garnish, Console Upper Panel, Front
2020-03 → 2023-01
ended
|
ZRE210 LHD CVT N +1 | — | |
| 58831-02530-C0 note |
Garnish, Console Upper Panel, Front
2020-03 → —
|
ZWE211,213 RHD | — | |
| 58831-02530-C0 note |
Garnish, Console Upper Panel, Front
2020-03 → —
|
ZRE211 RHD;ZWE211,213 N;ZRE210 CVT +5 | — | |
| 58831-02530-C0 note |
Garnish, Console Upper Panel, Front
2020-03 → —
|
ZWE211 RHD | — | |
| 58831-02530-C0 note |
Garnish, Console Upper Panel, Front
2020-03 → —
|
ZRE210 6F N RUS;ZWE211,213 +3 | — | |
| 58831-02530-C0 note |
Garnish, Console Upper Panel, Front
2020-03 → 2023-01
ended
|
ZRE210 CVT N RUS;MZEA11,ZRE210 +2 | — | |
| 58831-02530-C0 note |
Garnish, Console Upper Panel, Front
2020-03 → 2023-01
ended
|
ZRE211 LHD N;MZEA11,ZRE210 N +4 | — | |
| 58831-02530-C1 note |
Garnish, Console Upper Panel, Front
2020-03 → 2023-01
ended
|
ZRE210 CVT N RUS;MZEA11,ZRE210 +2 | — | |
| 58831-02530-C1 note |
Garnish, Console Upper Panel, Front
2020-03 → —
|
ZWE211 RHD | — | |
| 58831-02530-C1 note |
Garnish, Console Upper Panel, Front
2020-03 → —
|
ZRE211 RHD;ZWE211,213 N;ZRE210 CVT +5 | — | |
| 58831-02530-C1 note |
Garnish, Console Upper Panel, Front
2020-03 → —
|
ZRE210 6F N RUS;ZWE211,213 +3 | — | |
| 58831-02530-C1 note |
Garnish, Console Upper Panel, Front
2020-03 → 2023-01
ended
|
ZRE210 LHD CVT N +1 | — | |
| 58831-02530-C1 note |
Garnish, Console Upper Panel, Front
2020-03 → 2023-01
ended
|
ZRE211 LHD N;MZEA11,ZRE210 N +4 | — | |
| 58831-02530-C1 note |
Garnish, Console Upper Panel, Front
2020-03 → —
|
ZWE211,213 RHD | — | |
| 58831-02060-C5 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZRE210 CVT N RUS;ZRE210,ZWE219 +3 | — | |
| 58831-02060-C5 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZWE219 RHD;ZWE219 GEN | — | |
| 58831-02070-20 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZWE219 RHD;ZWE219 GEN | — | |
| 58831-02070-20 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZWE219 RHD;ZWE219 GEN | — | |
| 58831-02070-C5 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZWE219 RHD;ZWE219 GEN | — | |
| 58831-02070-C5 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZWE219 RHD;ZWE219 GEN | — | |
| 58831-02070-C8 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZRE210 LHD CVT N +1 | — | |
| 58831-02070-C8 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZWE219 RHD;ZWE219 GEN | — | |
| 58831-02070-C8 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZRE210 CVT N RUS;ZWE219 +3 | — | |
| 58831-02070-C8 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZRE210 N EUR | — | |
| 58831-02070-C8 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZWE219 RHD;ZWE219 GEN | — | |
| 58831-02260-C0 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZWE219 .LHD D,N;ZRE210 (D,N);ZRE210 +11 | — | |
| 58831-02260-C1 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZWE219 .LHD D,N;ZRE210 (D,N);ZRE210 +11 | — | |
| 58831-02260-C2 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZWE219 .CVT N;ZRE210 N +13 | — | |
| 58831-02280-C0 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZRE210 CVT N RUS;ZWE219 +5 | — | |
| 58831-02280-C0 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZRE210 N EUR;ZRE210 D +1 | — | |
| 58831-02280-C0 note |
Garnish, Console Upper Panel, Front
2024-02 → —
|
MZEA11,ZWE219 LHD D EUR | — | |
| 58831-02280-C0 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZRE210 LHD CVT N +1 | — | |
| 58831-02280-C1 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZRE210 LHD CVT N +1 | — | |
| 58831-02280-C1 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZRE210 CVT N RUS;ZWE219 +5 | — | |
| 58831-02280-C1 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZRE210 N EUR;ZRE210 D +1 | — | |
| 58831-02280-C1 note |
Garnish, Console Upper Panel, Front
2024-02 → —
|
MZEA11,ZWE219 LHD D EUR | — | |
| 58831-02280-C2 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZRE210 LHD CVT N +1 | — | |
| 58831-02280-C2 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZRE210 CVT N RUS;ZWE219 +5 | — | |
| 58831-02280-C2 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZRE210 N EUR | — | |
| 58831-02520-C3 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZWE219 RHD;ZWE219 GEN | — | |
| 58831-02520-C3 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZWE219 RHD;ZWE219 GEN | — | |
| 58831-02520-C3 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZWE219 RHD;ZWE219 GEN | — | |
| 58831-02520-C3 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZRE211 LHD N | — | |
| 58831-02520-C3 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
MZEA11 G TUR;ZRE210,ZWE219 G | — | |
| 58831-02520-C5 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZRE211 N GCC | — | |
| 58831-02520-C6 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
MZEA11 G TUR;ZRE210,ZWE219 G | — | |
| 58831-02520-C6 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZRE211 LHD N | — | |
| 58831-02520-C6 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZWE219 RHD;ZWE219 GEN | — | |
| 58831-02520-C6 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZWE219 RHD;ZWE219 GEN | — | |
| 58831-02520-C6 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZWE219 RHD;ZWE219 GEN | — | |
| 58831-02520-C7 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZRE210 N EUR | — | |
| 58831-02520-C7 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZWE219 RHD;ZWE219 GEN | — | |
| 58831-02520-C7 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZRE210 CVT N RUS;ZRE210,ZWE219 +3 | — | |
| 58831-02520-C7 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZRE210 CVT N RUS;ZWE219 +3 | — | |
| 58831-02520-C7 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZWE219 RHD;ZWE219 GEN | — | |
| 58831-02520-C7 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZRE210 LHD CVT N +1 | — | |
| 58831-02520-C7 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZWE219 RHD;ZWE219 GEN | — | |
| 58831-02530-C0 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
MZEA11 N EUR;ZRE210 CVT +4 | — | |
| 58831-02530-C0 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZRE210 N EUR | — | |
| 58831-02530-C0 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZRE210 CVT N RUS;ZWE219 +4 | — | |
| 58831-02530-C1 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZRE210 LHD CVT N +1 | — | |
| 58831-02530-C1 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
MZEA11 N EUR;ZRE210 CVT +4 | — | |
| 58831-02530-C1 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZRE210 N EUR | — | |
| 58831-02530-C1 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZWE219 ) N (EUR,GEN,TUR);MZEA11,ZRE210 +6 | — | |
| 58831-02530-C2 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZWE219 ) N (EUR,GEN,TUR);MZEA11,ZRE210 +6 | — | |
| 58831-02530-C2 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZRE210 N EUR | — | |
| 58831-02530-C2 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
MZEA11 N EUR;ZRE210 CVT +4 | — | |
| 58831-02530-C2 note |
Garnish, Console Upper Panel, Front
2023-01 → —
|
ZRE210 LHD CVT N +1 | — | |
| 58835C — Ornament, Console Box | ||||
| 58835-02060 note |
Ornament, Console Box
2019-01 → 2020-03
ended
|
ZRE210 6F N (EUR,RUS) | — | |
| 58835-02060 |
Ornament, Console Box
2019-01 → 2020-12
ended
|
ZRE210 6F G;ZRE210 RHD +2 | — | |
| 58835-02060 |
Ornament, Console Box
2019-01 → 2023-01
ended
|
ZRE210 6F N EUR;ZRE210 +6 | — | |
| 58835-02060 |
Ornament, Console Box
2019-01 → —
|
MZEA11 N);ZRE210 6F LHD +13 | — | |
| 58835-02060 |
Ornament, Console Box
2023-01 → —
|
MZEA11,ZRE210 6F N (EUR,TUR) | — | |
| 58835-02100 |
Ornament, Console Box
2023-01 → —
|
MZEA11 LHD 6F D;ZRE210 +3 | — | |
| 58835-02100 note |
Ornament, Console Box
2023-01 → —
|
ZRE210 6F N EUR | — | |
| 58860A — Register Assy, Console Box | ||||
| 58860-02080 note |
Register Assy, Console Box
2019-01 → —
|
MZEA11 RHD | — | |
| 58860-02080 |
Register Assy, Console Box
2019-01 → —
|
ZWE211,213;ZRE211 211 RHD;ZRE210 G +7 | — | |
| 58860-02080 note |
Register Assy, Console Box
2019-01 → 2020-12
ended
|
ZRE210 RHD EUR | — | |
| 58860-02080 |
Register Assy, Console Box
2019-01 → 2020-12
ended
|
ZRE210 G EUR | — | |
| 58860-02080 |
Register Assy, Console Box
2019-01 → 2023-01
ended
|
ZRE211 LHD N;MZEA11,ZRE210 N +4 | — | |
| 58860-02080 |
Register Assy, Console Box
2023-01 → 2023-12
ended
|
ZWE219 G,N) G,N;ZRE211 (GEN,RUS) +8 | — | |
| 58860-02081 |
Register Assy, Console Box
2024-01 → —
|
ZWE219 G,N) G,N;ZRE211 (GEN,RUS) +8 | — | |
| 58863C — Duct, Console Box, NO.3 | ||||
| 58863-02030 note |
Duct, Console Box, NO.3
2019-01 → —
|
MZEA11 RHD | — | |
| 58863-02030 |
Duct, Console Box, NO.3
2019-01 → —
|
ZWE211,213;ZRE211 211 RHD;ZRE210 G +7 | — | |
| 58863-02030 |
Duct, Console Box, NO.3
2019-01 → 2023-01
ended
|
ZRE211 LHD N;MZEA11,ZRE210 N +4 | — | |
| 58863-02030 note |
Duct, Console Box, NO.3
2019-01 → 2020-12
ended
|
ZRE210 RHD EUR | — | |
| 58863-02030 |
Duct, Console Box, NO.3
2019-01 → 2020-12
ended
|
ZRE210 G EUR | — | |
| 58863-02030 |
Duct, Console Box, NO.3
2023-01 → —
|
ZWE219 G,N) G,N;ZRE211 (GEN,RUS) +8 | — | |
| 58903A — Panel Sub-assy, Console Rear End | ||||
| 58903-02120-C0 note |
Panel Sub-assy, Console Rear End
2019-01 → 2020-12
ended
|
ZRE210 G EUR | — | |
| 58903-02120-C0 note |
Panel Sub-assy, Console Rear End
2019-01 → 2020-12
ended
|
ZRE210 RHD EUR | — | |
| 58903-02120-C0 note |
Panel Sub-assy, Console Rear End
2019-01 → 2023-01
ended
|
ZRE211 LHD N;MZEA11,ZRE210 N +4 | — | |
| 58903-02120-C0 note |
Panel Sub-assy, Console Rear End
2019-01 → —
|
MZEA11 RHD | — | |
| 58903-02120-C0 note |
Panel Sub-assy, Console Rear End
2019-01 → —
|
ZWE211,213;ZRE211 211 RHD;ZRE210 G +7 | — | |
| 58903-02130-C0 note |
Panel Sub-assy, Console Rear End
2020-11 → 2023-01
ended
|
ZRE210 N EUR | — | |
| 58903-02130-C0 note |
Panel Sub-assy, Console Rear End
2019-01 → —
|
ZRE211 RHD;ZRE210 CVT N +4 | — | |
| 58903-02130-C0 note |
Panel Sub-assy, Console Rear End
2019-01 → —
|
MZEA11 RHD;ZRE210 LHD D +8 | — | |
| 58903-02130-C0 note |
Panel Sub-assy, Console Rear End
2019-01 → 2023-01
ended
|
ZRE211 LHD N;ZRE210 CVT +2 | — | |
| 58903-02130-C0 note |
Panel Sub-assy, Console Rear End
2019-01 → 2023-01
ended
|
MZEA11 LHD D;ZRE210 D +5 | — | |
| 58903-02130-C0 note |
Panel Sub-assy, Console Rear End
2019-01 → 2020-12
ended
|
ZRE210 RHD EUR | — | |
| 58903-02130-C0 note |
Panel Sub-assy, Console Rear End
2019-01 → 2020-11
ended
|
ZRE210 N EUR | — | |
| 58903-02120-C0 note |
Panel Sub-assy, Console Rear End
2024-01 → —
|
ZRE210 CVT (G,N) RUS | — | |
| 58903-02120-C0 note |
Panel Sub-assy, Console Rear End
2024-01 → —
|
ZWE219 GEN | — | |
| 58903-02120-C0 note |
Panel Sub-assy, Console Rear End
2024-01 → —
|
ZWE219 GEN | — | |
| 58903-02120-C0 note |
Panel Sub-assy, Console Rear End
2023-01 → 2024-01
ended
|
ZWE219 GEN | — | |
| 58903-02120-C0 note |
Panel Sub-assy, Console Rear End
2023-01 → 2024-01
ended
|
ZWE219 GEN | — | |
| 58903-02120-C0 note |
Panel Sub-assy, Console Rear End
2023-01 → 2024-01
ended
|
ZRE210 CVT (G,N) RUS | — | |
| 58903-02130-C0 note |
Panel Sub-assy, Console Rear End
2023-01 → —
|
MZEA11,ZWE219 D TUR | — | |
| 58903-02130-C0 note |
Panel Sub-assy, Console Rear End
2023-01 → —
|
ZRE210 D RUS;ZRE210 LHD +6 | — | |
| 58903-02130-C0 note |
Panel Sub-assy, Console Rear End
2023-01 → —
|
ZWE219 GEN | — | |
| 58903-02130-C0 note |
Panel Sub-assy, Console Rear End
2023-01 → —
|
ZWE219 GEN | — | |
| 58903-02130-C0 note |
Panel Sub-assy, Console Rear End
2023-01 → —
|
MZEA11 CVT N EUR | — | |
| 58903-02130-C0 note |
Panel Sub-assy, Console Rear End
2023-01 → —
|
ZRE210 CVT N RUS | — | |
| 58903-02270-C0 note |
Panel Sub-assy, Console Rear End
2024-01 → —
|
MZEA11 WE219 (G,N) (G,N) +10 | — | |
| 58903-02270-C0 note |
Panel Sub-assy, Console Rear End
2023-01 → 2024-01
ended
|
MZEA11 WE219 (G,N) (G,N) +10 | — | |
| 58903-02270-C0 note |
Panel Sub-assy, Console Rear End
2023-01 → —
|
ZRE211,ZWE219 N GCC | — | |
| 58903-02340-C0 note |
Panel Sub-assy, Console Rear End
2023-01 → —
|
ZRE210 N EUR | — | |
| 58903-02340-C0 note |
Panel Sub-assy, Console Rear End
2023-01 → —
|
ZRE21# LHD CVT N +1 | — | |
| 58903-02340-C0 note |
Panel Sub-assy, Console Rear End
2023-01 → —
|
ZWE219 GEN | — | |
| 58903-02340-C0 note |
Panel Sub-assy, Console Rear End
2023-01 → —
|
ZRE210 CVT D GCC | — | |
| 58905 — Door Sub-assy, Console Compartment | ||||
| 58905-02F20-C1 note |
Door Sub-assy, Console Compartment
2019-01 → 2020-11
ended
|
ZWE211 RHD | — | |
| 58905-02F20-C1 note |
Door Sub-assy, Console Compartment
2020-11 → —
|
ZWE211,213 RHD | — | |
| 58905-02F20-C1 note |
Door Sub-assy, Console Compartment
2019-01 → 2020-12
ended
|
ZRE210 CVT G EUR | — | |
| 58905-02F20-C1 note |
Door Sub-assy, Console Compartment
2019-01 → —
|
MZEA11,ZWE211,213 CVT G (EUR,GCC,GEN) | — | |
| 58905-02F20-C2 note |
Door Sub-assy, Console Compartment
2019-01 → 2020-11
ended
|
ZWE211 RHD | — | |
| 58905-02F20-C2 note |
Door Sub-assy, Console Compartment
2020-11 → —
|
ZWE211,213 RHD | — | |
| 58905-02F20-C2 note |
Door Sub-assy, Console Compartment
2019-01 → 2020-12
ended
|
ZRE210 CVT G EUR | — | |
| 58905-02F20-C2 note |
Door Sub-assy, Console Compartment
2019-01 → —
|
MZEA11,ZWE211,213 CVT G (EUR,GCC,GEN) | — | |
| 58905-02F30-C1 note |
Door Sub-assy, Console Compartment
2019-01 → —
|
ZRE210 LHD 6F N +1 | — | |
| 58905-02F30-C1 note |
Door Sub-assy, Console Compartment
2019-01 → —
|
ZRE211 G;MZEA11 6F G | — | |
| 58905-02F30-C1 note |
Door Sub-assy, Console Compartment
2019-01 → 2023-01
ended
|
ZRE210 LHD CVT N +1 | — | |
| 58905-02F30-C1 note |
Door Sub-assy, Console Compartment
2019-01 → 2023-01
ended
|
ZRE210 G RUS | — | |
| 58905-02F30-C1 note |
Door Sub-assy, Console Compartment
2019-01 → 2020-12
ended
|
ZRE210 6F G | — | |
| 58905-02F30-C2 note |
Door Sub-assy, Console Compartment
2019-01 → 2023-01
ended
|
ZRE210 G RUS | — | |
| 58905-02F30-C2 note |
Door Sub-assy, Console Compartment
2019-01 → —
|
ZRE210 LHD 6F N +1 | — | |
| 58905-02F30-C2 note |
Door Sub-assy, Console Compartment
2019-01 → —
|
ZRE211 G;MZEA11 6F G | — | |
| 58905-02F30-C2 note |
Door Sub-assy, Console Compartment
2019-01 → 2020-12
ended
|
ZRE210 6F G | — | |
| 58905-02F30-C2 note |
Door Sub-assy, Console Compartment
2019-01 → 2023-01
ended
|
ZRE210 LHD CVT N +1 | — | |
| 58905-02F50-C0 note |
Door Sub-assy, Console Compartment
2019-01 → 2023-01
ended
|
MZEA11,ZRE210 CVT N EUR | — | |
| 58905-02F50-C0 note |
Door Sub-assy, Console Compartment
2019-01 → —
|
ZWE211,213 N | — | |
| 58905-02F50-E0 note |
Door Sub-assy, Console Compartment
2019-01 → 2023-01
ended
|
MZEA11,ZRE210 CVT N EUR | — | |
| 58905-02F50-E0 note |
Door Sub-assy, Console Compartment
2019-01 → —
|
ZWE211,213 N | — | |
| 58905-02F60-C0 note |
Door Sub-assy, Console Compartment
2019-01 → 2023-01
ended
|
MZEA11,ZRE210 CVT N EUR | — | |
| 58905-02F60-C0 note |
Door Sub-assy, Console Compartment
2020-11 → —
|
ZWE211 RHD | — | |
| 58905-02F60-C0 note |
Door Sub-assy, Console Compartment
2019-01 → 2020-12
ended
|
ZRE210 RHD EUR | — | |
| 58905-02F60-C0 note |
Door Sub-assy, Console Compartment
2019-01 → 2023-01
ended
|
ZRE210 T D N +15 | — | |
| 58905-02F60-C0 note |
Door Sub-assy, Console Compartment
2019-01 → —
|
MZEA11,ZRE211 10 RHD;ZRE210 6F +14 | — | |
| 58905-02F60-C0 note |
Door Sub-assy, Console Compartment
2019-01 → —
|
ZWE213 N;ZWE211 LHD N +1 | — | |
| 58905-02F60-C0 note |
Door Sub-assy, Console Compartment
2019-01 → 2020-11
ended
|
ZWE211 RHD | — | |
| 58905-02F60-E0 note |
Door Sub-assy, Console Compartment
2019-01 → 2023-01
ended
|
ZRE210 T D N +15 | — | |
| 58905-02F60-E0 note |
Door Sub-assy, Console Compartment
2020-11 → —
|
ZWE211 RHD | — | |
| 58905-02F60-E0 note |
Door Sub-assy, Console Compartment
2019-01 → 2020-11
ended
|
ZWE211 RHD | — | |
| 58905-02F60-E0 note |
Door Sub-assy, Console Compartment
2019-01 → —
|
ZWE213 N;ZWE211 LHD N +1 | — | |
| 58905-02F60-E0 note |
Door Sub-assy, Console Compartment
2019-01 → —
|
MZEA11,ZRE211 10 RHD;ZRE210 6F +14 | — | |
| 58905-02F60-E0 note |
Door Sub-assy, Console Compartment
2019-01 → 2020-12
ended
|
ZRE210 RHD EUR | — | |
| 58905-02F60-E0 note |
Door Sub-assy, Console Compartment
2019-01 → 2023-01
ended
|
MZEA11,ZRE210 CVT N EUR | — | |
| 58905-02F20-C4 note |
Door Sub-assy, Console Compartment
2023-01 → —
|
ZWE219 G;MZEA11 G TUR | — | |
| 58905-02F20-C4 note |
Door Sub-assy, Console Compartment
2023-01 → —
|
ZWE219 RHD;ZWE219 GEN | — | |
| 58905-02F20-C4 note |
Door Sub-assy, Console Compartment
2023-01 → —
|
ZWE219 RHD;ZWE219 GEN | — | |
| 58905-02F20-C4 note |
Door Sub-assy, Console Compartment
2023-01 → —
|
ZWE219 LHD N (EUR,TUR) | — | |
| 58905-02F30-C4 note |
Door Sub-assy, Console Compartment
2023-01 → —
|
ZRE210 G | — | |
| 58905-02F30-C4 note |
Door Sub-assy, Console Compartment
2023-01 → —
|
ZRE211 LHD N | — | |
| 58905-02F30-C4 note |
Door Sub-assy, Console Compartment
2023-01 → —
|
ZRE211 N GCC | — | |
| 58905-02F30-C4 note |
Door Sub-assy, Console Compartment
2023-01 → —
|
ZRE210 LHD CVT N +1 | — | |
| 58905-02F30-C4 note |
Door Sub-assy, Console Compartment
2023-01 → —
|
ZRE210 N EUR;ZRE210 CVT +2 | — | |
| 58905-02F30-C4 note |
Door Sub-assy, Console Compartment
2023-01 → —
|
ZRE210 LHD CVT N +1 | — | |
| 58905-02F30-C6 note |
Door Sub-assy, Console Compartment
2023-01 → —
|
ZRE211 N GCC | — | |
| 58905-02F30-C6 note |
Door Sub-assy, Console Compartment
2023-01 → —
|
ZRE211 N GCC | — | |
| 58905-02F50-B0 note |
Door Sub-assy, Console Compartment
2023-01 → —
|
MZEA11,ZWE219 CVT N | — | |
| 58905-02F50-E0 note |
Door Sub-assy, Console Compartment
2023-01 → —
|
MZEA11,ZWE219 CVT N | — | |
| 58905-02F60-B0 note |
Door Sub-assy, Console Compartment
2023-01 → —
|
MZEA11 6F N;MZEA11 D +6 | — | |
| 58905-02F60-B0 note |
Door Sub-assy, Console Compartment
2023-01 → —
|
ZRE210 N EUR;ZWE219 D +5 | — | |
| 58905-02F60-C0 note |
Door Sub-assy, Console Compartment
2023-01 → —
|
ZRE210 D RUS;MZEA11,ZWE219 LHD +6 | — | |
| 58905-02F60-C0 note |
Door Sub-assy, Console Compartment
2023-01 → —
|
ZRE210 N EUR;ZWE219 D +5 | — | |
| 58905-02F60-C0 note |
Door Sub-assy, Console Compartment
2023-01 → —
|
ZWE219 GEN;MZEA11 CVT N +1 | — | |
| 58905-02F60-E0 note |
Door Sub-assy, Console Compartment
2023-01 → —
|
ZWE219 GEN;MZEA11 CVT N +1 | — | |
| 58905-02F60-E0 note |
Door Sub-assy, Console Compartment
2023-01 → —
|
MZEA11 RE210 6F CVT +15 | — | |
| 58908A — Lock Sub-assy, Console Compartment Door | ||||
| 58908-33030 |
Lock Sub-assy, Console Compartment Door
2019-01 → 2020-12
ended
|
ZRE210 G EUR;ZRE210 RHD +1 | — | |
| 58908-33030 |
Lock Sub-assy, Console Compartment Door
2019-01 → —
|
ZWE211,213;ZRE211 D 1,ZRE211 RHD;MZEA11 +22 | — | |
| 58908-33030 |
Lock Sub-assy, Console Compartment Door
2019-01 → 2023-01
ended
|
ZRE210 US);ZRE210 N LHD +11 | — | |
| 58908-33030 |
Lock Sub-assy, Console Compartment Door
2023-01 → —
|
ZWE219;MZEA11 210 TUR;ZRE210 LHD +13 | — | |
| 58911G — Panel, Box, NO.1 | ||||
| 58911-02380-C0 note |
Panel, Box, NO.1
2019-01 → 2020-12
ended
|
ZRE210 G EUR | — | |
| 58911-02380-C0 note |
Panel, Box, NO.1
2019-01 → 2023-01
ended
|
ZRE210 E210 N LHD +11 | — | |
| 58911-02380-C0 note |
Panel, Box, NO.1
2019-01 → —
|
ZWE211,213 .LHD LHD;ZRE210 6F +12 | — | |
| 58911-02640-C0 note |
Panel, Box, NO.1
2019-01 → 2020-12
ended
|
ZRE210 RHD EUR | — | |
| 58911-02640-C0 note |
Panel, Box, NO.1
2019-01 → 2023-01
ended
|
ZRE210 RHD CVT N | — | |
| 58911-02640-C0 note |
Panel, Box, NO.1
2019-01 → —
|
ZRE210 RHD 6F N;ZRE210 +4 | — | |
| 58911-02380-C0 note |
Panel, Box, NO.1
2023-01 → —
|
ZRE210 D RUS;MZEA11,ZWE219 LHD +6 | — | |
| 58911-02380-C0 note |
Panel, Box, NO.1
2023-01 → —
|
MZEA11 ;ZRE210 TUR;ZRE211 LHD +11 | — | |
| 58911-02640-C0 note |
Panel, Box, NO.1
2023-01 → —
|
ZRE210,ZWE219 RHD CVT N | — | |
| 58951D — Door, Console Compartment, Outer | ||||
| 58951-02D10-C0 note |
Door, Console Compartment, Outer
2019-01 → —
|
MZEA11,ZWE211,213 CVT G (EUR,GCC,GEN) | — | |
| 58951-02D10-C0 note |
Door, Console Compartment, Outer
2019-01 → 2020-12
ended
|
ZRE210 CVT G EUR | — | |
| 58951-02D10-C0 note |
Door, Console Compartment, Outer
2020-11 → —
|
ZWE211,213 RHD | — | |
| 58951-02D10-C0 note |
Door, Console Compartment, Outer
2019-01 → 2020-11
ended
|
ZWE211 RHD | — | |
| 58951-02D10-E0 note |
Door, Console Compartment, Outer
2019-01 → 2020-11
ended
|
ZWE211 RHD | — | |
| 58951-02D10-E0 note |
Door, Console Compartment, Outer
2019-01 → 2020-12
ended
|
ZRE210 CVT G EUR | — | |
| 58951-02D10-E0 note |
Door, Console Compartment, Outer
2019-01 → —
|
MZEA11,ZWE211,213 CVT G (EUR,GCC,GEN) | — | |
| 58951-02D10-E0 note |
Door, Console Compartment, Outer
2020-11 → —
|
ZWE211,213 RHD | — | |
| 58951-02D20-C0 note |
Door, Console Compartment, Outer
2019-01 → 2020-12
ended
|
ZRE210 6F G | — | |
| 58951-02D20-C0 note |
Door, Console Compartment, Outer
2019-01 → —
|
ZRE210 LHD 6F N +1 | — | |
| 58951-02D20-C0 note |
Door, Console Compartment, Outer
2019-01 → —
|
ZRE211 G;MZEA11 6F G | — | |
| 58951-02D20-C0 note |
Door, Console Compartment, Outer
2019-01 → 2023-01
ended
|
ZRE210 G RUS | — | |
| 58951-02D20-C0 note |
Door, Console Compartment, Outer
2019-01 → 2023-01
ended
|
ZRE210 LHD CVT N +1 | — | |
| 58951-02D20-E0 note |
Door, Console Compartment, Outer
2019-01 → —
|
ZRE211 G;MZEA11 6F G | — | |
| 58951-02D20-E0 note |
Door, Console Compartment, Outer
2019-01 → —
|
ZRE210 LHD 6F N +1 | — | |
| 58951-02D20-E0 note |
Door, Console Compartment, Outer
2019-01 → 2023-01
ended
|
ZRE210 LHD CVT N +1 | — | |
| 58951-02D20-E0 note |
Door, Console Compartment, Outer
2019-01 → 2023-01
ended
|
ZRE210 G RUS | — | |
| 58951-02D20-E0 note |
Door, Console Compartment, Outer
2019-01 → 2020-12
ended
|
ZRE210 6F G | — | |
| 58951-02D40-C0 note |
Door, Console Compartment, Outer
2019-01 → —
|
ZWE211,213 N | — | |
| 58951-02D40-C0 note |
Door, Console Compartment, Outer
2019-01 → 2023-01
ended
|
MZEA11,ZRE210 CVT N EUR | — | |
| 58951-02D40-E0 note |
Door, Console Compartment, Outer
2019-01 → 2023-01
ended
|
MZEA11,ZRE210 CVT N EUR | — | |
| 58951-02D40-E0 note |
Door, Console Compartment, Outer
2019-01 → —
|
ZWE211,213 N | — | |
| 58951-02D50-C0 note |
Door, Console Compartment, Outer
2019-01 → —
|
MZEA11,ZRE211 10 RHD;ZRE210 6F +14 | — | |
| 58951-02D50-C0 note |
Door, Console Compartment, Outer
2019-01 → —
|
ZWE213 N;ZWE211 LHD N +1 | — | |
| 58951-02D50-C0 note |
Door, Console Compartment, Outer
2019-01 → 2023-01
ended
|
MZEA11,ZRE210 CVT N EUR | — | |
| 58951-02D50-C0 note |
Door, Console Compartment, Outer
2020-11 → —
|
ZWE211 RHD | — | |
| 58951-02D50-C0 note |
Door, Console Compartment, Outer
2019-01 → 2020-11
ended
|
ZWE211 RHD | — | |
| 58951-02D50-C0 note |
Door, Console Compartment, Outer
2019-01 → 2023-01
ended
|
ZRE210 T D N +15 | — | |
| 58951-02D50-C0 note |
Door, Console Compartment, Outer
2019-01 → 2020-12
ended
|
ZRE210 RHD EUR | — | |
| 58951-02D50-E0 note |
Door, Console Compartment, Outer
2020-11 → —
|
ZWE211 RHD | — | |
| 58951-02D50-E0 note |
Door, Console Compartment, Outer
2019-01 → 2020-11
ended
|
ZWE211 RHD | — | |
| 58951-02D50-E0 note |
Door, Console Compartment, Outer
2019-01 → —
|
MZEA11,ZRE211 10 RHD;ZRE210 6F +14 | — | |
| 58951-02D50-E0 note |
Door, Console Compartment, Outer
2019-01 → —
|
ZWE213 N;ZWE211 LHD N +1 | — | |
| 58951-02D50-E0 note |
Door, Console Compartment, Outer
2019-01 → 2020-12
ended
|
ZRE210 RHD EUR | — | |
| 58951-02D50-E0 note |
Door, Console Compartment, Outer
2019-01 → 2023-01
ended
|
ZRE210 T D N +15 | — | |
| 58951-02D50-E0 note |
Door, Console Compartment, Outer
2019-01 → 2023-01
ended
|
MZEA11,ZRE210 CVT N EUR | — | |
| 58951-02D10-C2 note |
Door, Console Compartment, Outer
2023-01 → —
|
ZWE219 G;MZEA11 G TUR | — | |
| 58951-02D10-C2 note |
Door, Console Compartment, Outer
2023-01 → —
|
ZWE219 RHD;ZWE219 GEN | — | |
| 58951-02D10-C2 note |
Door, Console Compartment, Outer
2023-01 → —
|
ZWE219 LHD N (EUR,TUR) | — | |
| 58951-02D10-C2 note |
Door, Console Compartment, Outer
2023-01 → —
|
ZWE219 RHD;ZWE219 GEN | — | |
| 58951-02D20-C2 note |
Door, Console Compartment, Outer
2023-01 → —
|
ZRE210 G | — | |
| 58951-02D20-C2 note |
Door, Console Compartment, Outer
2023-01 → —
|
ZRE211 LHD N | — | |
| 58951-02D20-C2 note |
Door, Console Compartment, Outer
2023-01 → —
|
ZRE211 N GCC | — | |
| 58951-02D20-C2 note |
Door, Console Compartment, Outer
2023-01 → —
|
ZRE210 LHD CVT N +1 | — | |
| 58951-02D20-C2 note |
Door, Console Compartment, Outer
2023-01 → —
|
ZRE210 N EUR;ZRE210 CVT +2 | — | |
| 58951-02D20-C2 note |
Door, Console Compartment, Outer
2023-01 → —
|
ZRE210 LHD CVT N +1 | — | |
| 58951-02D20-E1 note |
Door, Console Compartment, Outer
2023-01 → —
|
ZRE211 N GCC | — | |
| 58951-02D20-E1 note |
Door, Console Compartment, Outer
2023-01 → —
|
ZRE211 N GCC | — | |
| 58951-02D40-B0 note |
Door, Console Compartment, Outer
2023-01 → —
|
MZEA11,ZWE219 CVT N | — | |
| 58951-02D40-E0 note |
Door, Console Compartment, Outer
2023-01 → —
|
MZEA11,ZWE219 CVT N | — | |
| 58951-02D50-B0 note |
Door, Console Compartment, Outer
2023-01 → —
|
MZEA11 6F N;MZEA11 D +6 | — | |
| 58951-02D50-B0 note |
Door, Console Compartment, Outer
2023-01 → —
|
ZRE210 N EUR;ZWE219 D +5 | — | |
| 58951-02D50-C0 note |
Door, Console Compartment, Outer
2023-01 → —
|
ZRE210 D RUS;MZEA11,ZWE219 LHD +6 | — | |
| 58951-02D50-C0 note |
Door, Console Compartment, Outer
2023-01 → —
|
ZRE210 N EUR;ZWE219 D +5 | — | |
| 58951-02D50-C0 note |
Door, Console Compartment, Outer
2023-01 → —
|
ZWE219 GEN;MZEA11 CVT N +1 | — | |
| 58951-02D50-E0 note |
Door, Console Compartment, Outer
2023-01 → —
|
MZEA11 RE210 6F CVT +15 | — | |
| 58951-02D50-E0 note |
Door, Console Compartment, Outer
2023-01 → —
|
ZWE219 GEN;MZEA11 CVT N +1 | — | |
| 58959B — Cushion, Console Compartment Door | ||||
| 58959-60060 |
Cushion, Console Compartment Door
2019-01 → 2020-12
ended
|
ZRE210 G EUR;ZRE210 RHD +1 | — | |
| 58959-60060 |
Cushion, Console Compartment Door
2019-01 → —
|
ZWE211,213;ZRE211 D 1,ZRE211 RHD;MZEA11 +22 | — | |
| 58959-60060 |
Cushion, Console Compartment Door
2019-01 → 2023-01
ended
|
ZRE210 US);ZRE210 N LHD +11 | — | |
| 58959-60060 |
Cushion, Console Compartment Door
2023-01 → —
|
ZWE219;MZEA11 210 TUR;ZRE210 LHD +13 | — | |
| 58996A — Bracket, Console Box Mounting, NO.2 | ||||
| 58996-02180 |
Bracket, Console Box Mounting, NO.2
2019-01 → 2020-12
ended
|
ZRE210 G EUR;ZRE210 RHD +1 | — | |
| 58996-02180 |
Bracket, Console Box Mounting, NO.2
2019-01 → 2021-11
ended
|
ZRE210 G RUS;ZRE210 RHD +3 | — | |
| 58996-02181 |
Bracket, Console Box Mounting, NO.2
2021-12 → 2023-01
ended
|
ZRE210 US);ZRE210 N LHD +11 | — | |
| 58996-02181 |
Bracket, Console Box Mounting, NO.2
2021-12 → —
|
ZWE211,213;ZRE211 .RUS;ZRE210 CVT RHD;MZEA11 +18 | — | |
| 58996-02181 |
Bracket, Console Box Mounting, NO.2
2023-01 → —
|
ZWE219;MZEA11 210 TUR;ZRE210 LHD +13 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
