Toyota Corolla (TUP)

2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · General

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

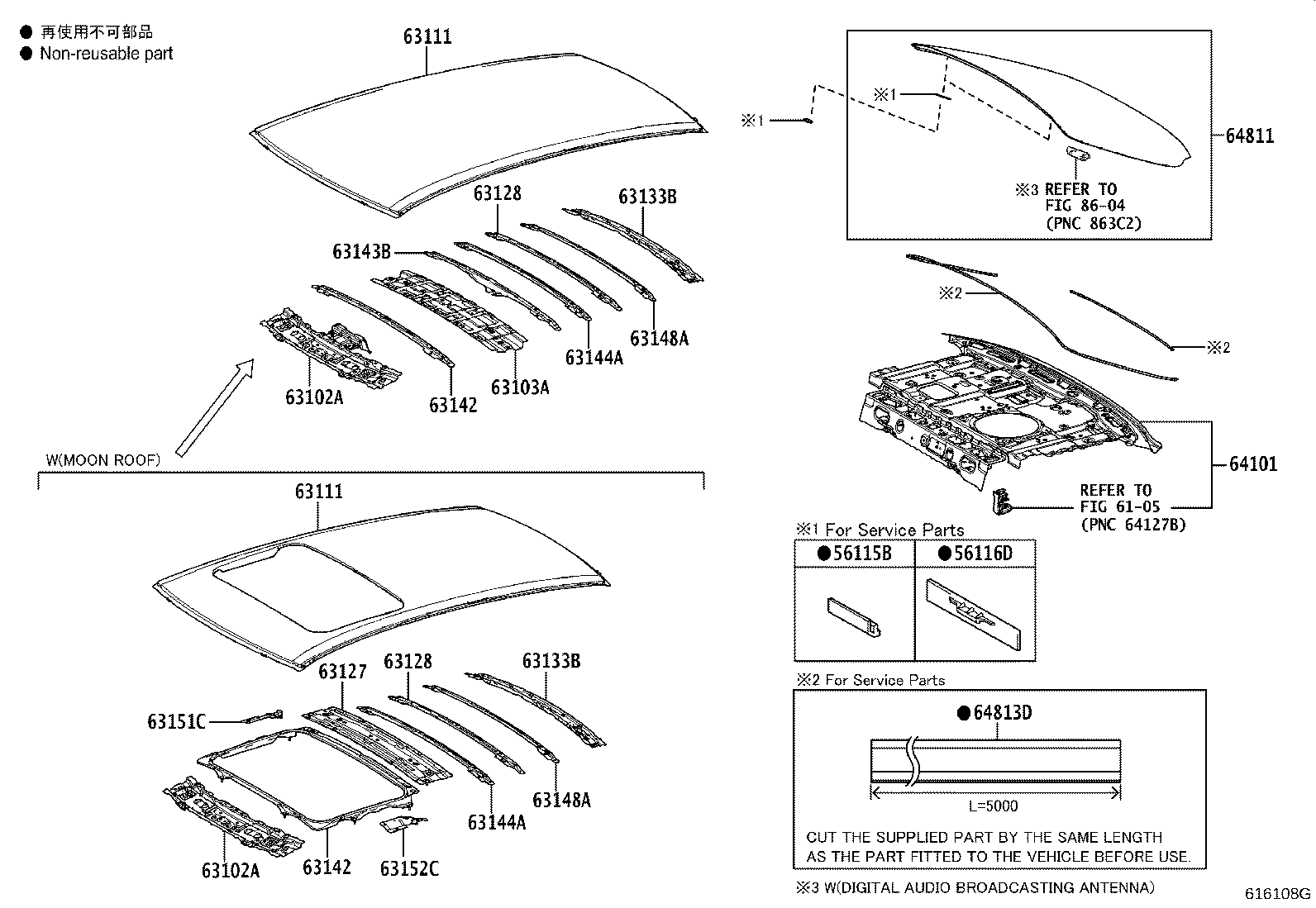

Exploded illustration 616108G 63102A — PANEL SUB-ASSY, WINDSHIELD HEADER (16 parts) 63102A — PANEL SUB-ASSY, WINDSHIELD HEADER (16 parts) 63103A — REINFORCEMENT SUB-ASSY, ROOF PANEL (4 parts) 63111 — PANEL, ROOF (28 parts) 63111 — PANEL, ROOF (28 parts) 64101 — PANEL SUB-ASSY, UPPER BACK (4 parts) 63127 — REINFORCEMENT, ROOF PANEL, NO.5 (9 parts) 63128 — REINFORCEMENT, ROOF PANEL, NO.6 (4 parts) 63128 — REINFORCEMENT, ROOF PANEL, NO.6 (4 parts) 63133B — FRAME, BACK WINDOW (4 parts) 63133B — FRAME, BACK WINDOW (4 parts) 63142 — REINFORCEMENT, ROOF PANEL, NO.2 (13 parts) 63142 — REINFORCEMENT, ROOF PANEL, NO.2 (13 parts) 63143B — REINFORCEMENT, ROOF PANEL, NO.3 (4 parts) 63144A — REINFORCEMENT, ROOF PANEL, NO.4 (4 parts) 63144A — REINFORCEMENT, ROOF PANEL, NO.4 (4 parts) 63148A — REINFORCEMENT, ROOF PANEL, NO.7 (4 parts) 63148A — REINFORCEMENT, ROOF PANEL, NO.7 (4 parts) 63151C — FRAME, ROOF OPENING SIDE, RH (9 parts) 63152C — FRAME, ROOF OPENING SIDE, LH (9 parts) 64811 — GLASS, BACK WINDOW (161 parts) 6105 — not listed in this catalogue 8604 — not listed in this catalogue 64813D — DAM, BACK WINDOW GLASS ADHESIVE (4 parts) 56115B — STOPPER, BACK WINDOW GLASS, NO.1 (4 parts) 56116D — STOPPER, BACK WINDOW GLASS, NO.2 (4 parts)
616108G · 24 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
285 parts on this figure
Part number Description Fitment Price
56115B — Stopper, Back Window Glass, NO.1
56115-30120 Stopper, Back Window Glass, NO.1
2019-01 → 2023-01 ended
ZRE210 US);ZRE210 N LHD +11 —
56115-30120 Stopper, Back Window Glass, NO.1
2019-01 → 2020-12 ended
ZRE210 G EUR;ZRE210 RHD +1 —
56115-30120 Stopper, Back Window Glass, NO.1
2019-01 → —
ZWE211,213;ZRE211 D 1,ZRE211 RHD;MZEA11 +22 —
56115-30120 Stopper, Back Window Glass, NO.1
2023-01 → —
ZWE219;MZEA11 210 TUR;ZRE210 LHD +13 —
56116D — Stopper, Back Window Glass, NO.2
56116-22050 Stopper, Back Window Glass, NO.2
2019-01 → 2020-12 ended
ZRE210 G EUR;ZRE210 RHD +1 —
56116-22050 Stopper, Back Window Glass, NO.2
2019-01 → 2023-01 ended
ZRE210 US);ZRE210 N LHD +11 —
56116-22050 Stopper, Back Window Glass, NO.2
2019-01 → —
ZWE211,213;ZRE211 D 1,ZRE211 RHD;MZEA11 +22 —
56116-22050 Stopper, Back Window Glass, NO.2
2023-01 → —
ZWE219;MZEA11 210 TUR;ZRE210 LHD +13 —
63102A — Panel Sub-assy, Windshield Header
63102-02480 Panel Sub-assy, Windshield Header
2019-01 → 2020-12 ended
ZRE210 G EUR;ZRE210 RHD +1 —
63102-02480 Panel Sub-assy, Windshield Header
2019-01 → 2021-10 ended
ZRE210 G RUS;ZRE210 RHD +3 —
63102-02481 Panel Sub-assy, Windshield Header
2021-10 → —
ZWE211,213;ZRE211 .RUS;ZRE210 CVT RHD;MZEA11 +18 —
63102-02481 Panel Sub-assy, Windshield Header
2021-10 → 2023-01 ended
ZRE210 US);ZRE210 N LHD +11 —
63102-02490 note Panel Sub-assy, Windshield Header
2020-11 → 2021-10 ended
ZWE211 G EUR —
63102-02490 note Panel Sub-assy, Windshield Header
2019-01 → 2021-10 ended
ZWE213 LHD;ZRE210,ZWE211 LHD N +1 —
63102-02490 note Panel Sub-assy, Windshield Header
2019-01 → 2021-10 ended
MZEA11 VT RHD 6F;MZEA11 +5 —
63102-02490 note Panel Sub-assy, Windshield Header
2019-01 → 2020-12 ended
ZRE210 G EUR;ZRE210 RHD +1 —
63102-02491 note Panel Sub-assy, Windshield Header
2021-10 → 2023-01 ended
ZRE211 LHD N;ZRE210 CVT +4 —
63102-02491 note Panel Sub-assy, Windshield Header
2021-10 → 2023-01 ended
ZRE210 N EUR —
63102-02491 note Panel Sub-assy, Windshield Header
2021-10 → —
ZWE211,213;ZRE211 F RHD;MZEA11 N +12 —
63102-02491 note Panel Sub-assy, Windshield Header
2021-10 → —
ZWE211,213 LHD EUR —
63102-02481 Panel Sub-assy, Windshield Header
2023-01 → —
ZWE219;MZEA11 210 TUR;ZRE210 LHD +13 —
63102-02491 note Panel Sub-assy, Windshield Header
2023-01 → —
ZWE219 (G,N) TUR —
63102-02491 note Panel Sub-assy, Windshield Header
2023-01 → —
ZWE219 (G,N) TUR —
63102-02491 note Panel Sub-assy, Windshield Header
2023-01 → —
ZWE219 VT G,N;ZRE211 N +9 —
63103A — Reinforcement Sub-assy, Roof Panel
63103-02130 Reinforcement Sub-assy, Roof Panel
2019-01 → —
ZWE211,213;ZRE211 D 1,ZRE211 RHD;MZEA11 +22 —
63103-02130 Reinforcement Sub-assy, Roof Panel
2019-01 → 2023-01 ended
ZRE210 US);ZRE210 N LHD +11 —
63103-02130 Reinforcement Sub-assy, Roof Panel
2019-01 → 2020-12 ended
ZRE210 G EUR;ZRE210 RHD +1 —
63103-02130 Reinforcement Sub-assy, Roof Panel
2023-01 → —
ZWE219;MZEA11 210 TUR;ZRE210 LHD +13 —
63111 — Panel, Roof
63111-02680 Panel, Roof
2019-01 → —
ZRE211 E210 G;ZRE211 RHD +14 —
63111-02680 note Panel, Roof
2019-01 → —
ZRE210 6F N RUS;ZWE211,213 +6 —
63111-02680 note Panel, Roof
2019-01 → 2023-01 ended
ZRE210 N EUR;ZRE210 CVT +4 —
63111-02680 Panel, Roof
2019-01 → 2023-01 ended
ZRE211 LHD N;ZRE210 CVT +6 —
63111-02690 note Panel, Roof
2019-01 → 2023-01 ended
ZRE211 LHD N;ZRE210 CVT +2 —
63111-02690 note Panel, Roof
2019-01 → 2023-01 ended
ZRE210 N EUR —
63111-02690 note Panel, Roof
2019-01 → —
ZRE211 G;ZRE211 RHD;ZWE211 GCC,GEN;ZRE210 +6 —
63111-02690 note Panel, Roof
2019-01 → —
ZWE213 LHD;ZWE211 LHD N +1 —
63111-02690 note Panel, Roof
2020-11 → —
ZWE211 G EUR —
63111-02700 Panel, Roof
2019-01 → 2023-01 ended
ZRE210 N EUR;ZRE210 CVT +6 —
63111-02700 Panel, Roof
2019-01 → —
MZEA11 D 6F EUR;MZEA11 +12 —
63111-02700 Panel, Roof
2019-01 → 2020-12 ended
ZRE210 G EUR;ZRE210 RHD +1 —
63111-02710 note Panel, Roof
2019-01 → 2023-01 ended
MZEA11,ZRE210 N EUR —
63111-02710 note Panel, Roof
2019-01 → 2020-12 ended
ZRE210 G EUR;ZRE210 RHD +1 —
63111-02710 note Panel, Roof
2019-01 → —
MZEA11 6F G;MZEA11 RHD +5 —
63111-02680 note Panel, Roof
2024-02 → —
ZWE219 D TUR —
63111-02680 note Panel, Roof
2024-02 → —
ZWE219 D TUR —
63111-02680 note Panel, Roof
2023-01 → —
ZRE210 CVT RUS;ZRE210 6F +2 —
63111-02680 note Panel, Roof
2023-01 → —
ZWE219 (G,N) TUR —
63111-02680 note Panel, Roof
2023-01 → —
ZWE219 (G,N) TUR —
63111-02680 Panel, Roof
2023-01 → —
ZRE210 HD N N +10 —
63111-02680 note Panel, Roof
2023-01 → 2024-02 ended
ZWE219 D TUR —
63111-02680 note Panel, Roof
2023-01 → 2024-02 ended
ZWE219 D TUR —
63111-02690 note Panel, Roof
2023-01 → —
ZWE219 (G,N) TUR —
63111-02690 note Panel, Roof
2023-01 → —
ZRE210 N EUR;ZRE210 LHD +6 —
63111-02690 note Panel, Roof
2023-01 → —
ZWE219 (G,N) TUR —
63111-02700 Panel, Roof
2023-01 → —
MZEA11 EUR TUR;ZWE219 EUR,TUR;ZRE210 +7 —
63111-02710 note Panel, Roof
2023-01 → —
MZEA11 N EUR;MZEA11 (G,N) +3 —
63127 — Reinforcement, Roof Panel, NO.5
63107-12010 note Reinforcement, Roof Panel, NO.5
2019-01 → 2020-12 ended
ZRE210 G EUR;ZRE210 RHD +1 —
63107-12010 note Reinforcement, Roof Panel, NO.5
2019-01 → 2023-01 ended
ZRE211 LHD N;ZRE210 CVT +4 —
63107-12010 note Reinforcement, Roof Panel, NO.5
2019-01 → 2023-01 ended
ZRE210 N EUR —
63107-12010 note Reinforcement, Roof Panel, NO.5
2019-01 → —
ZWE211,213;ZRE211 F RHD;MZEA11 N +12 —
63107-12010 note Reinforcement, Roof Panel, NO.5
2019-01 → —
ZWE213 LHD;ZWE211 LHD N +1 —
63107-12010 note Reinforcement, Roof Panel, NO.5
2020-11 → —
ZWE211 G EUR —
63107-12010 note Reinforcement, Roof Panel, NO.5
2023-01 → —
ZWE219 (G,N) TUR —
63107-12010 note Reinforcement, Roof Panel, NO.5
2023-01 → —
ZWE219 (G,N) TUR —
63107-12010 note Reinforcement, Roof Panel, NO.5
2023-01 → —
ZWE219 VT G,N;ZRE211 N +9 —
63128 — Reinforcement, Roof Panel, NO.6
63128-02070 Reinforcement, Roof Panel, NO.6
2019-01 → 2020-12 ended
ZRE210 G EUR;ZRE210 RHD +1 —
63128-02070 Reinforcement, Roof Panel, NO.6
2019-01 → —
ZWE211,213;ZRE211 D 1,ZRE211 RHD;MZEA11 +22 —
63128-02070 Reinforcement, Roof Panel, NO.6
2019-01 → 2023-01 ended
ZRE210 US);ZRE210 N LHD +11 —
63128-02070 Reinforcement, Roof Panel, NO.6
2023-01 → —
ZWE219;MZEA11 210 TUR;ZRE210 LHD +13 —
63133B — Frame, Back Window
63133-02220 Frame, Back Window
2019-01 → 2020-12 ended
ZRE210 G EUR;ZRE210 RHD +1 —
63133-02220 Frame, Back Window
2019-01 → 2023-01 ended
ZRE210 US);ZRE210 N LHD +11 —
63133-02220 Frame, Back Window
2019-01 → —
ZWE211,213;ZRE211 D 1,ZRE211 RHD;MZEA11 +22 —
63133-02220 Frame, Back Window
2023-01 → —
ZWE219;MZEA11 210 TUR;ZRE210 LHD +13 —
63142 — Reinforcement, Roof Panel, NO.2
63142-02160 Reinforcement, Roof Panel, NO.2
2019-01 → 2020-12 ended
ZRE210 G EUR;ZRE210 RHD +1 —
63142-02160 Reinforcement, Roof Panel, NO.2
2019-01 → 2023-01 ended
ZRE210 US);ZRE210 N LHD +11 —
63142-02160 Reinforcement, Roof Panel, NO.2
2019-01 → —
ZWE211,213;ZRE211 D 1,ZRE211 RHD;MZEA11 +22 —
63142-02180 note Reinforcement, Roof Panel, NO.2
2020-11 → —
ZWE211 G EUR —
63142-02180 note Reinforcement, Roof Panel, NO.2
2019-01 → 2023-01 ended
ZRE211 LHD N;ZRE210 CVT +4 —
63142-02180 note Reinforcement, Roof Panel, NO.2
2019-01 → —
ZWE213 LHD;ZWE211 LHD N +1 —
63142-02180 note Reinforcement, Roof Panel, NO.2
2019-01 → 2023-01 ended
ZRE210 N EUR —
63142-02180 note Reinforcement, Roof Panel, NO.2
2019-01 → 2020-12 ended
ZRE210 G EUR;ZRE210 RHD +1 —
63142-02180 note Reinforcement, Roof Panel, NO.2
2019-01 → —
ZWE211,213;ZRE211 F RHD;MZEA11 N +12 —
63142-02160 Reinforcement, Roof Panel, NO.2
2023-01 → —
ZWE219;MZEA11 210 TUR;ZRE210 LHD +13 —
63142-02180 note Reinforcement, Roof Panel, NO.2
2023-01 → —
ZWE219 (G,N) TUR —
63142-02180 note Reinforcement, Roof Panel, NO.2
2023-01 → —
ZWE219 (G,N) TUR —
63142-02180 note Reinforcement, Roof Panel, NO.2
2023-01 → —
ZWE219 VT G,N;ZRE211 N +9 —
63143B — Reinforcement, Roof Panel, NO.3
63143-02230 Reinforcement, Roof Panel, NO.3
2019-01 → 2020-12 ended
ZRE210 G EUR;ZRE210 RHD +1 —
63143-02230 Reinforcement, Roof Panel, NO.3
2019-01 → 2023-01 ended
ZRE210 US);ZRE210 N LHD +11 —
63143-02230 Reinforcement, Roof Panel, NO.3
2019-01 → —
ZWE211,213;ZRE211 D 1,ZRE211 RHD;MZEA11 +22 —
63143-02230 Reinforcement, Roof Panel, NO.3
2023-01 → —
ZWE219;MZEA11 210 TUR;ZRE210 LHD +13 —
63144A — Reinforcement, Roof Panel, NO.4
63144-02240 Reinforcement, Roof Panel, NO.4
2019-01 → 2020-12 ended
ZRE210 G EUR;ZRE210 RHD +1 —
63144-02240 Reinforcement, Roof Panel, NO.4
2019-01 → —
ZWE211,213;ZRE211 D 1,ZRE211 RHD;MZEA11 +22 —
63144-02240 Reinforcement, Roof Panel, NO.4
2019-01 → 2023-01 ended
ZRE210 US);ZRE210 N LHD +11 —
63144-02240 Reinforcement, Roof Panel, NO.4
2023-01 → —
ZWE219;MZEA11 210 TUR;ZRE210 LHD +13 —
63148A — Reinforcement, Roof Panel, NO.7
63148-02130 Reinforcement, Roof Panel, NO.7
2019-01 → 2020-12 ended
ZRE210 G EUR;ZRE210 RHD +1 —
63148-02130 Reinforcement, Roof Panel, NO.7
2019-01 → 2023-01 ended
ZRE210 US);ZRE210 N LHD +11 —
63148-02130 Reinforcement, Roof Panel, NO.7
2019-01 → —
ZWE211,213;ZRE211 D 1,ZRE211 RHD;MZEA11 +22 —
63148-02130 Reinforcement, Roof Panel, NO.7
2023-01 → —
ZWE219;MZEA11 210 TUR;ZRE210 LHD +13 —
63151C — Frame, Roof Opening Side, RH
63151-02040 note Frame, Roof Opening Side, RH
2019-01 → —
ZWE211,213;ZRE211 F RHD;MZEA11 N +12 —
63151-02040 note Frame, Roof Opening Side, RH
2020-11 → —
ZWE211 G EUR —
63151-02040 note Frame, Roof Opening Side, RH
2019-01 → —
ZWE213 LHD;ZWE211 LHD N +1 —
63151-02040 note Frame, Roof Opening Side, RH
2019-01 → 2023-01 ended
ZRE210 N EUR —
63151-02040 note Frame, Roof Opening Side, RH
2019-01 → 2020-12 ended
ZRE210 G EUR;ZRE210 RHD +1 —
63151-02040 note Frame, Roof Opening Side, RH
2019-01 → 2023-01 ended
ZRE211 LHD N;ZRE210 CVT +4 —
63151-02040 note Frame, Roof Opening Side, RH
2023-01 → —
ZWE219 (G,N) TUR —
63151-02040 note Frame, Roof Opening Side, RH
2023-01 → —
ZWE219 (G,N) TUR —
63151-02040 note Frame, Roof Opening Side, RH
2023-01 → —
ZWE219 VT G,N;ZRE211 N +9 —
63152C — Frame, Roof Opening Side, LH
63152-02040 note Frame, Roof Opening Side, LH
2020-11 → —
ZWE211 G EUR —
63152-02040 note Frame, Roof Opening Side, LH
2019-01 → —
ZWE213 LHD;ZWE211 LHD N +1 —
63152-02040 note Frame, Roof Opening Side, LH
2019-01 → —
ZWE211,213;ZRE211 F RHD;MZEA11 N +12 —
63152-02040 note Frame, Roof Opening Side, LH
2019-01 → 2023-01 ended
ZRE210 N EUR —
63152-02040 note Frame, Roof Opening Side, LH
2019-01 → 2023-01 ended
ZRE211 LHD N;ZRE210 CVT +4 —
63152-02040 note Frame, Roof Opening Side, LH
2019-01 → 2020-12 ended
ZRE210 G EUR;ZRE210 RHD +1 —
63152-02040 note Frame, Roof Opening Side, LH
2023-01 → —
ZWE219 (G,N) TUR —
63152-02040 note Frame, Roof Opening Side, LH
2023-01 → —
ZWE219 (G,N) TUR —
63152-02040 note Frame, Roof Opening Side, LH
2023-01 → —
ZWE219 VT G,N;ZRE211 N +9 —
64101 — Panel Sub-assy, Upper Back
64101-02590 Panel Sub-assy, Upper Back
2019-01 → 2020-12 ended
ZRE210 G EUR;ZRE210 RHD +1 —
64101-02590 Panel Sub-assy, Upper Back
2019-01 → 2023-01 ended
ZRE210 US);ZRE210 N LHD +11 —
64101-02590 Panel Sub-assy, Upper Back
2019-01 → —
ZWE211,213;ZRE211 D 1,ZRE211 RHD;MZEA11 +22 —
64101-02590 Panel Sub-assy, Upper Back
2023-01 → —
ZWE219;MZEA11 210 TUR;ZRE210 LHD +13 —
64811 — Glass, Back Window
64801-02400 Glass, Back Window
2019-01 → 2020-11 ended
ZRE210 GEN);ZRE210 RHD 6F +14 —
64801-02400 note Glass, Back Window
2020-10 → 2020-11 ended
ZWE211 G EUR —
64801-02400 note Glass, Back Window
2019-01 → 2020-11 ended
ZRE211 G GEN —
64801-02410 note Glass, Back Window
2020-11 → —
ZRE211 G GEN —
64801-02410 Glass, Back Window
2020-11 → —
ZRE211 E211 RHD;ZRE210 G +16 —
64801-02410 Glass, Back Window
2019-01 → —
ZRE210 6F N RUS;ZRE210 +4 —
64801-02410 note Glass, Back Window
2020-11 → —
MZEA11 RHD;ZWE21# N EUR —
64801-02410 note Glass, Back Window
2020-11 → —
ZWE211,213 LHD N EUR —
64801-02410 note Glass, Back Window
2020-11 → —
ZWE211 G EUR —
64801-02410 Glass, Back Window
2020-11 → 2023-01 ended
ZRE210 N EUR;ZRE211 LHD +8 —
64801-02410 note Glass, Back Window
2019-01 → 2023-01 ended
ZRE210 G RUS —
64801-02410 Glass, Back Window
2019-01 → 2023-01 ended
MZEA11 LHD (D,N);ZRE210 6F +5 —
64801-02410 note Glass, Back Window
2020-11 → —
ZWE211 G EUR —
64801-02410 note Glass, Back Window
2020-11 → 2022-01 ended
ZWE211 G EUR —
64801-02410 note Glass, Back Window
2020-11 → 2022-01 ended
ZWE211,213 LHD N EUR —
64801-02410 note Glass, Back Window
2020-11 → 2020-12 ended
ZRE210 RHD EUR —
64801-02410 note Glass, Back Window
2020-10 → 2020-11 ended
ZWE211 G EUR —
64801-02410 note Glass, Back Window
2020-11 → —
ZWE211,213 LHD N EUR —
64801-02410 note Glass, Back Window
2019-01 → 2020-11 ended
ZRE210 LHD 6F D +4 —
64801-02410 note Glass, Back Window
2019-01 → 2020-11 ended
ZRE211 G GEN —
64801-02410 note Glass, Back Window
2019-01 → 2020-11 ended
ZRE21#,ZWE211 LHD (D,N) GEN —
64801-02420 Glass, Back Window
2019-01 → 2020-11 ended
ZRE21#,ZWE211 G (EUR,GEN) —
64801-02420 note Glass, Back Window
2019-01 → 2020-11 ended
ZRE210 RHD EUR;ZRE211,ZWE211 G +3 —
64801-02430 note Glass, Back Window
2020-11 → —
ZWE211,213 G EUR —
64801-02430 note Glass, Back Window
2020-11 → —
ZWE211,213 G EUR —
64801-02430 note Glass, Back Window
2020-11 → 2020-12 ended
ZRE210 RHD EUR —
64801-02430 Glass, Back Window
2020-11 → 2020-12 ended
ZRE210 G EUR —
64801-02430 note Glass, Back Window
2020-11 → —
ZRE211 .6F RHD;ZRE210 N +8 —
64801-02430 note Glass, Back Window
2020-11 → —
ZWE211,213 LHD N EUR —
64801-02430 note Glass, Back Window
2020-11 → —
MZEA11 RHD;ZWE21# N EUR —
64801-02430 note Glass, Back Window
2020-11 → —
ZWE211,213 LHD N EUR —
64801-02430 note Glass, Back Window
2020-11 → 2022-01 ended
ZWE211,213 G EUR —
64801-02430 note Glass, Back Window
2020-11 → 2022-01 ended
ZWE211,213 LHD N EUR —
64801-02430 Glass, Back Window
2020-11 → —
ZRE211,ZWE211 G GEN —
64801-02430 note Glass, Back Window
2019-01 → —
ZRE210 6F N RUS —
64801-02430 note Glass, Back Window
2019-01 → 2020-11 ended
ZRE21#,ZWE211 G (EUR,GEN) —
64801-02430 Glass, Back Window
2019-01 → 2023-01 ended
ZRE210 G RUS —
64801-02430 Glass, Back Window
2019-01 → —
MZEA11 G EUR —
64801-02430 note Glass, Back Window
2019-01 → 2020-11 ended
ZRE210,ZWE211 LHD N EUR —
64801-02430 note Glass, Back Window
2019-01 → 2023-01 ended
MZEA11 N;ZRE210 CVT N +1 —
64801-02430 note Glass, Back Window
2019-01 → 2020-11 ended
ZRE21#,ZWE211 LHD N GEN —
64801-02430 note Glass, Back Window
2020-11 → 2023-01 ended
ZRE210 N EUR;ZRE211 LHD +4 —
64801-02500 note Glass, Back Window
2019-01 → 2020-11 ended
ZWE211 RHD —
64801-02500 note Glass, Back Window
2019-06 → 2020-11 ended
ZWE211 LHD N EUR —
64801-02500 note Glass, Back Window
2020-10 → 2020-11 ended
ZWE211 G EUR —
64801-02500 note Glass, Back Window
2020-10 → 2020-11 ended
ZWE211 G EUR —
64801-02500 note Glass, Back Window
2019-06 → 2020-11 ended
ZWE211 LHD N EUR —
64801-02500 note Glass, Back Window
2019-12 → 2020-11 ended
ZRE210 CVT N EUR;ZRE210 +6 —
64801-02500 note Glass, Back Window
2019-12 → 2020-11 ended
ZRE210 N EUR;ZRE210 RHD +1 —
64801-02500 note Glass, Back Window
2019-01 → 2020-11 ended
ZWE211 RHD —
64801-02520 note Glass, Back Window
2019-01 → 2020-11 ended
ZWE211 RHD —
64801-02520 note Glass, Back Window
2019-01 → 2020-11 ended
ZWE211 RHD —
64801-02520 note Glass, Back Window
2019-06 → 2020-11 ended
ZWE211 G EUR —
64801-02520 note Glass, Back Window
2019-06 → 2020-11 ended
ZWE211 G EUR —
64801-02520 note Glass, Back Window
2019-06 → 2020-11 ended
ZWE211 LHD N EUR —
64801-02520 note Glass, Back Window
2019-06 → 2020-11 ended
ZWE211 LHD N EUR —
64801-02520 note Glass, Back Window
2019-12 → 2020-11 ended
ZRE210 G EUR —
64801-02520 note Glass, Back Window
2019-12 → 2020-11 ended
ZRE210 G EUR —
64801-02520 note Glass, Back Window
2019-12 → 2020-11 ended
ZRE210 N EUR;ZRE210 RHD +1 —
64801-02520 note Glass, Back Window
2019-12 → 2020-11 ended
ZRE210 N EUR;ZRE210 RHD +1 —
64801-02570 note Glass, Back Window
2020-10 → 2020-11 ended
ZWE211 G EUR —
64801-02570 note Glass, Back Window
2019-06 → 2020-11 ended
ZWE211 LHD N EUR —
64801-02570 note Glass, Back Window
2019-12 → —
ZRE210 LHD CVT D +1 —
64801-02570 note Glass, Back Window
2019-06 → 2020-11 ended
ZWE211 LHD N EUR —
64801-02570 note Glass, Back Window
2022-01 → 2023-01 ended
MZEA11 N —
64801-02570 note Glass, Back Window
2022-01 → 2023-01 ended
MZEA11 N —
64801-02570 note Glass, Back Window
2020-11 → 2023-01 ended
ZRE210 N EUR —
64801-02570 note Glass, Back Window
2020-11 → —
ZRE210 LHD 6F D +1 —
64801-02570 note Glass, Back Window
2019-12 → 2023-01 ended
MZEA11 LHD (D,N) —
64801-02570 note Glass, Back Window
2020-11 → —
ZWE211 G EUR —
64801-02570 note Glass, Back Window
2019-12 → 2020-11 ended
ZRE210 N EUR;ZRE210 LHD +3 —
64801-02570 note Glass, Back Window
2020-11 → 2022-01 ended
MZEA11,ZRE210 N EUR —
64801-02570 note Glass, Back Window
2019-12 → 2020-11 ended
ZRE210 N EUR —
64801-02570 Glass, Back Window
2020-11 → —
MZEA11 RHD;ZWE21# N EUR —
64801-02570 note Glass, Back Window
2020-10 → 2020-11 ended
ZWE211 G EUR —
64801-02570 Glass, Back Window
2020-11 → 2020-12 ended
ZRE210 RHD EUR —
64801-02580 Glass, Back Window
2020-11 → —
ZWE211,213 G EUR —
64801-02580 note Glass, Back Window
2020-11 → —
MZEA11 RHD;ZWE21# N EUR —
64801-02580 note Glass, Back Window
2020-11 → —
MZEA11 G EUR —
64801-02580 note Glass, Back Window
2022-01 → —
MZEA11 G EUR —
64801-02580 note Glass, Back Window
2022-01 → —
MZEA11 G EUR —
64801-02580 note Glass, Back Window
2019-06 → 2020-11 ended
ZWE211 LHD N EUR —
64801-02580 note Glass, Back Window
2022-01 → 2023-01 ended
MZEA11 N —
64801-02580 note Glass, Back Window
2022-01 → 2023-01 ended
MZEA11 N —
64801-02580 note Glass, Back Window
2019-06 → 2020-11 ended
ZWE211 LHD N EUR —
64801-02580 note Glass, Back Window
2019-06 → 2020-11 ended
ZWE211 G EUR —
64801-02580 note Glass, Back Window
2019-06 → 2020-11 ended
ZWE211 G EUR —
64801-02580 note Glass, Back Window
2019-12 → 2020-11 ended
ZRE210 N EUR —
64801-02580 note Glass, Back Window
2019-12 → 2020-11 ended
ZRE210 N EUR —
64801-02580 note Glass, Back Window
2019-12 → 2020-11 ended
ZRE210 G EUR —
64801-02580 note Glass, Back Window
2020-11 → 2020-12 ended
ZRE210 RHD EUR —
64801-02580 note Glass, Back Window
2020-11 → 2020-12 ended
ZRE210 G EUR —
64801-02580 note Glass, Back Window
2020-11 → 2020-12 ended
ZRE210 G EUR —
64801-02580 note Glass, Back Window
2020-11 → 2022-01 ended
MZEA11,ZRE210 N EUR —
64801-02580 note Glass, Back Window
2020-11 → 2022-01 ended
MZEA11 G EUR —
64801-02580 note Glass, Back Window
2020-11 → 2023-01 ended
MZEA11,ZRE210 N EUR —
64801-02580 note Glass, Back Window
2019-12 → 2020-11 ended
ZRE210 G EUR —
64801-02590 note Glass, Back Window
2019-06 → 2020-11 ended
ZWE211 LHD N EUR —
64801-02590 note Glass, Back Window
2019-06 → 2020-11 ended
ZWE211 LHD N EUR —
64801-02590 note Glass, Back Window
2019-06 → 2020-11 ended
ZWE211 LHD N EUR —
64801-02590 note Glass, Back Window
2019-06 → 2020-11 ended
ZWE211 LHD N EUR —
64801-02410 Glass, Back Window
2023-01 → 2024-01 ended
ZRE210 GEN);ZRE211,ZWE219 N LHD +12 —
64801-02410 note Glass, Back Window
2023-01 → 2024-01 ended
MZEA11,ZWE219 D TUR —
64801-02410 note Glass, Back Window
2023-01 → 2024-01 ended
ZRE210 G —
64801-02410 note Glass, Back Window
2023-01 → 2024-01 ended
ZWE219 LHD (D,N) EUR;MZEA11 +4 —
64801-02410 note Glass, Back Window
2023-01 → 2024-01 ended
MZEA11,ZWE219 LHD CVT (D,N) +1 —
64801-02410 note Glass, Back Window
2023-01 → 2024-01 ended
ZWE219 D EUR;MZEA11 CVT +2 —
64801-02411 note Glass, Back Window
2024-02 → —
ZWE219 D TUR —
64801-02411 note Glass, Back Window
2024-02 → —
ZWE219 D TUR —
64801-02411 note Glass, Back Window
2024-02 → —
ZRE210 G —
64801-02411 Glass, Back Window
2024-02 → —
ZRE210 GEN);ZRE211,ZWE219 N LHD +12 —
64801-02430 note Glass, Back Window
2023-01 → 2024-01 ended
MZEA11 6F N EUR;ZWE219 +3 —
64801-02430 note Glass, Back Window
2023-01 → 2024-01 ended
ZRE210 N EUR;ZRE211 LHD +5 —
64801-02430 Glass, Back Window
2023-01 → 2024-01 ended
ZRE210 G —
64801-02430 note Glass, Back Window
2023-01 → 2024-01 ended
MZEA11 CVT N EUR —
64801-02430 note Glass, Back Window
2023-01 → 2024-01 ended
MZEA11,ZWE219 LHD CVT N +1 —
64801-02430 note Glass, Back Window
2023-01 → 2024-01 ended
ZWE219 G EUR —
64801-02431 note Glass, Back Window
2024-02 → —
ZRE210 N EUR;ZRE211 LHD +5 —
64801-02431 Glass, Back Window
2024-02 → —
ZRE210 G —
64801-02570 Glass, Back Window
2023-01 → 2024-01 ended
MZEA11 LHD (D,N);ZWE219 (D,N) +1 —
64801-02570 note Glass, Back Window
2023-01 → 2024-01 ended
ZWE219 GEN —
64801-02570 note Glass, Back Window
2023-01 → 2024-01 ended
ZWE219 GEN —
64801-02570 note Glass, Back Window
2023-01 → 2024-01 ended
ZWE219 GEN —
64801-02570 note Glass, Back Window
2023-01 → 2024-01 ended
ZWE219 GEN —
64801-02570 note Glass, Back Window
2023-01 → 2024-01 ended
ZWE219 GEN —
64801-02570 note Glass, Back Window
2023-01 → 2024-01 ended
ZWE219 GEN —
64801-02570 note Glass, Back Window
2023-01 → 2024-01 ended
ZWE219 GEN —
64801-02570 note Glass, Back Window
2023-01 → 2024-01 ended
ZWE219 GEN —
64801-02570 note Glass, Back Window
2023-01 → 2024-01 ended
ZWE219 GEN —
64801-02571 note Glass, Back Window
2024-02 → —
ZWE219 GEN —
64801-02571 note Glass, Back Window
2024-02 → —
ZWE219 GEN —
64801-02571 note Glass, Back Window
2024-02 → —
ZWE219 GEN —
64801-02571 note Glass, Back Window
2024-02 → —
ZWE219 GEN —
64801-02571 note Glass, Back Window
2024-02 → —
ZWE219 GEN —
64801-02571 Glass, Back Window
2024-02 → —
MZEA11 LHD (D,N);ZWE219 (D,N) +1 —
64801-02571 note Glass, Back Window
2024-02 → —
ZWE219 GEN —
64801-02571 note Glass, Back Window
2024-02 → —
ZWE219 GEN —
64801-02571 note Glass, Back Window
2024-02 → —
ZWE219 GEN —
64801-02571 note Glass, Back Window
2024-02 → —
ZWE219 GEN —
64801-02580 Glass, Back Window
2023-01 → 2024-01 ended
ZWE219 G;MZEA11 G TUR —
64801-02580 note Glass, Back Window
2023-01 → 2024-01 ended
ZWE219 GEN —
64801-02580 note Glass, Back Window
2023-01 → 2024-01 ended
ZWE219 GEN —
64801-02580 note Glass, Back Window
2023-01 → 2024-01 ended
ZWE219 GEN —
64801-02580 note Glass, Back Window
2023-01 → 2024-01 ended
ZWE219 GEN —
64801-02580 note Glass, Back Window
2023-01 → 2024-01 ended
ZWE219 GEN —
64801-02580 note Glass, Back Window
2023-01 → 2024-01 ended
ZWE219 GEN —
64801-02580 note Glass, Back Window
2023-01 → 2024-01 ended
ZWE219 GEN —
64801-02580 note Glass, Back Window
2023-01 → 2024-01 ended
ZWE219 GEN —
64801-02580 note Glass, Back Window
2023-01 → 2024-01 ended
ZWE219 GEN —
64801-02580 note Glass, Back Window
2023-01 → 2024-01 ended
MZEA11,ZWE219 N (EUR,TUR) —
64801-02581 note Glass, Back Window
2024-02 → —
ZWE219 GEN —
64801-02581 note Glass, Back Window
2024-02 → —
MZEA11,ZWE219 N (EUR,TUR) —
64801-02581 note Glass, Back Window
2024-02 → —
ZWE219 GEN —
64801-02581 note Glass, Back Window
2024-02 → —
ZWE219 GEN —
64801-02581 note Glass, Back Window
2024-02 → —
ZWE219 GEN —
64801-02581 note Glass, Back Window
2024-02 → —
ZWE219 GEN —
64801-02581 note Glass, Back Window
2024-02 → —
ZWE219 GEN —
64801-02581 note Glass, Back Window
2024-02 → —
ZWE219 GEN —
64801-02581 note Glass, Back Window
2024-02 → —
ZWE219 GEN —
64801-02581 note Glass, Back Window
2024-02 → —
ZWE219 GEN —
64801-02581 Glass, Back Window
2024-02 → —
ZWE219 G;MZEA11 G TUR —
64813D — Dam, Back Window Glass Adhesive
56117-50130 Dam, Back Window Glass Adhesive
2019-01 → 2020-12 ended
ZRE210 G EUR;ZRE210 RHD +1 —
56117-50130 Dam, Back Window Glass Adhesive
2019-01 → 2023-01 ended
ZRE210 US);ZRE210 N LHD +11 —
56117-50130 Dam, Back Window Glass Adhesive
2019-01 → —
ZWE211,213;ZRE211 D 1,ZRE211 RHD;MZEA11 +22 —
56117-50130 Dam, Back Window Glass Adhesive
2023-01 → —
ZWE219;MZEA11 210 TUR;ZRE210 LHD +13 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
