Toyota Corolla (TUP)
2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · General
Supported model
Data version 2022-12

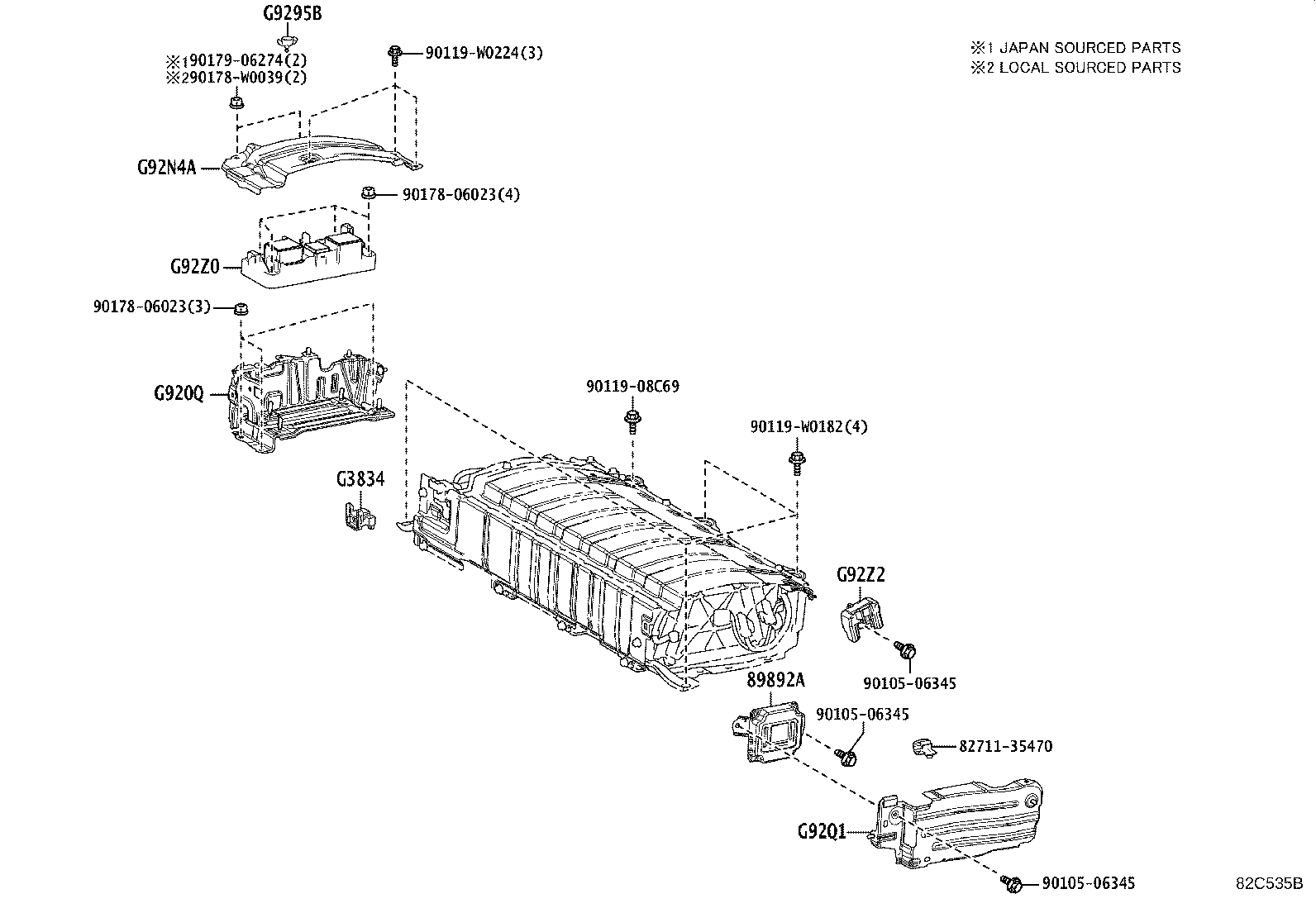

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89892A — Sensor, Battery Voltage | ||||
| 89892-47050 |
Sensor, Battery Voltage
2019-01 → —
|
ZWE211 | — | |
| G3834 — Grip, Service Plug | ||||
| G3834-47050 |
Grip, Service Plug
2019-01 → —
|
ZWE211,213 | — | |
| G3834-47050 |
Grip, Service Plug
2023-01 → —
|
ZWE219 | — | |
| G920Q — Shield Sub-assy, Hybrid Battery, NO.1 | ||||
| G920Q-47041 |
Shield Sub-assy, Hybrid Battery, NO.1
2019-01 → —
|
ZWE211 | — | |
| G920Q-47050 |
Shield Sub-assy, Hybrid Battery, NO.1
2020-11 → —
|
ZWE213 | — | |
| G920Q-12010 |
Shield Sub-assy, Hybrid Battery, NO.1
2023-01 → —
|
ZWE219 | — | |
| G9295B — Striker, Battery Cover Lock | ||||
| G9295-30020 |
Striker, Battery Cover Lock
2019-01 → —
|
ZWE211,213 | — | |
| G9295-30020 |
Striker, Battery Cover Lock
2023-01 → —
|
ZWE219 | — | |
| G92N4A — Panel, HV Battery RH Cover, NO.1 | ||||
| G92N4-47050 |
Panel, HV Battery RH Cover, NO.1
2020-11 → —
|
ZWE213 | — | |
| G92N4-47060 |
Panel, HV Battery RH Cover, NO.1
2019-01 → —
|
ZWE211 | — | |
| G92N4-12020 |
Panel, HV Battery RH Cover, NO.1
2023-01 → —
|
ZWE219 | — | |
| G92Q1 — Panel, HV Battery Shield, NO.1 | ||||
| G92Q1-47050 |
Panel, HV Battery Shield, NO.1
2019-01 → —
|
ZWE211 | — | |
| G92Z0 — Block Assy, HV Battery Junction | ||||
| G92Z0-47100 |
Block Assy, HV Battery Junction
2019-01 → —
|
ZWE211 | — | |
| G92Z0-47110 |
Block Assy, HV Battery Junction
2020-11 → —
|
ZWE213 | — | |
| G92Z2 — Block, Hybrid Battery Terminal | ||||
| G92Z2-47070 |
Block, Hybrid Battery Terminal
2019-01 → —
|
ZWE211,213 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
