Toyota Corolla (TUP)
2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · General
Supported model
Data version 2022-12

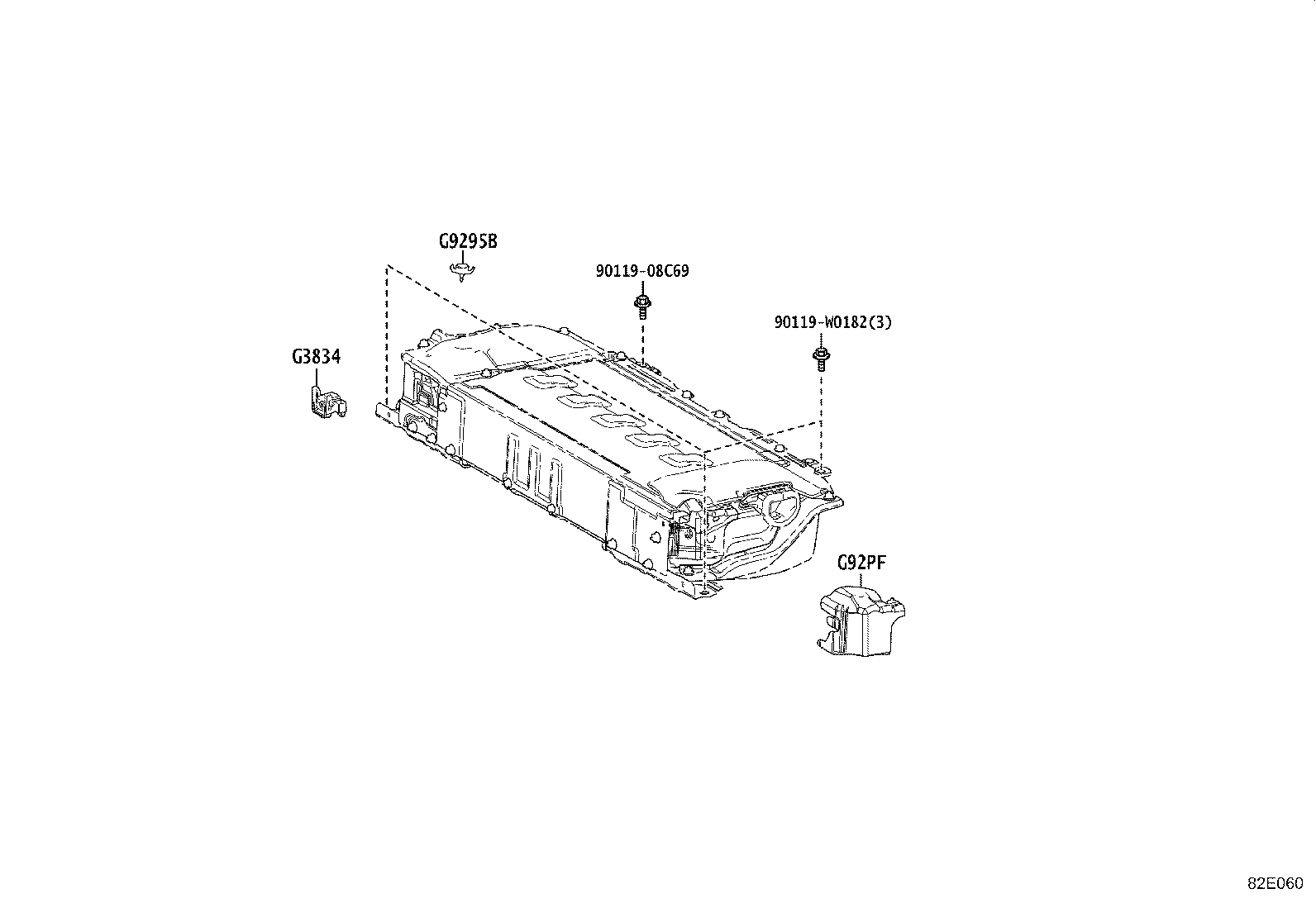

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| G3834 — Grip, Service Plug | ||||
| G3834-47050 |
Grip, Service Plug
2019-01 → —
|
ZWE211,213 | — | |
| G3834-47050 |
Grip, Service Plug
2023-01 → —
|
ZWE219 | — | |
| G9295B — Striker, Battery Cover Lock | ||||
| G9295-30020 |
Striker, Battery Cover Lock
2019-01 → —
|
ZWE211,213 | — | |
| G9295-30020 |
Striker, Battery Cover Lock
2023-01 → —
|
ZWE219 | — | |
| G92PF — Protector, HV Battery, NO.4 | ||||
| G92PF-47010 |
Protector, HV Battery, NO.4
2020-11 → —
|
ZWE213 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
