Toyota Corolla (TUP)
2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · General
Supported model
Data version 2022-12

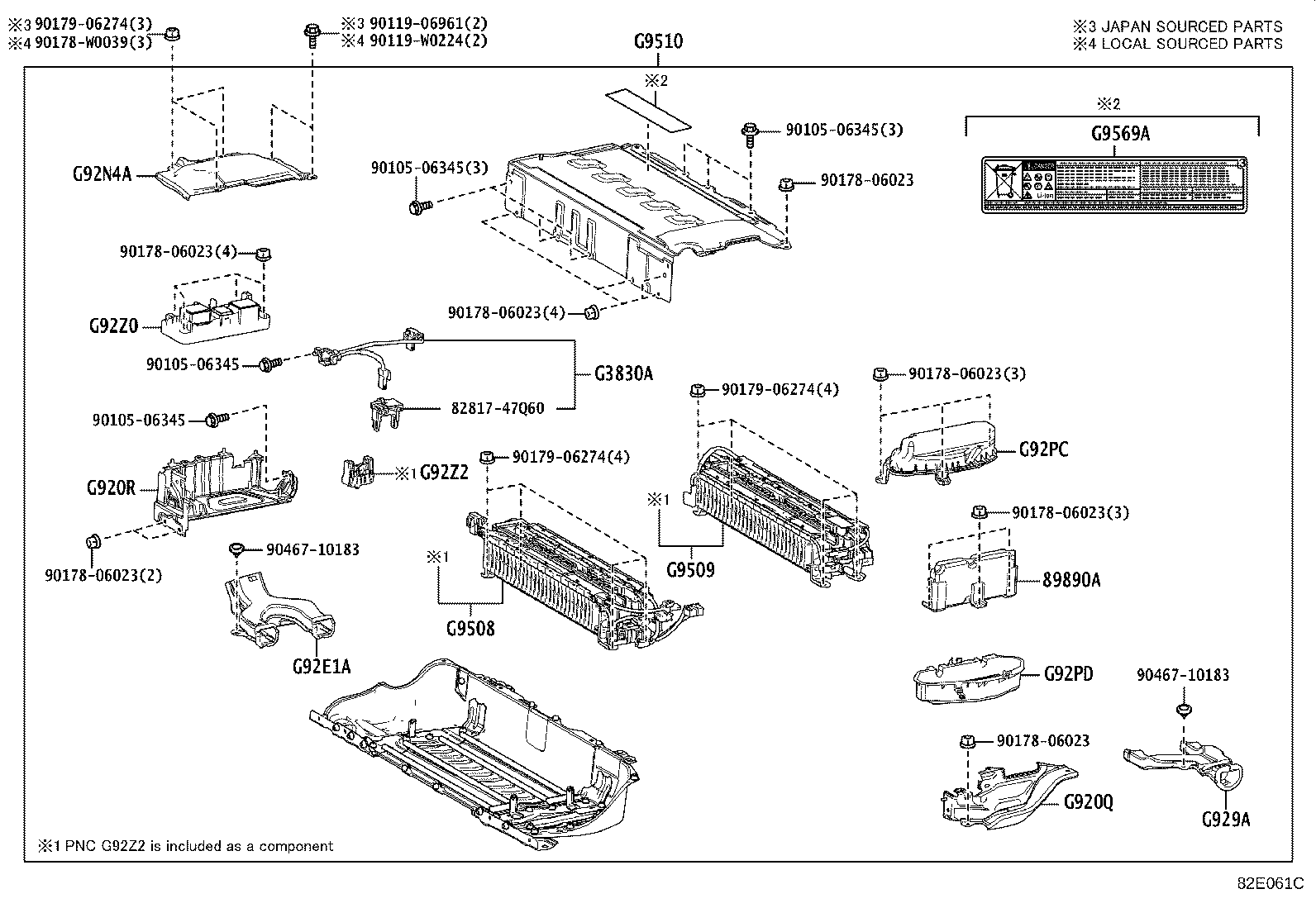

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89890A — Computer Assy, Battery | ||||
| 89890-47104 note |
Computer Assy, Battery
2020-11 → 2023-08
ended
|
ZWE213 | — | |
| 89890-47105 note |
Computer Assy, Battery
2023-09 → —
|
ZWE213 | — | |
| 89890-28041 note |
Computer Assy, Battery
2023-01 → 2024-01
ended
|
ZWE219 | — | |
| 89890-28042 note |
Computer Assy, Battery
2024-02 → —
|
ZWE219 | — | |
| G3830A — Plug Assy, Electric Vehicle Battery | ||||
| G3830-47120 |
Plug Assy, Electric Vehicle Battery
2020-11 → —
|
ZWE213 | — | |
| G3830-12020 |
Plug Assy, Electric Vehicle Battery
2023-01 → —
|
ZWE219 | — | |
| G920Q — Shield Sub-assy, Hybrid Battery, NO.1 | ||||
| G920Q-47041 |
Shield Sub-assy, Hybrid Battery, NO.1
2019-01 → —
|
ZWE211 | — | |
| G920Q-47050 |
Shield Sub-assy, Hybrid Battery, NO.1
2020-11 → —
|
ZWE213 | — | |
| G920Q-12010 |
Shield Sub-assy, Hybrid Battery, NO.1
2023-01 → —
|
ZWE219 | — | |
| G920R — Shield Sub-assy, Hybrid Battery, NO.2 | ||||
| G920R-47020 |
Shield Sub-assy, Hybrid Battery, NO.2
2020-11 → —
|
ZWE213 | — | |
| G929A — Hose, HV Battery, NO.1 | ||||
| G929A-47030 |
Hose, HV Battery, NO.1
2020-11 → —
|
ZWE213 | — | |
| G929A-12010 |
Hose, HV Battery, NO.1
2023-01 → —
|
ZWE219 | — | |
| G92E1A — Duct, HV Battery Intake, NO.1 LH | ||||
| G92E1-47040 |
Duct, HV Battery Intake, NO.1 LH
2019-01 → —
|
ZWE211 | — | |
| G92E1-47051 |
Duct, HV Battery Intake, NO.1 LH
2020-11 → —
|
ZWE213 | — | |
| G92N4A — Panel, HV Battery RH Cover, NO.1 | ||||
| G92N4-47050 |
Panel, HV Battery RH Cover, NO.1
2020-11 → —
|
ZWE213 | — | |
| G92N4-47060 |
Panel, HV Battery RH Cover, NO.1
2019-01 → —
|
ZWE211 | — | |
| G92N4-12020 |
Panel, HV Battery RH Cover, NO.1
2023-01 → —
|
ZWE219 | — | |
| G92PC — Protector, HV Battery, NO.1 | ||||
| G92PC-47010 |
Protector, HV Battery, NO.1
2020-11 → —
|
ZWE213 | — | |
| G92PD — Protector, HV Battery, NO.2 | ||||
| G92PD-47010 |
Protector, HV Battery, NO.2
2020-11 → —
|
ZWE213 | — | |
| G92Z0 — Block Assy, HV Battery Junction | ||||
| G92Z0-47100 |
Block Assy, HV Battery Junction
2019-01 → —
|
ZWE211 | — | |
| G92Z0-47110 |
Block Assy, HV Battery Junction
2020-11 → —
|
ZWE213 | — | |
| G92Z2 — Block, Hybrid Battery Terminal | ||||
| G92Z2-47070 |
Block, Hybrid Battery Terminal
2019-01 → —
|
ZWE211,213 | — | |
| G9508 — Stack Sub-assy, HV Supply, NO.1 | ||||
| G9509-47020 |
Stack Sub-assy, HV Supply, NO.1
2020-11 → 2023-09
ended
|
ZWE213 | — | |
| G9509-47070 |
Stack Sub-assy, HV Supply, NO.1
2023-09 → —
|
ZWE213 | — | |
| G9509 — Stack Sub-assy, HV Supply, NO.2 | ||||
| G9508-47200 |
Stack Sub-assy, HV Supply, NO.2
2023-09 → —
|
ZWE213 | — | |
| G9508-47330 |
Stack Sub-assy, HV Supply, NO.2
2020-11 → 2023-09
ended
|
ZWE213 | — | |
| G9510 — Battery Assy, HV Supply | ||||
| G9510-47121 |
Battery Assy, HV Supply
2020-11 → 2023-09
ended
|
ZWE213 | — | |
| G9510-47130 |
Battery Assy, HV Supply
2019-01 → —
|
ZWE211 | — | |
| G9510-16020 |
Battery Assy, HV Supply
2023-01 → 2024-02
ended
|
ZWE219 | — | |
| G9510-16021 |
Battery Assy, HV Supply
2024-03 → —
|
ZWE219 | — | |
| G9569A — Label, Lithium Ion Battery Caution | ||||
| G9569-47120 |
Label, Lithium Ion Battery Caution
2020-11 → —
|
ZWE213 | — | |
| G9569-48020 |
Label, Lithium Ion Battery Caution
2023-01 → 2024-03
ended
|
ZWE219 EUR,TUR | — | |
| G9569-48020 |
Label, Lithium Ion Battery Caution
2023-01 → —
|
ZWE219 GCC,GEN | — | |
| G9569-48040 |
Label, Lithium Ion Battery Caution
2024-03 → —
|
ZWE219 EUR,TUR | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
