Toyota Corolla (TUP)
2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · General
Supported model
Data version 2022-12

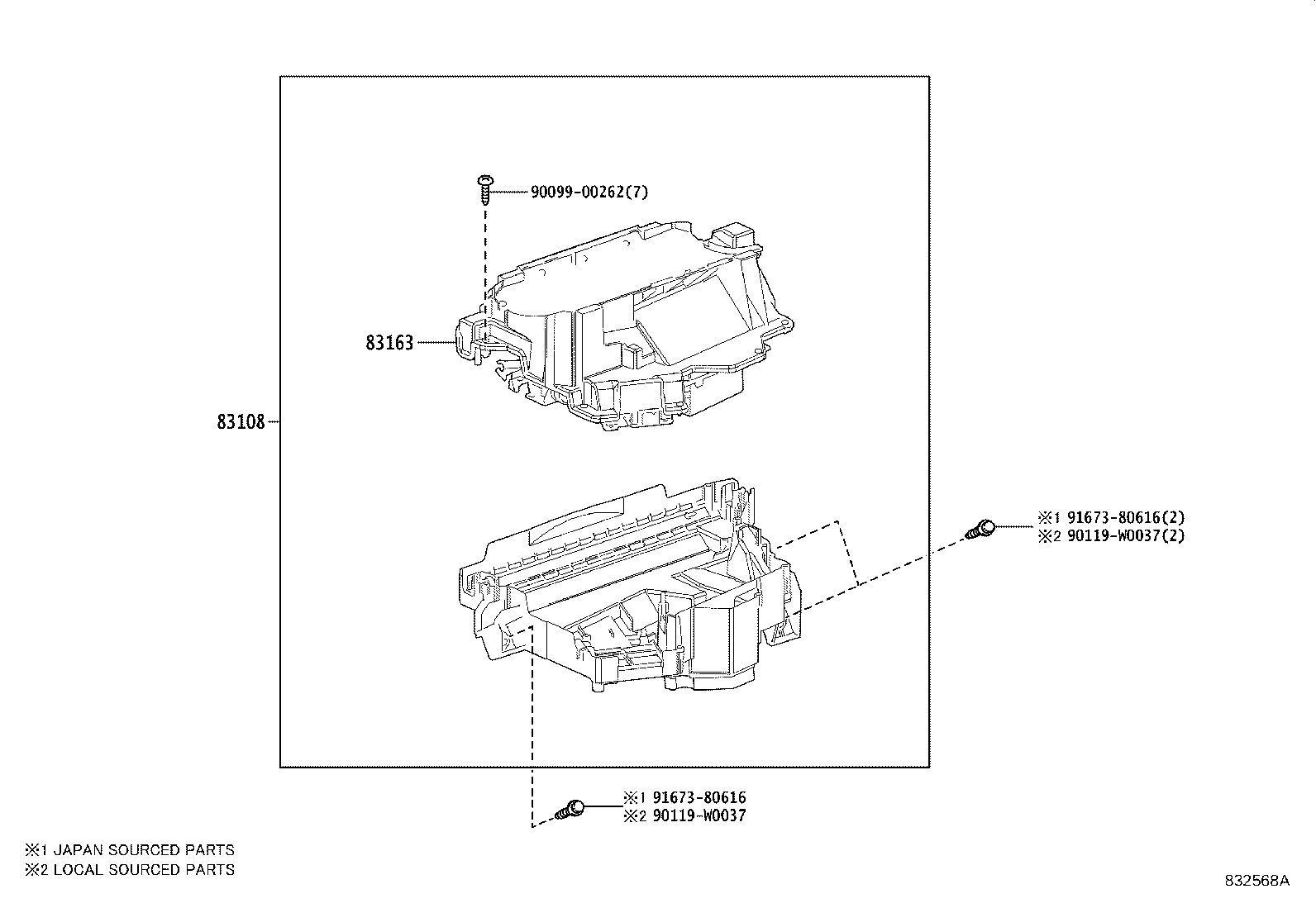

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83108 — Mirror Sub-assy, Meter | ||||
| 83108-02140 note |
Mirror Sub-assy, Meter
2019-01 → 2020-10
ended
|
ZRE210,ZWE211 G EUR | — | |
| 83108-02140 note |
Mirror Sub-assy, Meter
2019-01 → 2020-10
ended
|
ZRE210 G RUS | — | |
| 83108-02141 note |
Mirror Sub-assy, Meter
2020-11 → 2020-12
ended
|
ZRE210 G EUR | — | |
| 83108-02141 note |
Mirror Sub-assy, Meter
2020-11 → 2022-01
ended
|
MZEA11 N | — | |
| 83108-02141 note |
Mirror Sub-assy, Meter
2020-11 → 2023-01
ended
|
ZRE210 G RUS | — | |
| 83108-02141 note |
Mirror Sub-assy, Meter
2020-11 → 2023-01
ended
|
ZRE210 CVT N RUS | — | |
| 83108-02141 note |
Mirror Sub-assy, Meter
2020-11 → 2023-01
ended
|
ZRE210 N EUR | — | |
| 83108-02141 note |
Mirror Sub-assy, Meter
2020-11 → —
|
MZEA11,ZWE211,213 G EUR | — | |
| 83108-02141 note |
Mirror Sub-assy, Meter
2020-11 → —
|
ZRE210 6F N RUS | — | |
| 83108-02141 note |
Mirror Sub-assy, Meter
2020-11 → —
|
ZWE211 LHD N EUR | — | |
| 83108-02150 note |
Mirror Sub-assy, Meter
2023-01 → 2024-06
ended
|
MZEA11 N EUR;MZEA11 (G,N) +4 | — | |
| 83108-02151 note |
Mirror Sub-assy, Meter
2024-07 → —
|
MZEA11 N EUR;MZEA11 (G,N) +4 | — | |
| 83163 — Plate, Combination Meter Mirror, NO.1 | ||||
| 83163-02020 note |
Plate, Combination Meter Mirror, NO.1
2019-01 → 2020-12
ended
|
ZRE210 G EUR | — | |
| 83163-02020 note |
Plate, Combination Meter Mirror, NO.1
2020-11 → 2022-01
ended
|
MZEA11 N | — | |
| 83163-02020 note |
Plate, Combination Meter Mirror, NO.1
2019-01 → 2023-01
ended
|
ZRE210 G RUS | — | |
| 83163-02020 note |
Plate, Combination Meter Mirror, NO.1
2020-11 → 2023-01
ended
|
ZRE210 CVT N RUS | — | |
| 83163-02020 note |
Plate, Combination Meter Mirror, NO.1
2020-11 → 2023-01
ended
|
ZRE210 N EUR | — | |
| 83163-02020 note |
Plate, Combination Meter Mirror, NO.1
2019-01 → —
|
MZEA11,ZWE211,213 G EUR | — | |
| 83163-02020 note |
Plate, Combination Meter Mirror, NO.1
2020-11 → —
|
ZRE210 6F N RUS | — | |
| 83163-02020 note |
Plate, Combination Meter Mirror, NO.1
2020-11 → —
|
ZWE211 LHD N EUR | — | |
| 83163-02150 note |
Plate, Combination Meter Mirror, NO.1
2023-01 → —
|
MZEA11 N EUR;MZEA11 (G,N) +4 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
