Toyota Corolla (S.AFRICA)
2007-07 → 2019-11 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 164310 · General
Supported model
Data version 2019-12

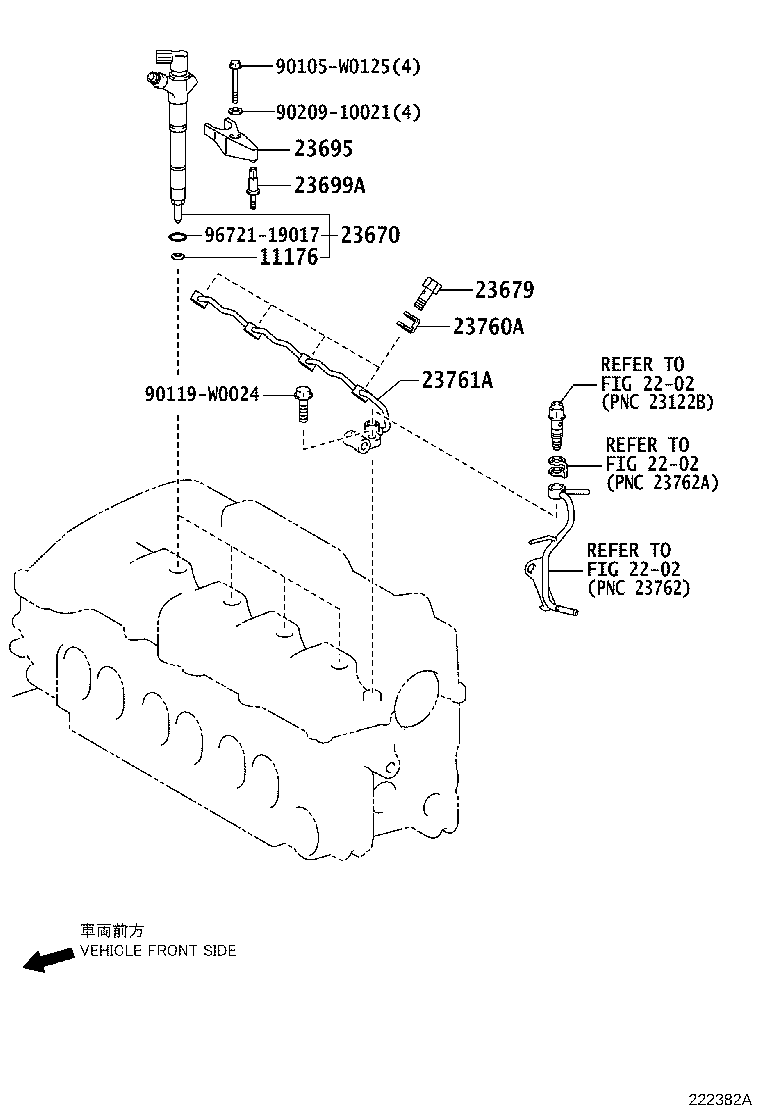

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11176 — Seat, Injection Nozzle | ||||
| 11176-26010 |
Seat, Injection Nozzle
2007-07 → 2008-11
ended
|
1ADFTV ADE150 | — | |
| 11176-26030 |
Seat, Injection Nozzle
2008-11 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 11176-33010 |
Seat, Injection Nozzle
2007-10 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 11176-26020 |
Seat, Injection Nozzle
2009-03 → 2010-06
ended
|
1ADFTV ADE150 | — | |
| 11176-33010 |
Seat, Injection Nozzle
2009-02 → 2010-06
ended
|
1NDTV NDE150 | — | |
| 11176-26020 |
Seat, Injection Nozzle
2010-06 → —
|
1ADFTV ADE150 | — | |
| 11176-33010 note |
Seat, Injection Nozzle
2010-06 → 2013-06
ended
|
1NDTV NDE150 | — | |
| 11176-33010 note |
Seat, Injection Nozzle
2010-08 → 2013-06
ended
|
1NDTV NDE150 | — | |
| 23670 — Injector Assy | ||||
| 23670-09180 |
Injector Assy
2007-07 → 2007-12
ended
|
1ADFTV ADE150 | — | |
| 23670-09280 |
Injector Assy
2007-12 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 23670-39105 |
Injector Assy
2007-10 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 23670-29115 |
Injector Assy
2009-03 → 2010-06
ended
|
1ADFTV ADE150 | — | |
| 23670-39325 |
Injector Assy
2009-02 → 2009-11
ended
|
1NDTV NDE150 | — | |
| 23670-39415 |
Injector Assy
2009-11 → 2010-06
ended
|
1NDTV NDE150 | — | |
| 23670-09370 note |
Injector Assy
2011-03 → 2011-12
ended
|
1NDTV NDE150 | — | |
| 23670-09370 note |
Injector Assy
2010-09 → 2012-02
ended
|
1NDTV NDE150 | — | |
| 23670-09370 note |
Injector Assy
2011-12 → 2013-06
ended
|
1NDTV NDE150 | — | |
| 23670-09370 note |
Injector Assy
2012-02 → 2013-06
ended
|
1NDTV NDE150 | — | |
| 23670-29115 |
Injector Assy
2010-06 → 2014-01
ended
|
1ADFTV ADE150 | — | |
| 23670-39415 note |
Injector Assy
2010-06 → 2011-12
ended
|
1NDTV NDE150 | — | |
| 23670-39415 note |
Injector Assy
2010-08 → 2012-02
ended
|
1NDTV NDE150 | — | |
| 23679 — Screw, Injector Follow | ||||
| 23679-0R010 |
Screw, Injector Follow
2007-07 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 23679-26020 |
Screw, Injector Follow
2009-03 → 2010-06
ended
|
1ADFTV ADE150 | — | |
| 23679-26020 |
Screw, Injector Follow
2010-06 → —
|
1ADFTV ADE150 | — | |
| 23695 — Clamp, Nozzle Holder, NO.1 | ||||
| 23695-0R012 |
Clamp, Nozzle Holder, NO.1
2007-07 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 23695-33010 |
Clamp, Nozzle Holder, NO.1
2007-10 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 23695-0R021 |
Clamp, Nozzle Holder, NO.1
2009-03 → 2010-06
ended
|
1ADFTV ADE150 | — | |
| 23695-33020 |
Clamp, Nozzle Holder, NO.1
2009-02 → 2010-06
ended
|
1NDTV NDE150 | — | |
| 23695-0R021 |
Clamp, Nozzle Holder, NO.1
2010-06 → —
|
1ADFTV ADE150 | — | |
| 23695-33020 note |
Clamp, Nozzle Holder, NO.1
2010-06 → 2013-06
ended
|
1NDTV NDE150 | — | |
| 23695-33020 note |
Clamp, Nozzle Holder, NO.1
2010-08 → 2013-06
ended
|
1NDTV NDE150 | — | |
| 23699A — Seat, Nozzle Holder Clamp | ||||
| 23699-0R010 |
Seat, Nozzle Holder Clamp
2007-07 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 23699-33010 |
Seat, Nozzle Holder Clamp
2007-10 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 23699-0R021 |
Seat, Nozzle Holder Clamp
2009-03 → 2010-06
ended
|
1ADFTV ADE150 | — | |
| 23699-33020 |
Seat, Nozzle Holder Clamp
2009-02 → 2010-06
ended
|
1NDTV NDE150 | — | |
| 23699-0R021 |
Seat, Nozzle Holder Clamp
2010-06 → —
|
1ADFTV ADE150 | — | |
| 23699-33020 note |
Seat, Nozzle Holder Clamp
2010-06 → 2013-06
ended
|
1NDTV NDE150 | — | |
| 23699-33020 note |
Seat, Nozzle Holder Clamp
2010-08 → 2013-06
ended
|
1NDTV NDE150 | — | |
| 23760A — Gasket | ||||
| 90904-30008 |
Gasket
2007-07 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 90904-30008 |
Gasket
2009-03 → 2010-06
ended
|
1ADFTV ADE150 | — | |
| 90904-30008 |
Gasket
2010-06 → —
|
1ADFTV ADE150 | — | |
| 23761A — Pipe, Nozzle Leakage, NO.1 | ||||
| 23761-0R011 |
Pipe, Nozzle Leakage, NO.1
2007-07 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 23761-26010 |
Pipe, Nozzle Leakage, NO.1
2009-01 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 23761-0R040 note |
Pipe, Nozzle Leakage, NO.1
2009-03 → 2010-06
ended
|
1ADFTV ADE150 | — | |
| 23761-26030 note |
Pipe, Nozzle Leakage, NO.1
2009-03 → 2010-06
ended
|
1ADFTV ADE150 | — | |
| 23761-0R040 note |
Pipe, Nozzle Leakage, NO.1
2010-06 → —
|
1ADFTV ADE150 | — | |
| 23761-26030 note |
Pipe, Nozzle Leakage, NO.1
2010-06 → —
|
1ADFTV ADE150 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
