Toyota Corolla (S.AFRICA)
2007-07 → 2019-11 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 164310 · General
Supported model
Data version 2019-12

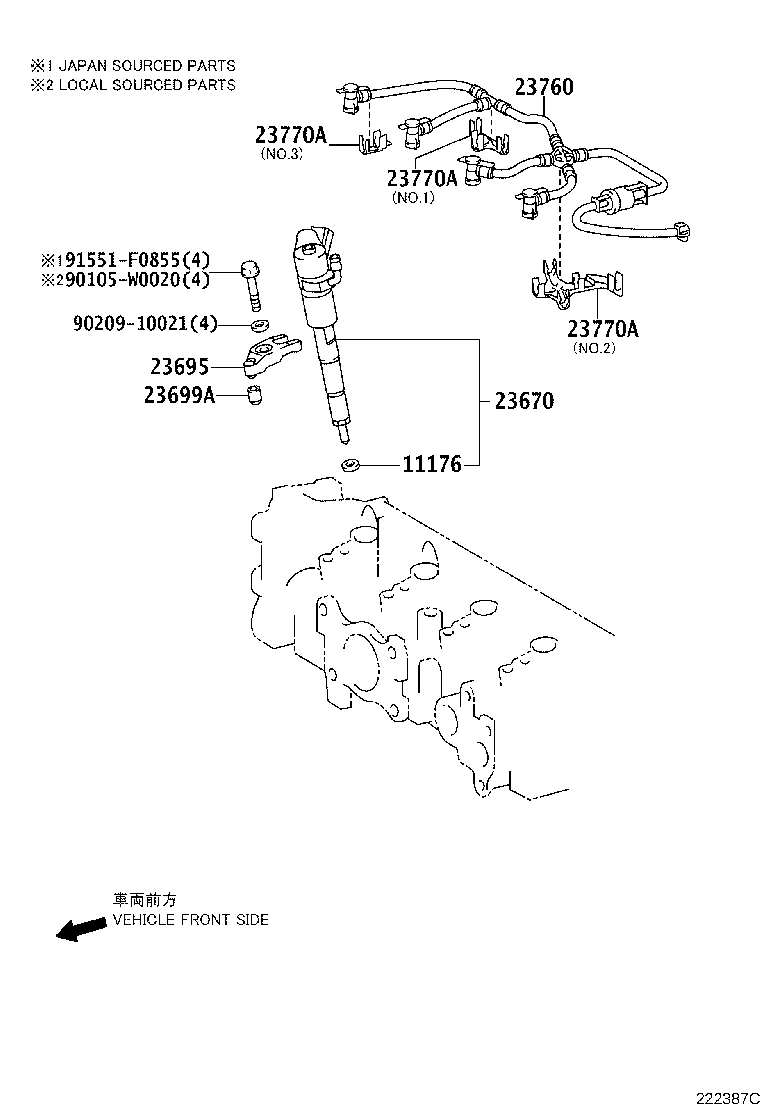

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11176 — Seat, Injection Nozzle | ||||
| 11176-26010 |
Seat, Injection Nozzle
2007-07 → 2008-11
ended
|
1ADFTV ADE150 | — | |
| 11176-26030 |
Seat, Injection Nozzle
2008-11 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 11176-33010 |
Seat, Injection Nozzle
2007-10 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 11176-26020 |
Seat, Injection Nozzle
2009-03 → 2010-06
ended
|
1ADFTV ADE150 | — | |
| 11176-33010 |
Seat, Injection Nozzle
2009-02 → 2010-06
ended
|
1NDTV NDE150 | — | |
| 11176-26020 |
Seat, Injection Nozzle
2010-06 → —
|
1ADFTV ADE150 | — | |
| 11176-33010 note |
Seat, Injection Nozzle
2010-06 → 2013-06
ended
|
1NDTV NDE150 | — | |
| 11176-33010 note |
Seat, Injection Nozzle
2010-08 → 2013-06
ended
|
1NDTV NDE150 | — | |
| 23670 — Injector Assy | ||||
| 23670-09180 |
Injector Assy
2007-07 → 2007-12
ended
|
1ADFTV ADE150 | — | |
| 23670-09280 |
Injector Assy
2007-12 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 23670-39105 |
Injector Assy
2007-10 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 23670-29115 |
Injector Assy
2009-03 → 2010-06
ended
|
1ADFTV ADE150 | — | |
| 23670-39325 |
Injector Assy
2009-02 → 2009-11
ended
|
1NDTV NDE150 | — | |
| 23670-39415 |
Injector Assy
2009-11 → 2010-06
ended
|
1NDTV NDE150 | — | |
| 23670-09370 note |
Injector Assy
2011-03 → 2011-12
ended
|
1NDTV NDE150 | — | |
| 23670-09370 note |
Injector Assy
2012-02 → 2013-06
ended
|
1NDTV NDE150 | — | |
| 23670-09370 note |
Injector Assy
2011-12 → 2013-06
ended
|
1NDTV NDE150 | — | |
| 23670-09370 note |
Injector Assy
2010-09 → 2012-02
ended
|
1NDTV NDE150 | — | |
| 23670-29115 |
Injector Assy
2010-06 → 2014-01
ended
|
1ADFTV ADE150 | — | |
| 23670-39415 note |
Injector Assy
2010-08 → 2012-02
ended
|
1NDTV NDE150 | — | |
| 23670-39415 note |
Injector Assy
2010-06 → 2011-12
ended
|
1NDTV NDE150 | — | |
| 23695 — Clamp, Nozzle Holder, NO.1 | ||||
| 23695-0R012 |
Clamp, Nozzle Holder, NO.1
2007-07 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 23695-33010 |
Clamp, Nozzle Holder, NO.1
2007-10 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 23695-0R021 |
Clamp, Nozzle Holder, NO.1
2009-03 → 2010-06
ended
|
1ADFTV ADE150 | — | |
| 23695-33020 |
Clamp, Nozzle Holder, NO.1
2009-02 → 2010-06
ended
|
1NDTV NDE150 | — | |
| 23695-0R021 |
Clamp, Nozzle Holder, NO.1
2010-06 → —
|
1ADFTV ADE150 | — | |
| 23695-33020 note |
Clamp, Nozzle Holder, NO.1
2010-08 → 2013-06
ended
|
1NDTV NDE150 | — | |
| 23695-33020 note |
Clamp, Nozzle Holder, NO.1
2010-06 → 2013-06
ended
|
1NDTV NDE150 | — | |
| 23699A — Seat, Nozzle Holder Clamp | ||||
| 23699-0R010 |
Seat, Nozzle Holder Clamp
2007-07 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 23699-33010 |
Seat, Nozzle Holder Clamp
2007-10 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 23699-0R021 |
Seat, Nozzle Holder Clamp
2009-03 → 2010-06
ended
|
1ADFTV ADE150 | — | |
| 23699-33020 |
Seat, Nozzle Holder Clamp
2009-02 → 2010-06
ended
|
1NDTV NDE150 | — | |
| 23699-0R021 |
Seat, Nozzle Holder Clamp
2010-06 → —
|
1ADFTV ADE150 | — | |
| 23699-33020 note |
Seat, Nozzle Holder Clamp
2010-06 → 2013-06
ended
|
1NDTV NDE150 | — | |
| 23699-33020 note |
Seat, Nozzle Holder Clamp
2010-08 → 2013-06
ended
|
1NDTV NDE150 | — | |
| 23760 — Pipe Assy, Nozzle Leakage | ||||
| 23760-33020 |
Pipe Assy, Nozzle Leakage
2007-10 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 23760-33030 |
Pipe Assy, Nozzle Leakage
2009-02 → 2010-06
ended
|
1NDTV NDE150 | — | |
| 23760-0W010 note |
Pipe Assy, Nozzle Leakage
2012-02 → 2013-06
ended
|
1NDTV NDE150 | — | |
| 23760-0W010 note |
Pipe Assy, Nozzle Leakage
2011-03 → 2011-12
ended
|
1NDTV NDE150 | — | |
| 23760-0W010 note |
Pipe Assy, Nozzle Leakage
2011-12 → 2013-06
ended
|
1NDTV NDE150 | — | |
| 23760-0W010 note |
Pipe Assy, Nozzle Leakage
2010-09 → 2012-02
ended
|
1NDTV NDE150 | — | |
| 23760-33030 note |
Pipe Assy, Nozzle Leakage
2010-08 → 2012-02
ended
|
1NDTV NDE150 | — | |
| 23760-33030 note |
Pipe Assy, Nozzle Leakage
2011-03 → 2011-12
ended
|
1NDTV NDE150 | — | |
| 23760-33030 note |
Pipe Assy, Nozzle Leakage
2010-06 → 2011-03
ended
|
1NDTV NDE150 | — | |
| 23770A — Clamp OR Clip(FOR NOZZLE LEAKAGE PIPE SET) | ||||
| 23841-33030 note |
Clamp OR Clip(FOR NOZZLE LEAKAGE PIPE SET)
2009-02 → 2010-06
ended
|
1NDTV NDE150 | — | |
| 23841-33040 note |
Clamp OR Clip(FOR NOZZLE LEAKAGE PIPE SET)
2009-02 → 2010-06
ended
|
1NDTV NDE150 | — | |
| 23841-33050 note |
Clamp OR Clip(FOR NOZZLE LEAKAGE PIPE SET)
2009-02 → 2010-06
ended
|
1NDTV NDE150 | — | |
| 23841-33030 note |
Clamp OR Clip(FOR NOZZLE LEAKAGE PIPE SET)
2010-06 → 2013-06
ended
|
1NDTV NDE150 | — | |
| 23841-33030 note |
Clamp OR Clip(FOR NOZZLE LEAKAGE PIPE SET)
2010-08 → 2013-06
ended
|
1NDTV NDE150 | — | |
| 23841-33040 note |
Clamp OR Clip(FOR NOZZLE LEAKAGE PIPE SET)
2010-06 → 2013-06
ended
|
1NDTV NDE150 | — | |
| 23841-33040 note |
Clamp OR Clip(FOR NOZZLE LEAKAGE PIPE SET)
2010-08 → 2013-06
ended
|
1NDTV NDE150 | — | |
| 23841-33050 note |
Clamp OR Clip(FOR NOZZLE LEAKAGE PIPE SET)
2010-06 → 2013-06
ended
|
1NDTV NDE150 | — | |
| 23841-33050 note |
Clamp OR Clip(FOR NOZZLE LEAKAGE PIPE SET)
2010-08 → 2013-06
ended
|
1NDTV NDE150 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
