Toyota Corolla (S.AFRICA)

2007-07 → 2019-11 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 164310 · General

Supported model Data version 2019-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 16 illustrations

Illustrations

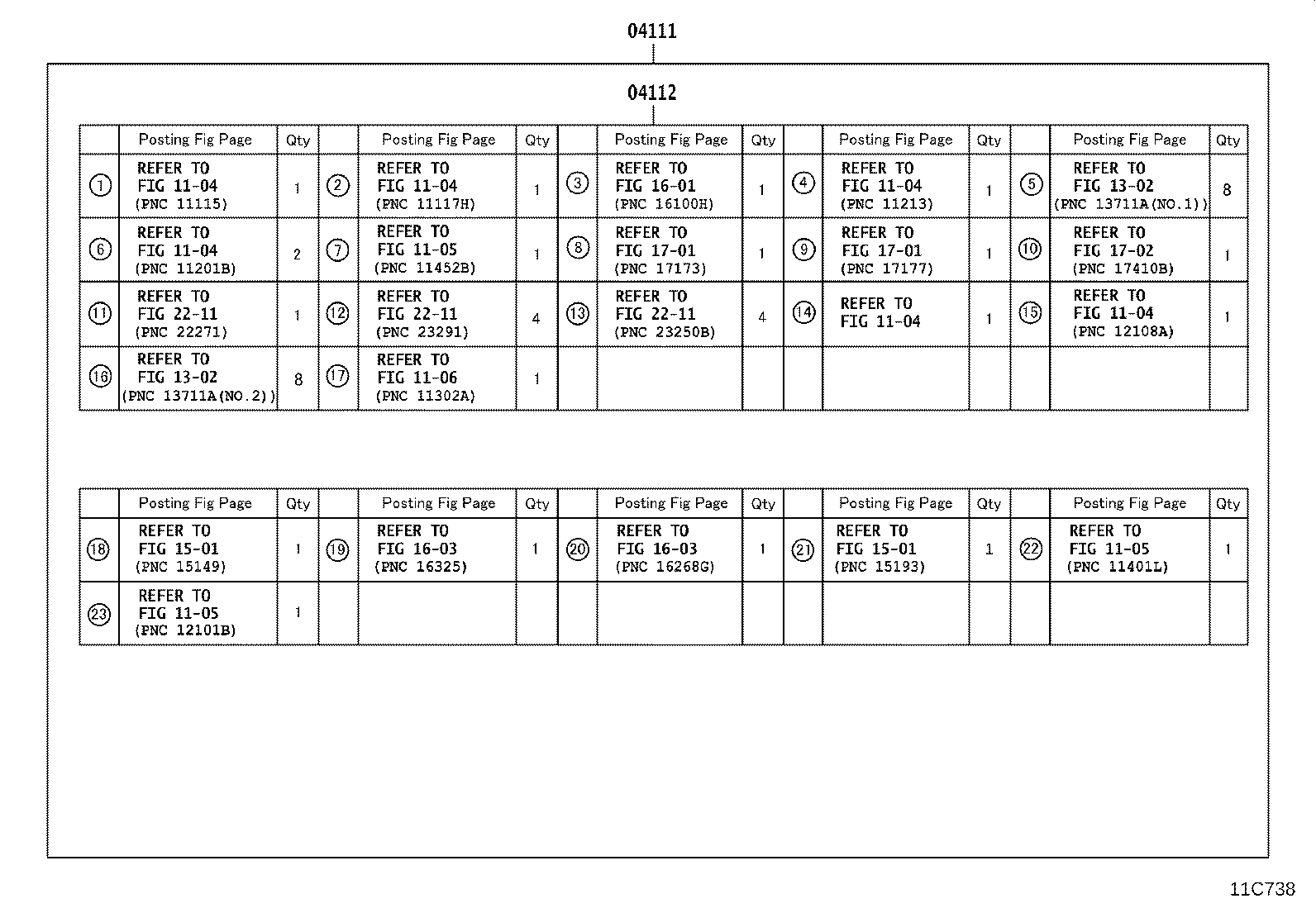

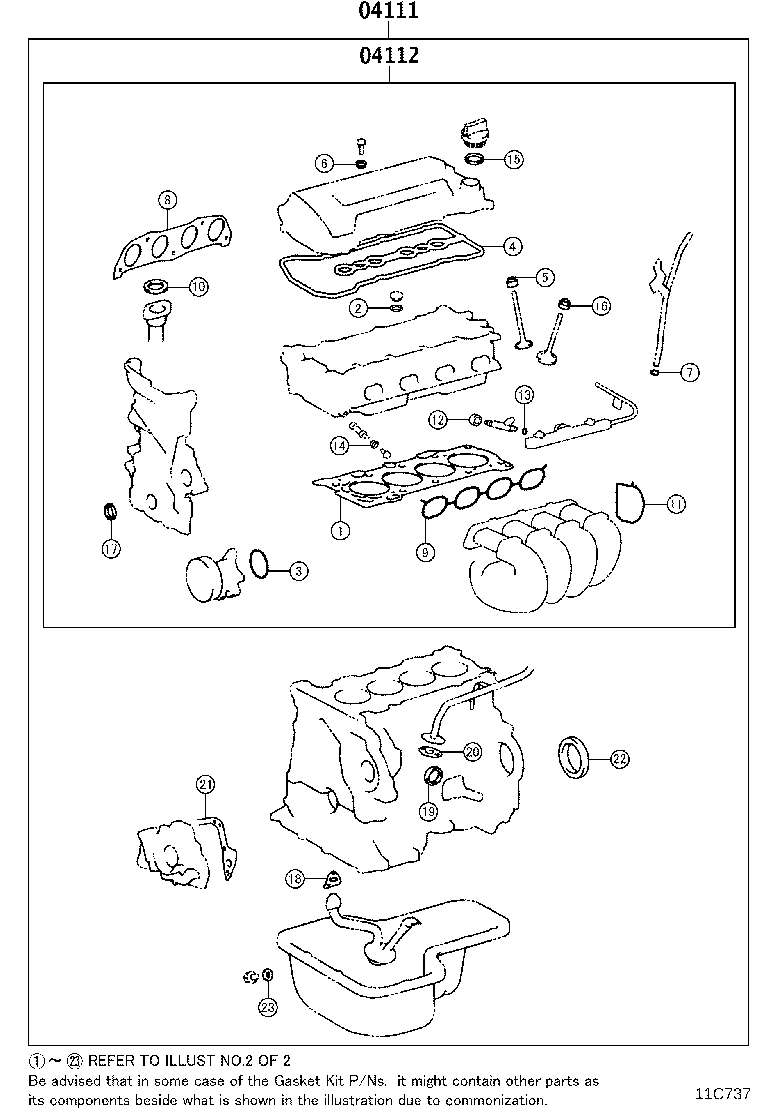

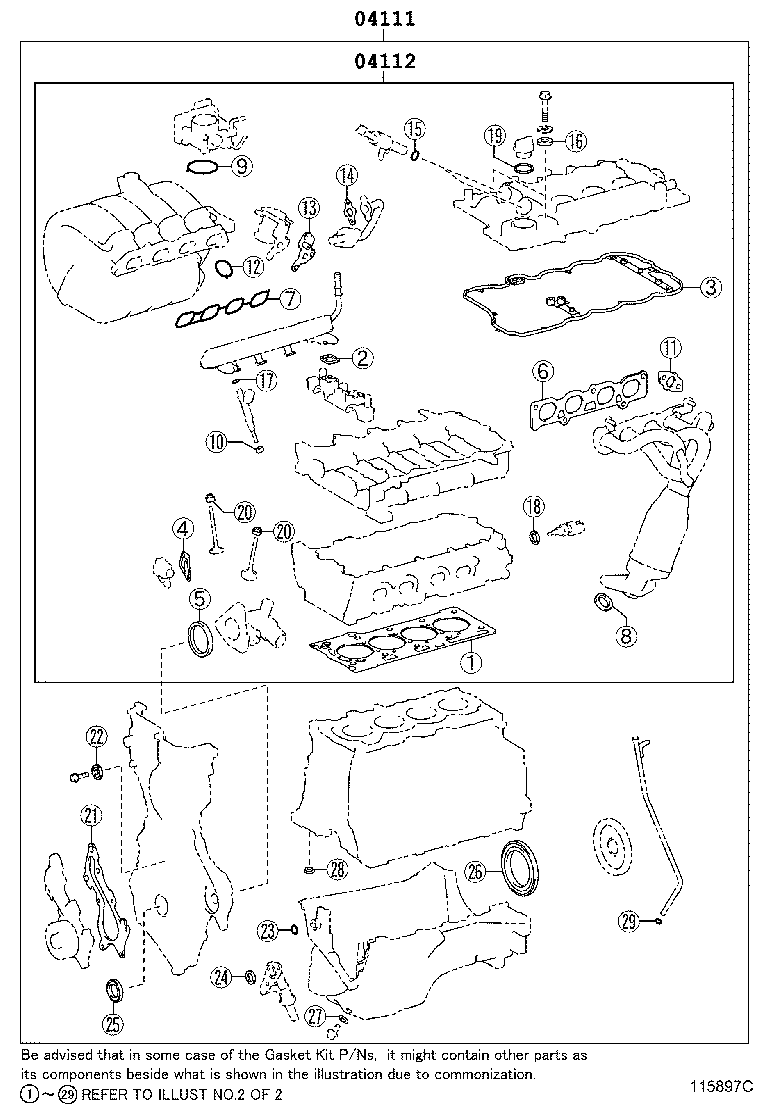

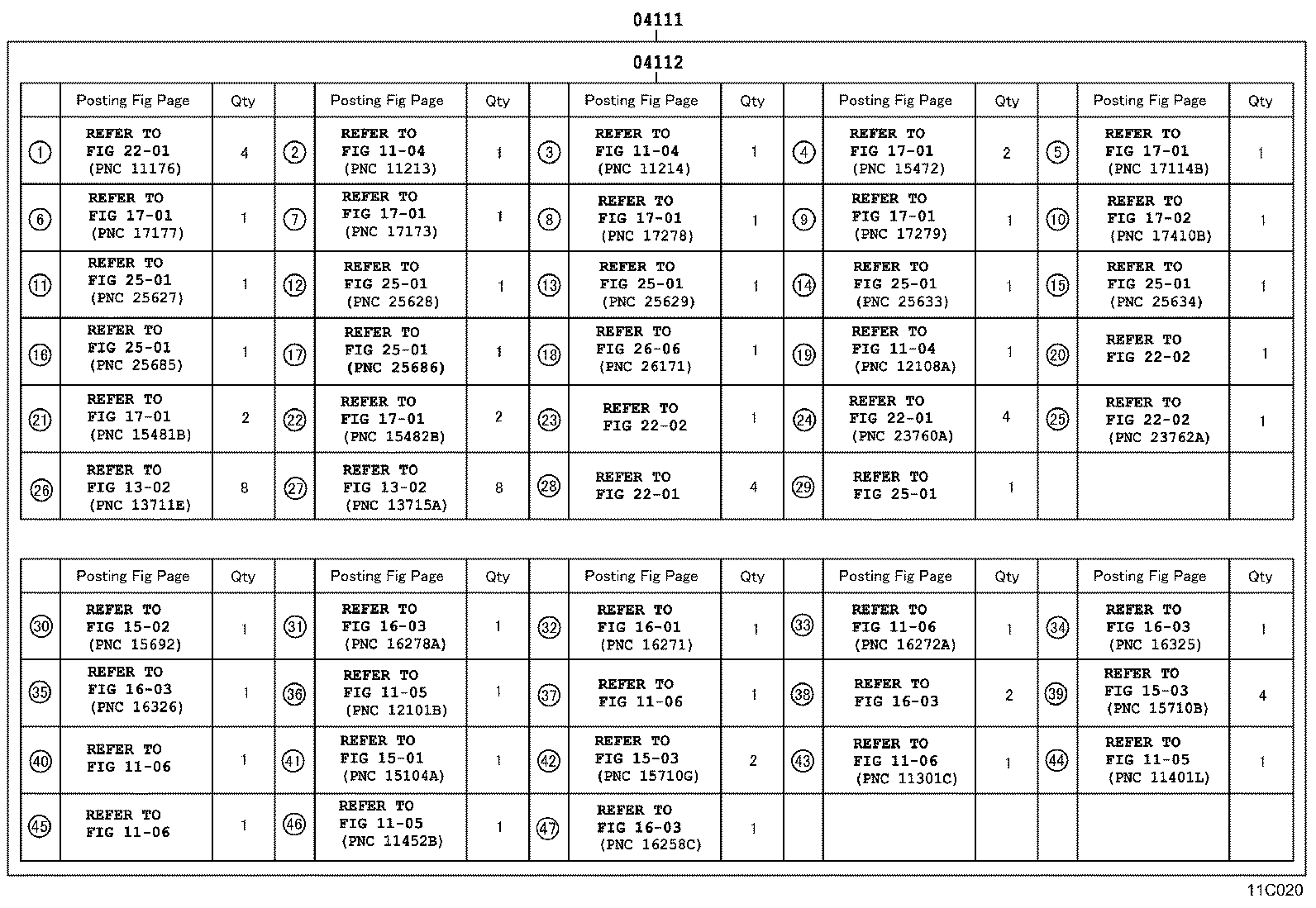

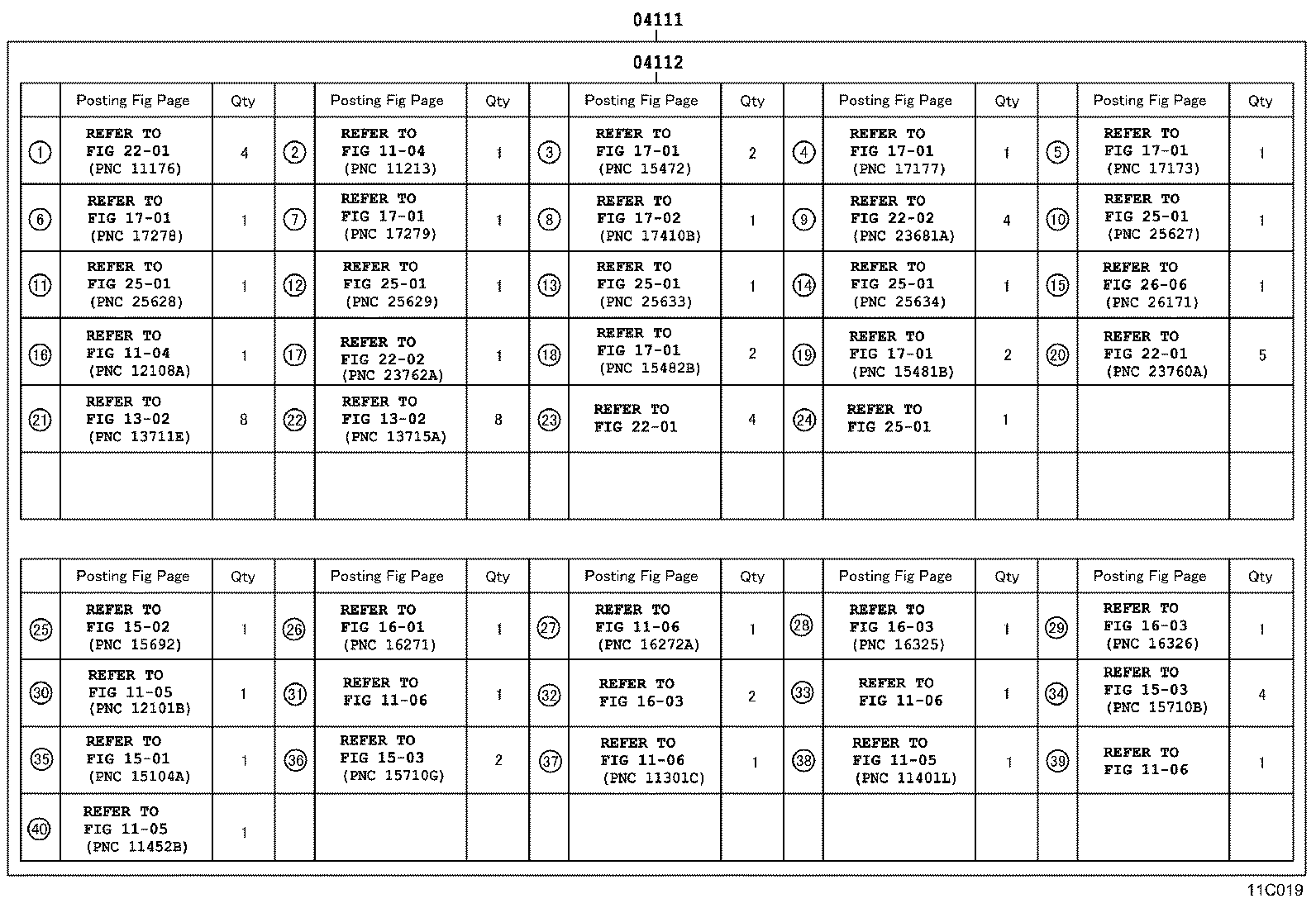

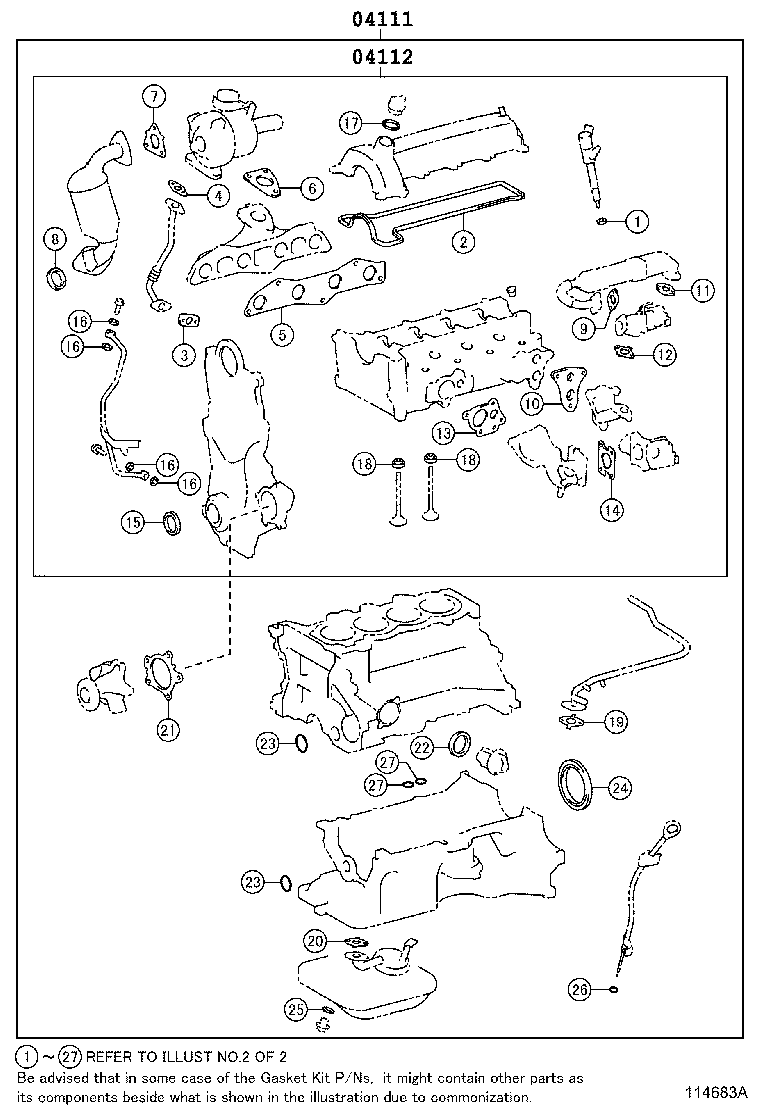

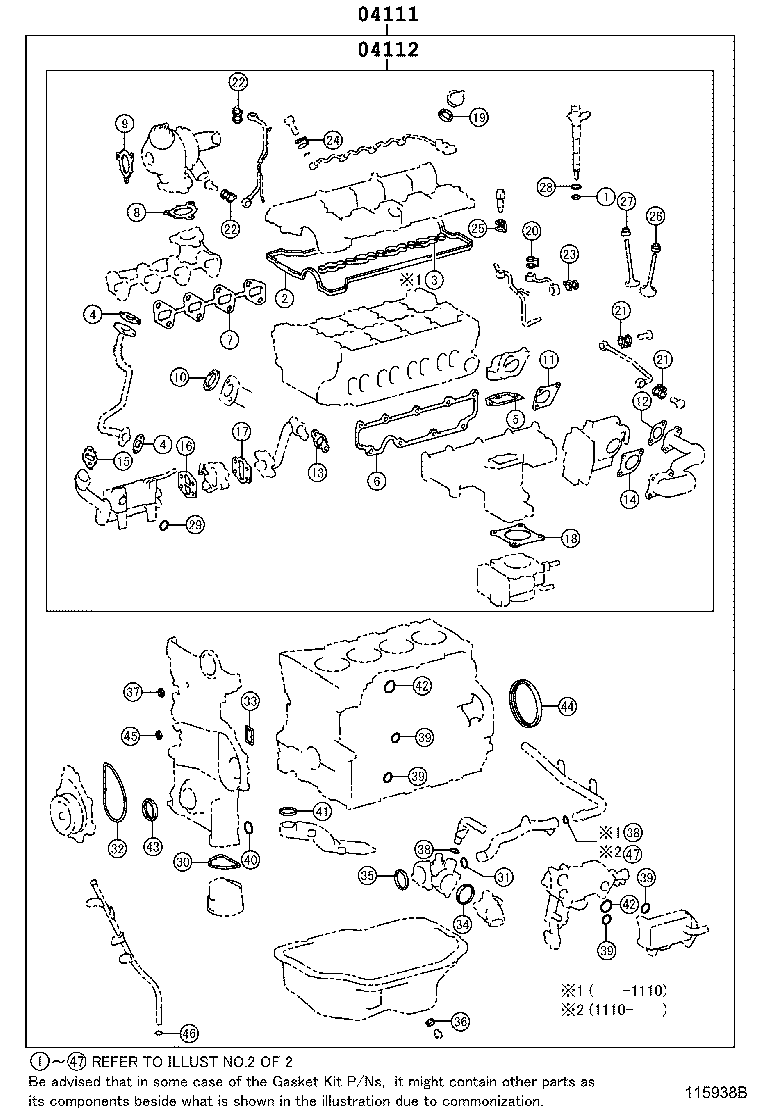

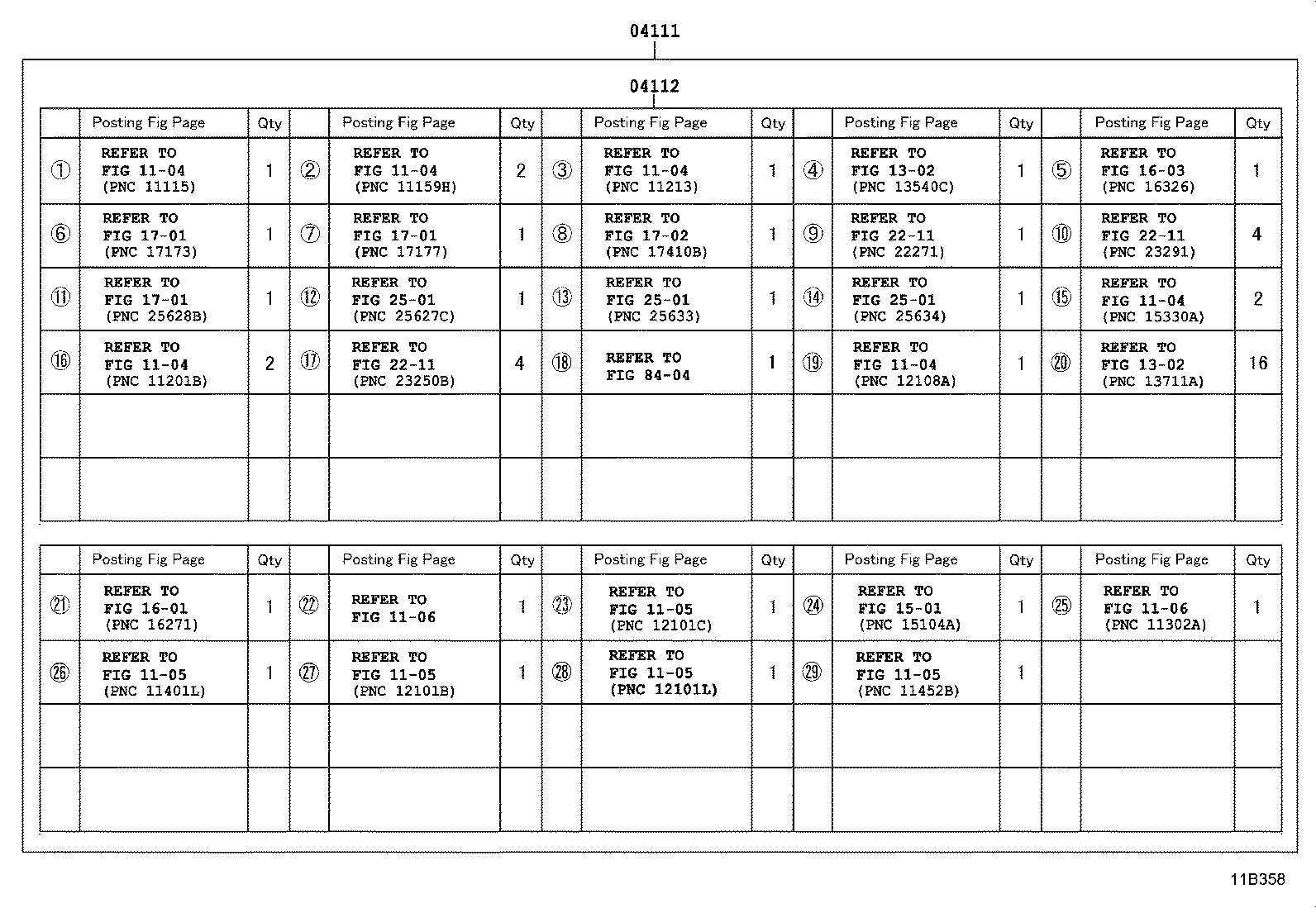

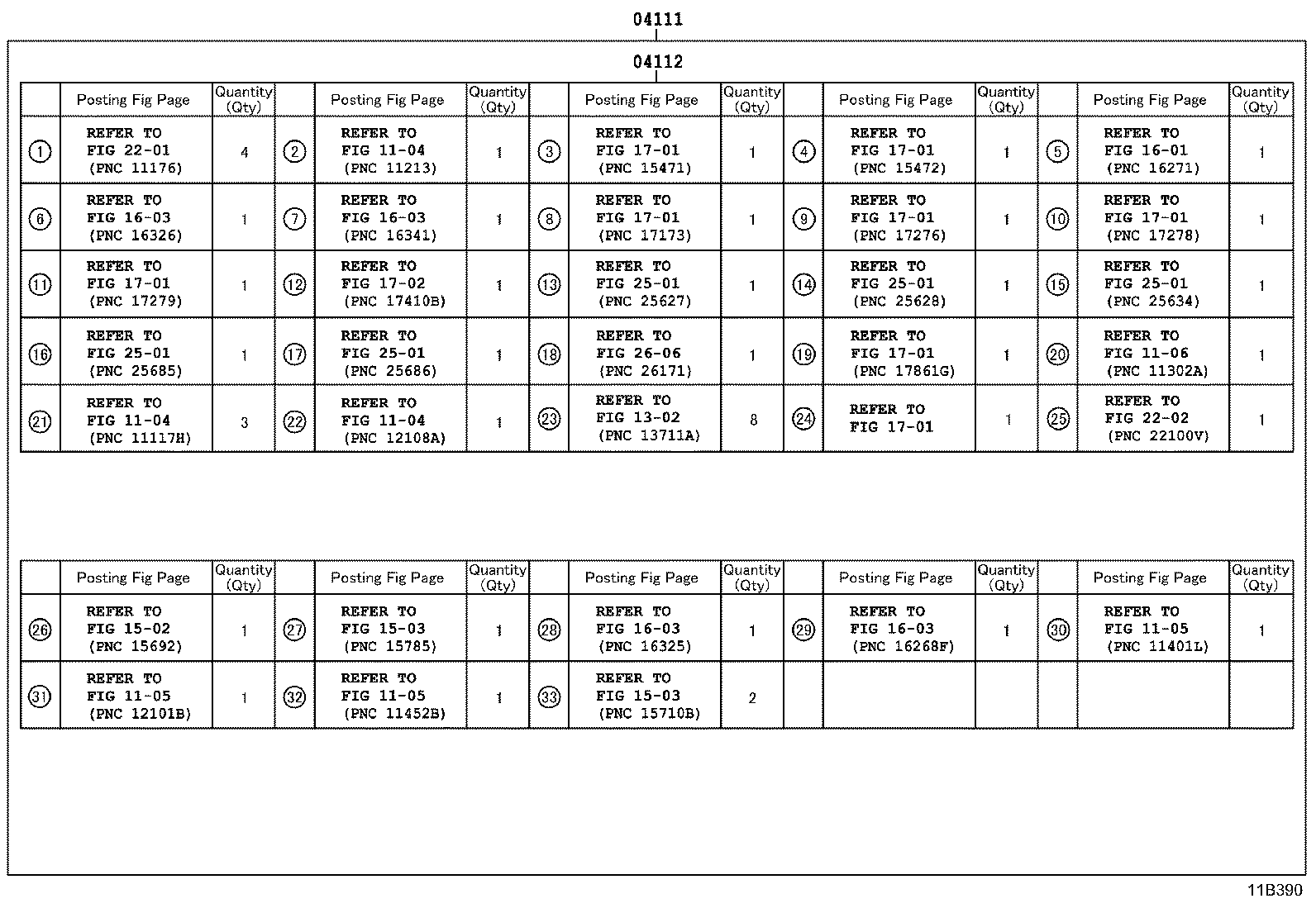

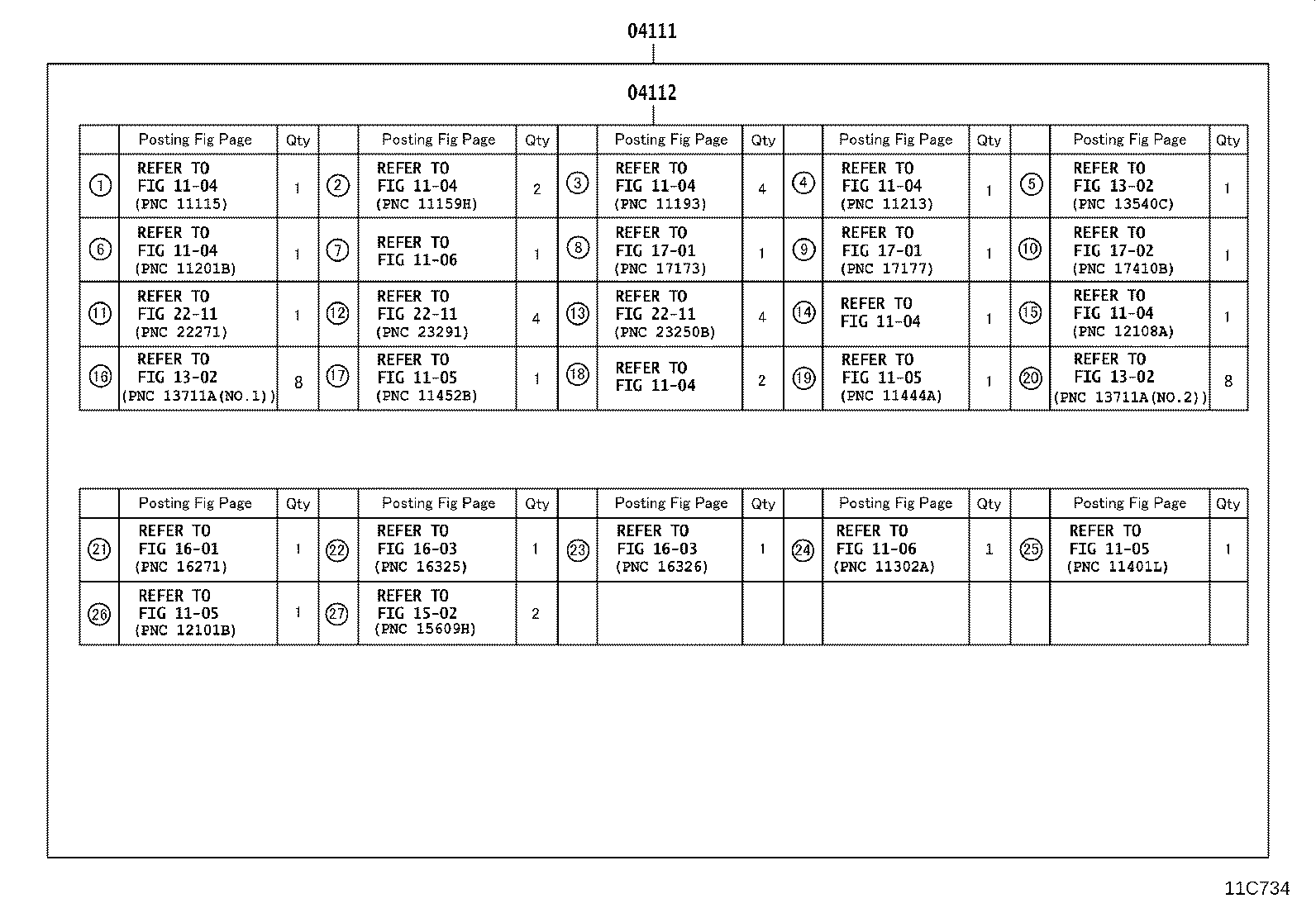

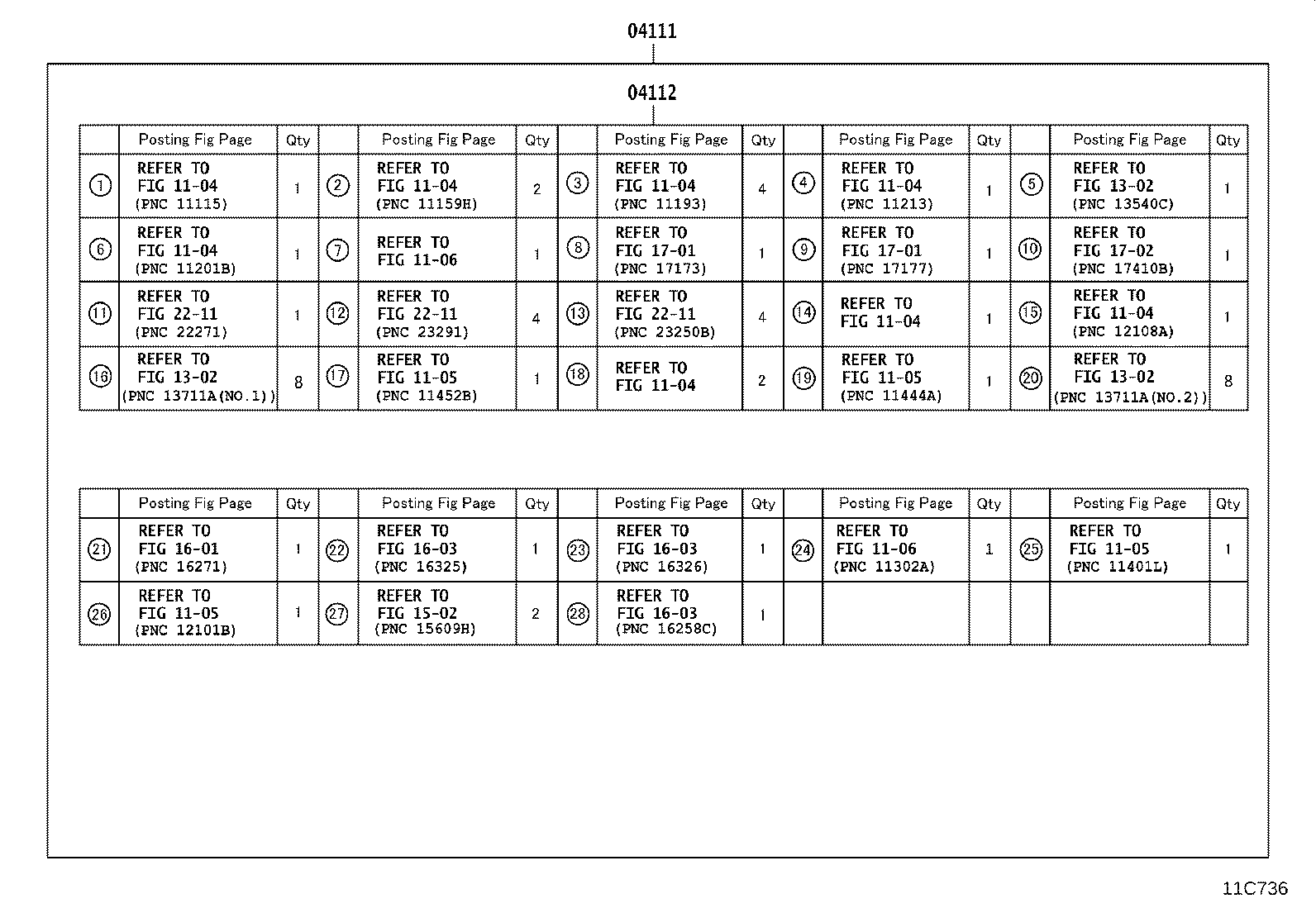

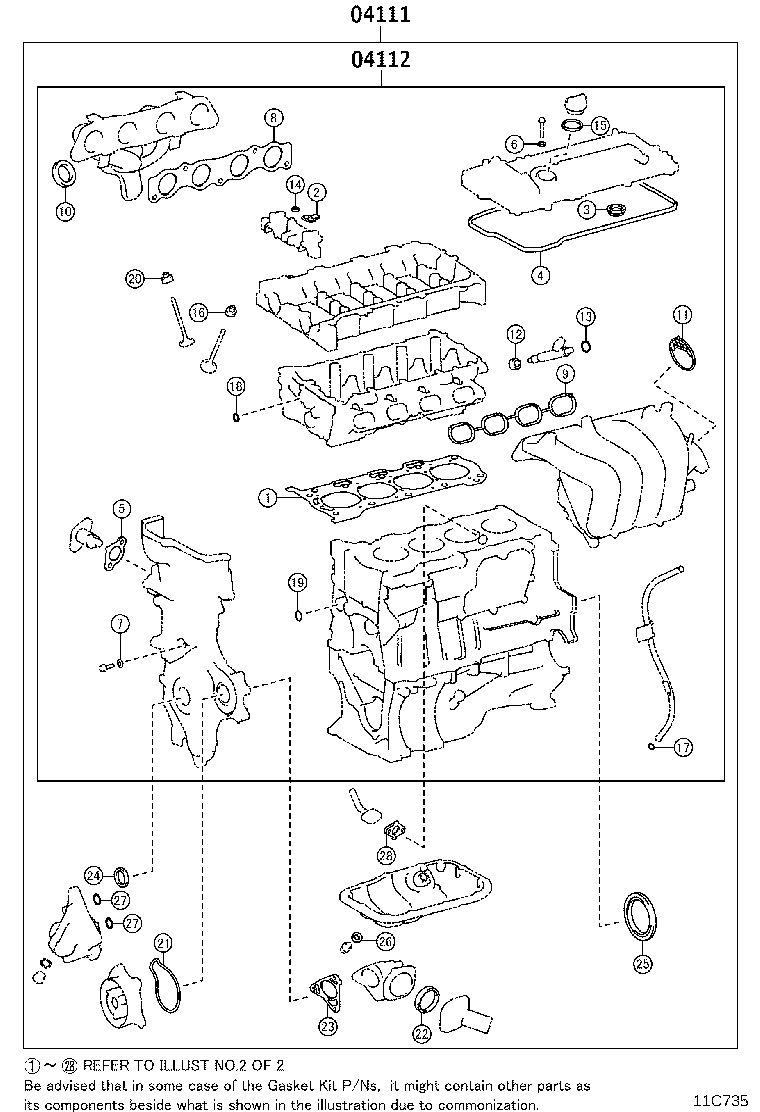

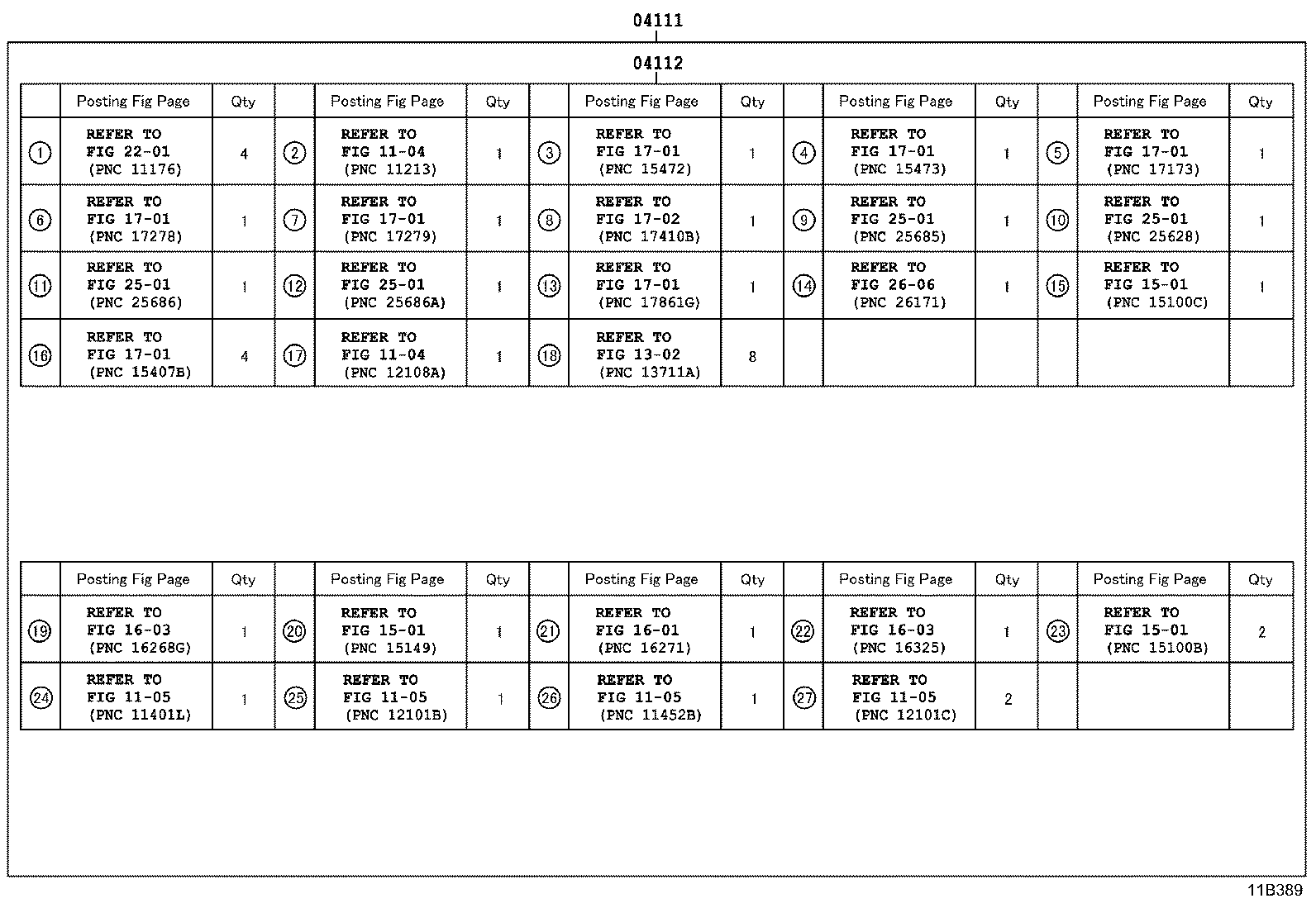

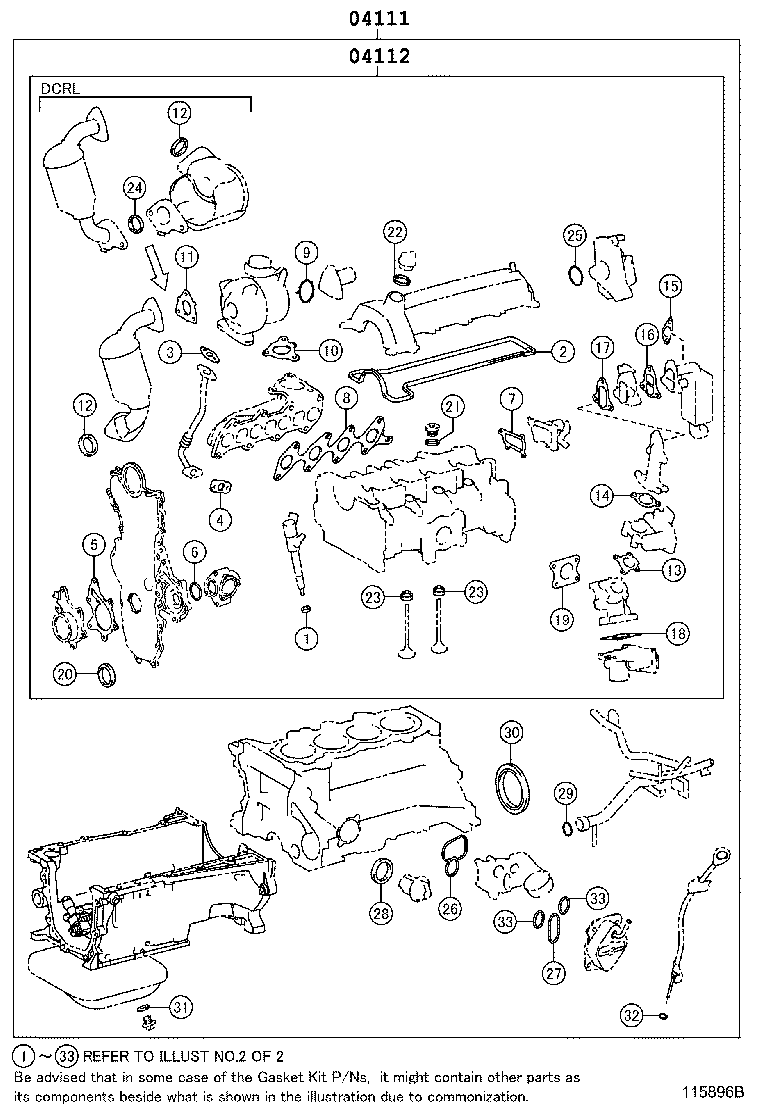

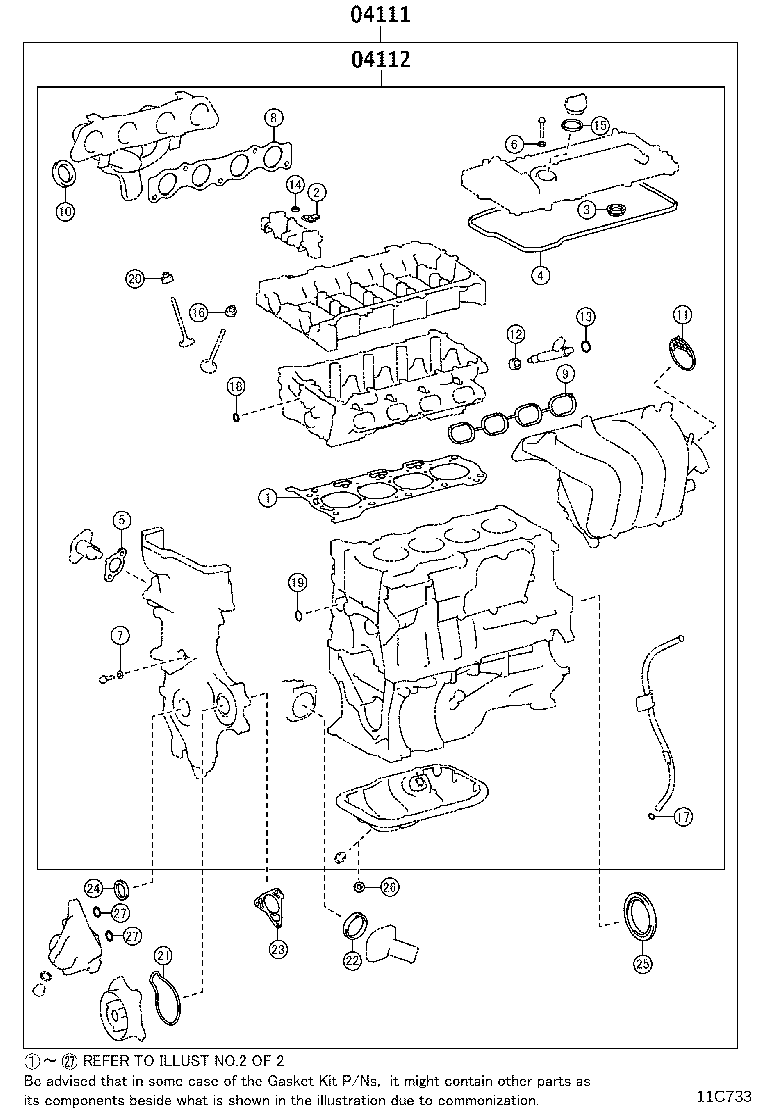

Figure 114938A 114938A 2007-07 → 2009-03 Figure 11C019 11C019 2007-07 → 2009-03 Figure 115938B 115938B 2009-03 → — Figure 11C020 11C020 2009-03 → — Figure 114683A 114683A 2007-10 → 2009-02 Figure 11B389 11B389 2007-10 → 2009-02 Figure 115896B 115896B 2009-02 → — Figure 11B390 11B390 2009-02 → — Figure 115897C 115897C 2009-02 → — Figure 11B358 11B358 2009-02 → — Figure 11C733 11C733 2007-07 → — Figure 11C734 11C734 2007-07 → — Figure 11C735 11C735 2010-10 → 2014-01 Figure 11C736 11C736 2010-10 → 2014-01 Figure 11C737 11C737 2007-07 → 2009-02 Figure 11C738 11C738 2007-07 → 2009-02

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
