Toyota Corolla (S.AFRICA)

2007-07 → 2019-11 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 164310 · General

Supported model Data version 2019-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

8 part groups · 3 illustrations

Illustrations

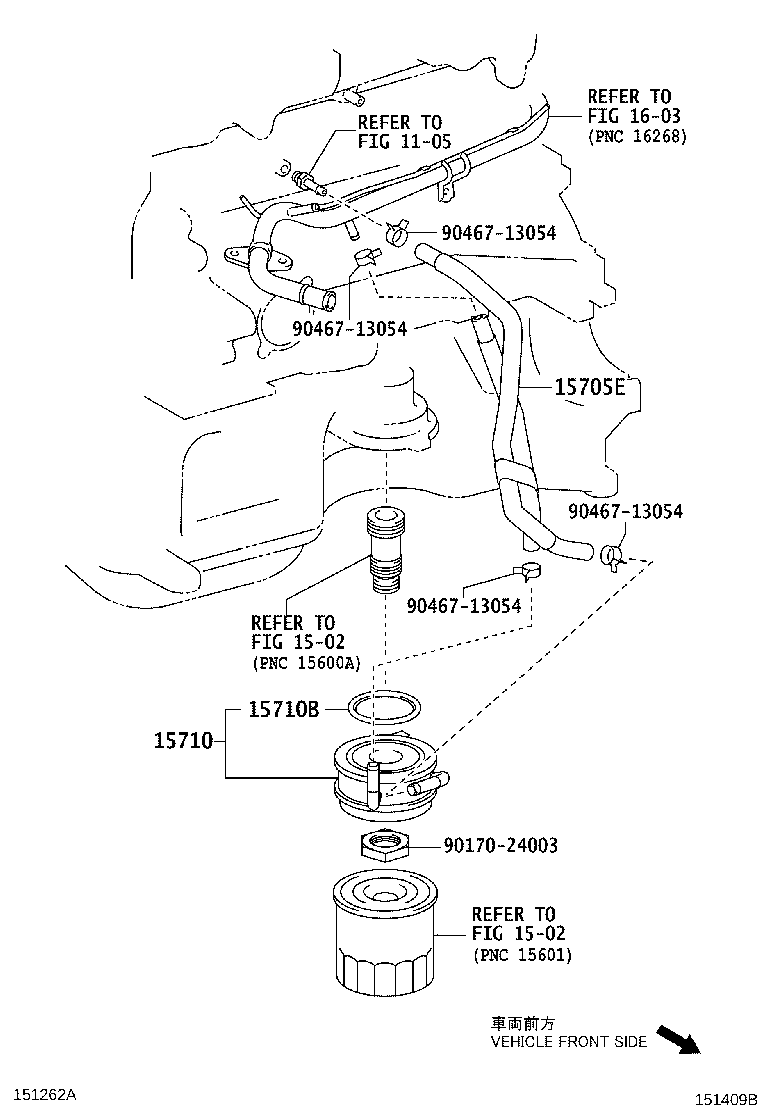

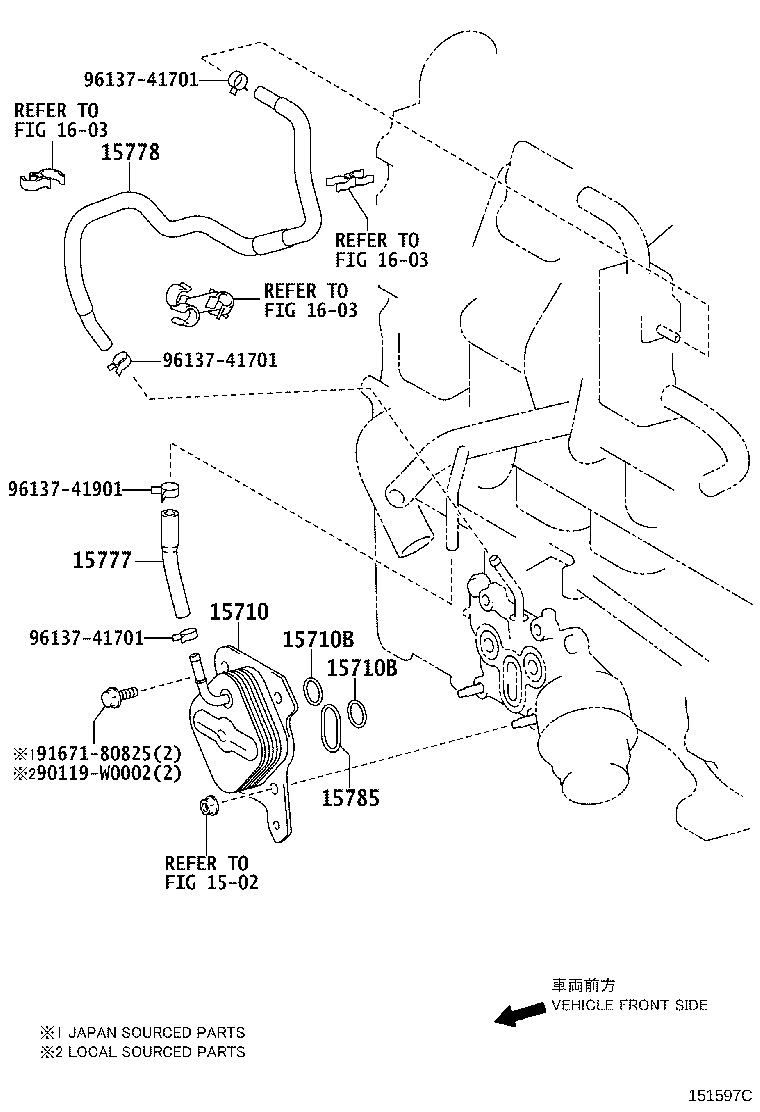

Figure 151350C 151350C 2007-07 → — Figure 151409B 151409B 2007-10 → 2009-02 Figure 151597C 151597C 2009-02 → —

Part groups

PNCDescription
15705E Hose Sub-assy, Oil Cooler
15710 Cooler Assy, Oil
15710B Ring, O(FOR OIL COOLER)
15710G Ring, O, NO.2
15777 Hose, Oil Cooler
15778 Hose, Oil Cooler, NO.2
15781 Bracket, Oil Cooler, NO.1
15785 Gasket, Oil Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
