Toyota Corolla (S.AFRICA)

2007-07 → 2019-11 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 164310 · General

Supported model Data version 2019-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 8 illustrations

Illustrations

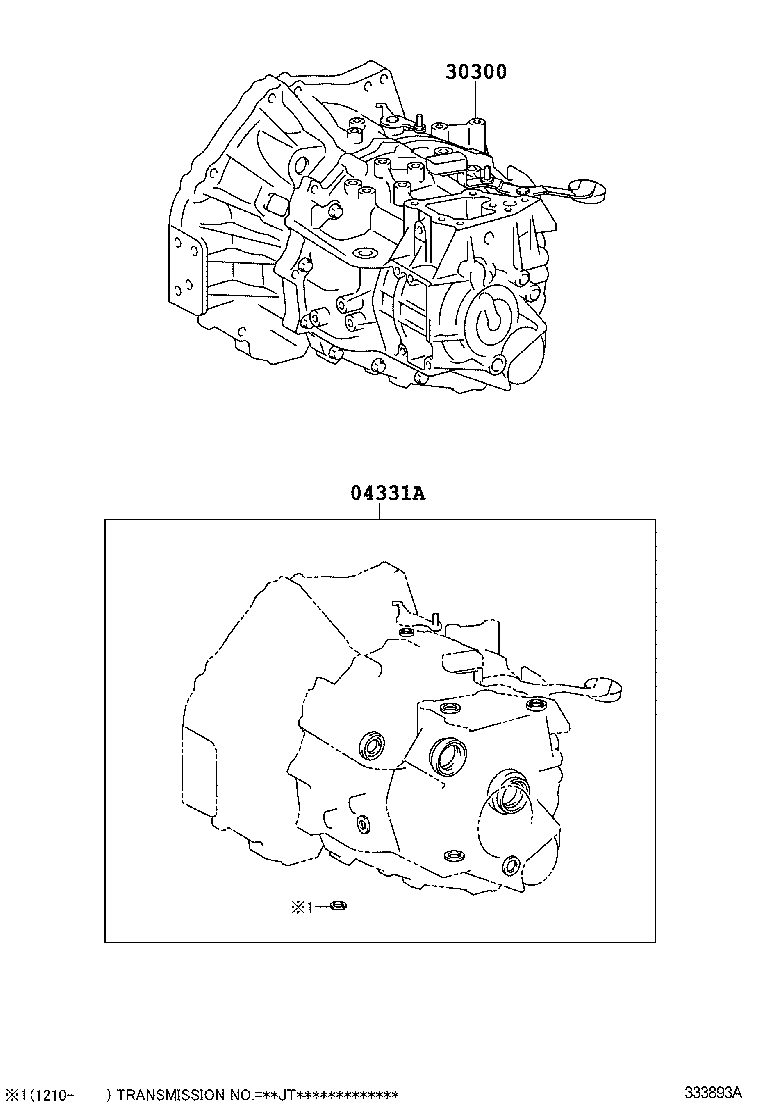

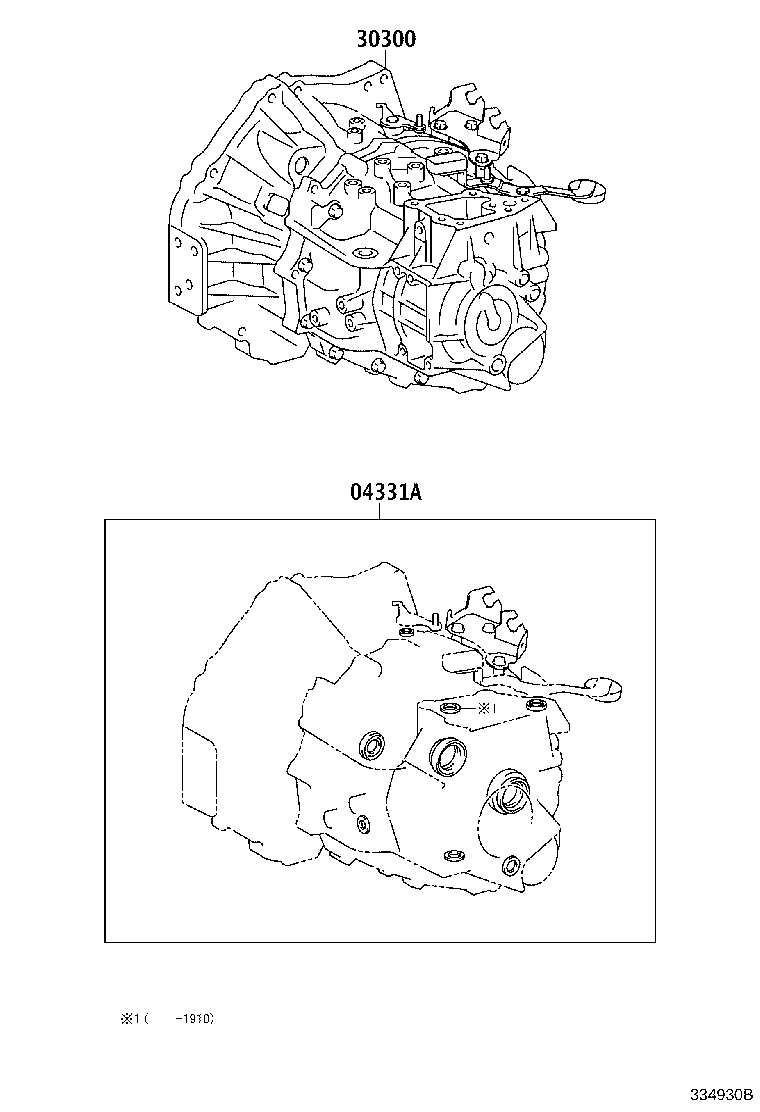

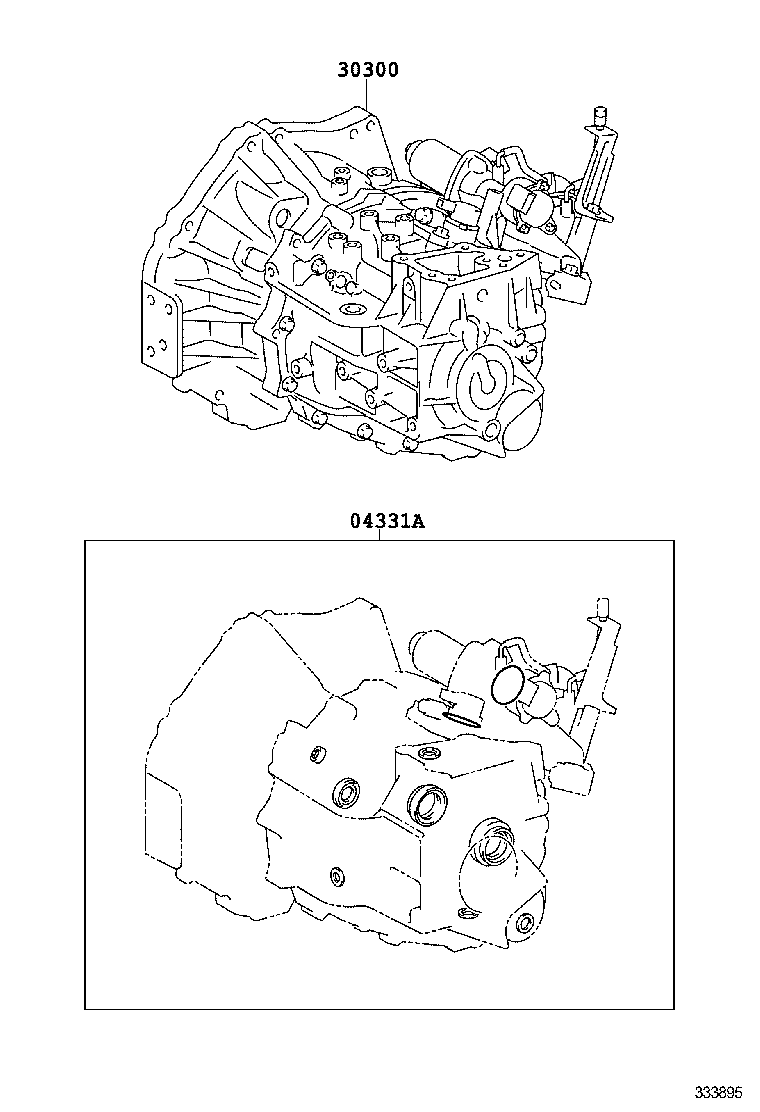

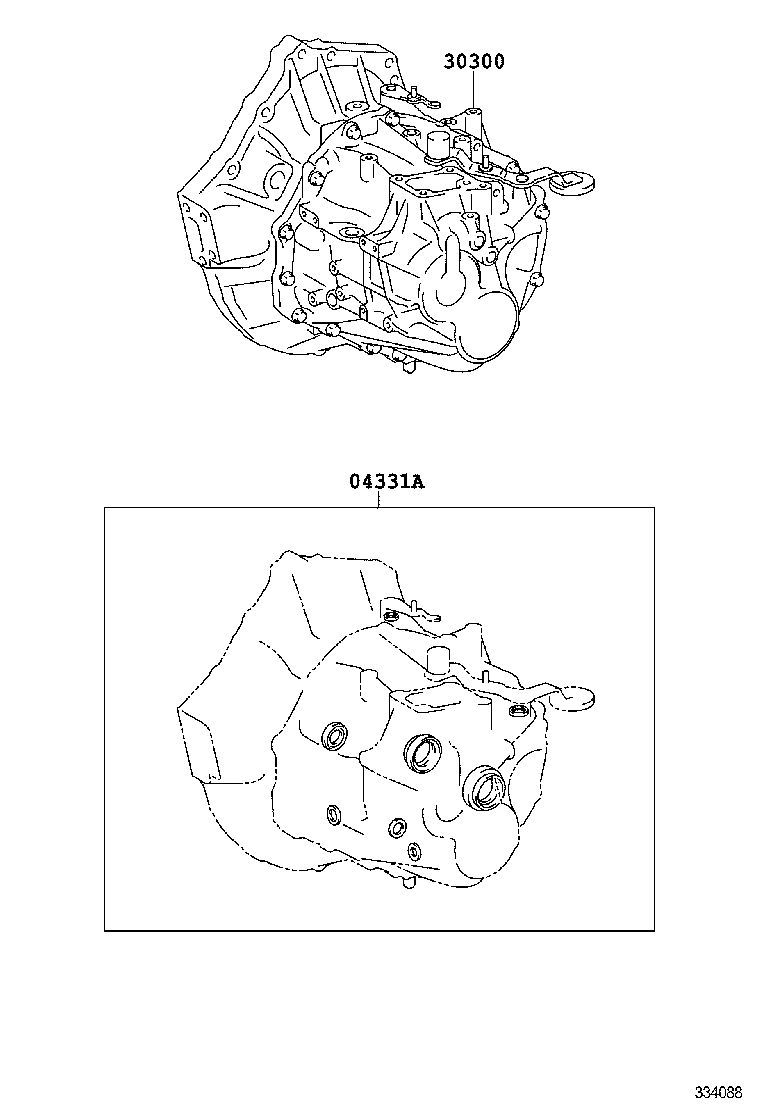

Figure 333402A 333402A 2007-07 → 2009-02 Figure 333402A 333402A 2007-07 → — Figure 333188 333188 2007-07 → — Figure 333893A 333893A 2009-02 → 2014-04 Figure 333894 333894 2009-02 → 2014-04 Figure 333895 333895 2009-02 → — Figure 334088 334088 2010-10 → — Figure 334930B 334930B 2014-04 → —

Part groups

PNCDescription
04331A Gasket Kit, Transaxle Overhaul(MTM)
30300 Transaxle Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
