Oil Cooler & Tube (ATM)

14 part groups · 3 illustrations

Illustrations

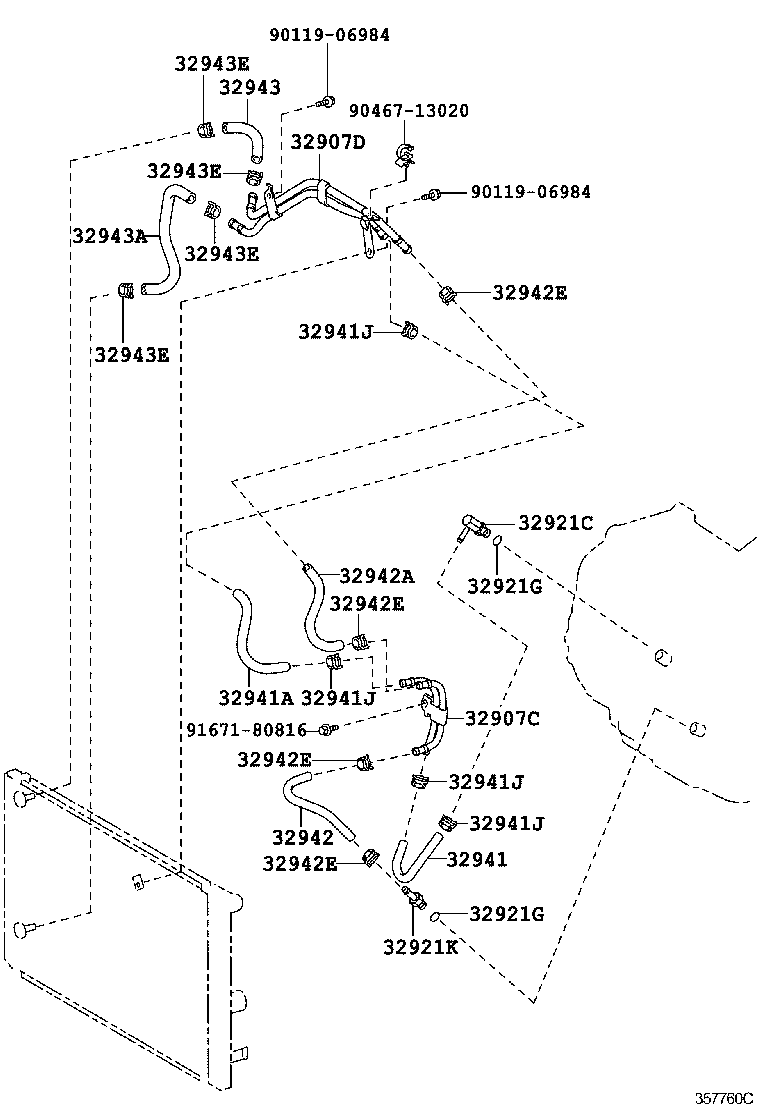

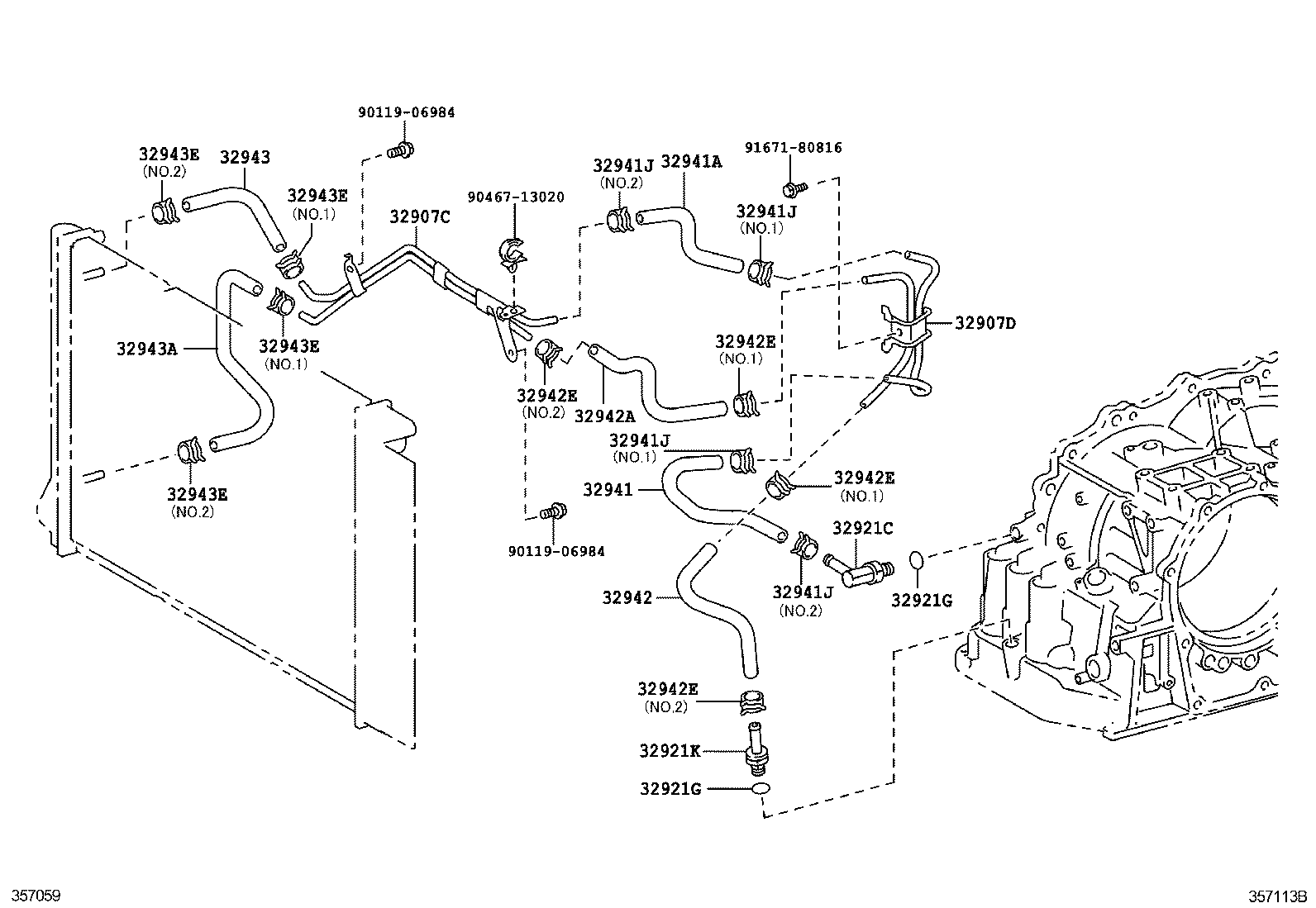

Figure 356210C 356210C 2007-07 → — Figure 357113B 357113B 2009-02 → — Figure 357760C 357760C 2010-10 → —

Part groups

PNCDescription
32907C Tube Sub-assy, Oil Cooler W/O Hose, NO.1
32907D Tube Sub-assy, Oil Cooler W/O Hose, NO.2
32921C Union(FOR OIL COOLER TUBE)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32921K Union, NO.2(FOR OIL COOLER TUBE)
32941 Hose, Oil Cooler Inlet, NO.1
32941A Hose, Oil Cooler Inlet, NO.2
32941J Clip, NO.1(FOR OIL COOLER HOSE)
32942 Hose, Oil Cooler Outlet, NO.1
32942A Hose, Oil Cooler Outlet, NO.2
32942E Clip, NO.2(FOR OIL COOLER HOSE)
32943 Hose, Transmission Oil Cooler, NO.1
32943A Hose, Transmission Oil Cooler, NO.2
32943E Clip, NO.3(FOR OIL COOLER HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
