Toyota Corolla (S.AFRICA)

2007-07 → 2019-11 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 164310 · General

Supported model Data version 2019-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

13 part groups · 10 illustrations

Illustrations

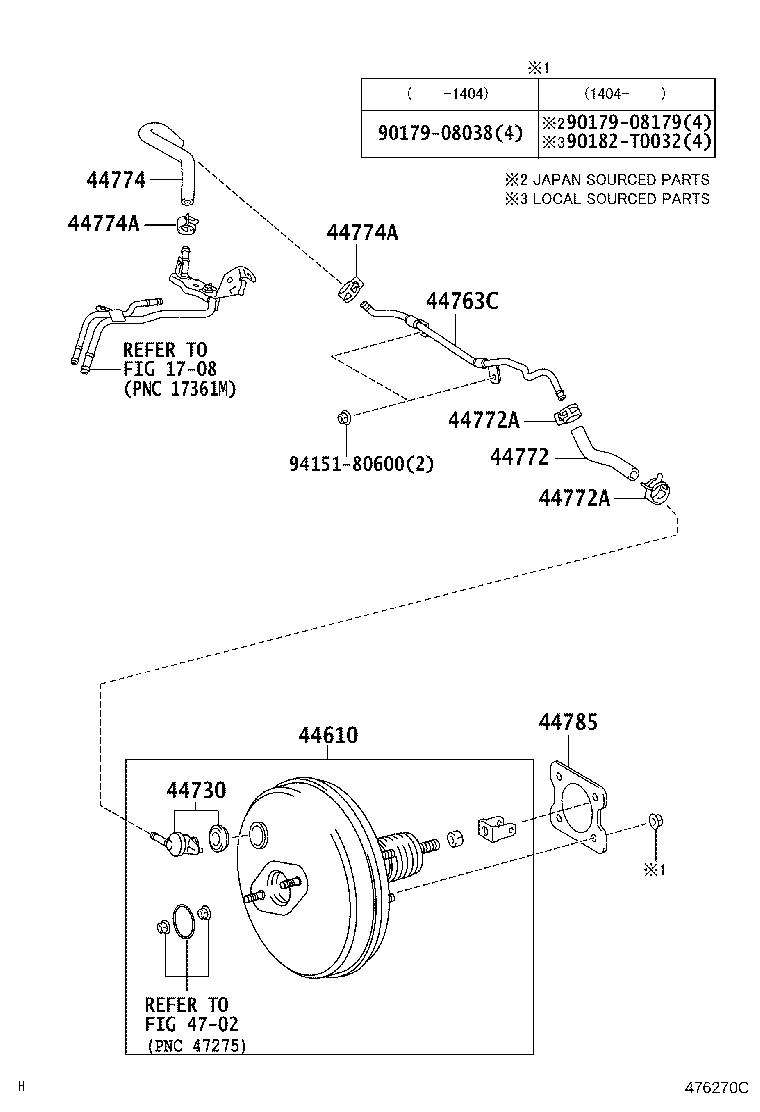

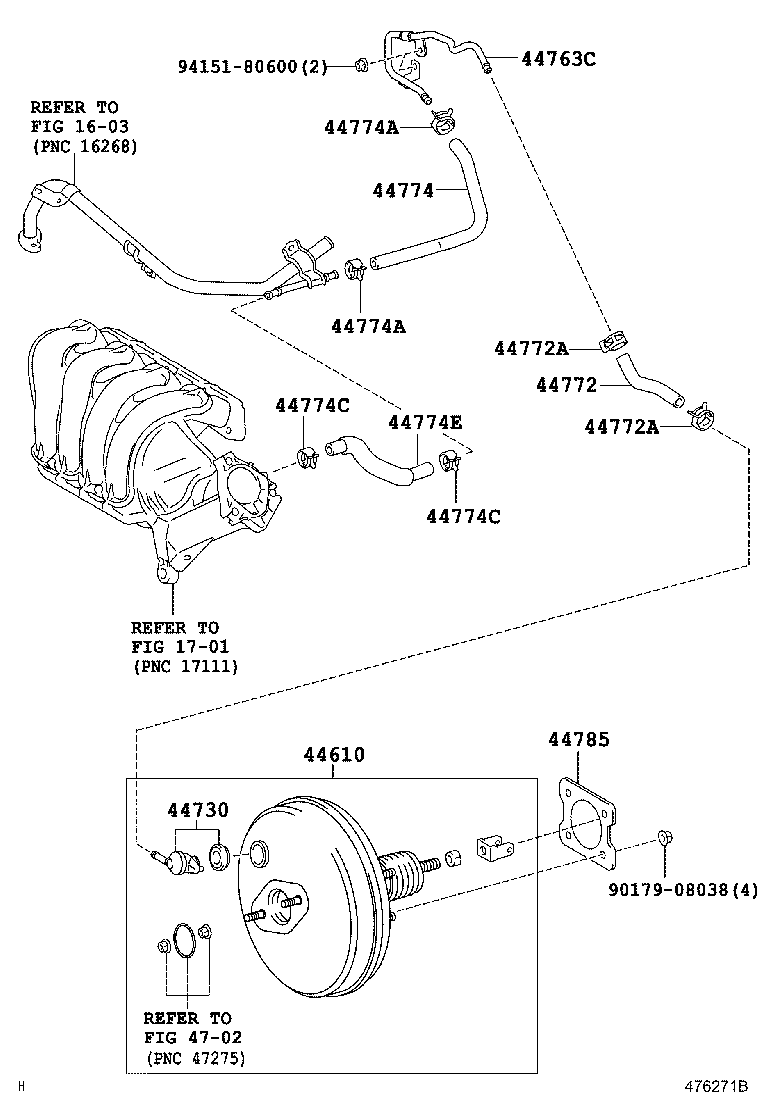

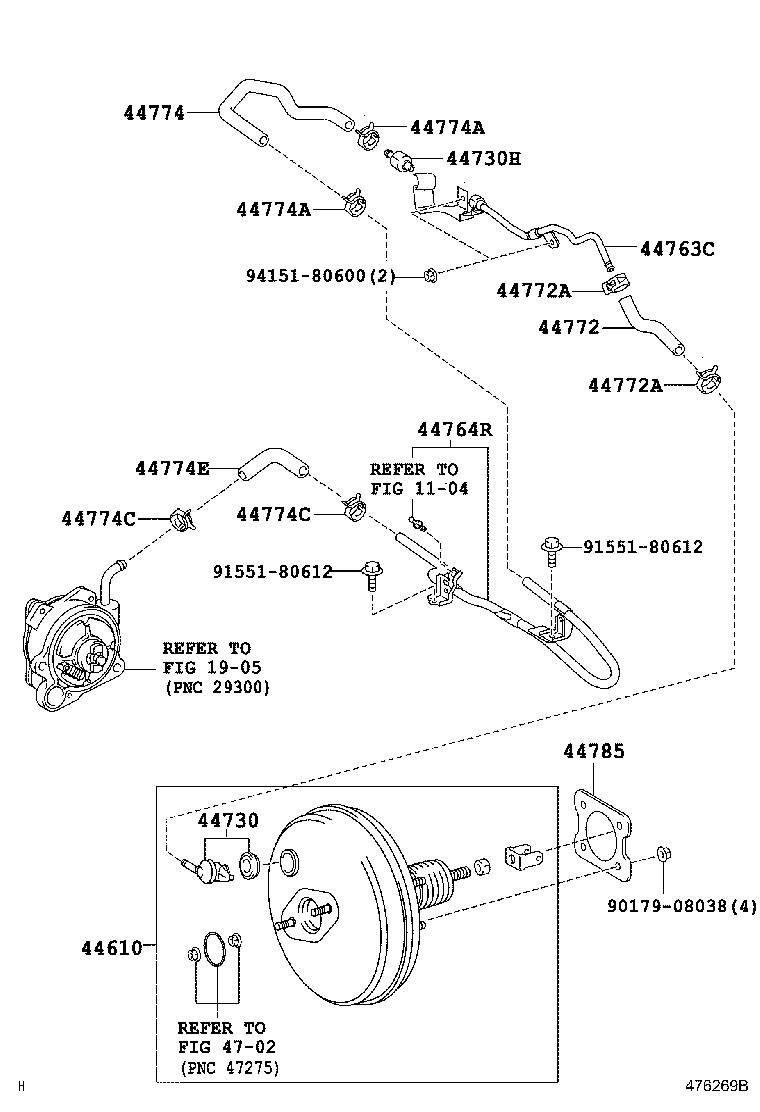

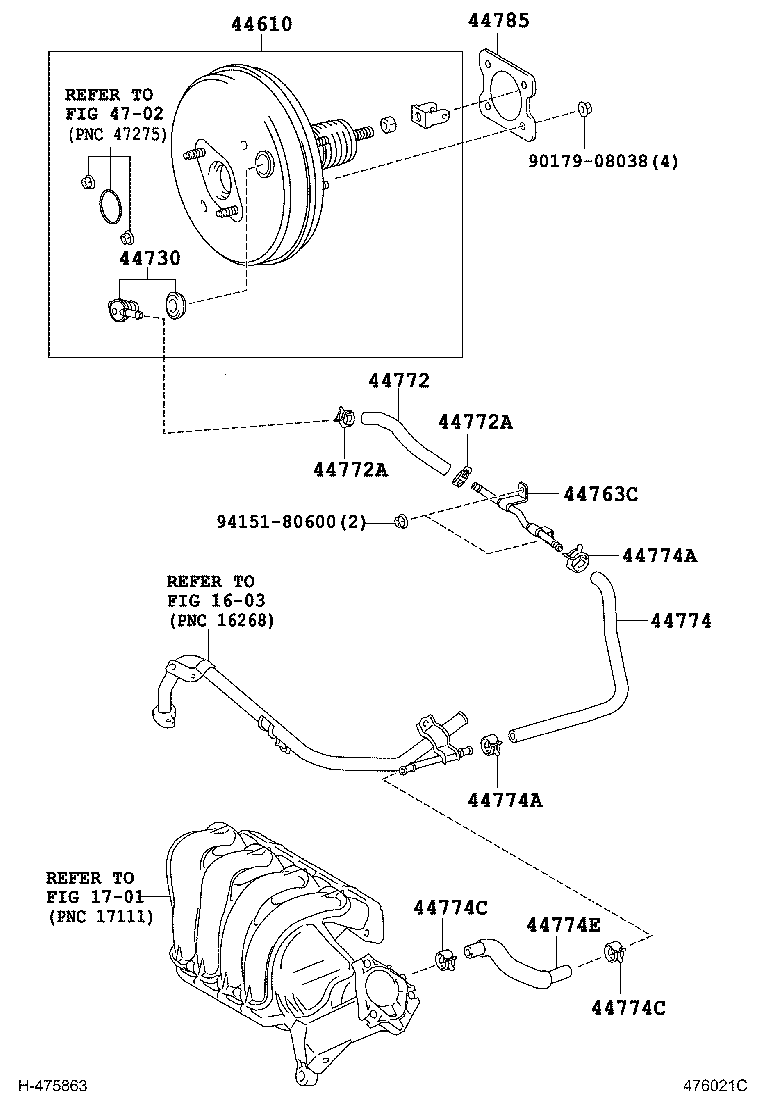

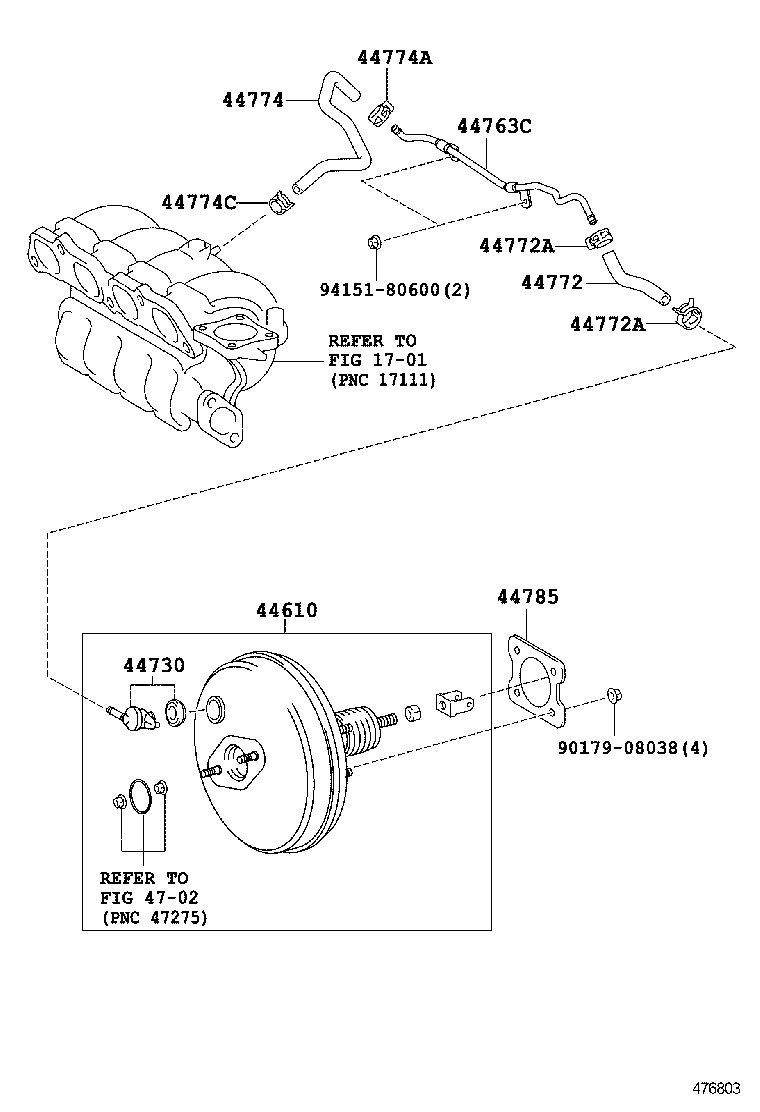

Figure 476019C 476019C 2007-07 → — Figure 476268B 476268B 2007-10 → — Figure 476269B 476269B 2007-10 → 2009-02 Figure 476802 476802 2009-02 → — Figure 476803 476803 2009-02 → — Figure 476804 476804 2009-02 → — Figure 476020D 476020D 2007-07 → — Figure 476270C 476270C 2007-10 → — Figure 476021C 476021C 2007-07 → 2009-02 Figure 476271B 476271B 2007-10 → 2009-02

Part groups

PNCDescription
44610 Booster Assy, Brake
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730H Valve Assy, Vacuum Check(FOR VACUUM RESERVOIR)
44763C Tube, Hose TO Hose, NO.2
44764R Tube, Connector TO Vacuum Reservoir
44772 Hose, Check Valve TO Connector Tube
44772A Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
44772B Hose, Check Valve TO Brake Booster
44774 Hose, Union TO Connector Tube
44774A Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44774C Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44774E Hose, Union TO Connector Tube
44785 Gasket, Brake Booster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
