Toyota Corolla (S.AFRICA)
2007-07 → 2019-11 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 164310 · General
Supported model
Data version 2019-12

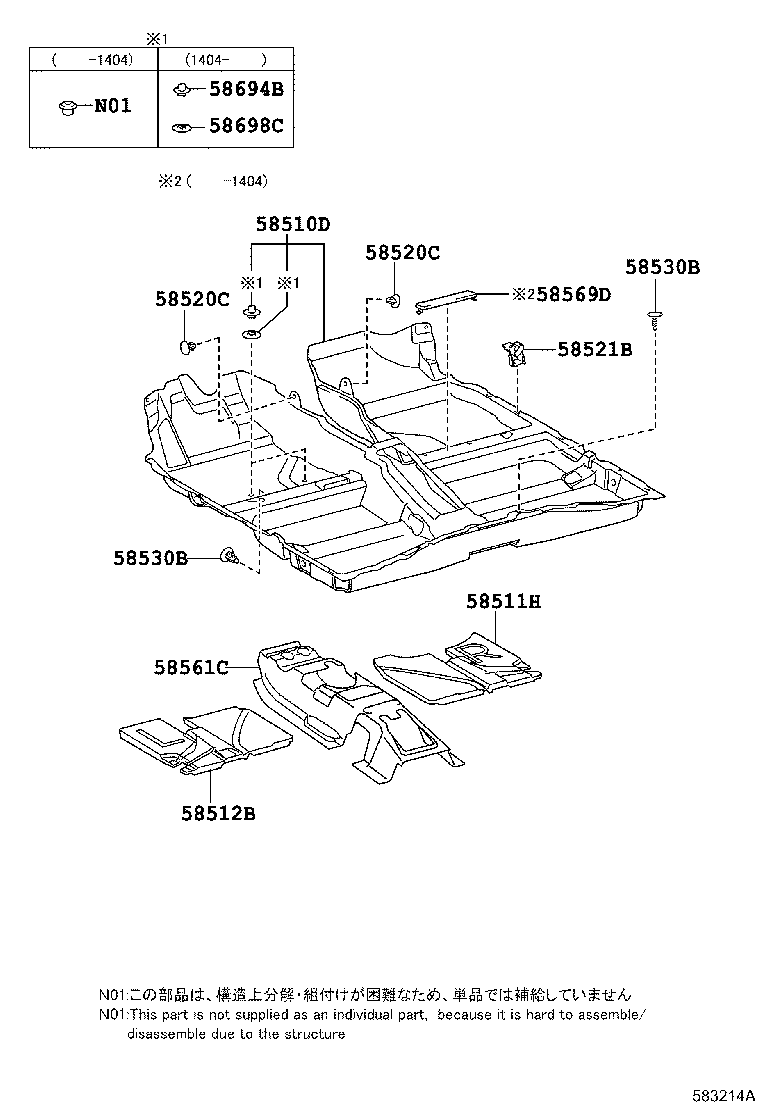

Mat & Carpet
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58510D | Carpet Assy, Floor, Front |
| 58511H | Mat, Floor, Front RH |
| 58512B | Mat, Floor, Front LH |
| 58520C | Clip(FOR FRONT FLOOR CARPET) |
| 58521B | Hook, Floor Carpet |
| 58530B | Clip(FOR FRONT FLOOR CARPET) |
| 58561C | Silencer, Front Floor, NO.1 |
| 58569D | Cover, Front Floor Caution Plate |
| 58694B | Plate, Mat Set, Upper |
| 58698C | Plate, Mat Set, Lower |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
