Console Box & Bracket

16 part groups · 2 illustrations

Illustrations

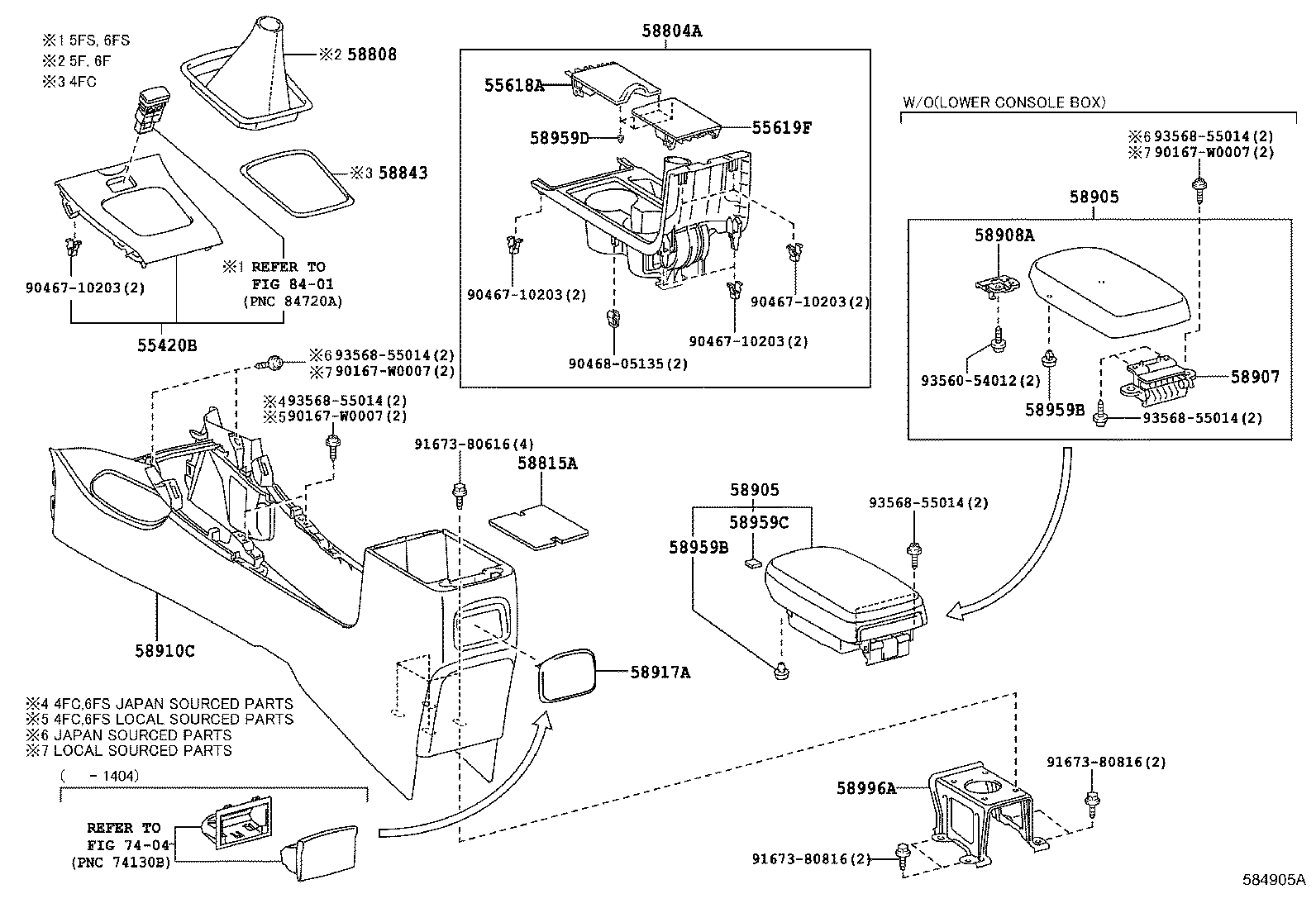

Figure 583064I 583064I 2007-07 → 2013-06 Figure 584905A 584905A 2013-06 → —

Part groups

PNCDescription
55420B Panel Assy, Instrument Cluster Finish, Center NO.1
55618A Holder, Console Box Cup
55619F Holder, Console Box Cup, NO.2
58804A Panel Sub-assy, Console, Upper
58808 Cover Sub-assy, Shifting Hole
58815A Carpet, Console Box
58843 Bezel, Shifting Hole
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58908A Lock Sub-assy, Console Compartment Door
58910C Box Assy, Console, Rear
58917A Cover, Console Box, Rear
58959B Cushion, Console Compartment Door
58959C Cushion, Console Compartment Door
58959D Cushion, Rear Console Box
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
