Battery Carrier

6 part groups · 2 illustrations

Illustrations

Figure 742529A

742529A 2007-07 → 2014-04

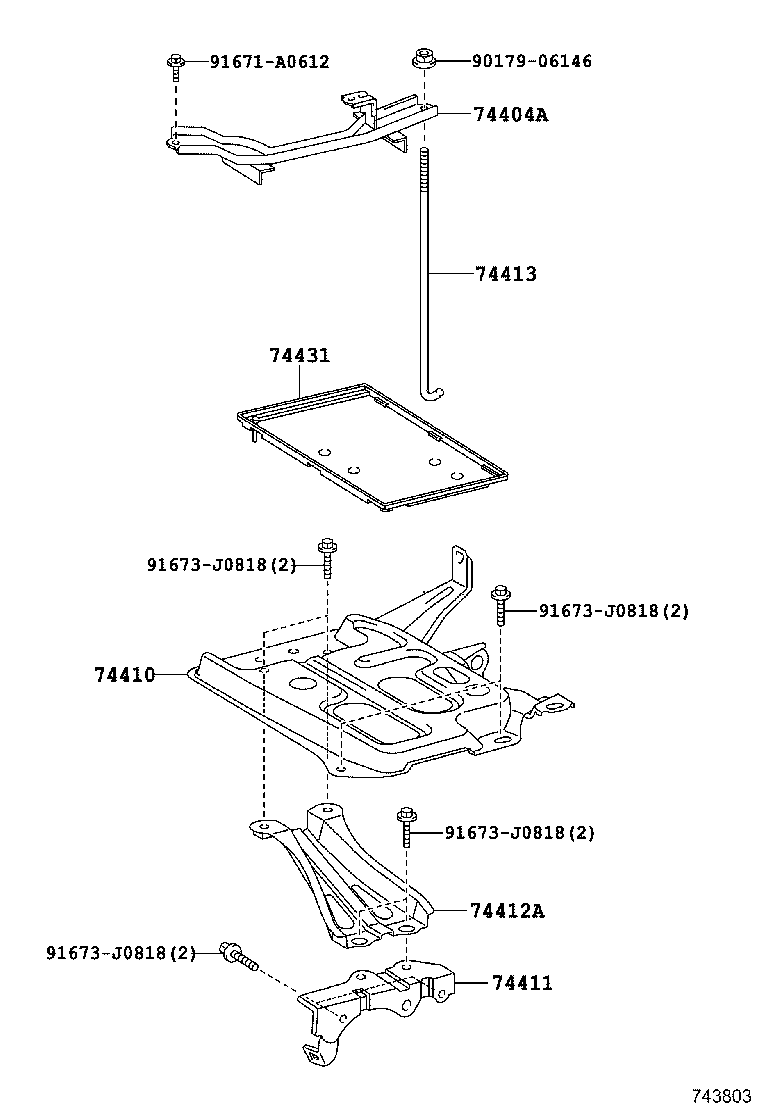

743803 2014-04 → —

Part groups

PNC	Description
74404A	Clamp Sub-assy, Battery
74410	Carrier Assy, Battery
74411	Carrier, Battery
74412A	Carrier, Battery, NO.2
74413	Bolt, Battery Clamp
74431	Tray, Battery

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
