Toyota Corolla (S.AFRICA)
2007-07 → 2019-11 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 164310 · General
Supported model
Data version 2019-12

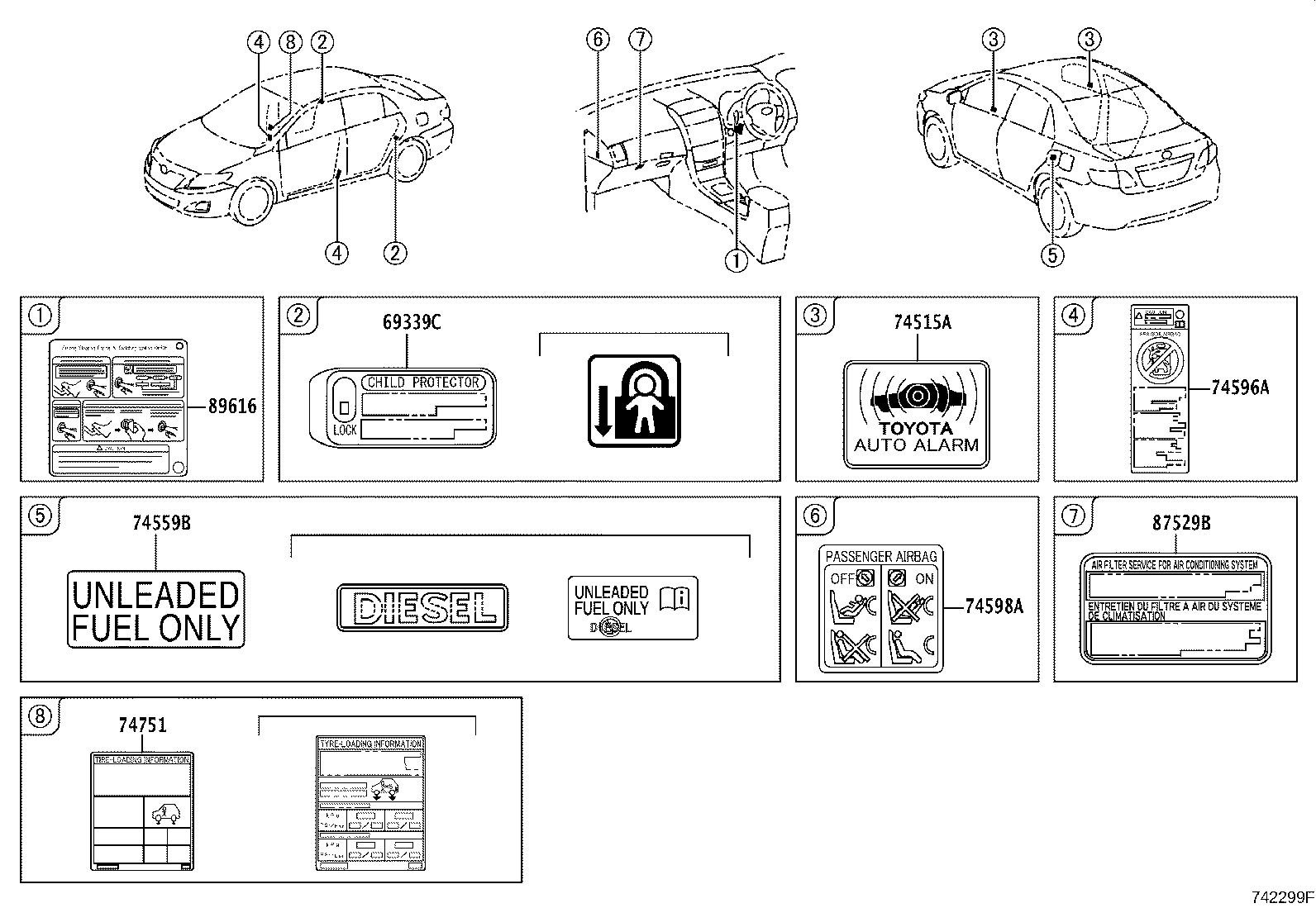

Caution Plate (EXTERIOR & INTERIOR)
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11295B | Label, Engine Service Notice, NO.1 |
| 69339C | Label, Child Protector Information |
| 74515A | Plate, Theft Warning |
| 74559B | Label, Fuel Information |
| 74567A | Plate, E.C.E Approved Number |
| 74596A | Label, Side Airbag Caution |
| 74598A | Label, Passenger Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 87529B | Label, A/C Filter Information |
| 88723E | Label, Cooler Service Caution |
| 89616 | Label, Push Start Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
