Toyota Corolla (S.AFRICA)

2007-07 → 2019-11 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 164310 · General

Supported model Data version 2019-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

8 part groups · 3 illustrations

Illustrations

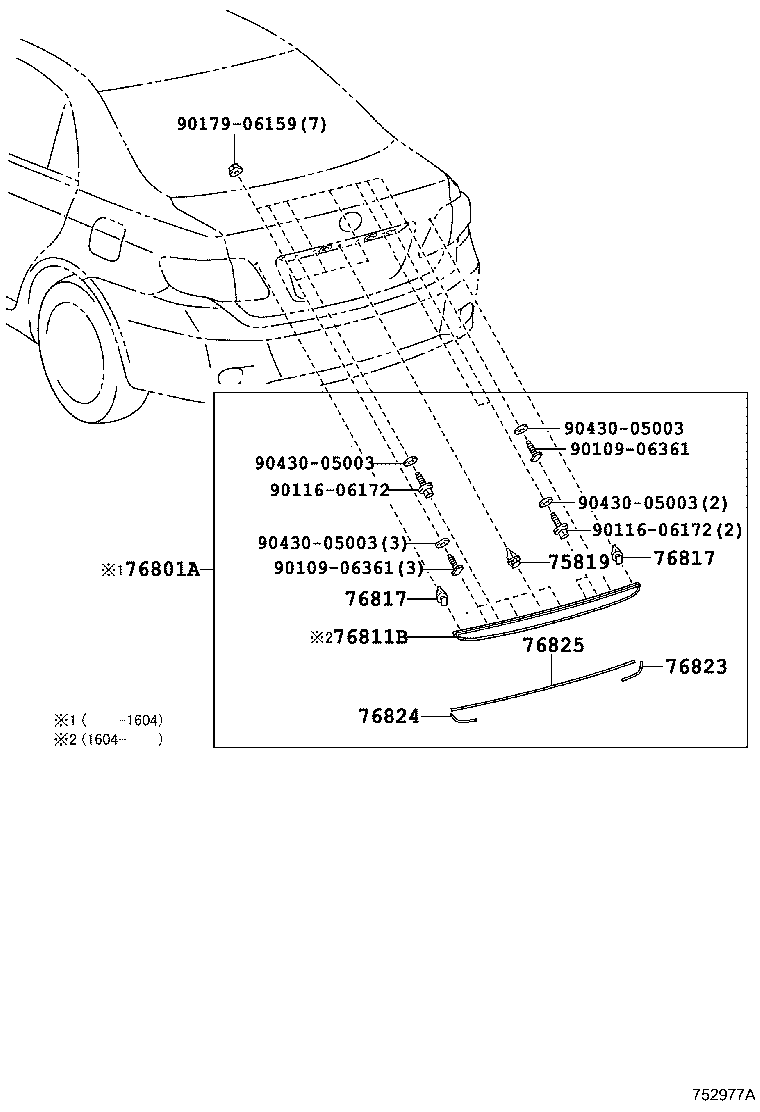

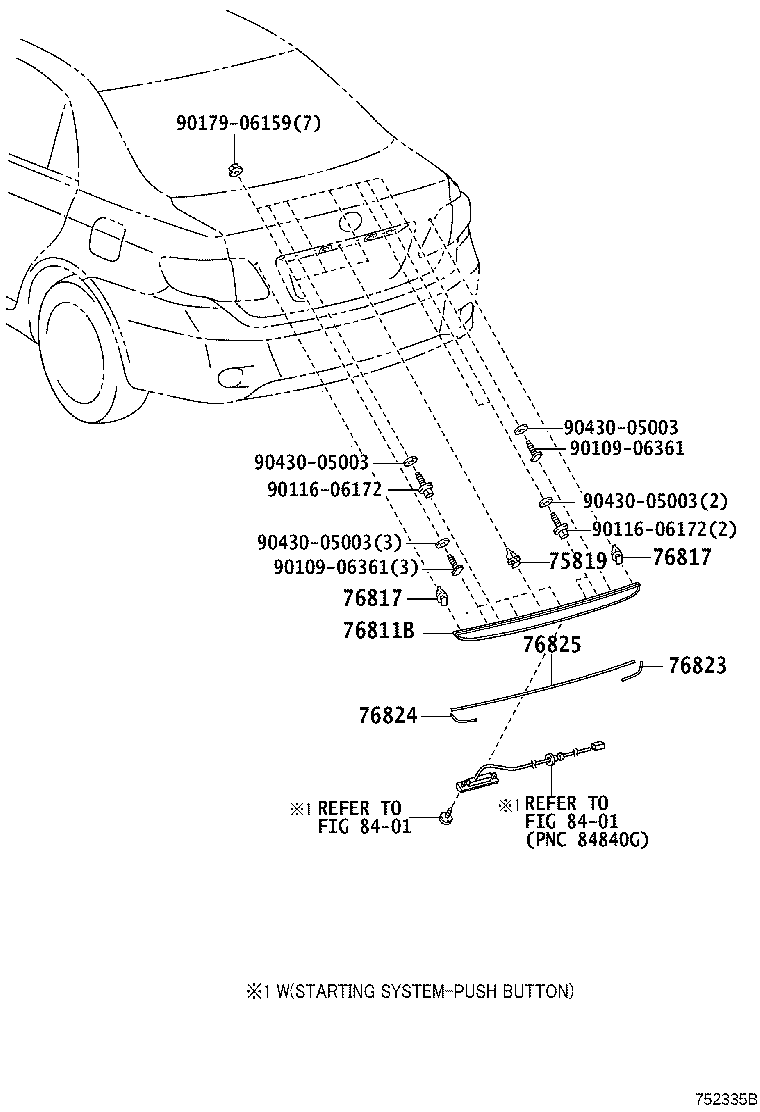

Figure 751935C 751935C 2007-07 → 2010-06 Figure 752335B 752335B 2010-06 → 2014-04 Figure 752977A 752977A 2014-04 → —

Part groups

PNCDescription
75819 Clip, Luggage Compartment Door Moulding
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
76811B Garnish, Luggage Compartment Door, Outside
76817 Clip, Back Door Outside Garnish
76821 Protector, Back Door Garnish Moulding, Upper
76823 Protector, Back Door Garnish Moulding, RH
76824 Protector, Back Door Garnish Moulding, LH
76825 Protector, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
