Toyota Corolla (S.AFRICA)
2007-07 → 2019-11 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 164310 · General
Supported model
Data version 2019-12

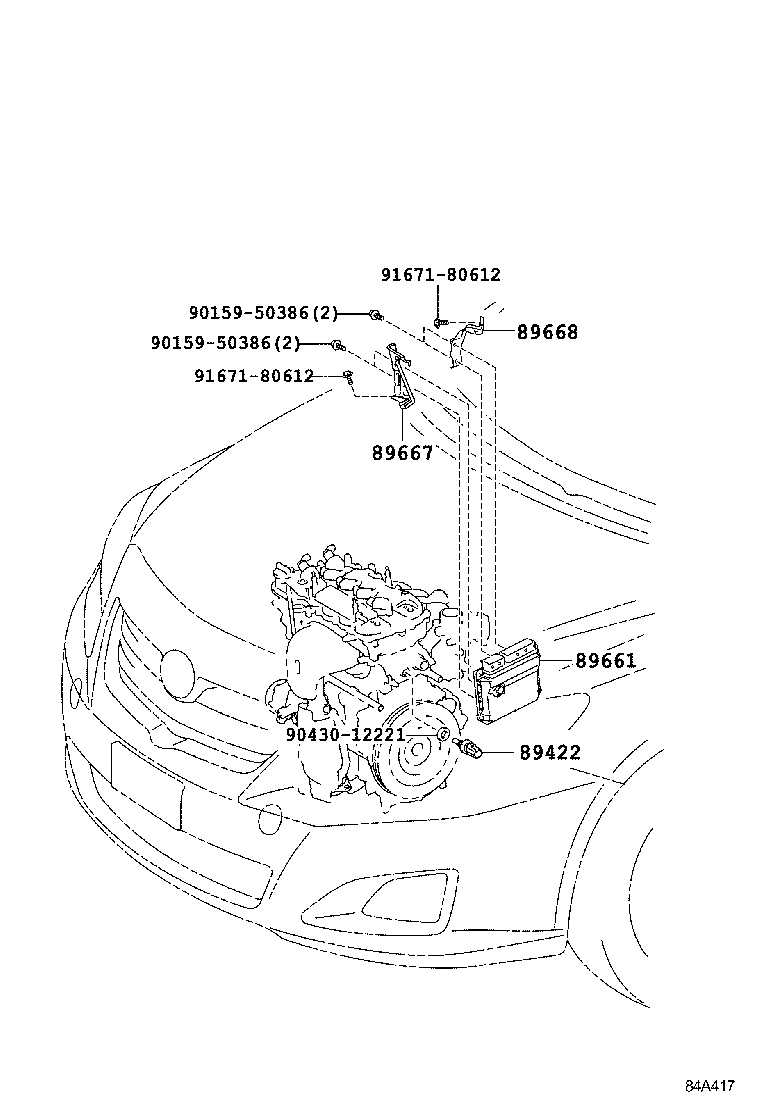

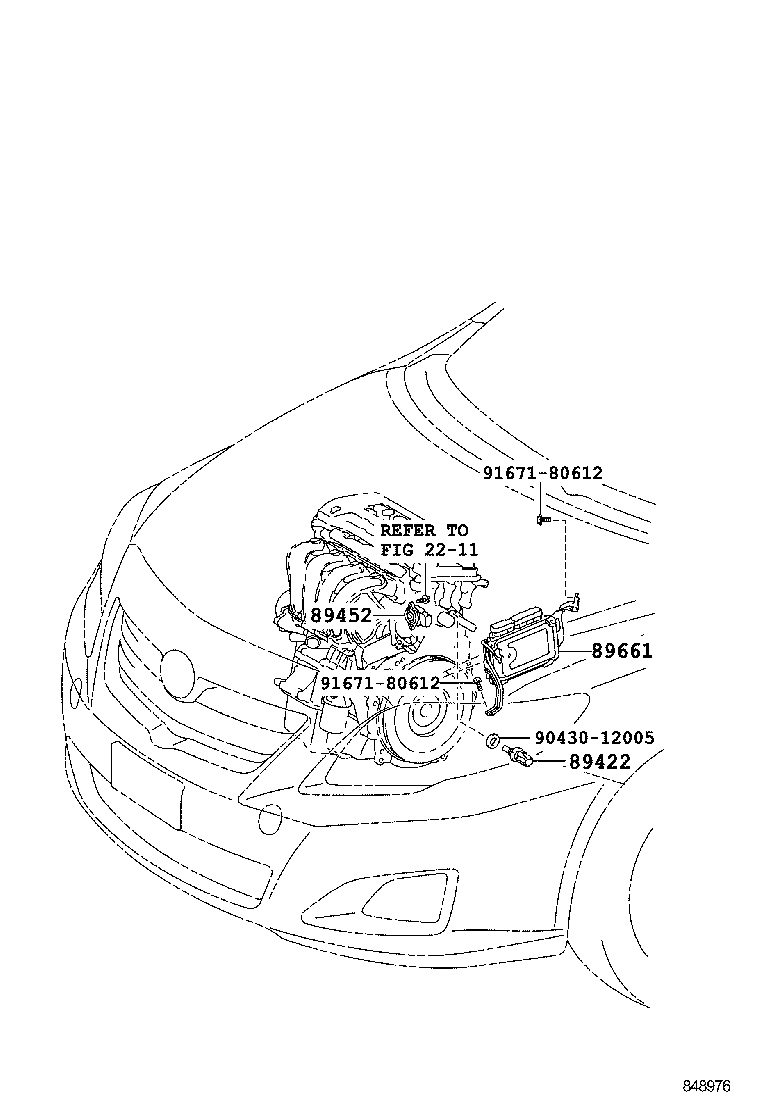

Electronic Fuel Injection System
5 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89452 | Sensor, Throttle Position (FOR E.F.I.) |
| 89661 | Computer, Engine Control |
| 89667 | Bracket, Engine Control Computer |
| 89668 | Bracket, Engine Control Computer, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
