Toyota Corolla (S.AFRICA)

2007-07 → 2019-11 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 164310 · General

Supported model Data version 2019-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

7 part groups · 2 illustrations

Illustrations

Figure 848965B

848965B 2007-07 → 2014-04

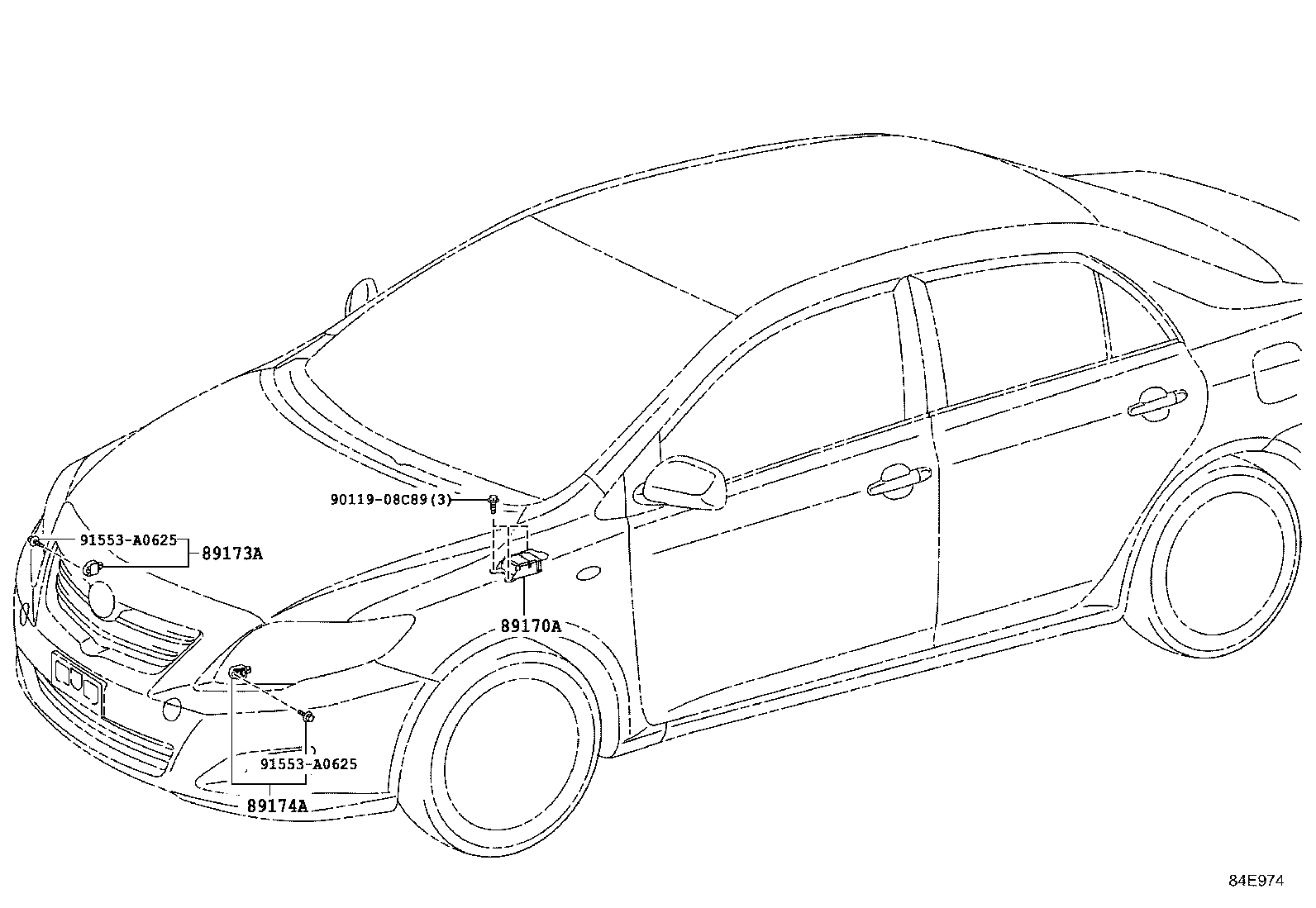

Figure 84E974

84E974 2014-04 → —

Part groups

PNC	Description
89170A	Computer Assy, Airbag
89173A	Sensor, Airbag, Front RH
89174A	Sensor, Airbag, Front LH
89833	Sensor, Airbag, Rear RH
89834	Sensor, Airbag, Rear LH
89860	Sensor Assy, Side Airbag, RH
89860A	Sensor Assy, Side Airbag, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
