Toyota Corolla (S.AFRICA)
2007-07 → 2019-11 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 164310 · General
Supported model
Data version 2019-12

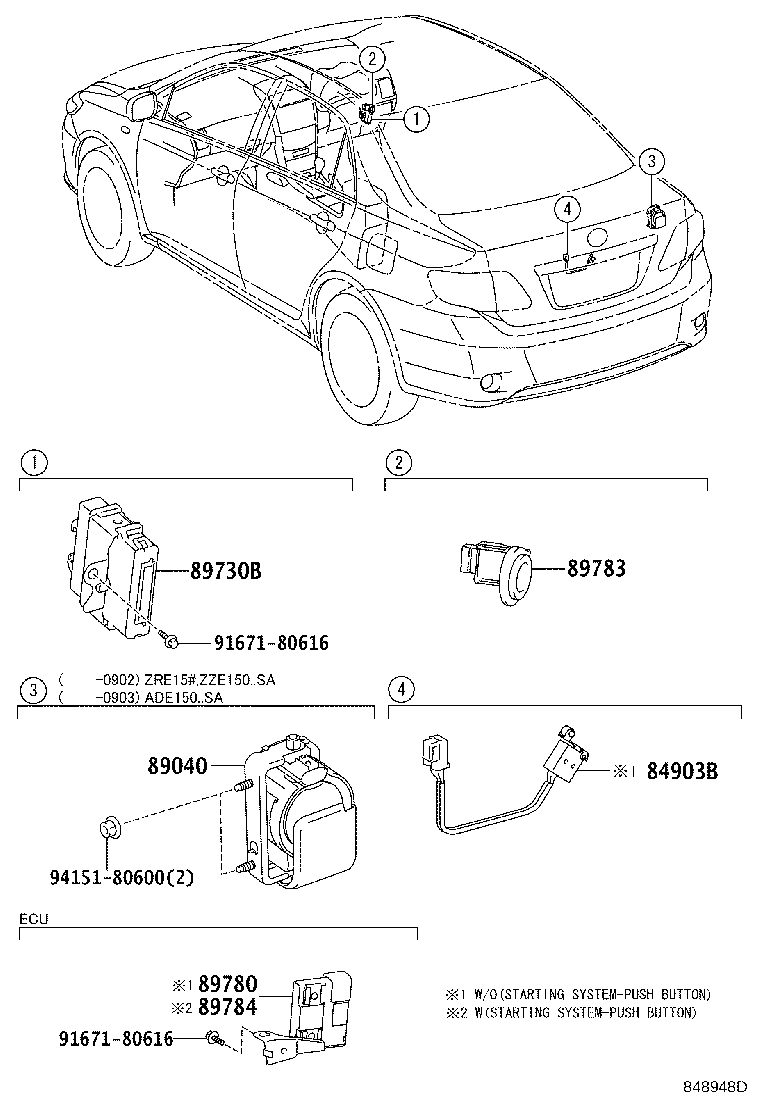

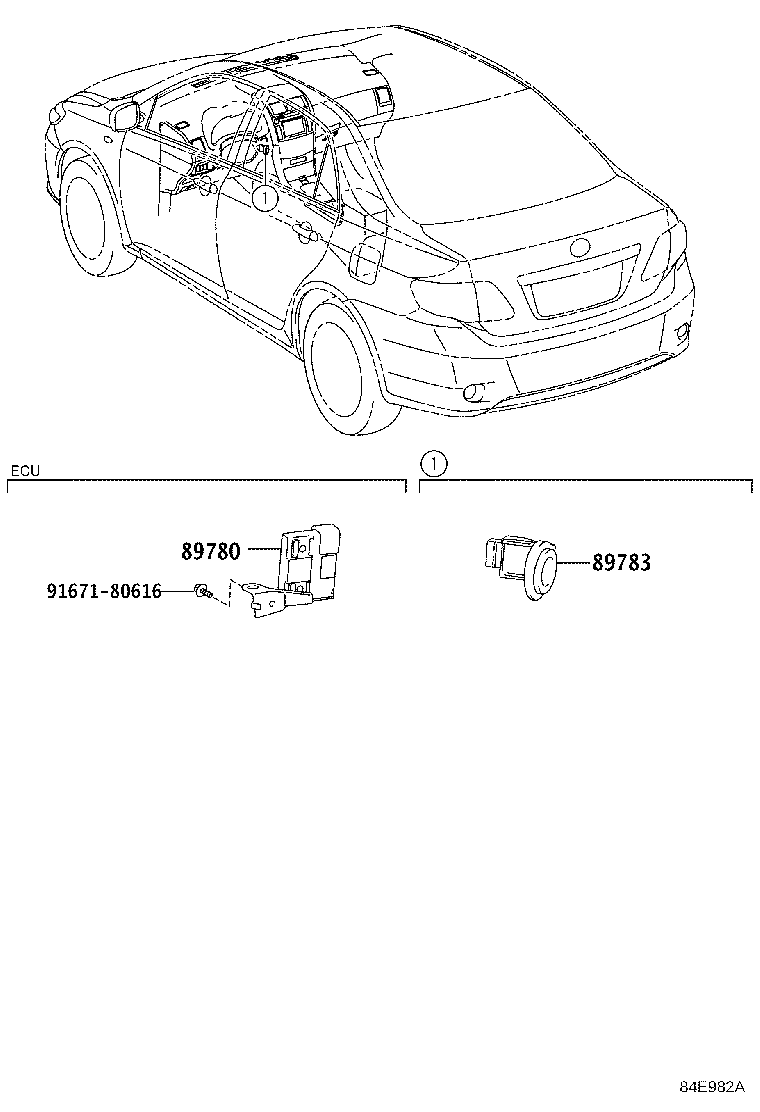

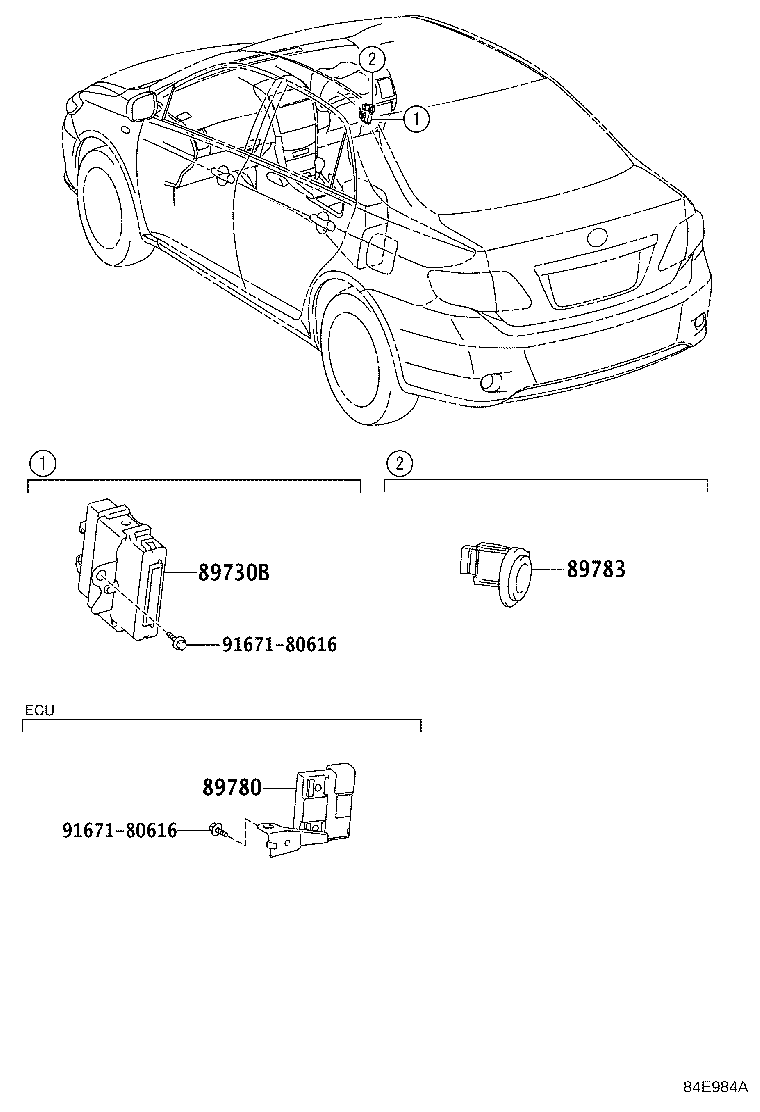

Anti-theft Device
6 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 84903B | Switch Sub-assy, Door Unlock |
| 89040 | Siren Assy, Theft Warning |
| 89730B | Computer Assy, Theft Warning |
| 89780 | Computer Assy, Transponder Key |
| 89783 | Amplifier, Transponder Key |
| 89784 | Computer, Immobilizer Code |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
