Heating & Air Conditioning - Water Piping

7 part groups · 6 illustrations

Illustrations

Figure 879468D

879468D 2007-07 → —

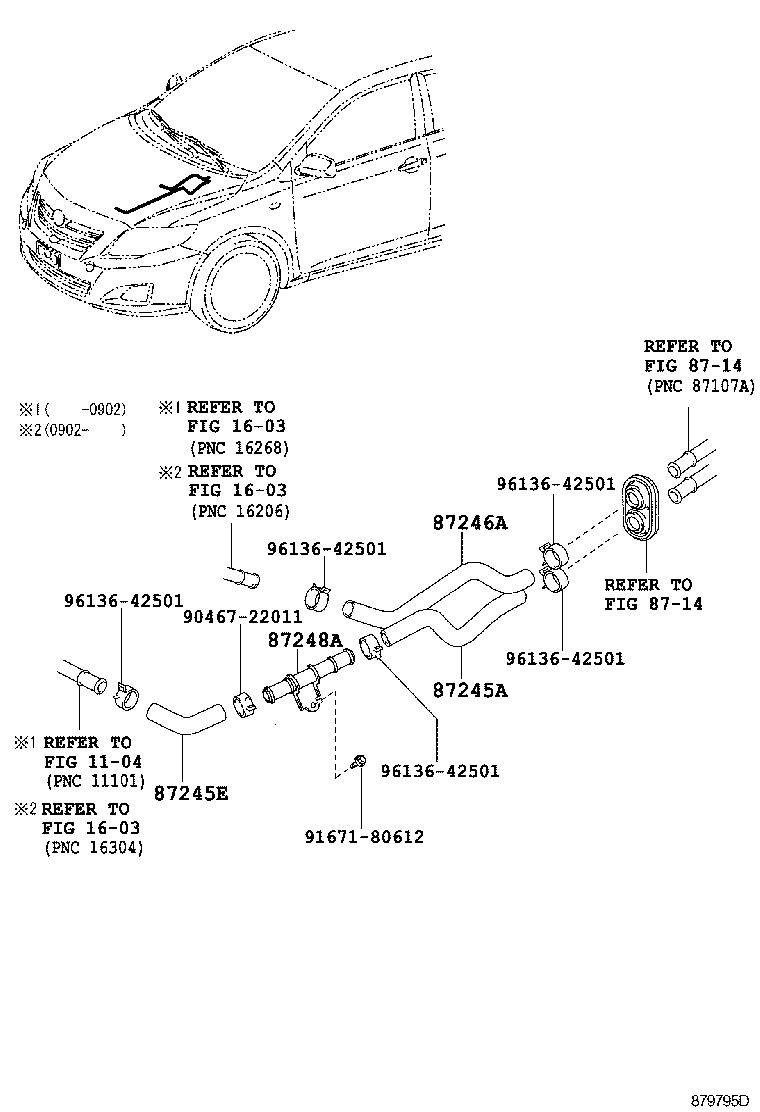

Figure 879795D

879795D 2007-10 → —

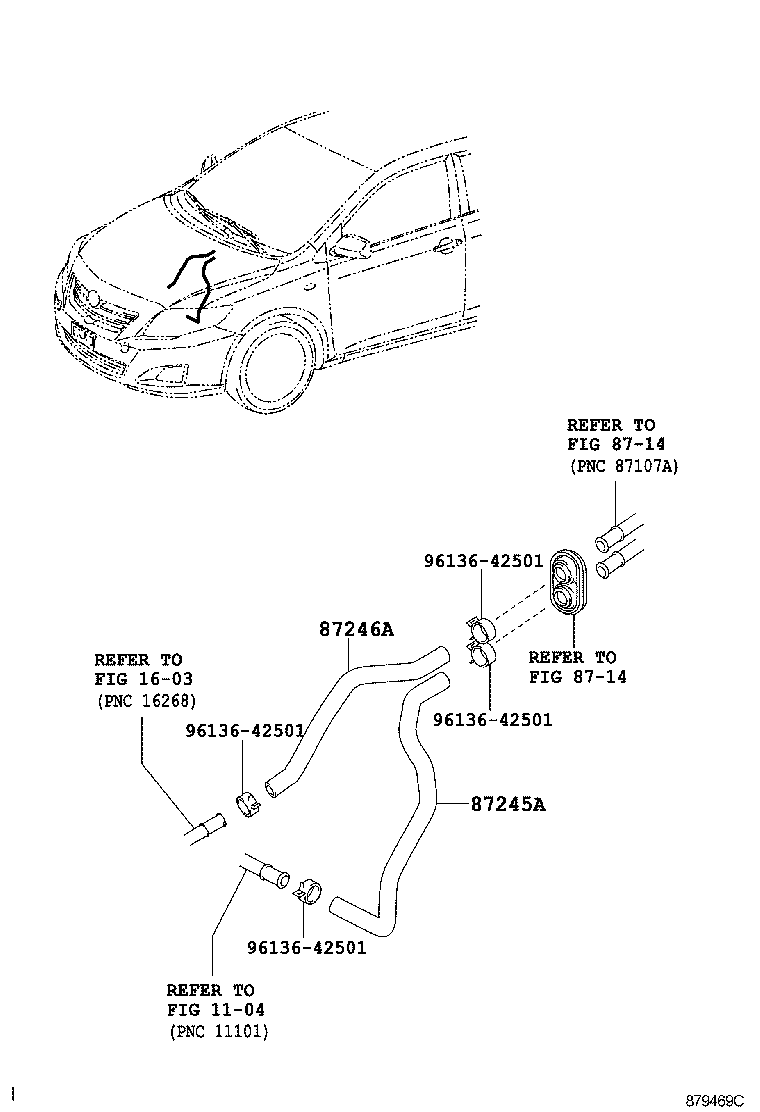

Figure 879469C

879469C 2007-07 → —

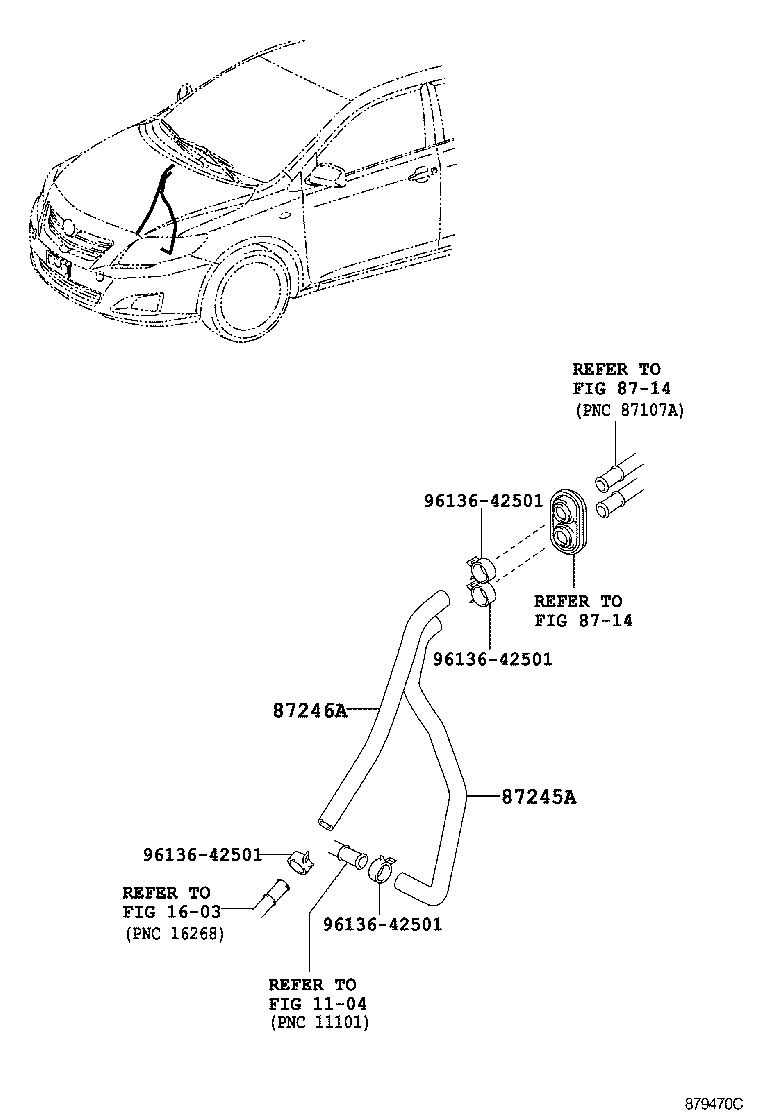

Figure 879470C

879470C 2007-07 → 2009-02

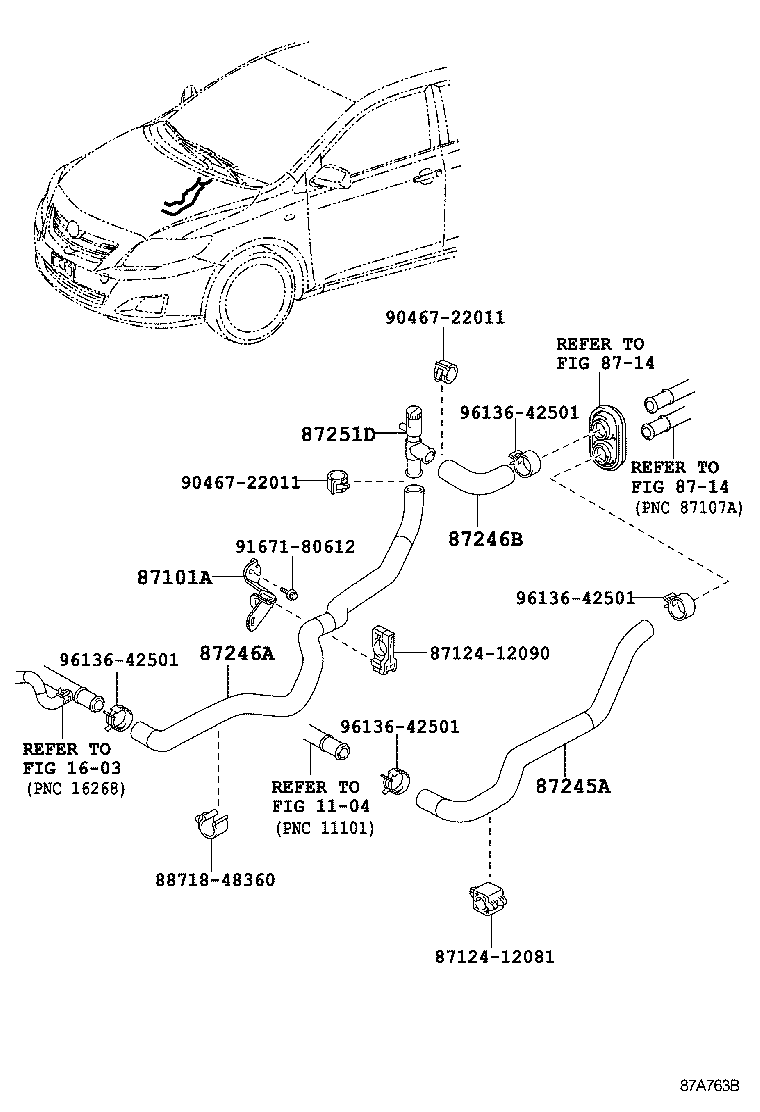

Figure 87A763B

87A763B 2009-02 → —

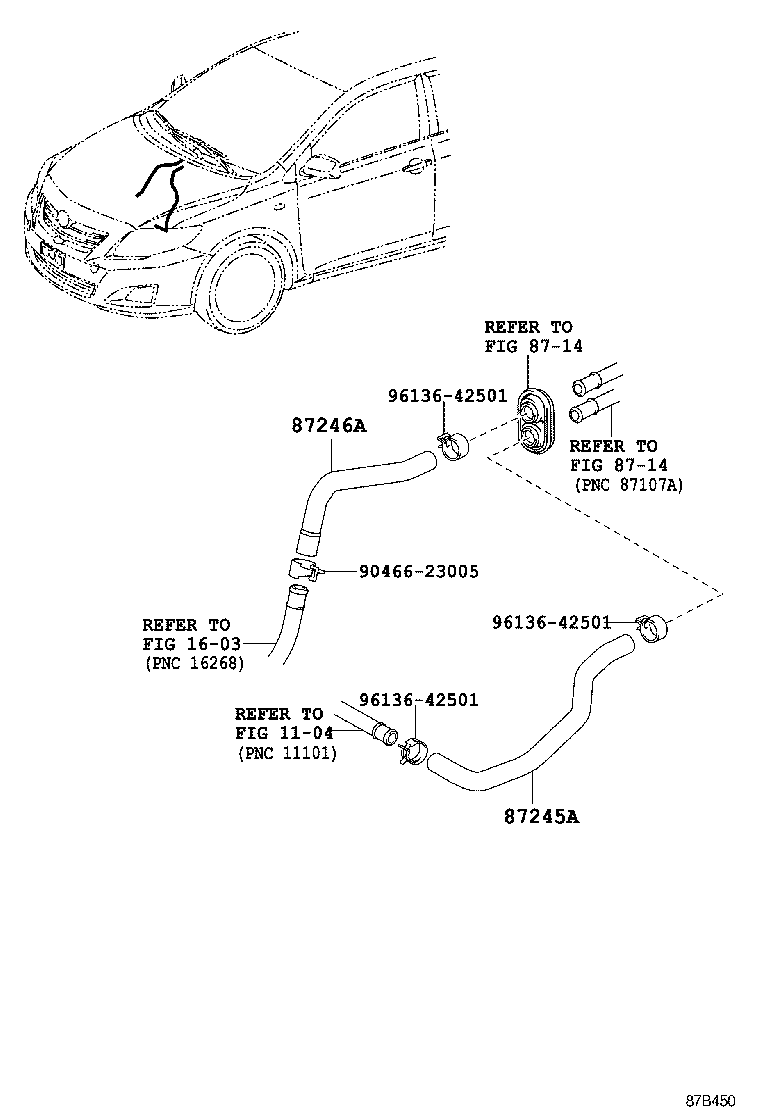

Figure 87B450

87B450 2010-06 → —

Part groups

PNC	Description
87101A	Bracket Sub-assy, Heater NO.1
87245A	Hose, Heater Water, Inlet A
87245E	Hose, Heater Water, Inlet E
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87248A	Pipe, Heater Water Inlet, A
87251D	Joint, Water, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
